Except Double Cab







2UZ-FE:

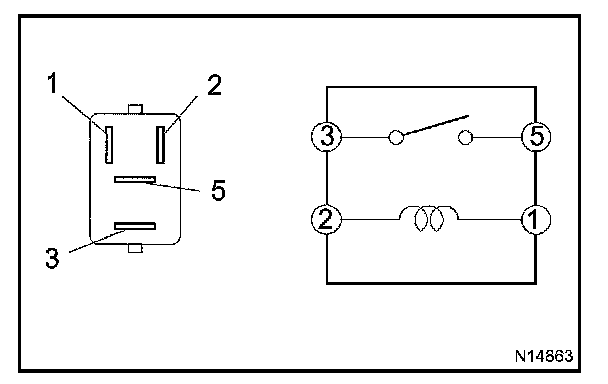

INSPECT ACC CUT RELAY CONTINUITY

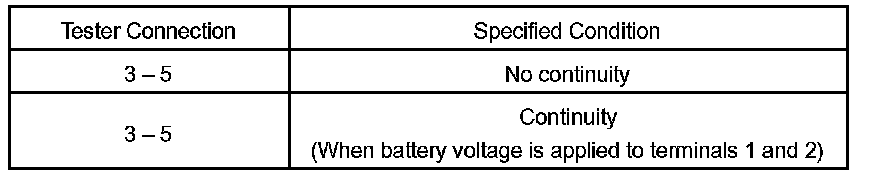

If the continuity is not as specified, replace the relay.
