Multiple Junction Connector: Locations

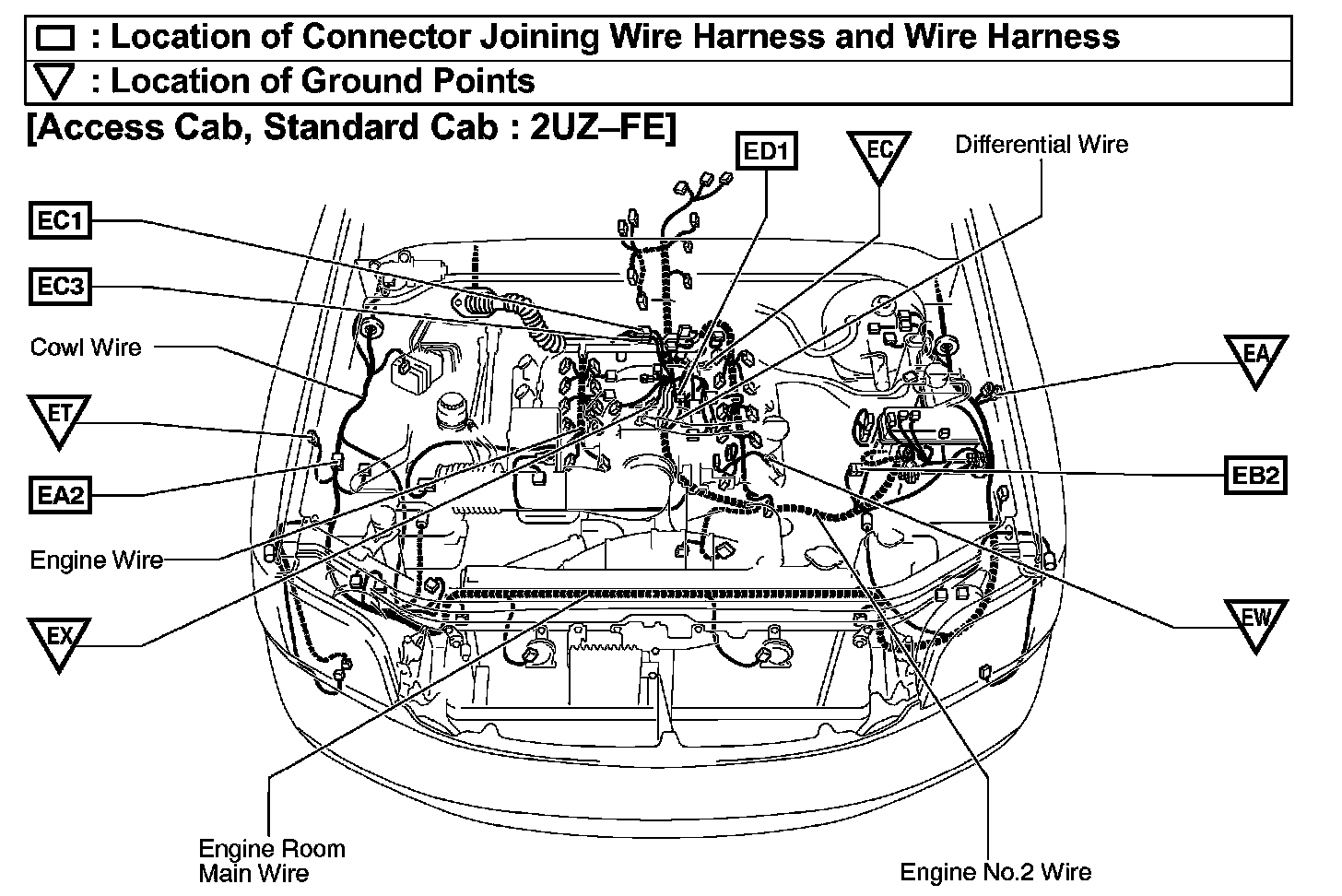

EA - EX:

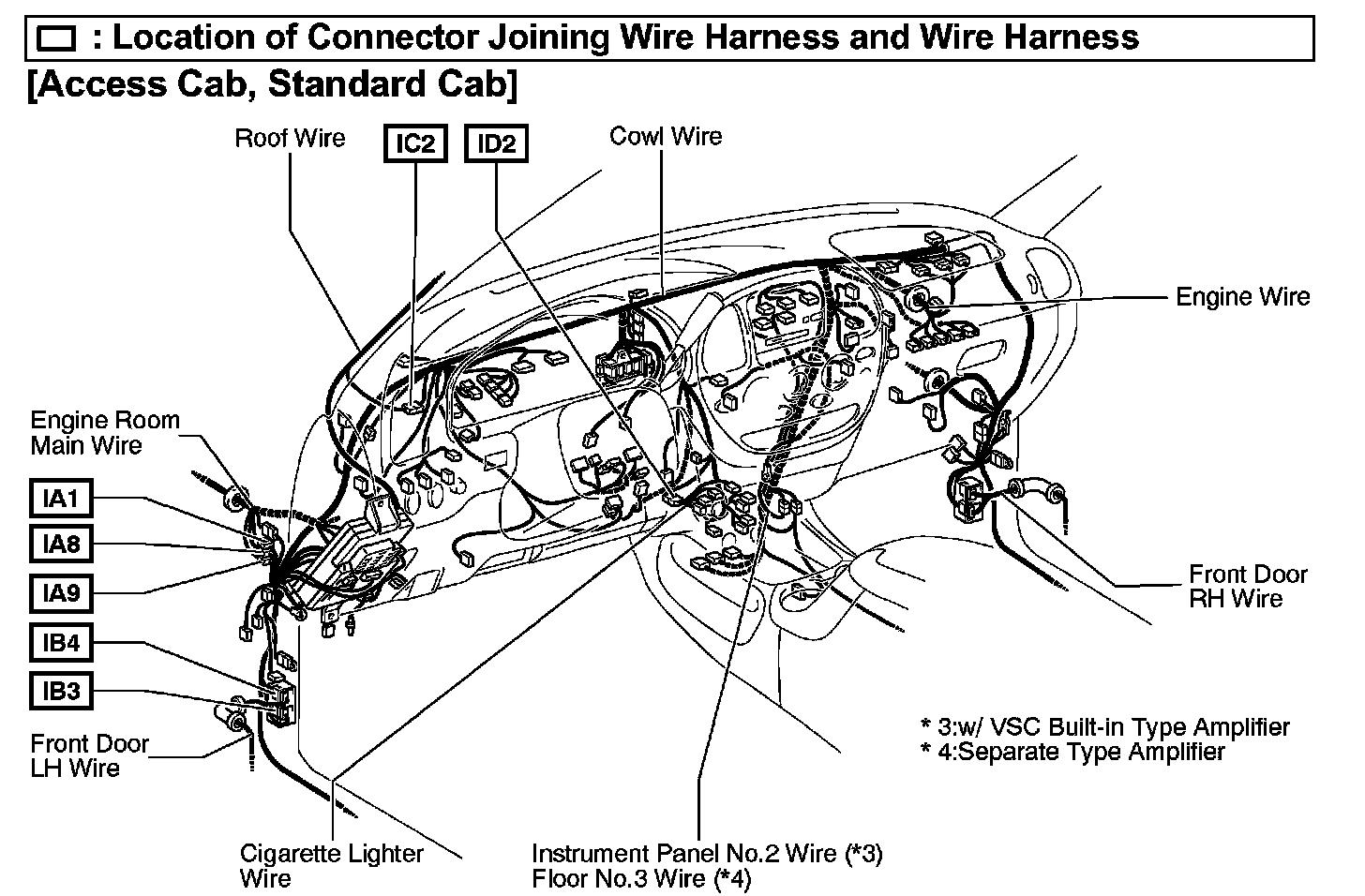

IA1 - ID2:

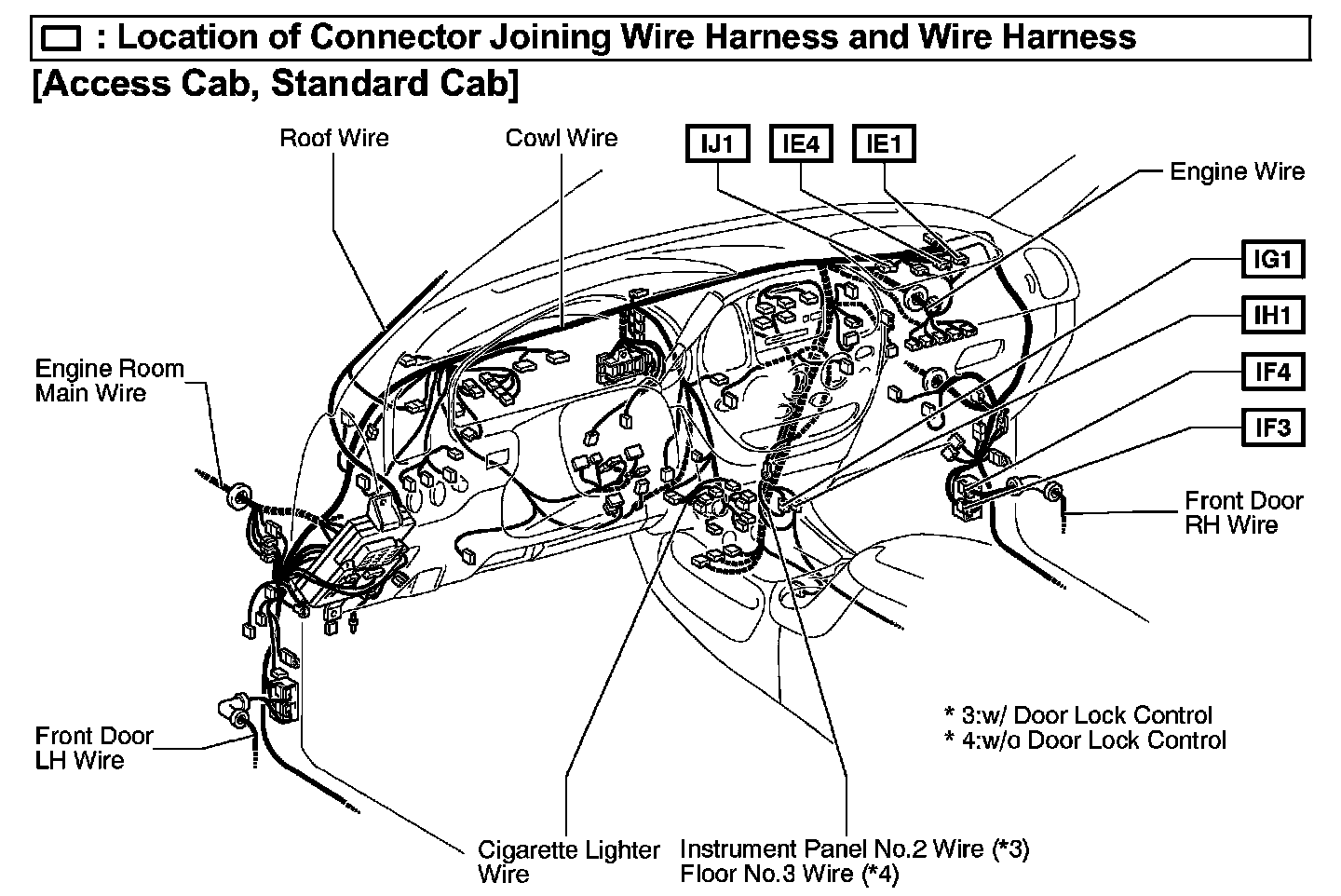

IE1 - IJ1:

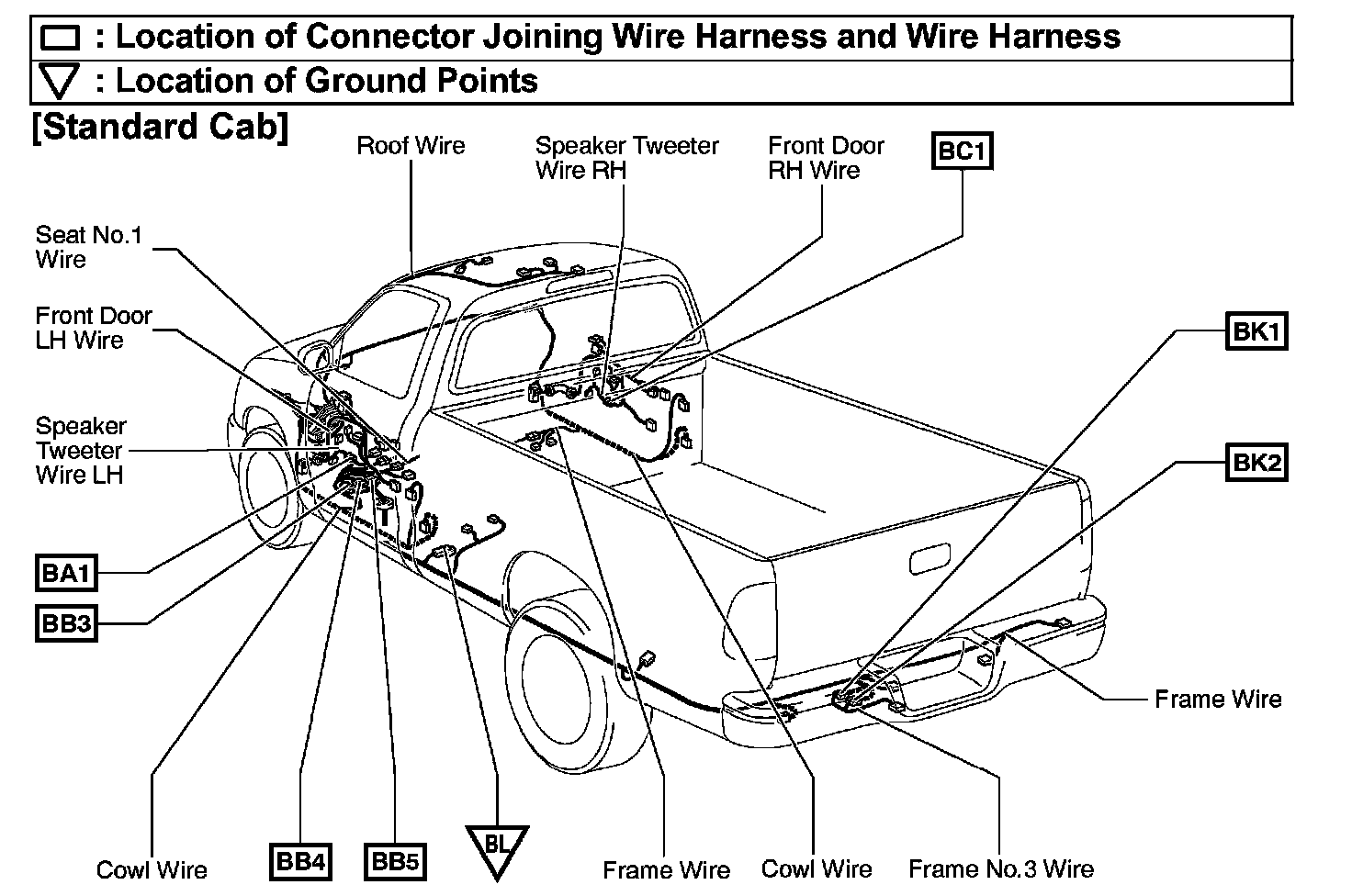

BC1 - BJ:

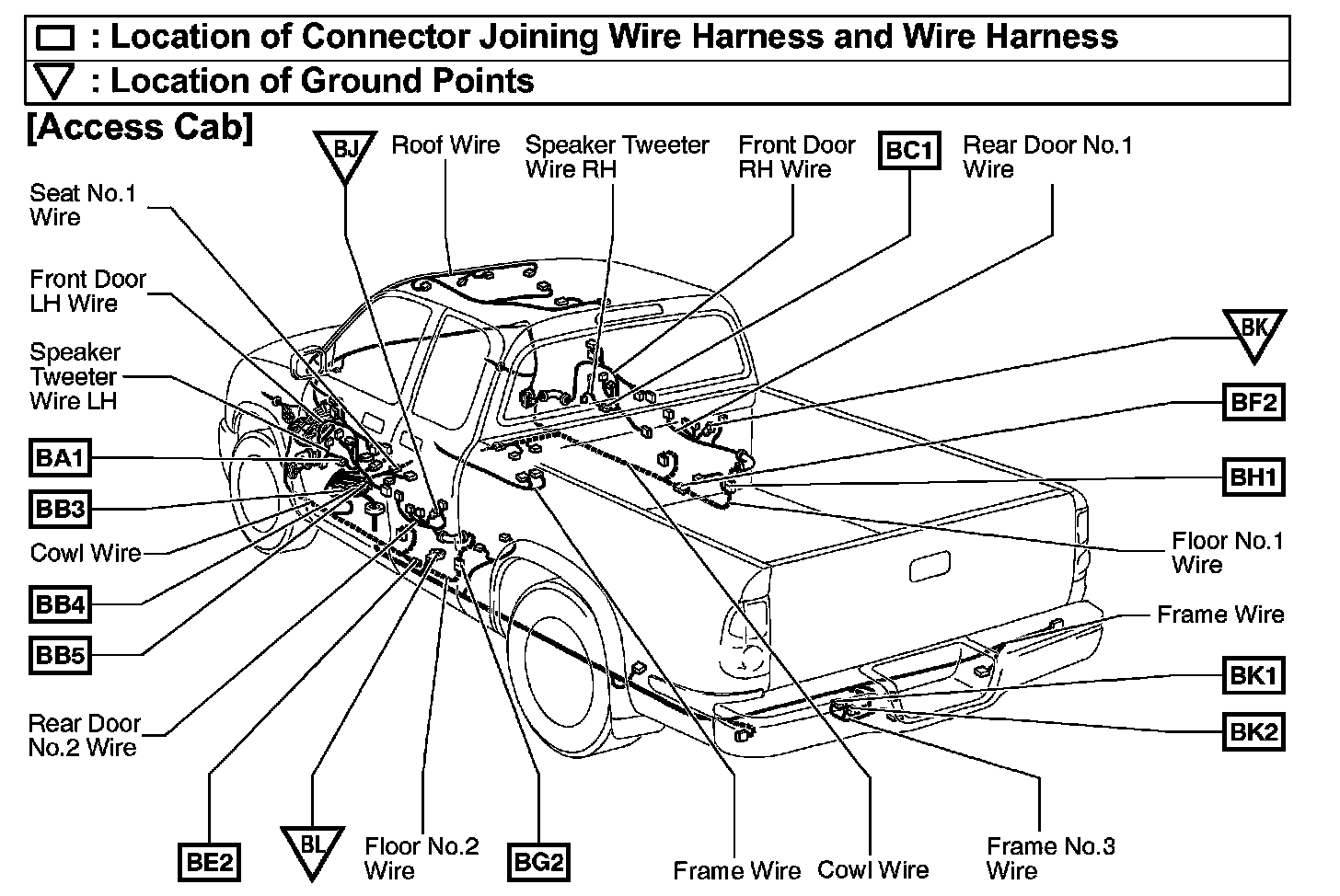

BB4 - BL:
BI2 - BN:

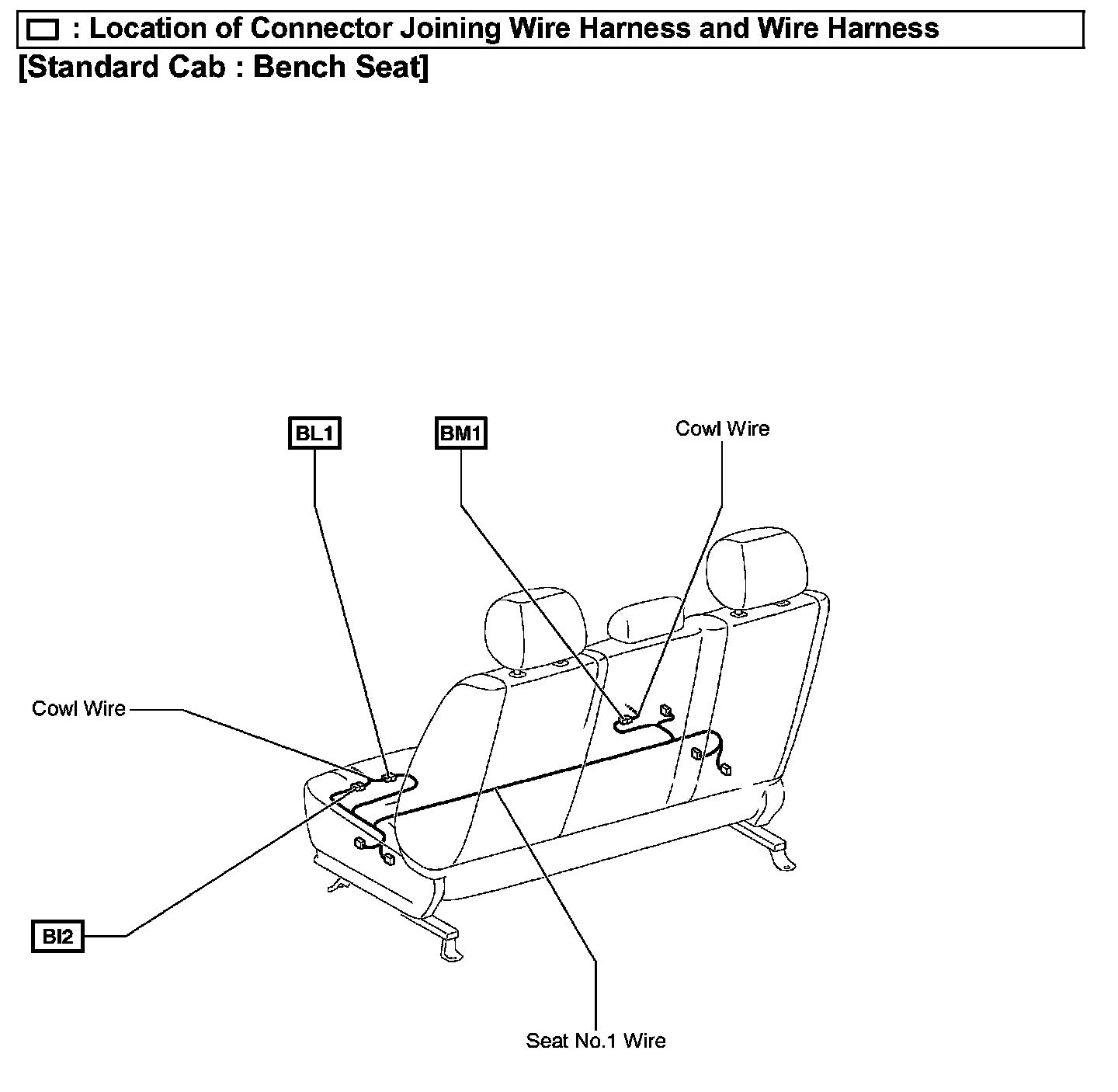

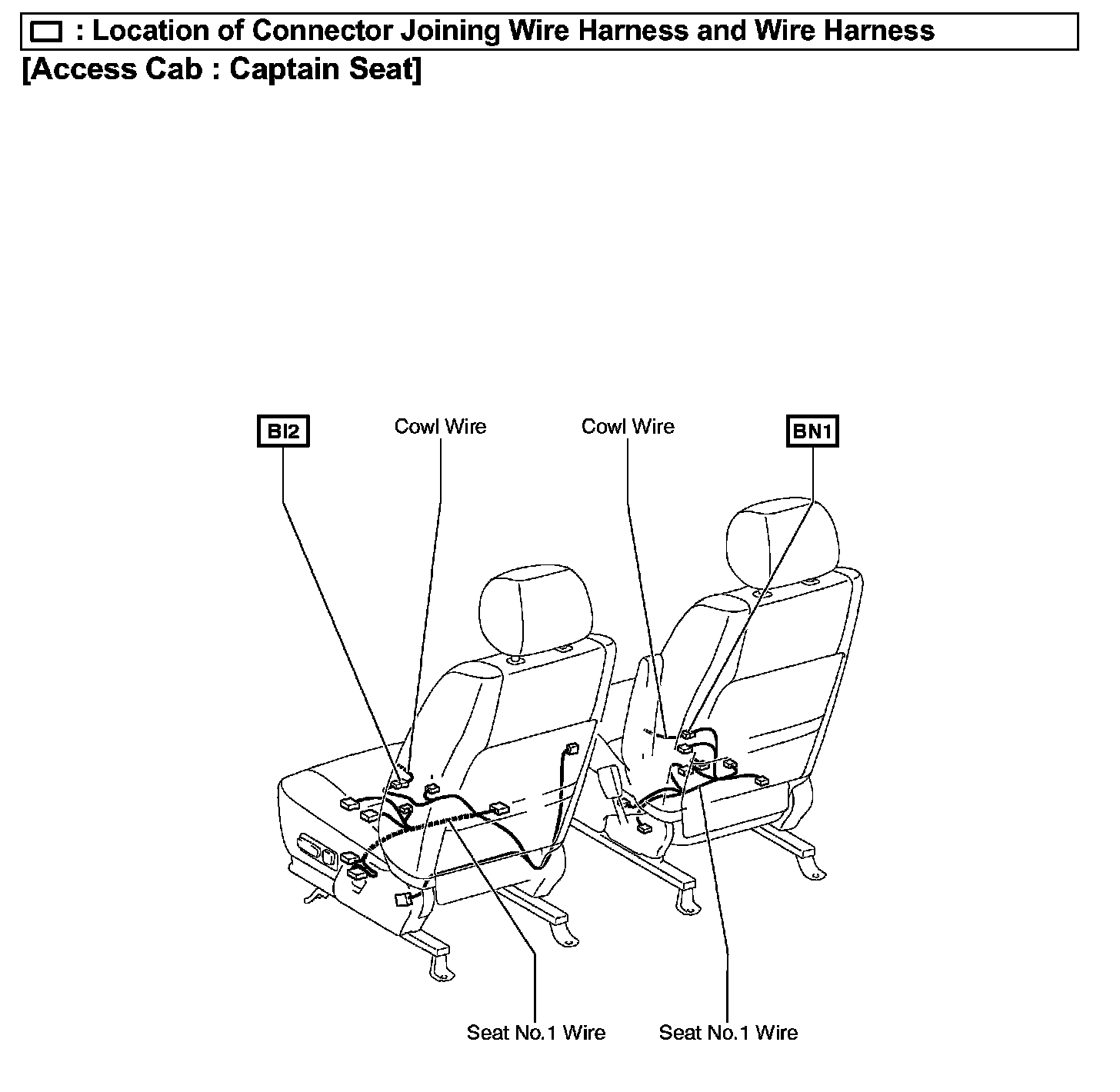

BI2 - BM1:

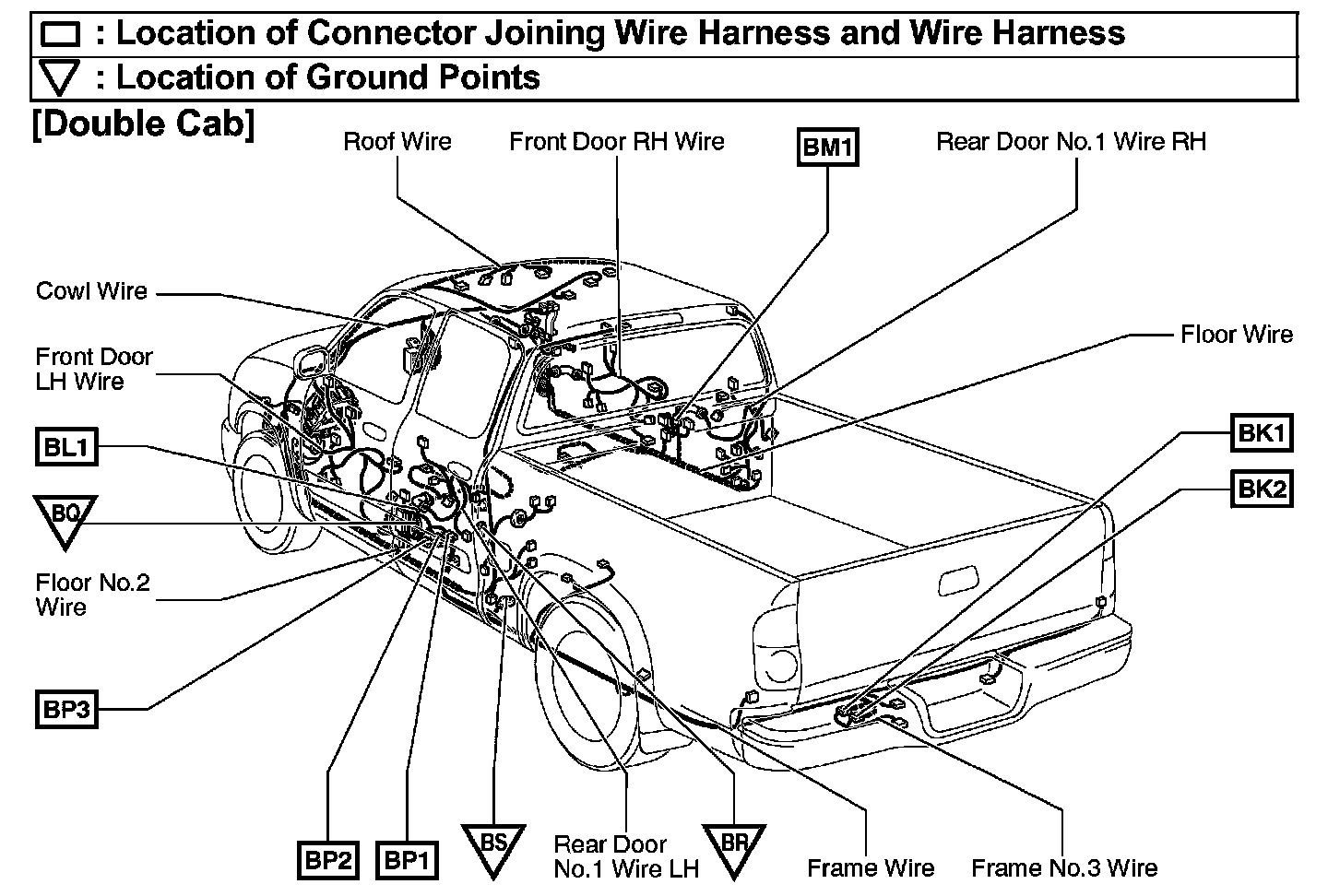

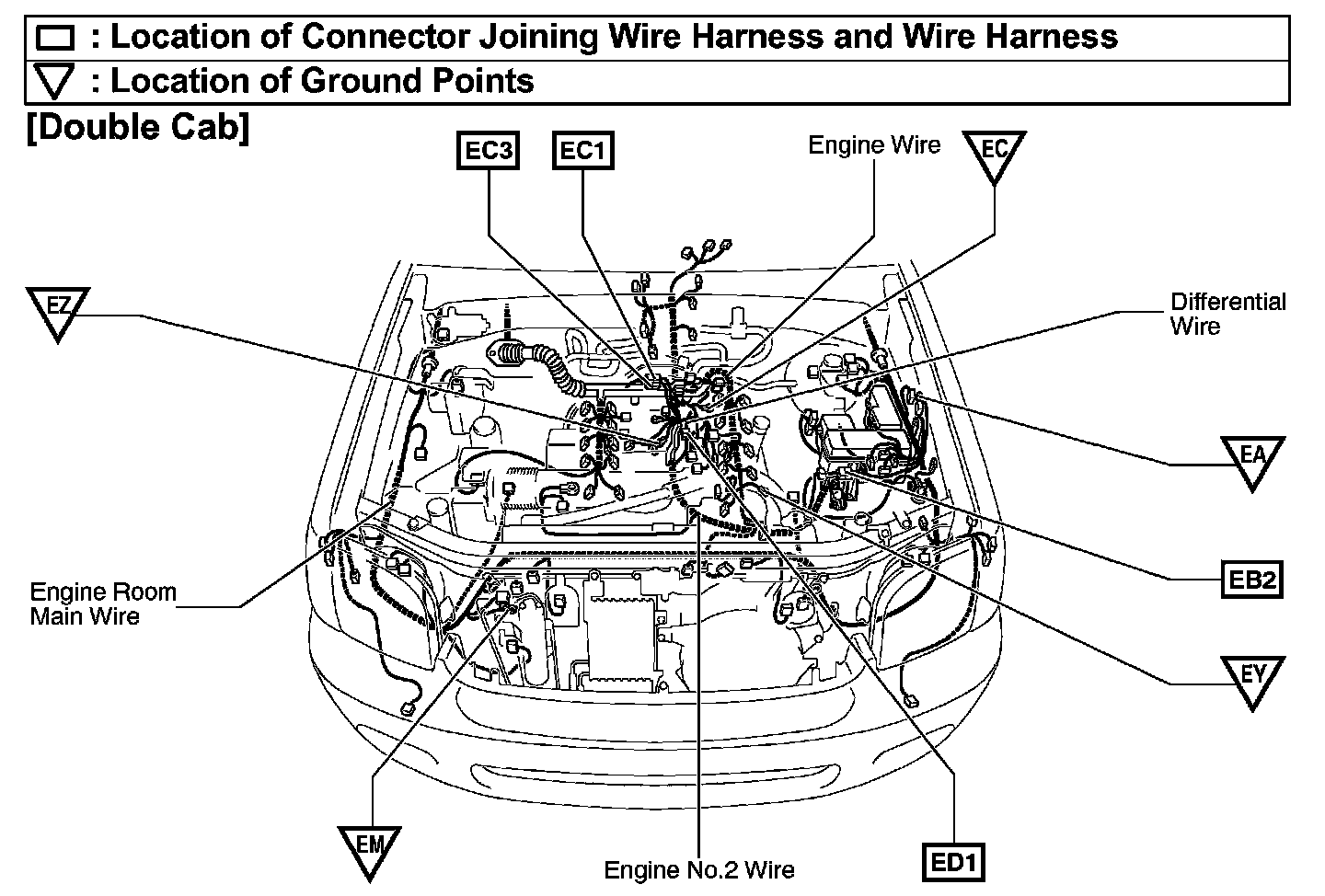

EA - EZ:

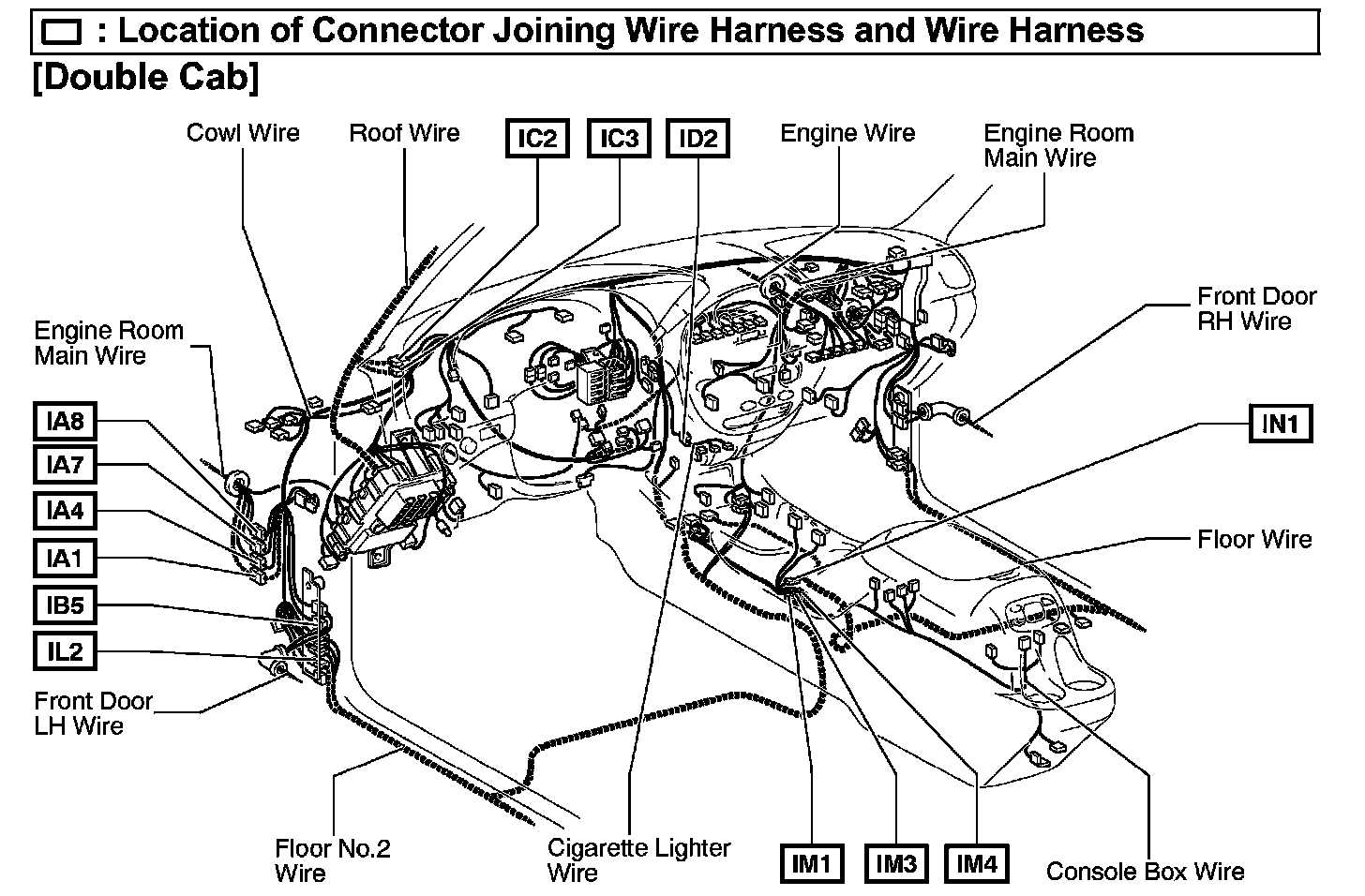

IA1 - IN1:

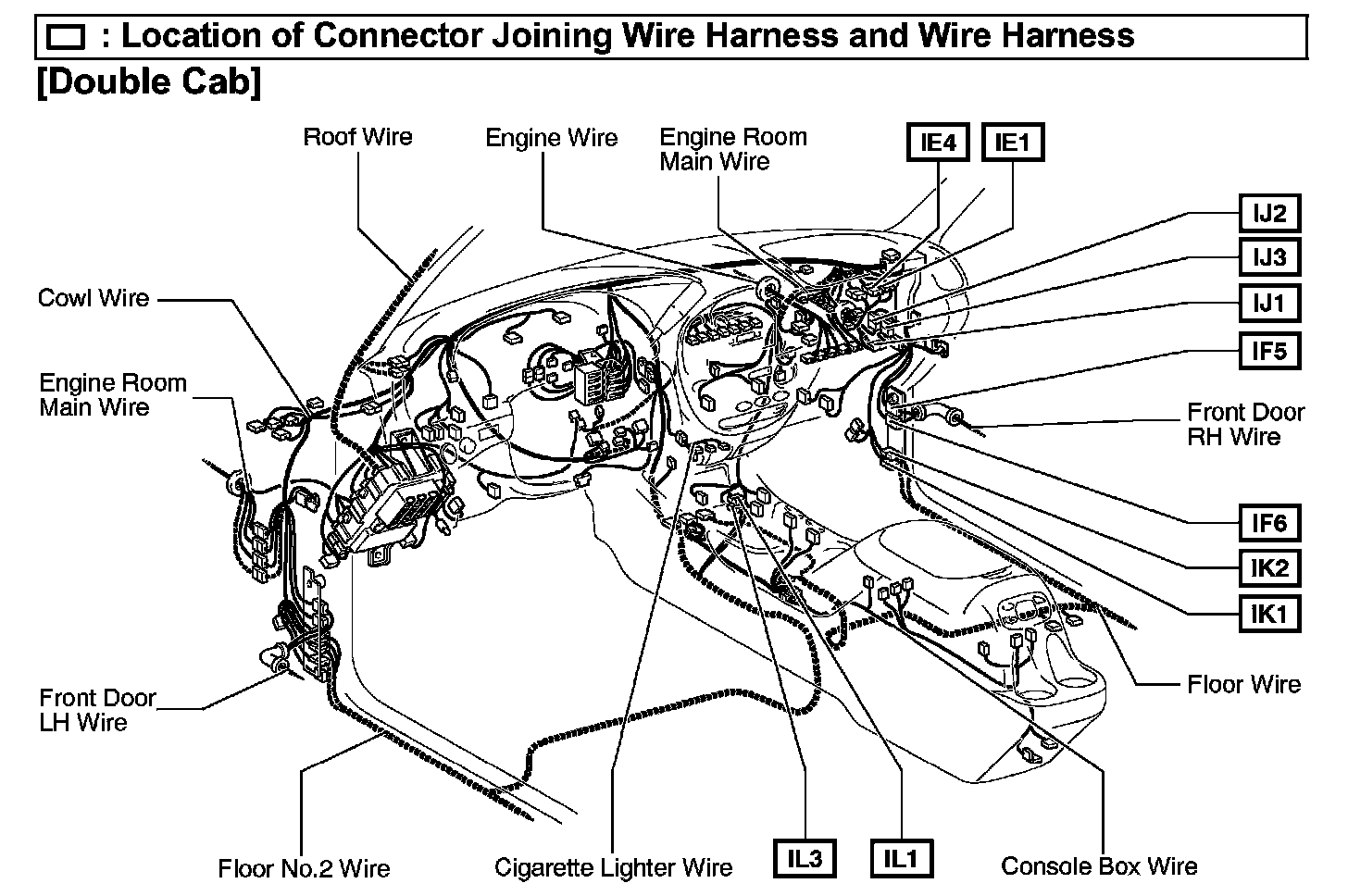

IE1 - IL3:
BK1 - BS:

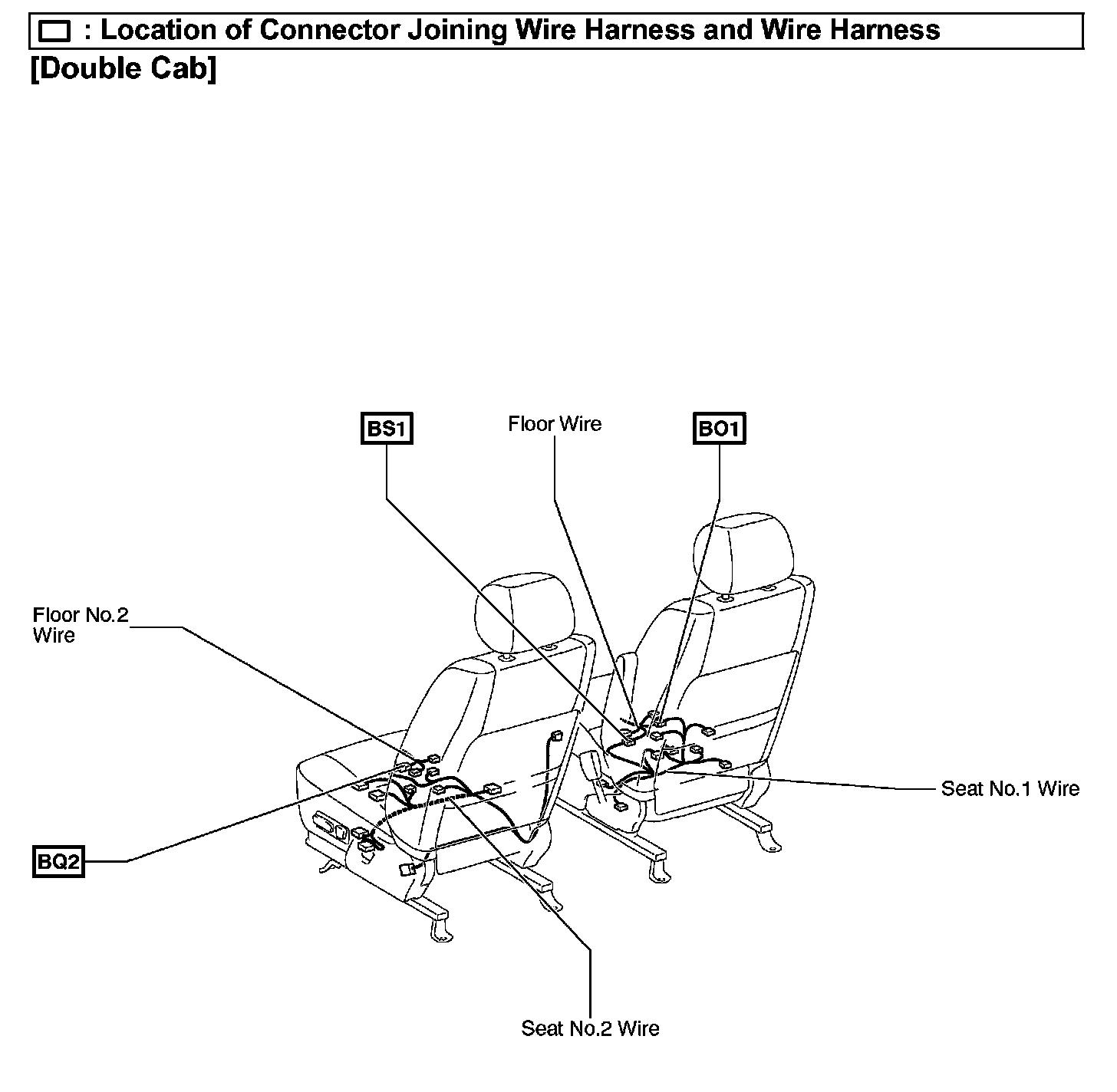

BO1 - BS1:
