Multiple Junction Connector: Application and ID

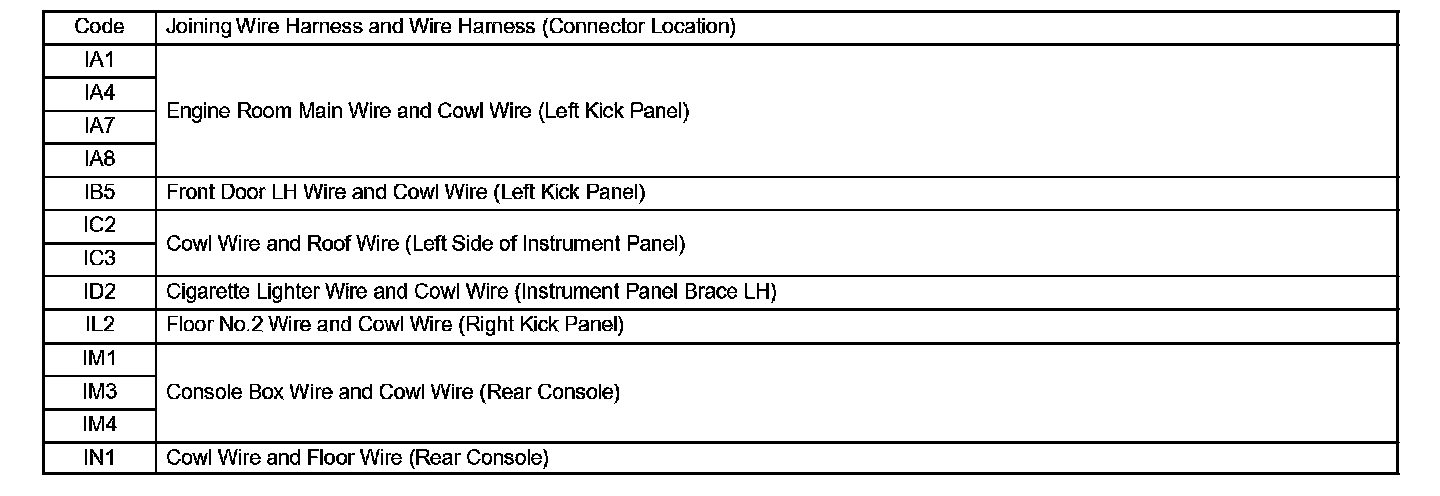

IA1 - ID2:

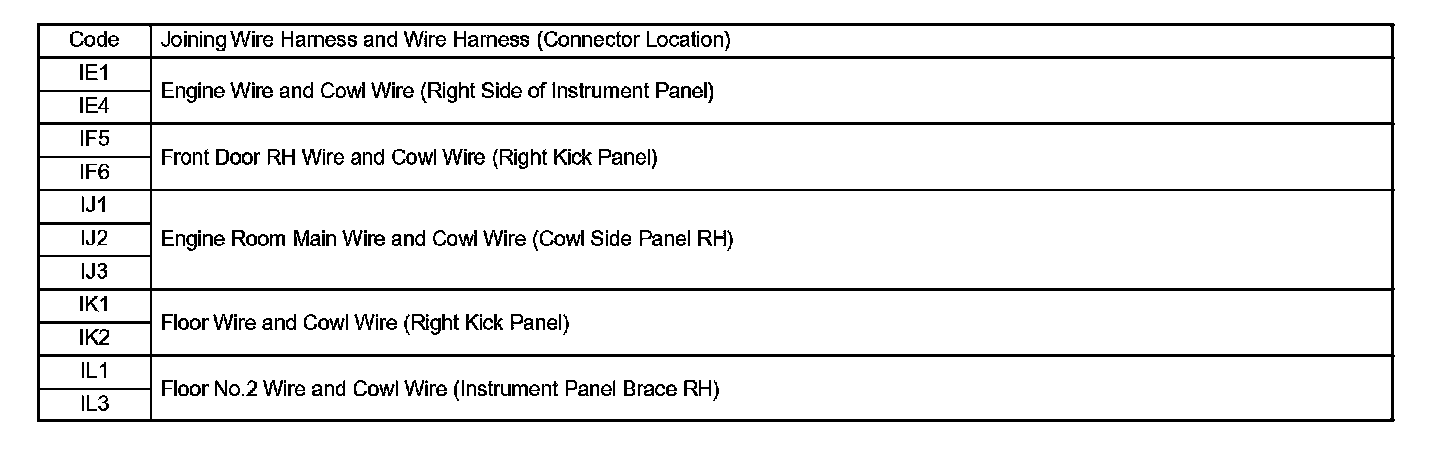

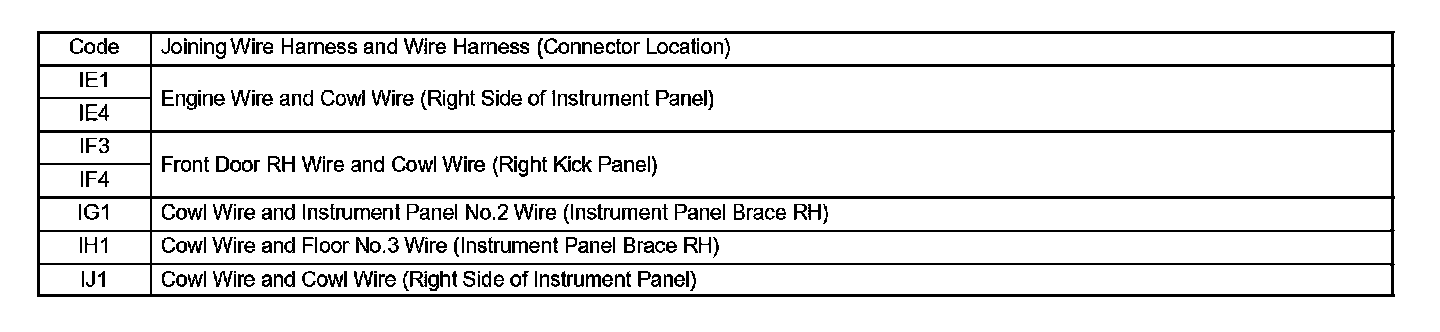

IE1 - IJ1:

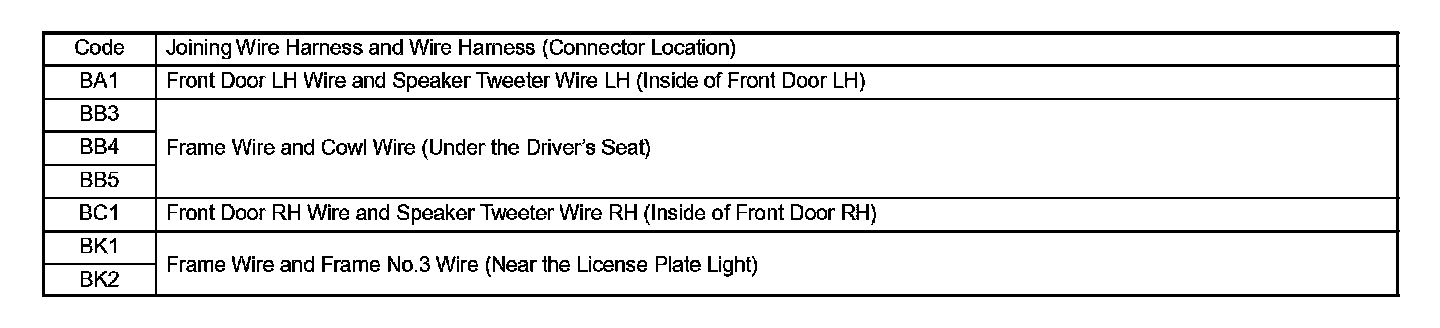

BA1 - BK2:

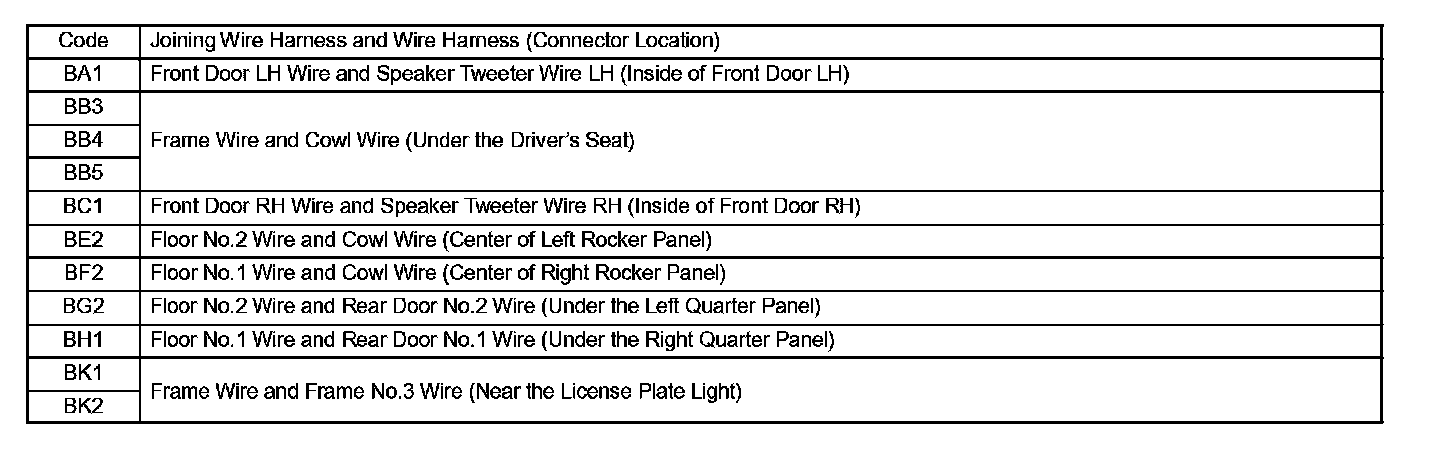

BA1 - BK2:

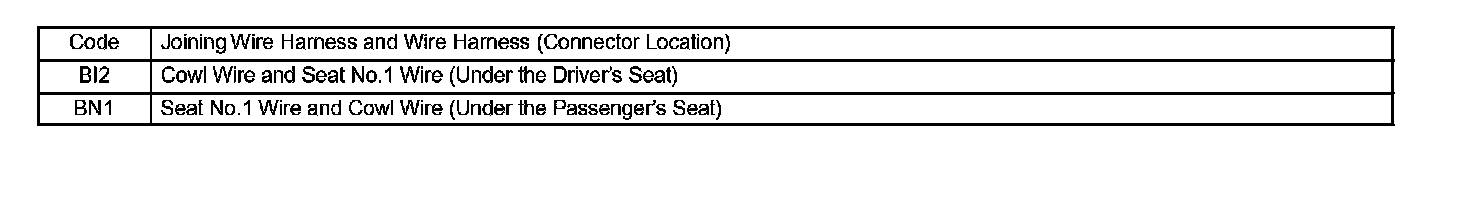

BI2 - BN1:

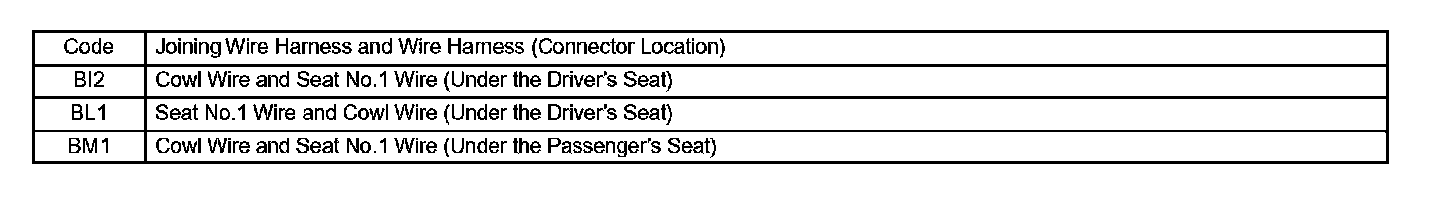

BI2 - BM1:

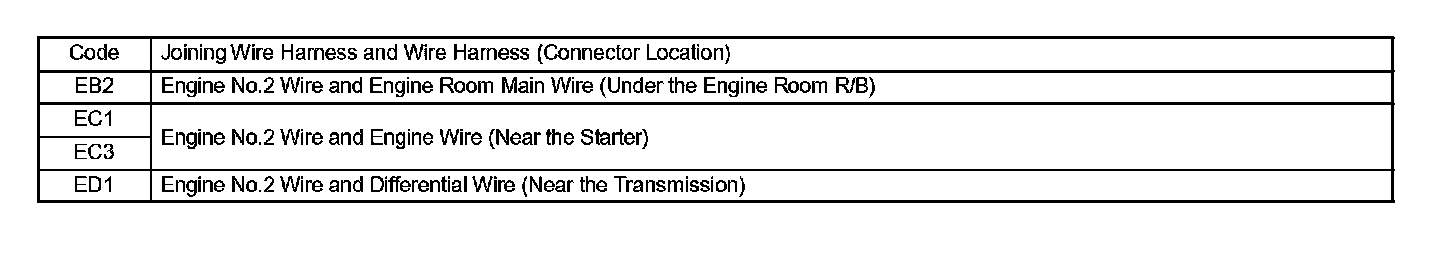

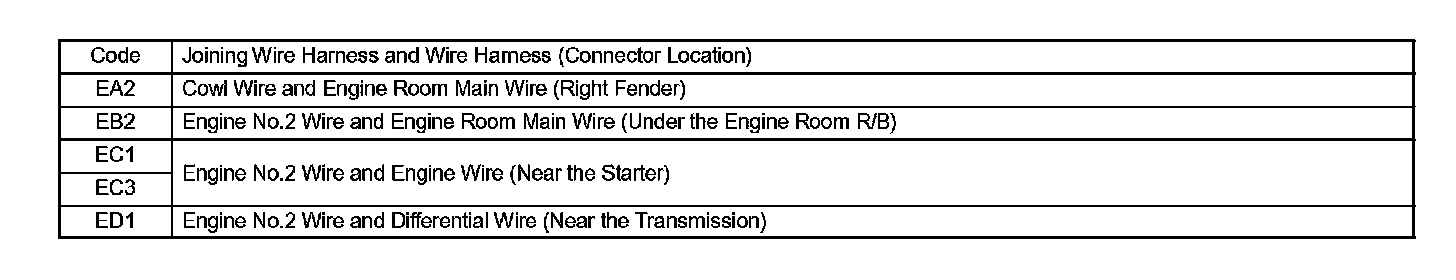

EB2 - ED1:
IA1 - IN1:

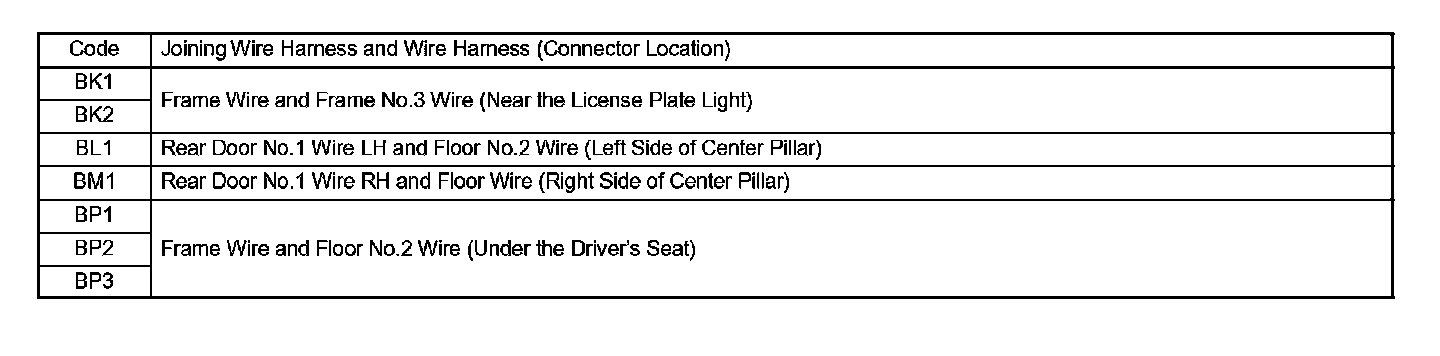

BK1 - BP3:

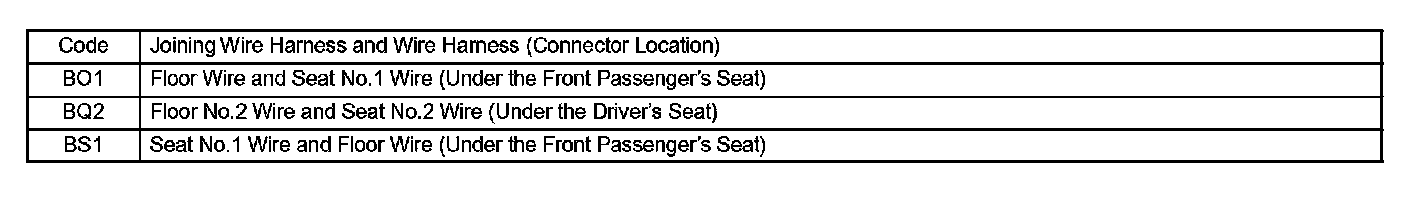

BO1 - BS1:
