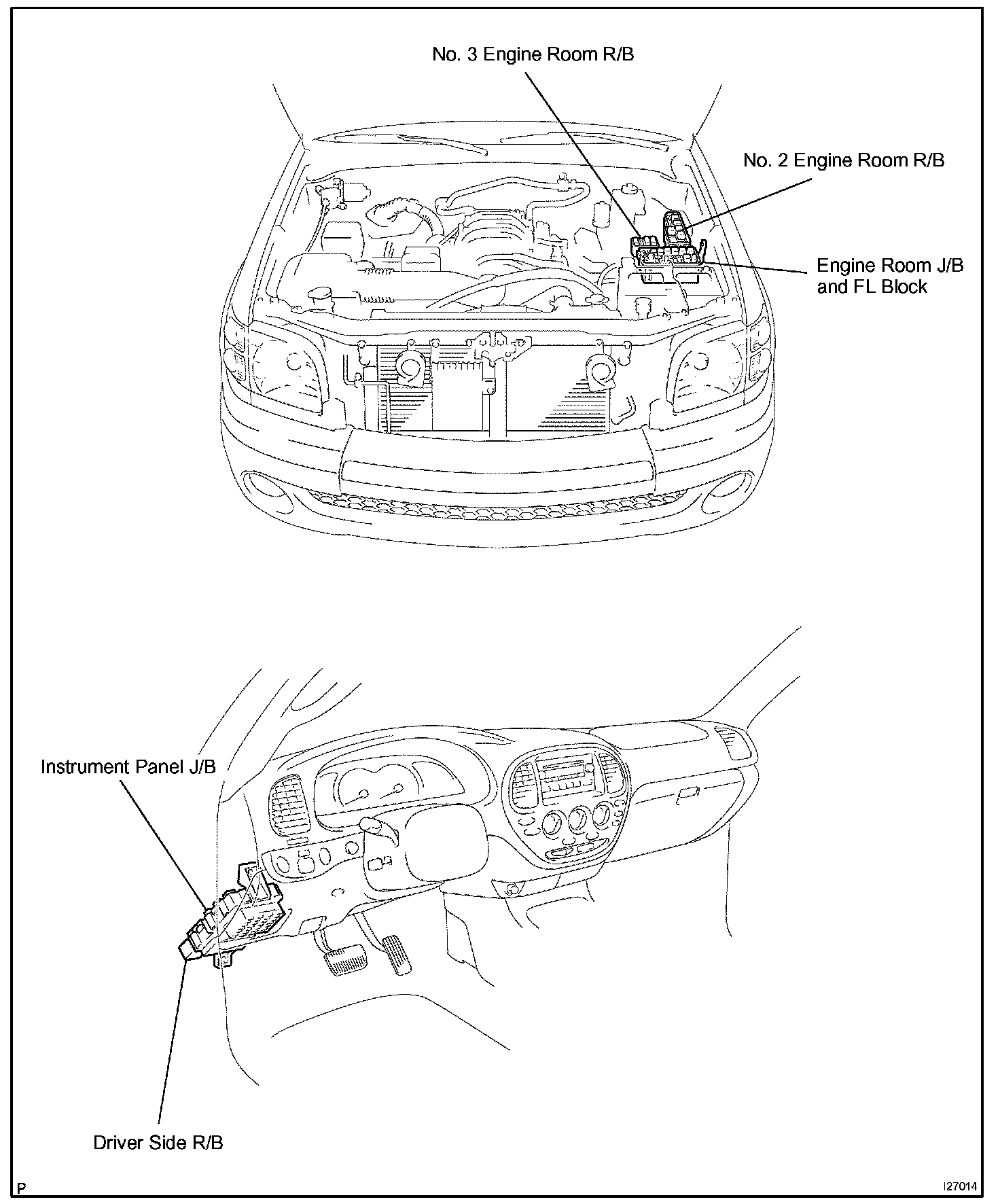

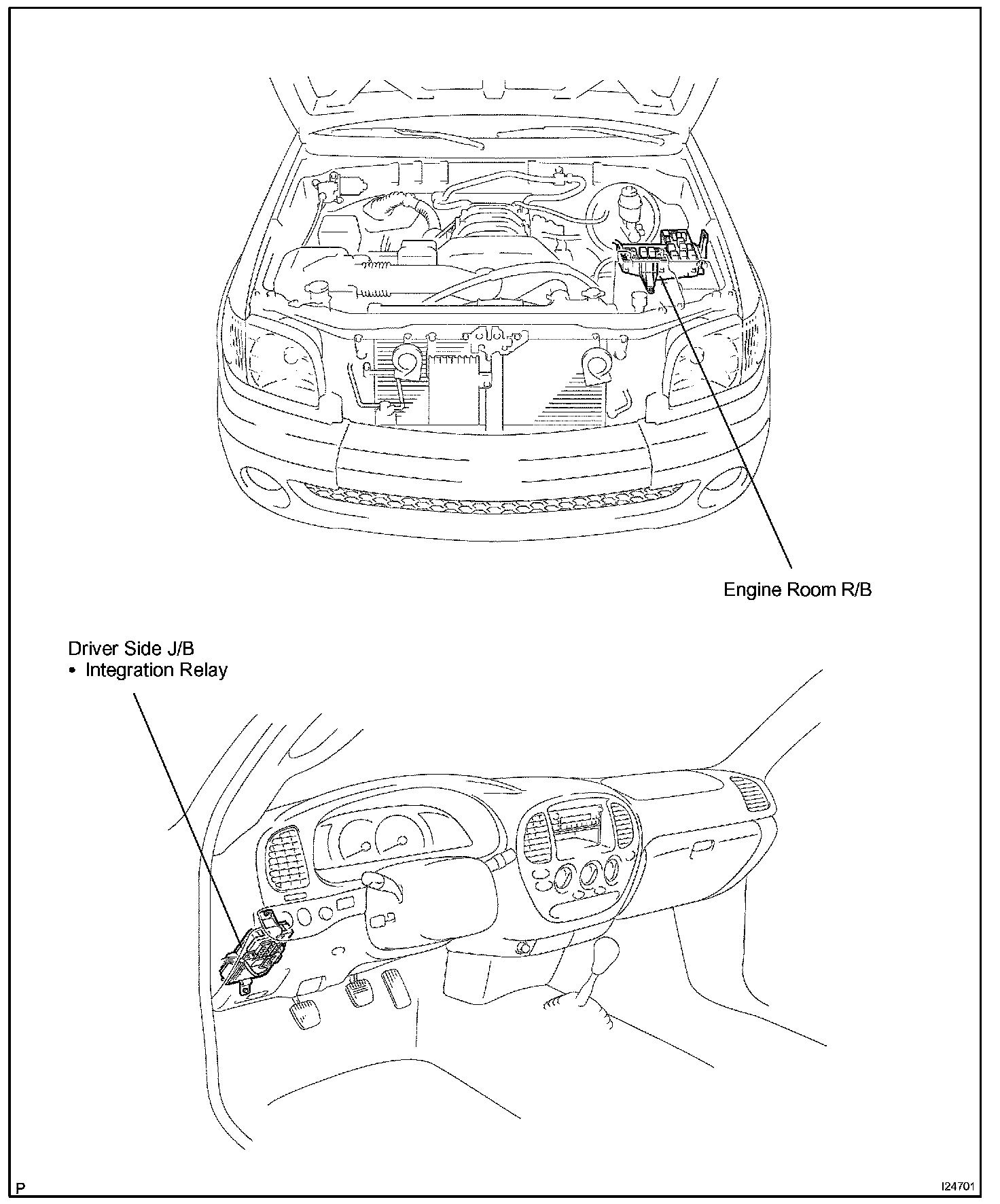

Power and Ground Distribution: Locations

Power Source (Double Cab) Part 1:

Power Source (Double Cab) Part 2:

Power Source (Double Cab) Part 3:

Power Source (Double Cab) Part 4:

Power Source (Double Cab) Part 5:

Power Source (Except Double Cab) Part 1:

Power Source (Except Double Cab) Part 2:

Power Source (Except Double Cab) Part 3:
