Fuse: Application and ID

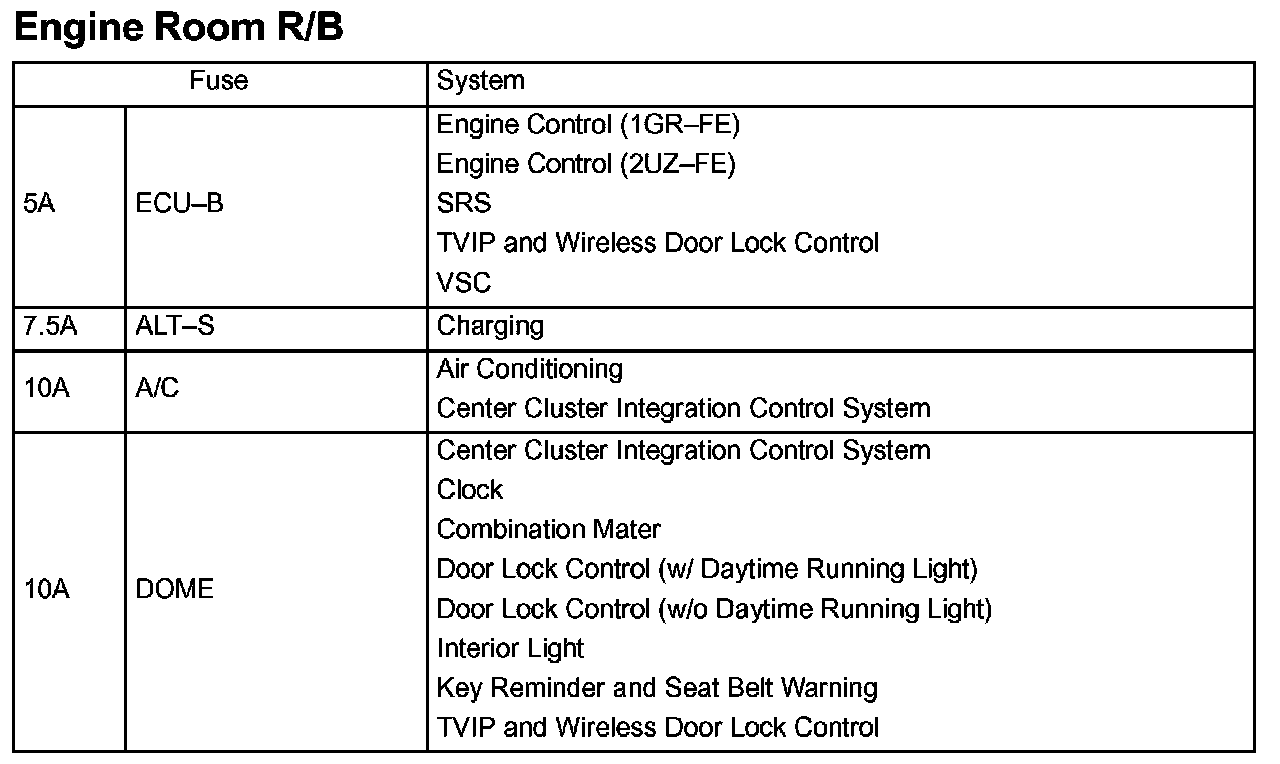

Engine Room R/B Part 1:

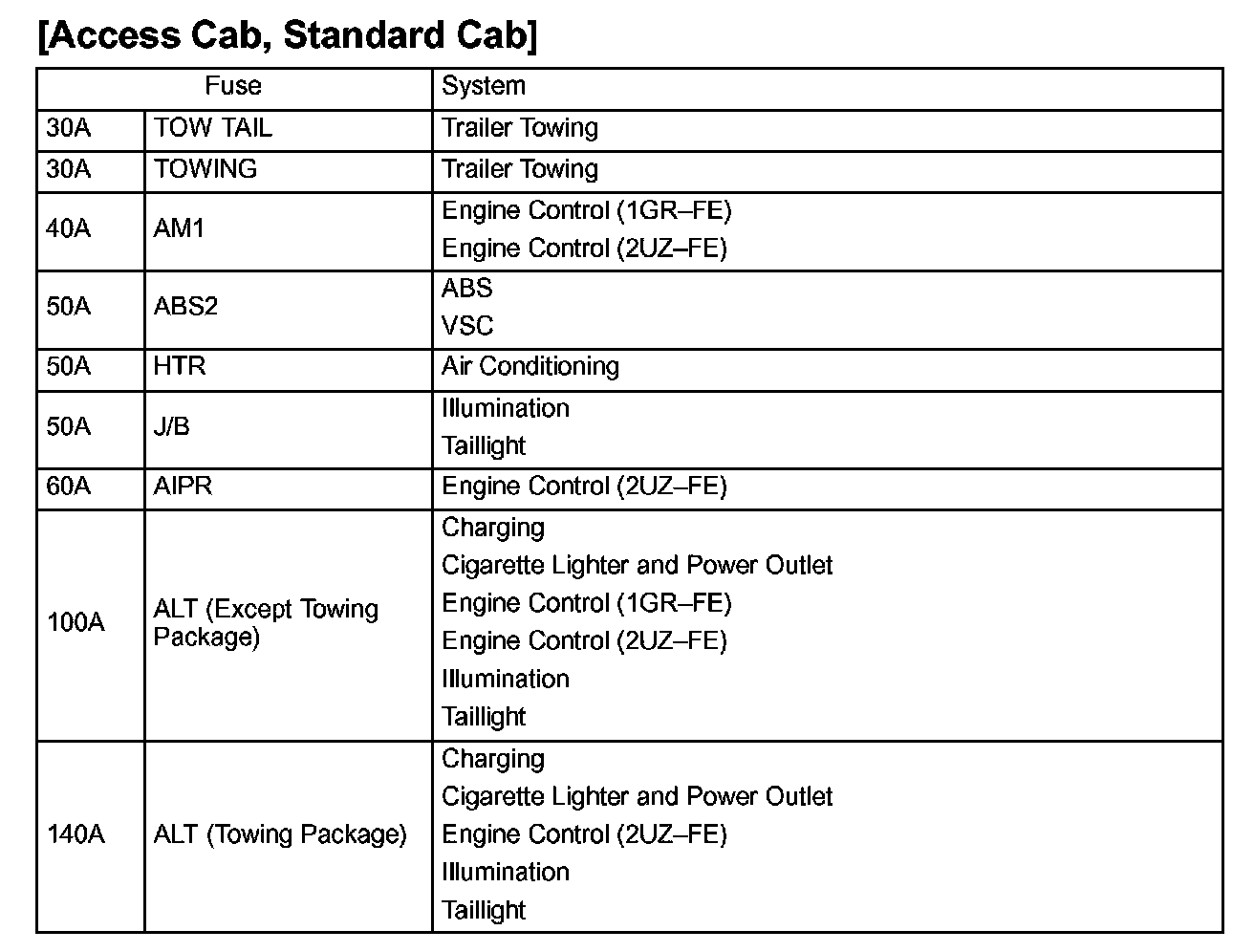

Engine Room R/B Part 2:

Engine Room Fuse Details Access & Standard Cab

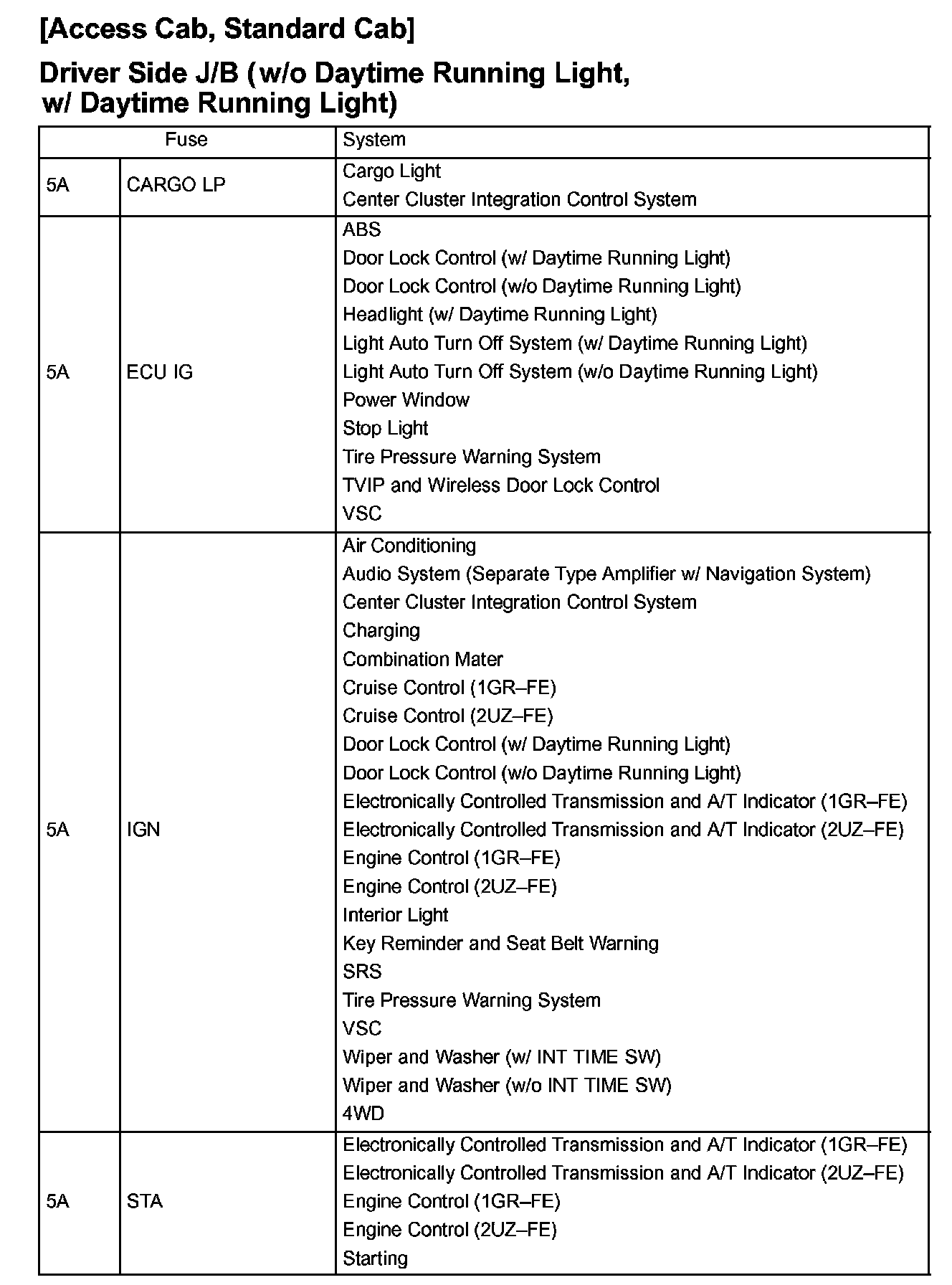

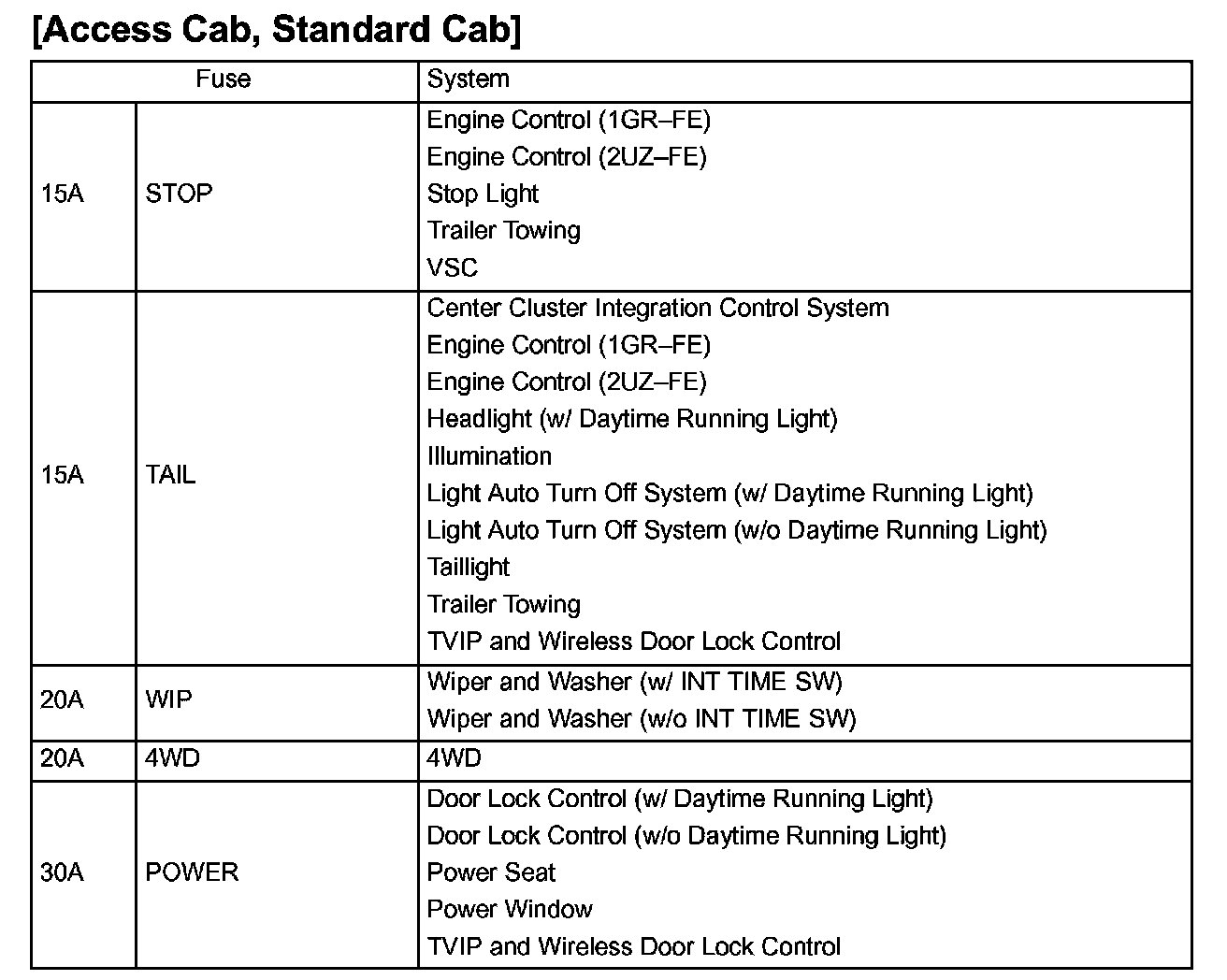

Driver Side J/B (W/o Daytime Running Light, W/ Daytime Running Light) Part 1:

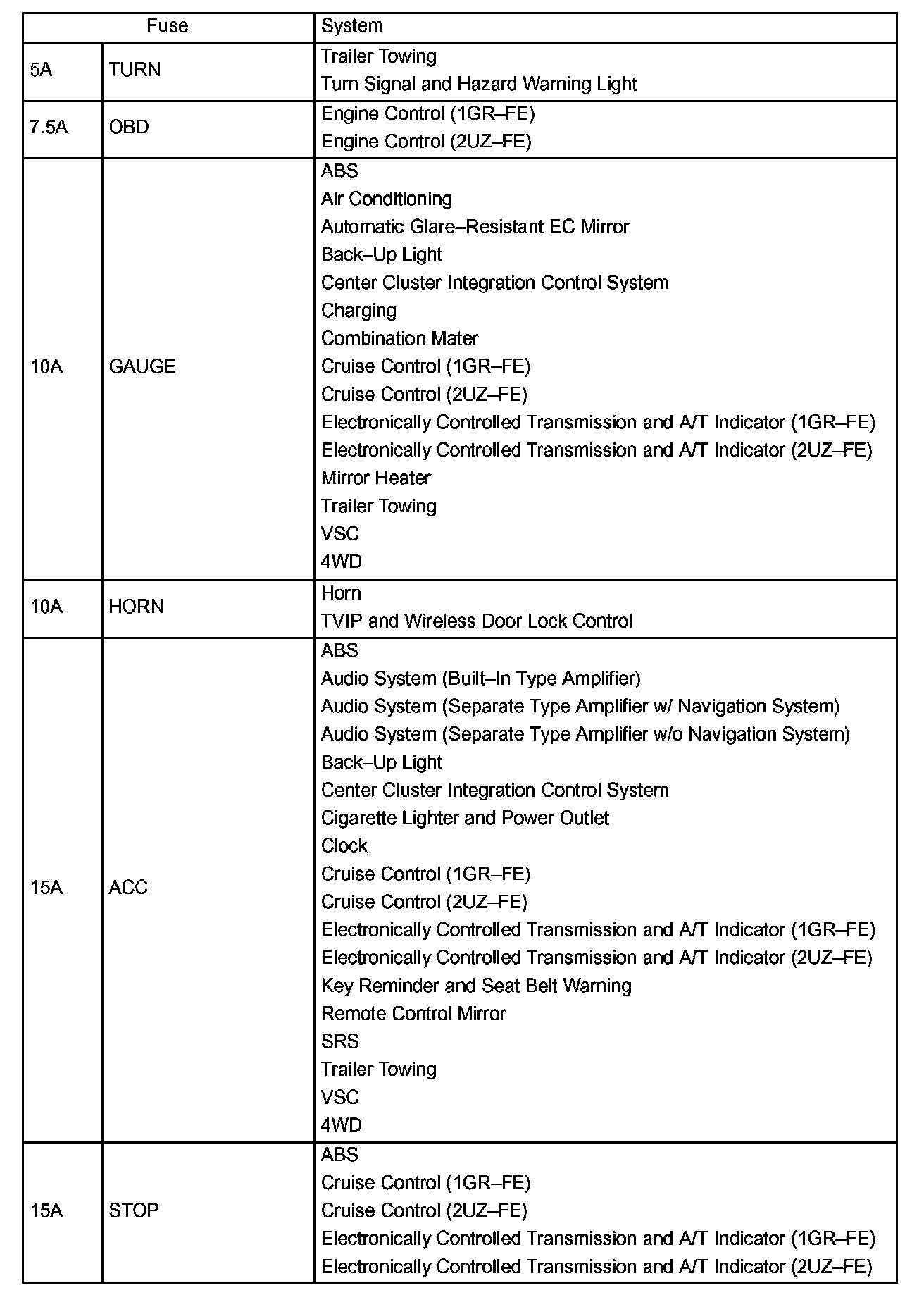

Driver Side J/B (W/o Daytime Running Light, W/ Daytime Running Light) Part 2:

Driver Side J/B (W/o Daytime Running Light, W/ Daytime Running Light) Part 3:

Interior Panel Fuse Details Access & Standard Cab

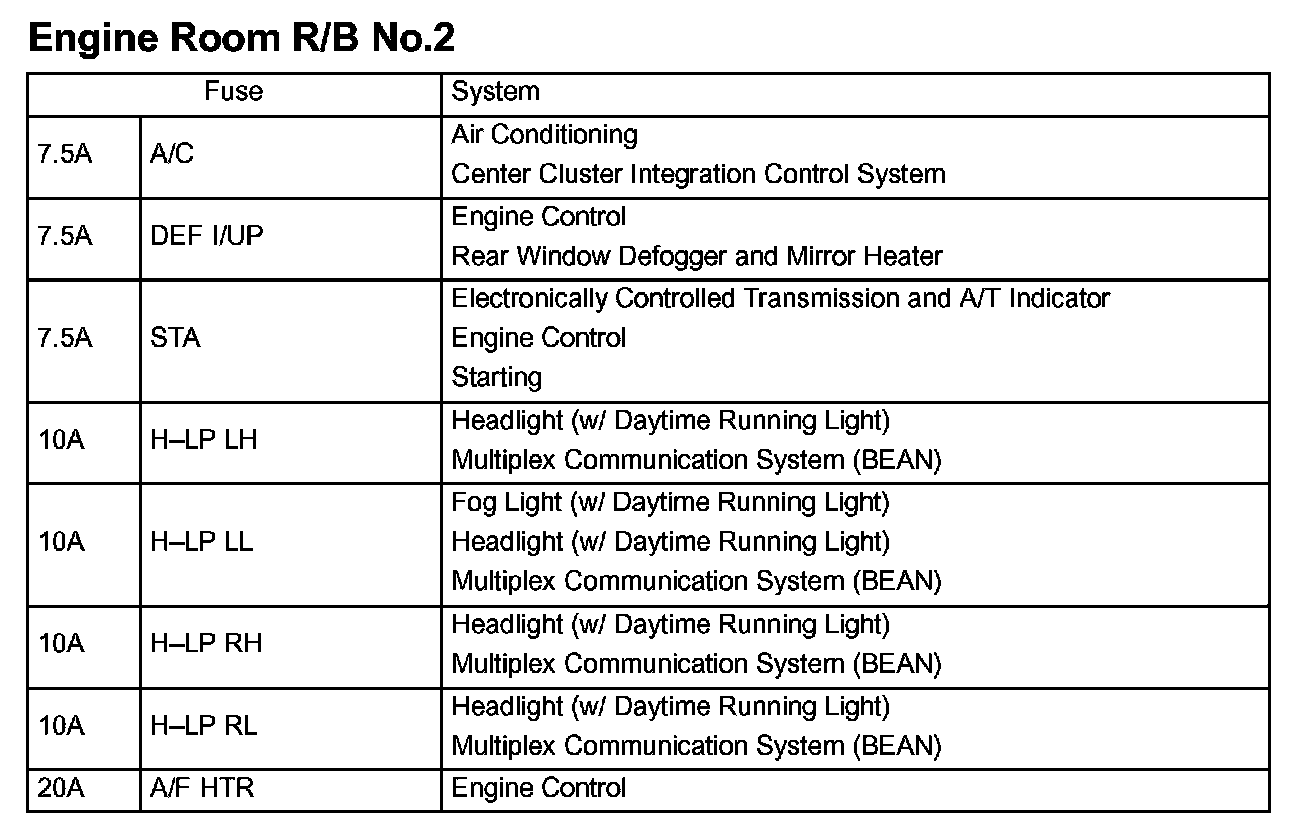

Engine Room R/B No. 2:

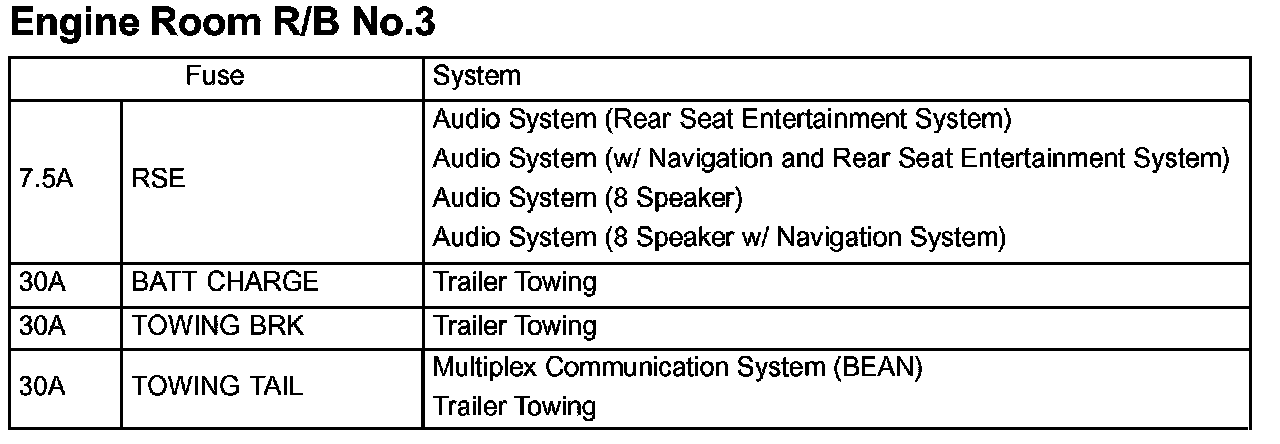

Engine Room R/B No. 3:

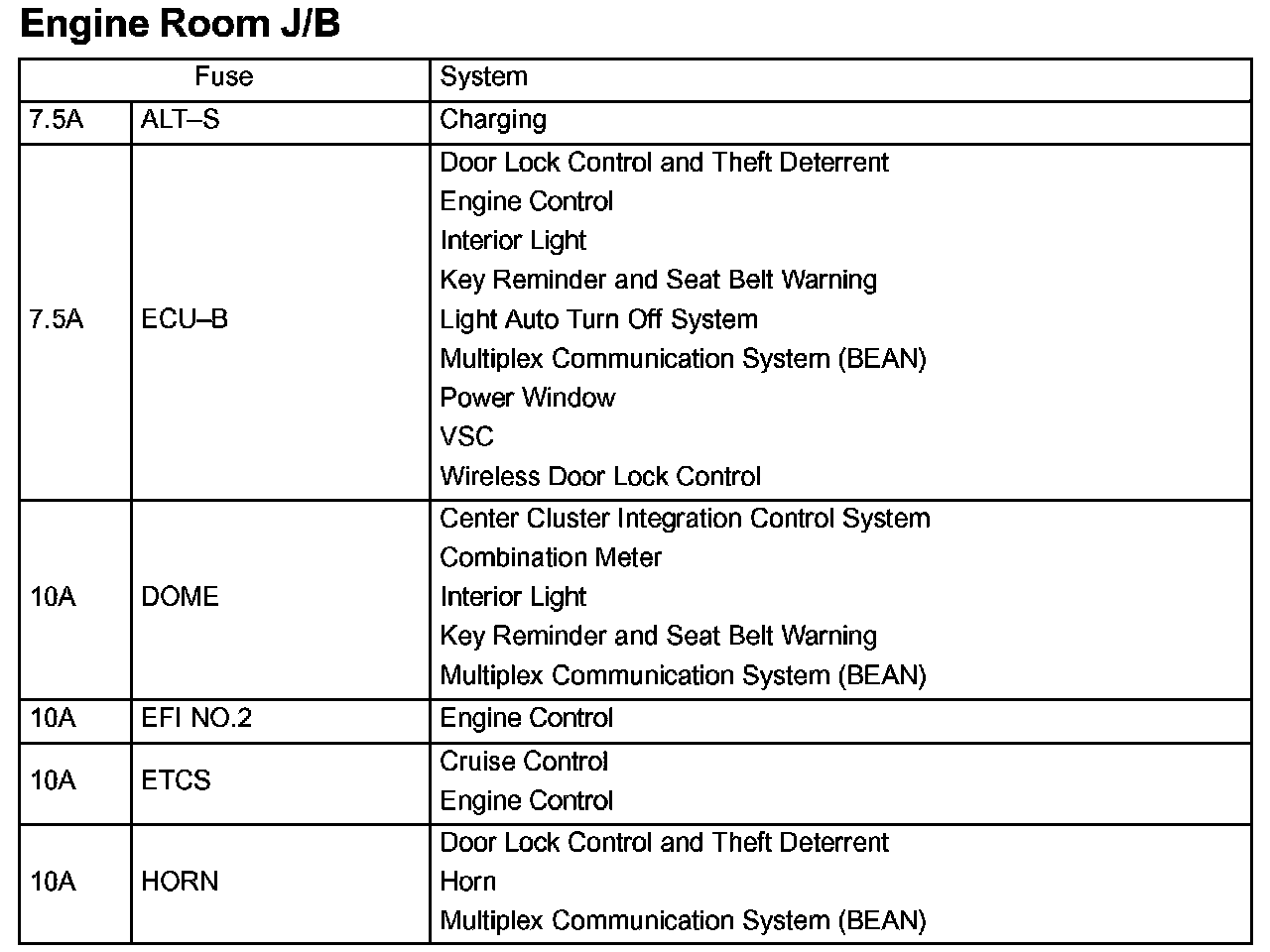

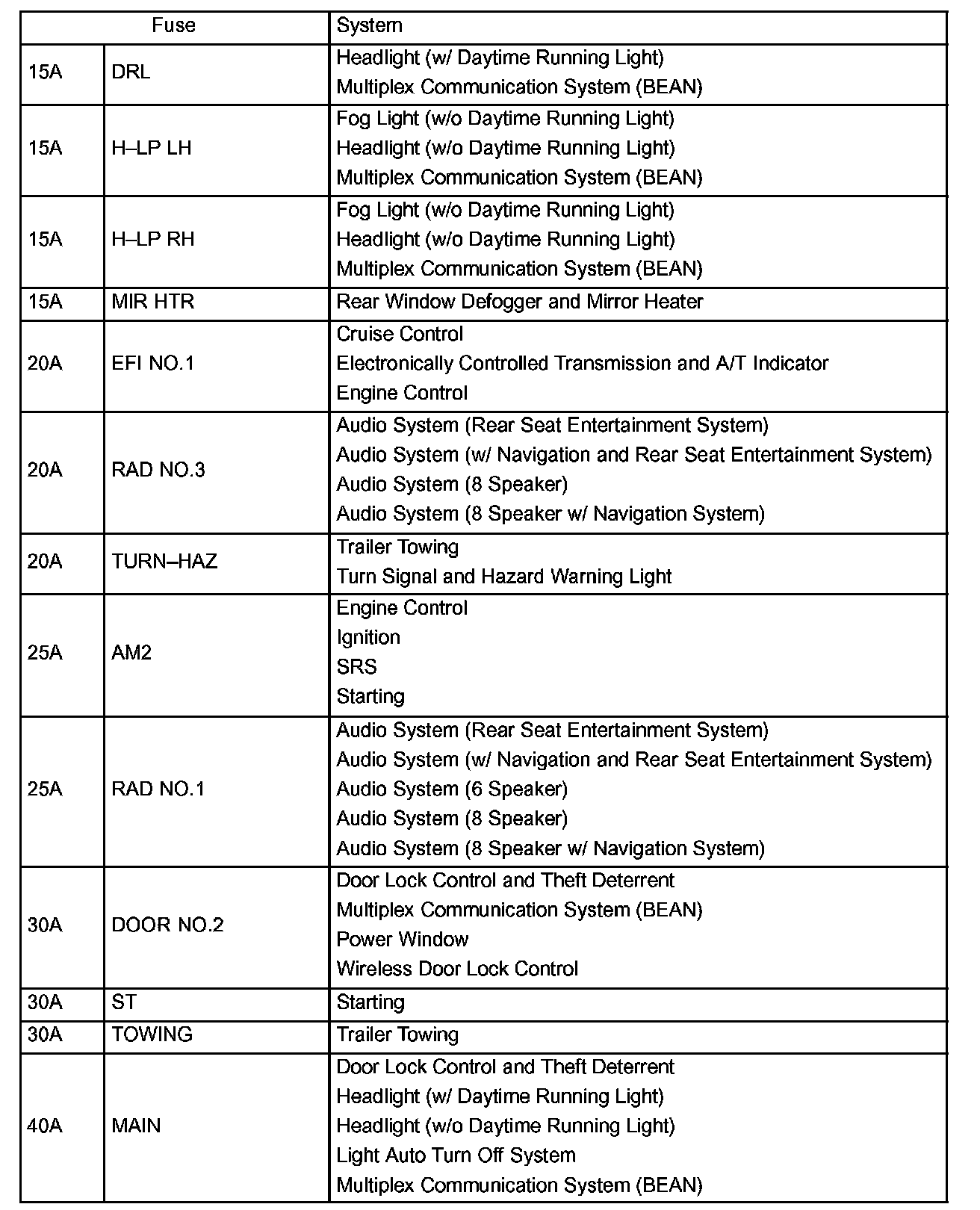

Engine Room J/B Part 1:

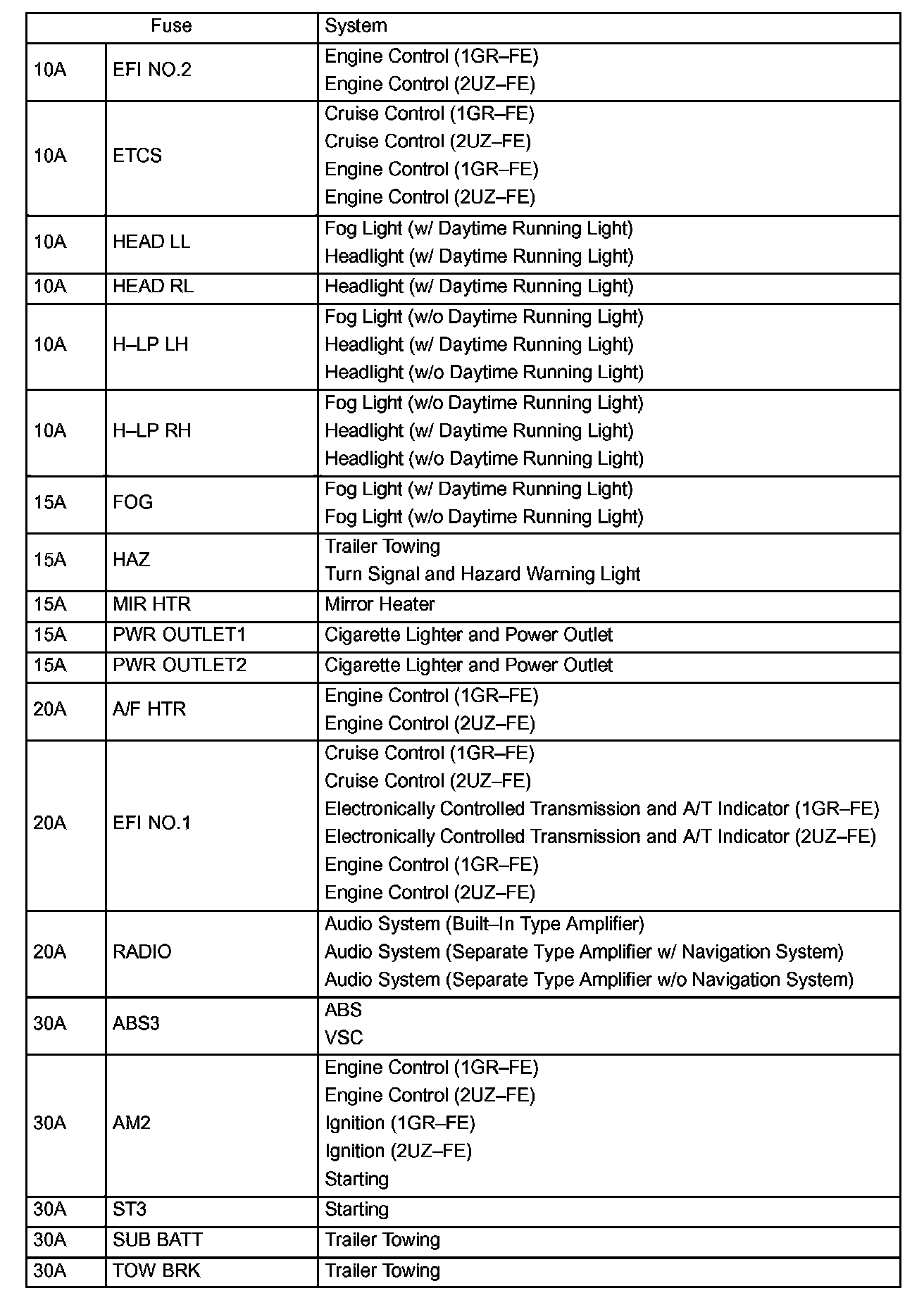

Engine Room J/B Part 2:

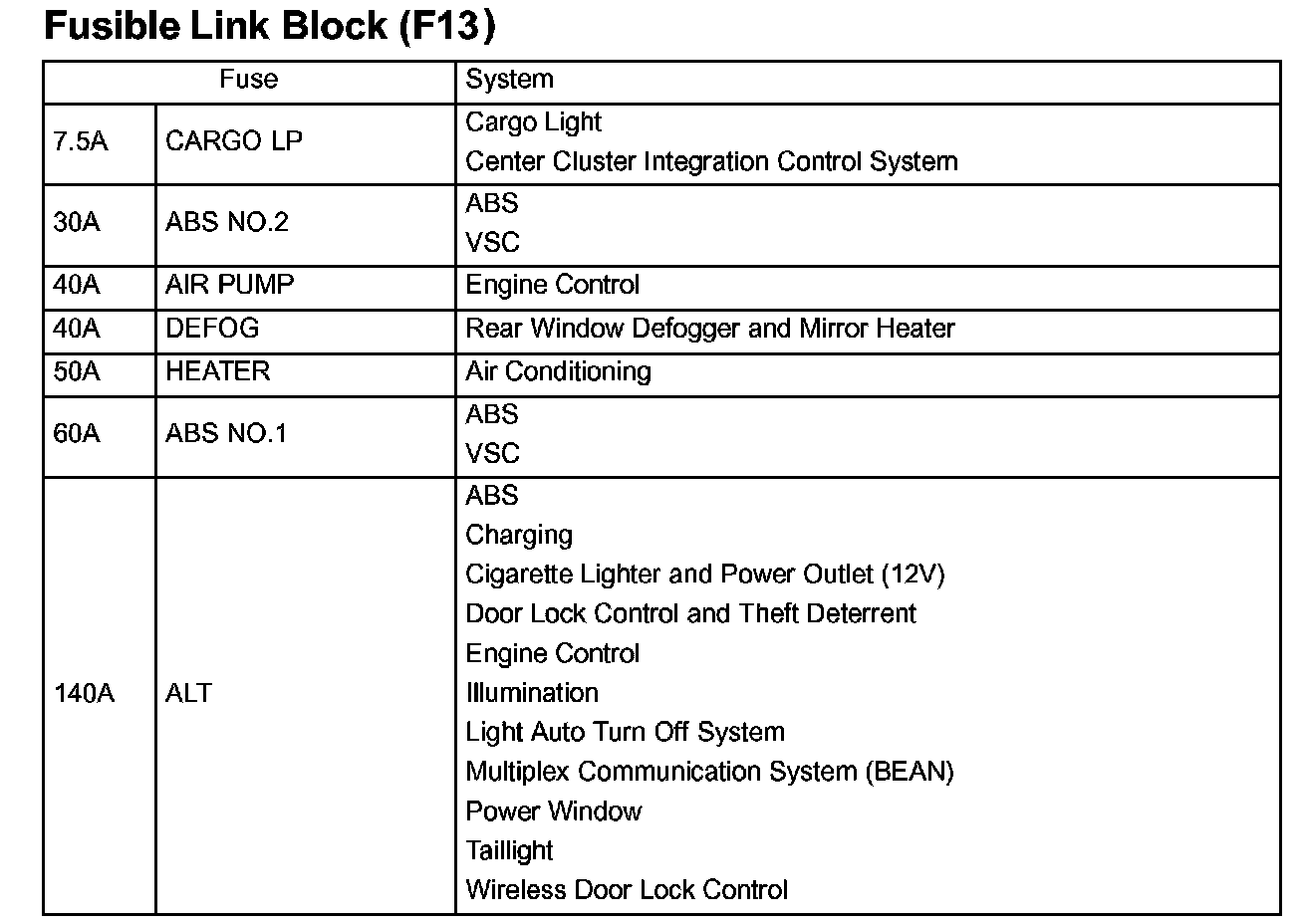

Fusible Link Block:

Engine Room Fuse Details Double Cab

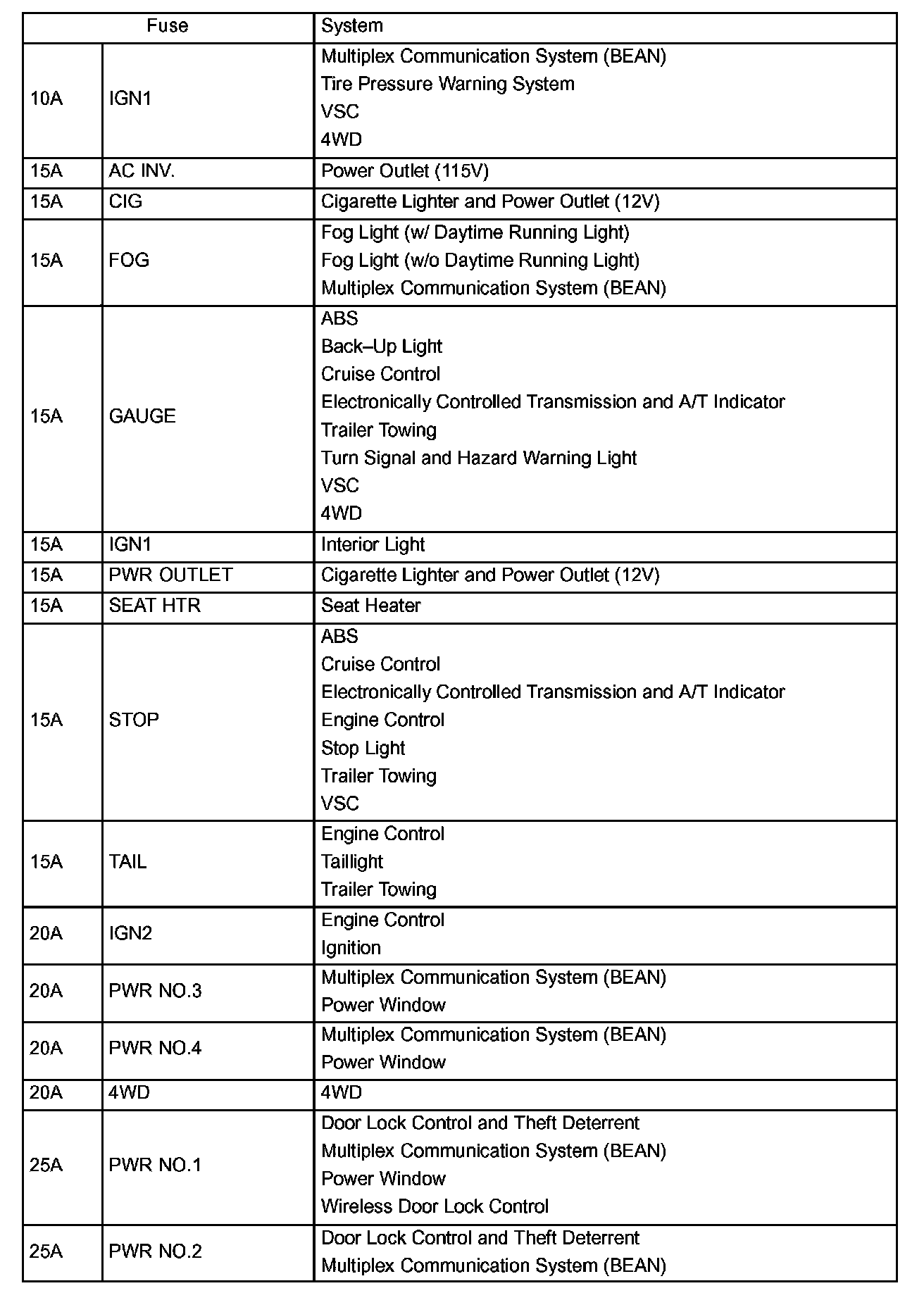

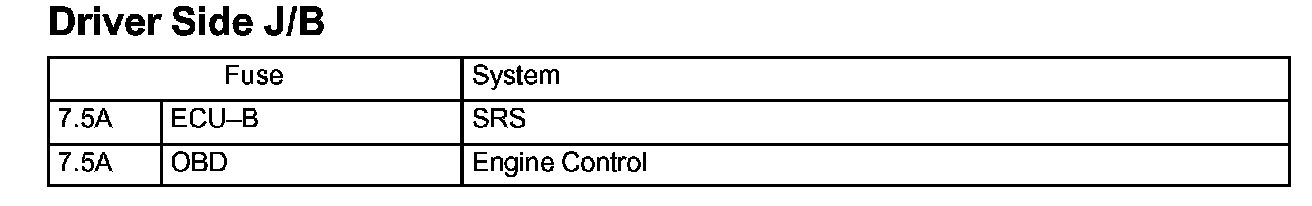

Driver Side J/B:

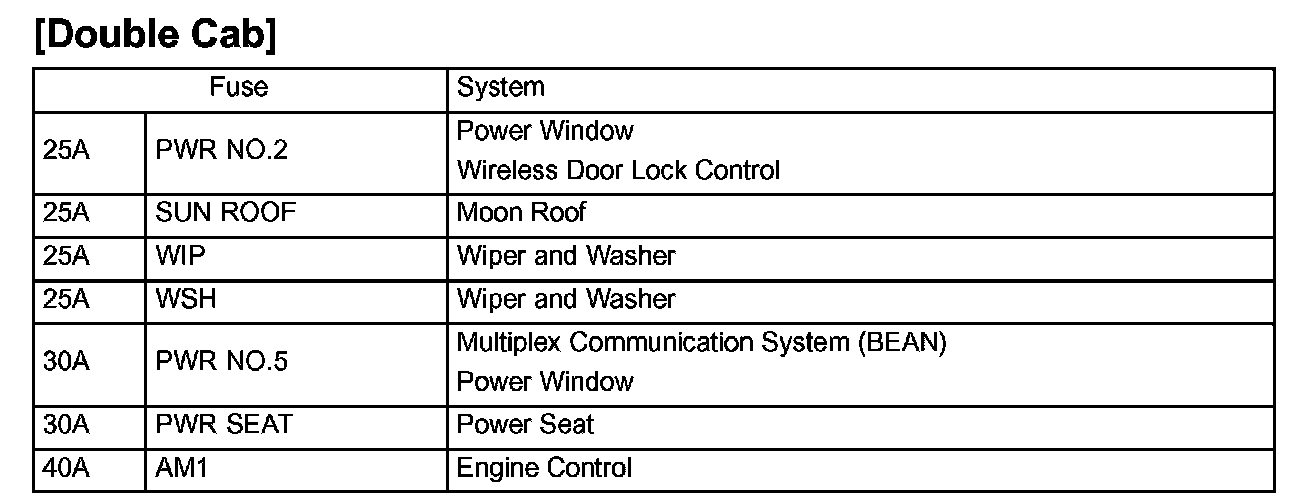

Double Cab:

Double Cab:

Double Cab:

Interior Panel Fuse Details Double Cab
