Tire Pressure Module: Service and Repair
TIRE PRESSURE MONITOR ECUREPLACEMENT
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE INTEGRATION CONTROL PANEL
3. REMOVE GLOVE COMPARTMENT

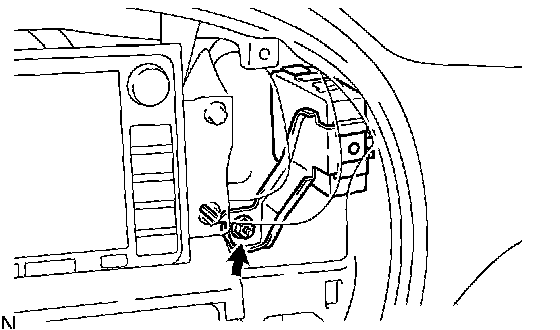

4. REMOVE TIRE PRESSURE MONITOR ECU
a. Disconnect the connector.
b. Remove the nut and tire pressure monitor ECU.

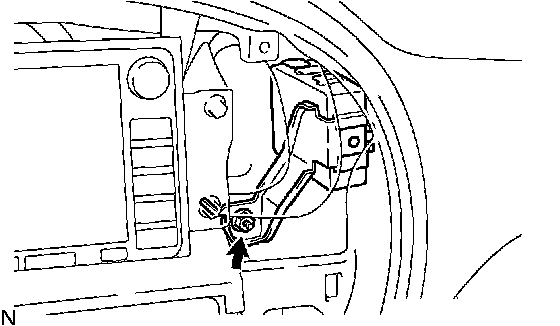

5. INSTALL TIRE PRESSURE MONITOR ECU
a. Install the tire pressure monitor ECU with the nut.
b. Connect the connector.
6. INSTALL GLOVE COMPARTMENT
7. INSTALL INTEGRATION CONTROL PANEL
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
9. REGISTRATION OF TRANSMITTED ID
10. INSPECT TIRE PRESSURE WARNING SYSTEM
SST 09843-18040
