Home
>>
Toyota Truck
>>
2005
>>
Tundra 4WD V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
Splice Locations

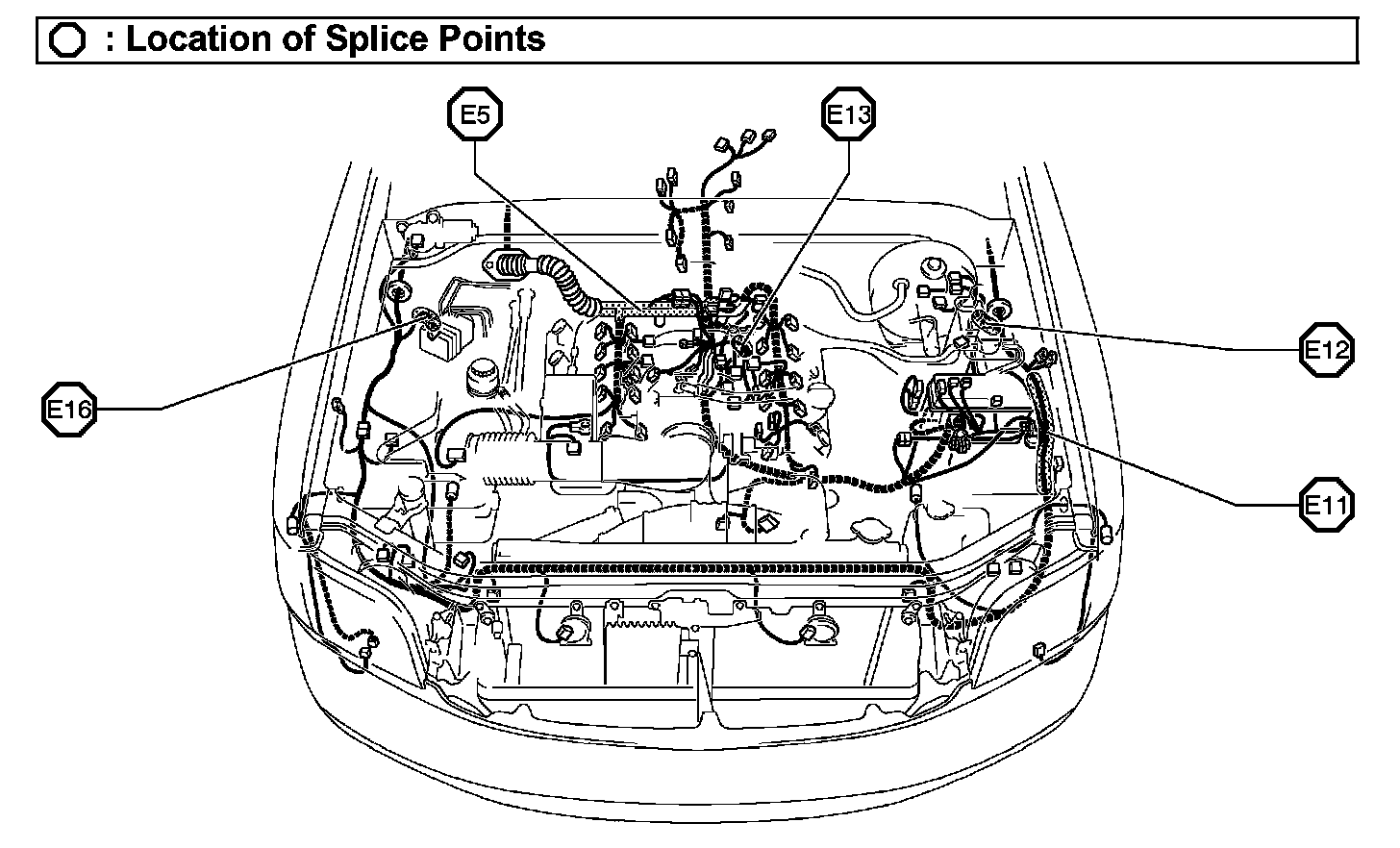

E5 - E16:

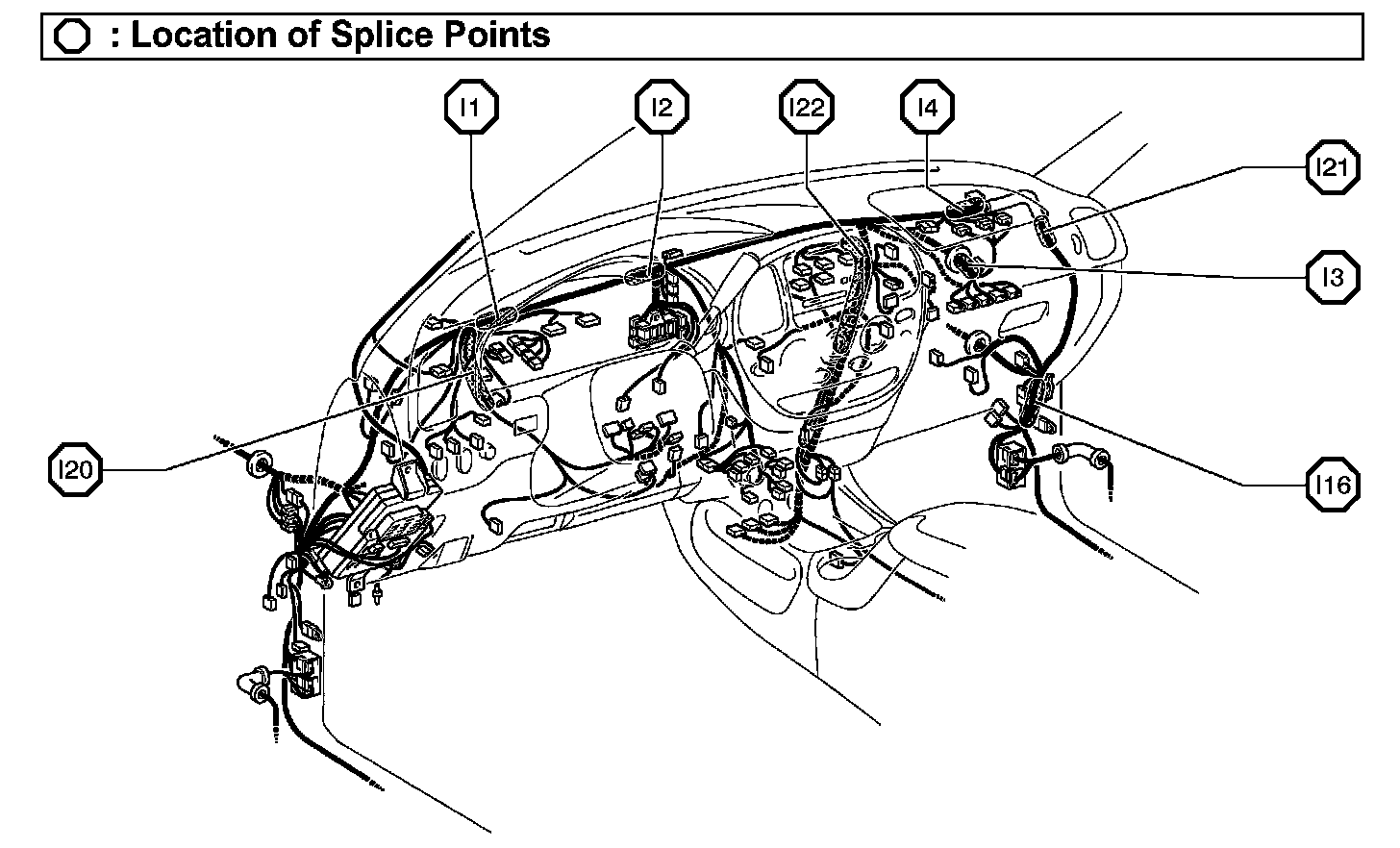

I1 - I22:

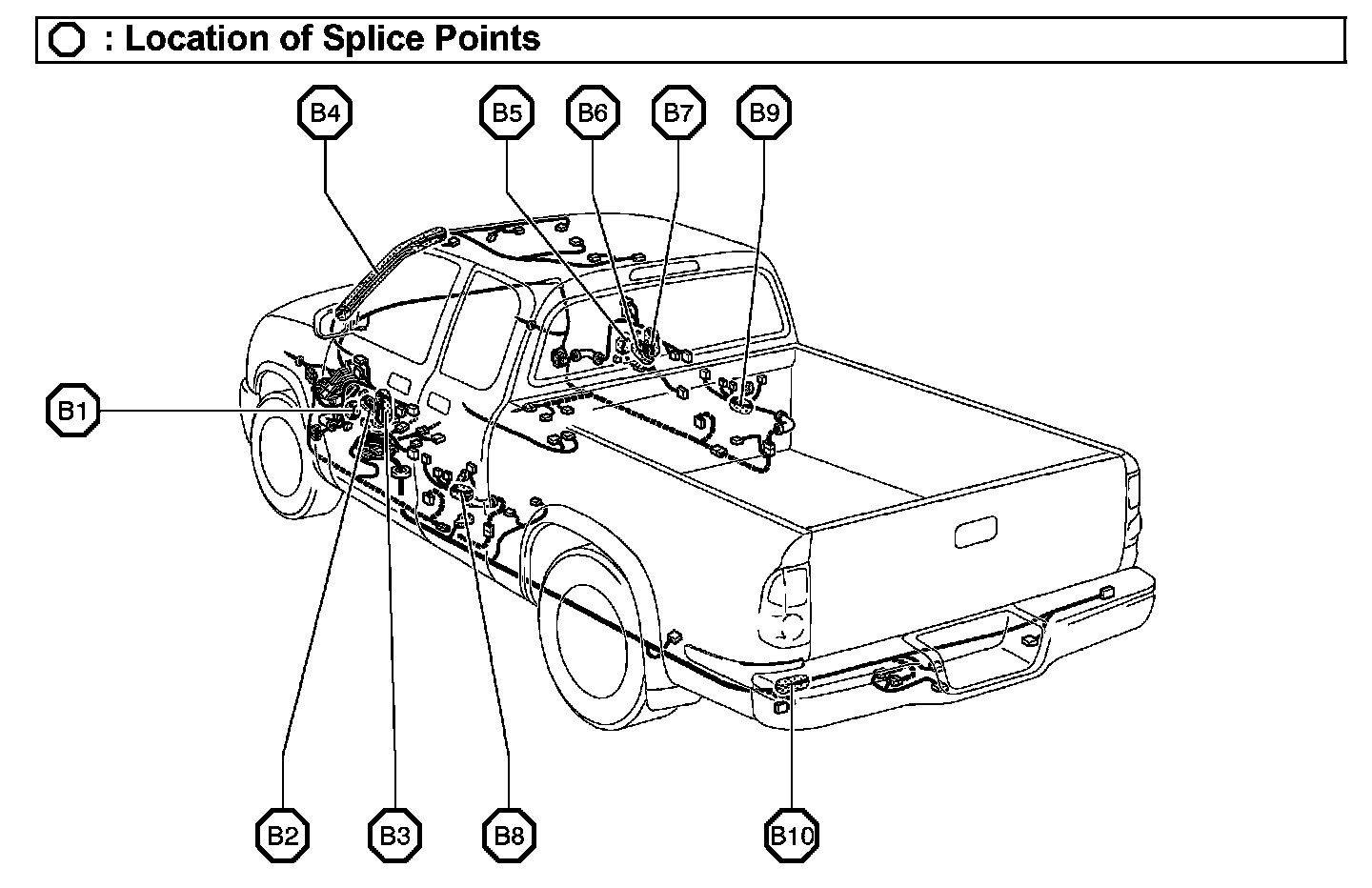

B1 - B10:

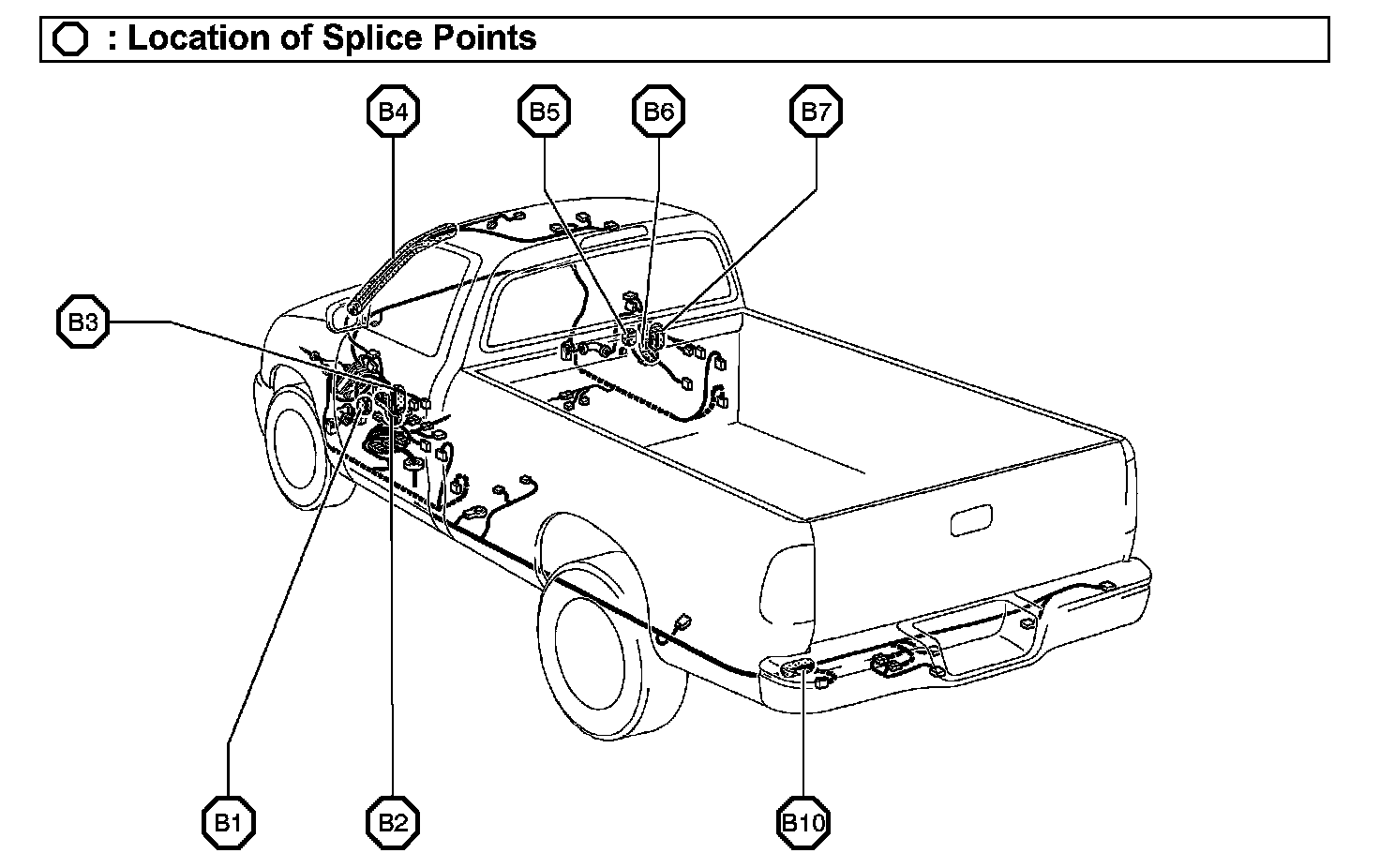

B1 - B10:

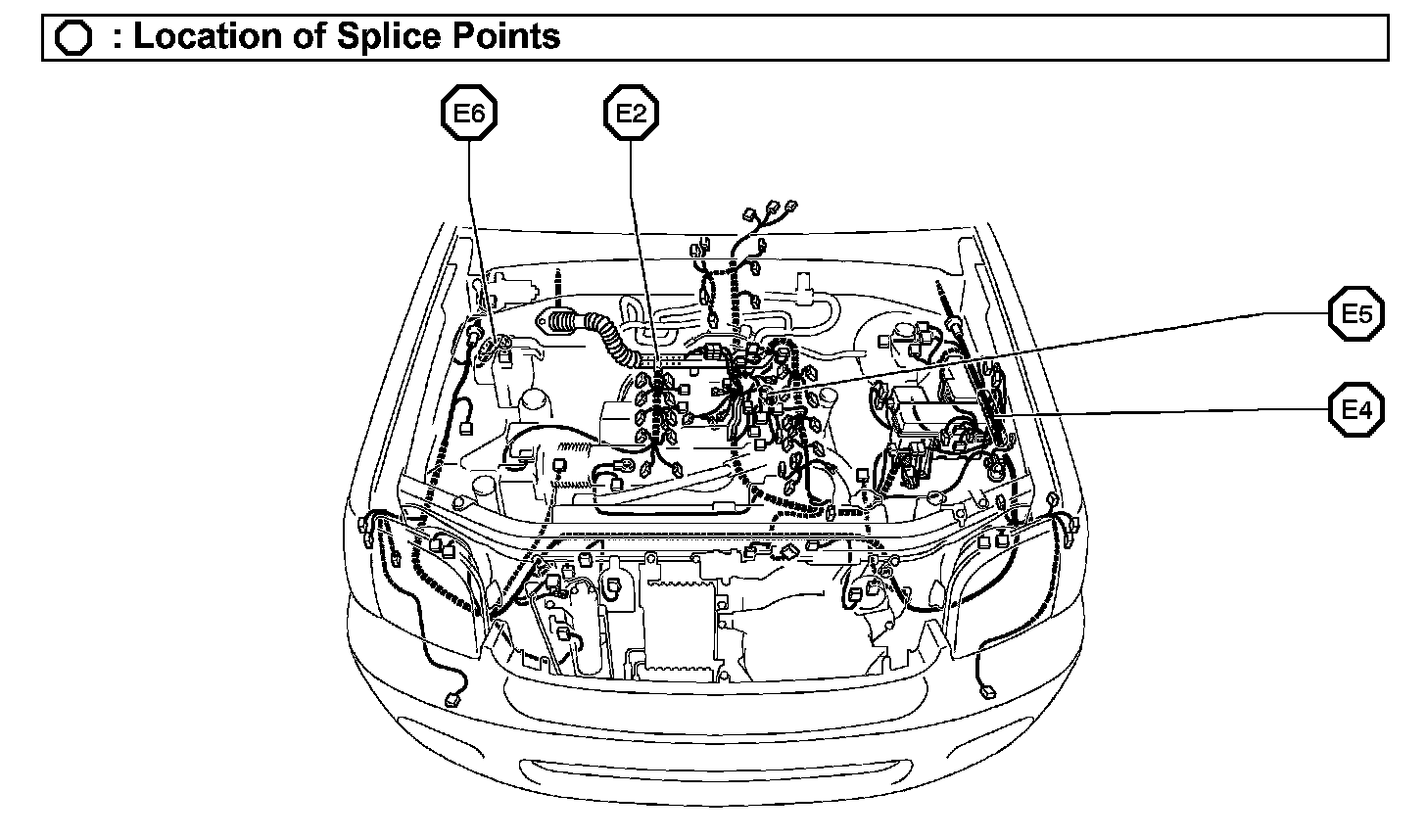

E2 - E6:

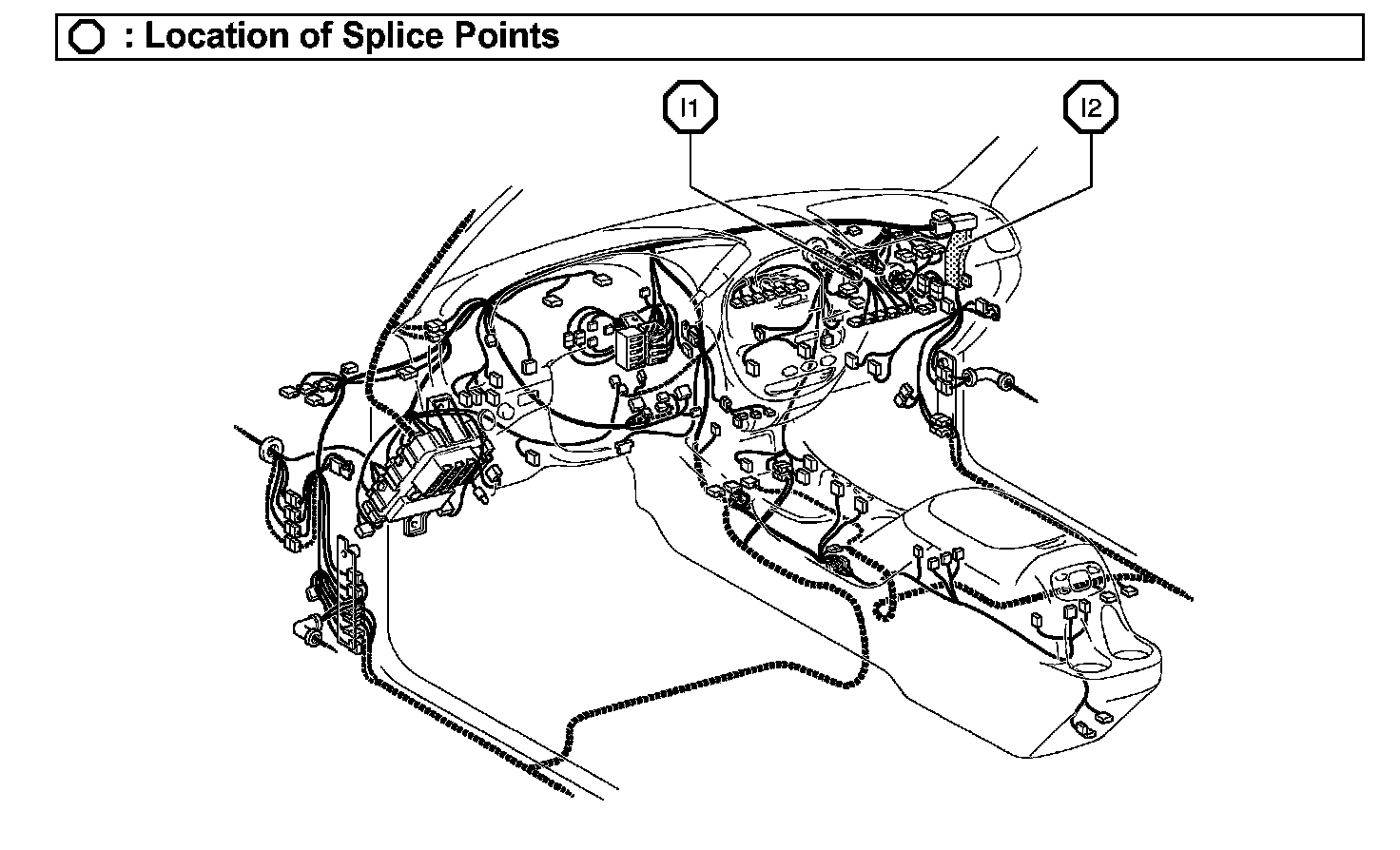

I1 - I2:

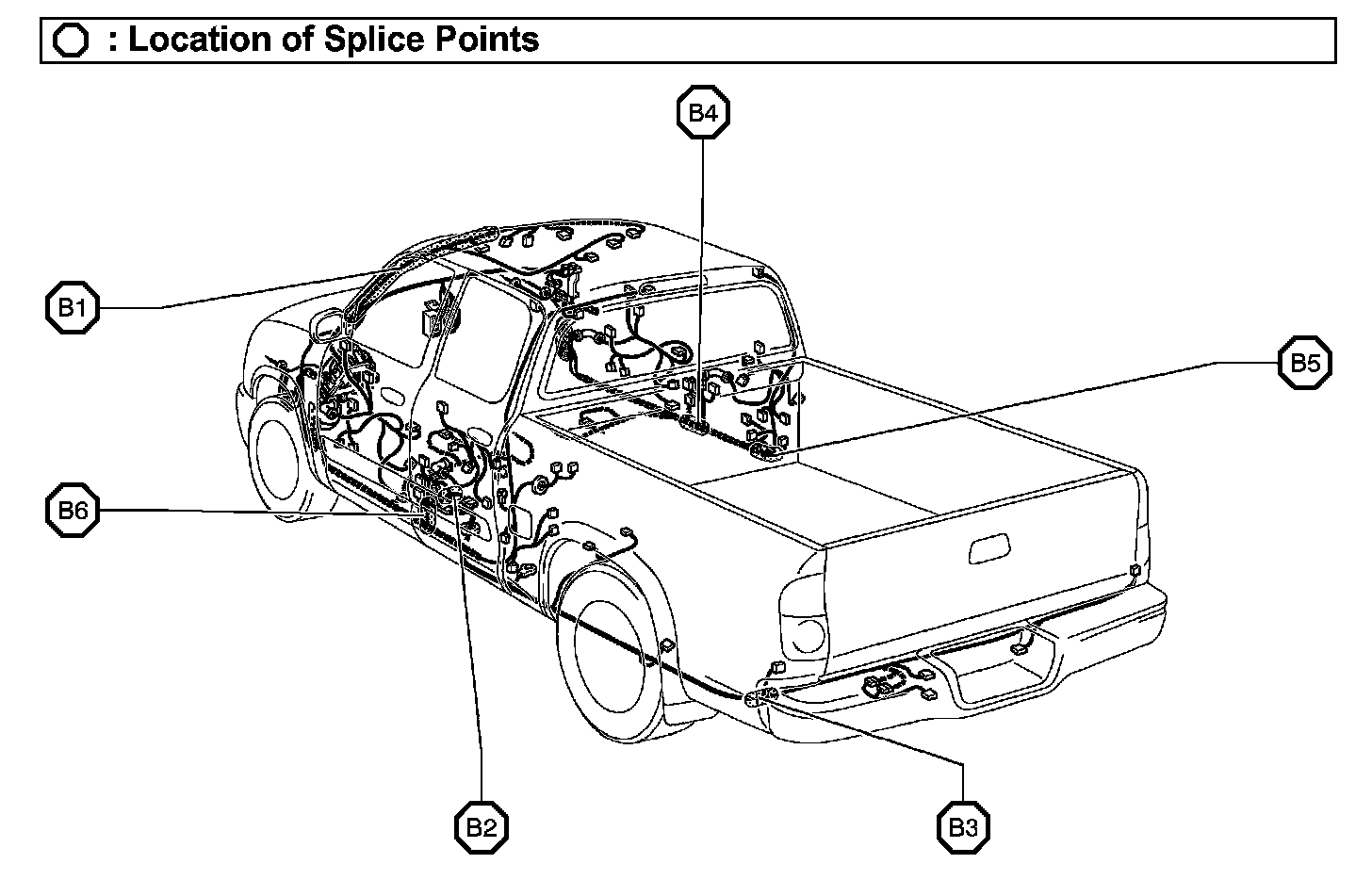

B1 - B6:
