Symptom Related Diagnostic Procedures

TROUBLESHOOTING

PROBLEM SYMPTOMS TABLE

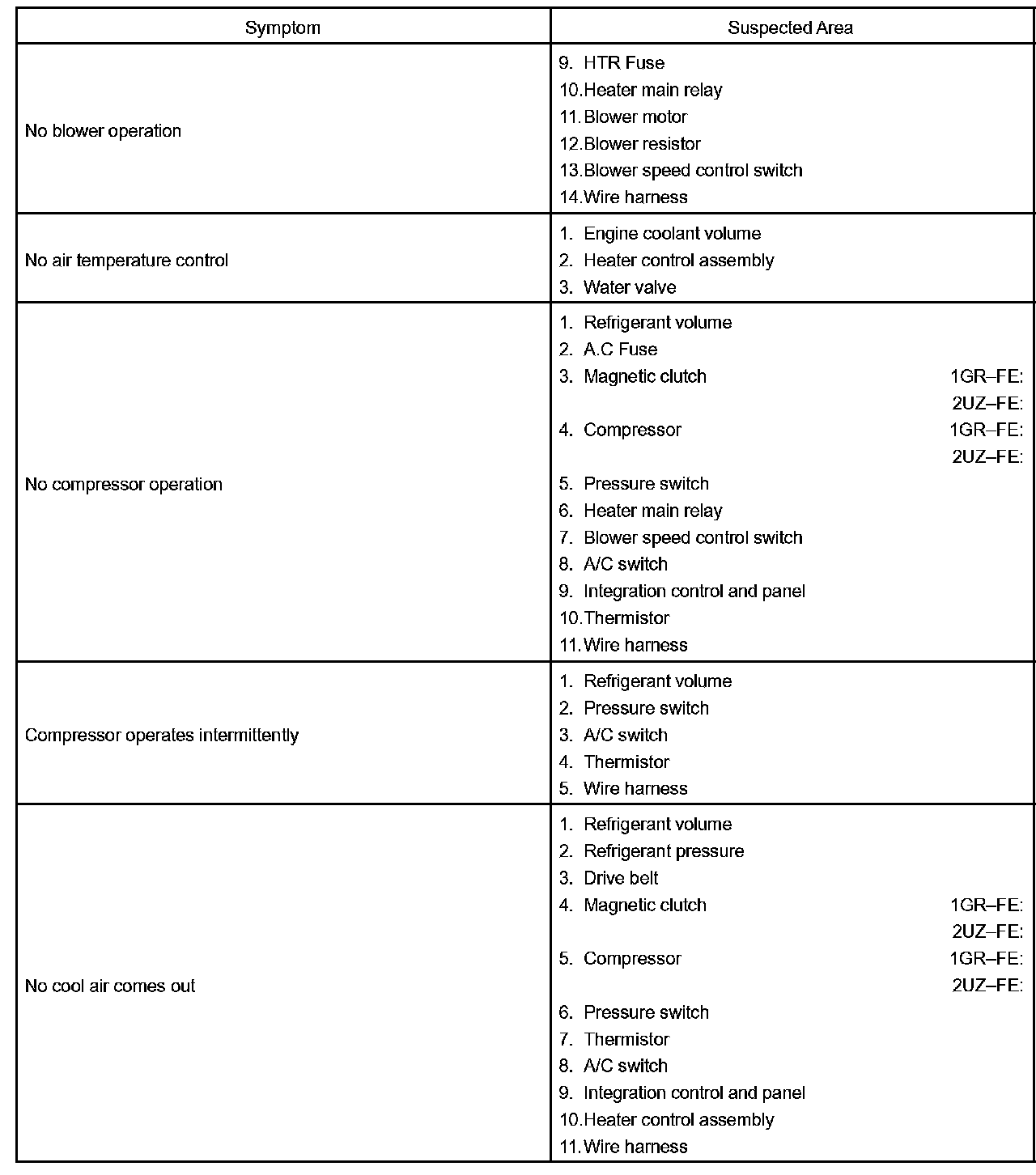

Problem Symptoms Table - Air Conditioning System Part 1:

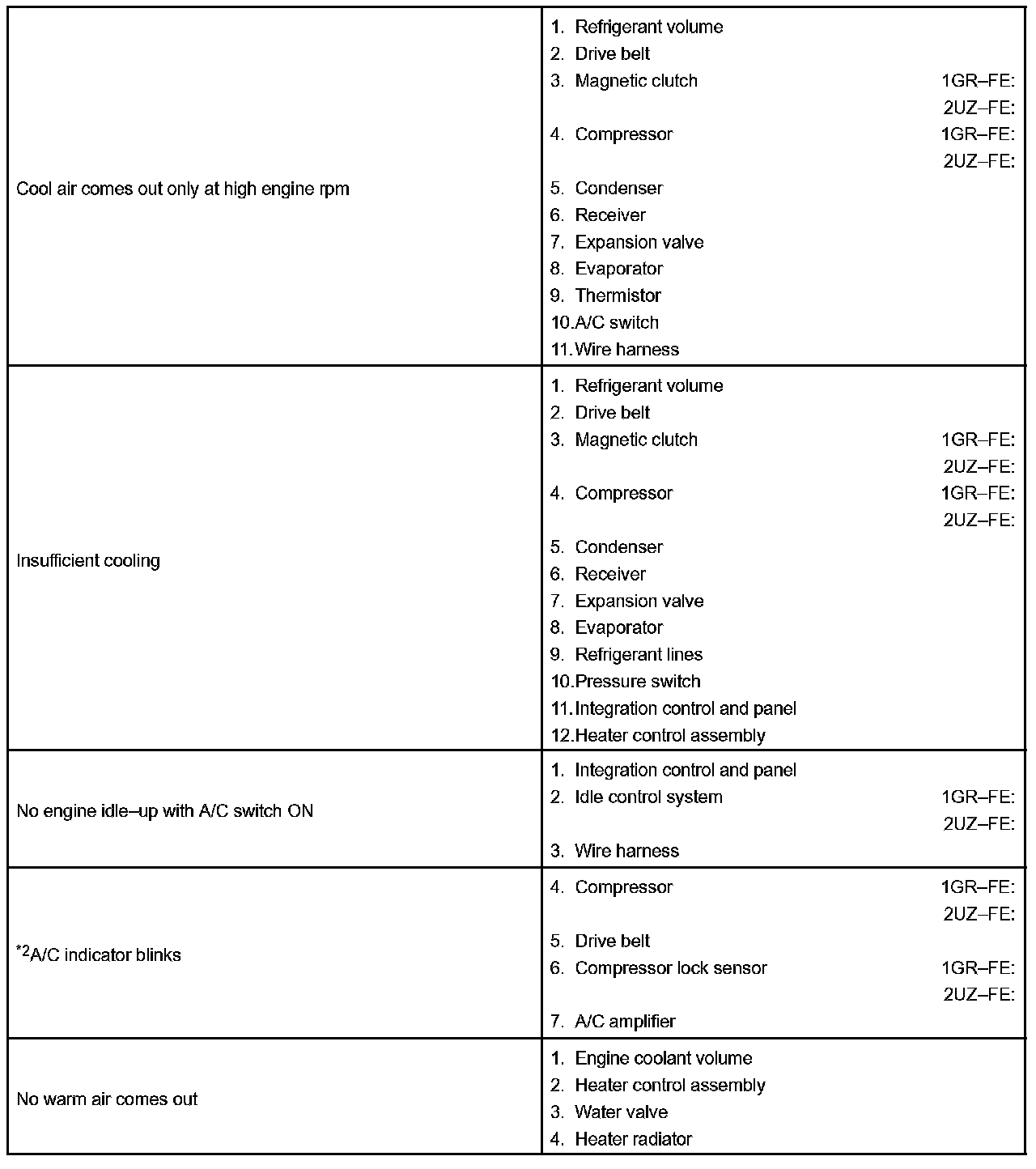

Problem Symptoms Table - Air Conditioning System Part 2:

Use the table to help find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.
