Receiver Dryer: Service and Repair

REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM

HINT: At the time of the installation, refer to the following:
- Evacuate air from the refrigeration system.
- Charge the system with refrigerant and inspect for leakage of refrigerant.

Specified amount:
Access cab, Standard cab:
600 ± 50 g (21.16 ± 1.76 oz.)

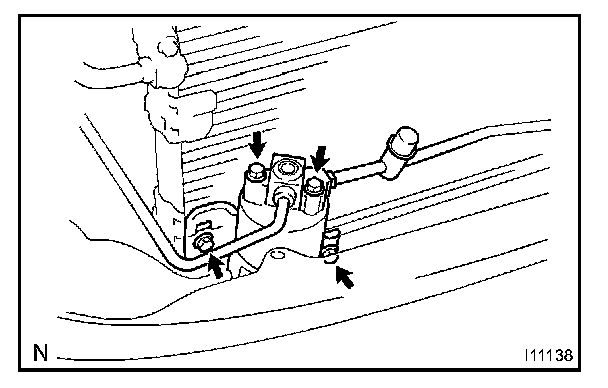

2. DISCONNECT 2 LIQUID TUBES FROM RECEIVER
Remove the 2 bolts and disconnect both tubes.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

NOTE: Cap the openings immediately to keep moisture or dirt out of the system.

HINT: At the time of the installation, refer to the following:
Lubricate 2 new O-rings with compressor oil and install them to the tubes.

3. REMOVE RECEIVER
a. Remove the holder bolt and pull the receiver downward.

HINT: At the time of the installation, refer to the following:
If the receiver is replaced, add compressor oil to the compressor.

Add 20 cc (0.71 fl.oz.)
Compressor oil: ND-OIL 8 or equivalent

b. Remove the bolt and holder.

INSTALLATION
The installation procedures are the removal procedures in reverse order.
