Heating and Air Conditioning: Locations

Air Conditioning System (Access Cab; Standard Cab):

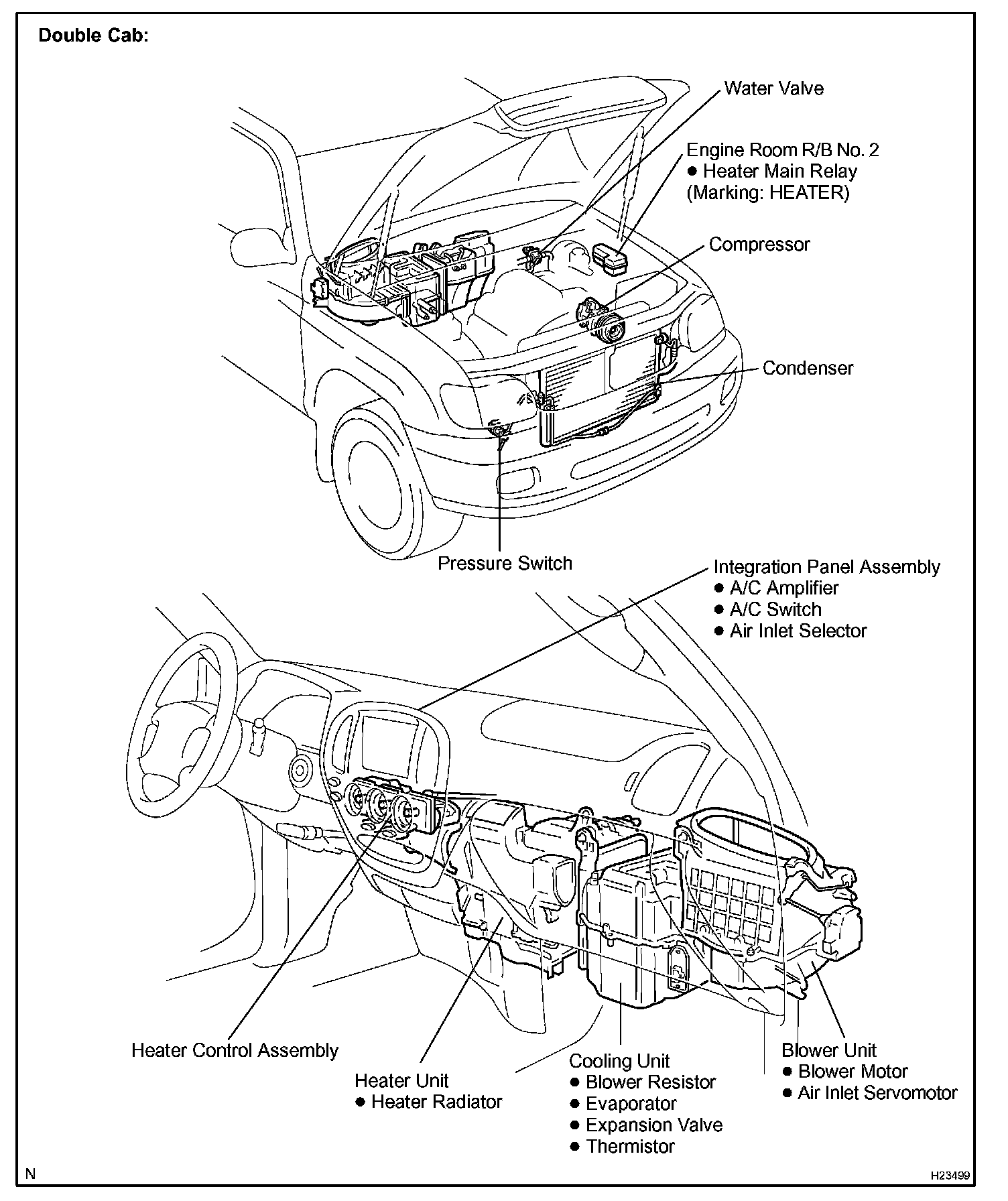

Air Conditioning System (Double Cab):
