Removal and Installation

REMOVAL

1. REMOVE COOLING UNIT
2. DRAIN ENGINE COOLANT FROM RADIATOR

HINT: It is not necessary to drain out all the coolant.

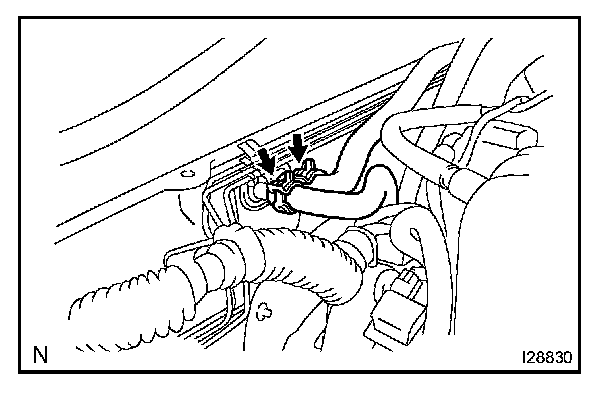

3. DISCONNECT WATER HOSES FROM HEATER RADIATOR PIPES
a. Using pliers, grip the claws of clips and slide the clips along the hoses.
b. Disconnect the water hoses.






HINT: At the time of installation, refer to the following:

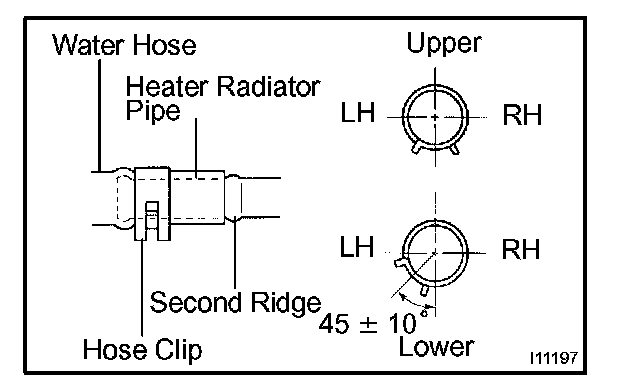

- Push the water hose onto the heater radiator pipe up to the second ridge on the pipe.
- Install the hose clip to the position shown in the illustration.

4. REMOVE INSTRUMENT PANEL AND REINFORCEMENT
5. REMOVE DEFROSTER NOZZLE AND HEATER TO REGISTER DUCT

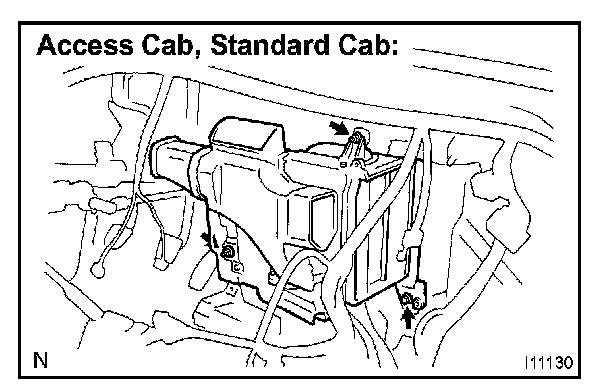

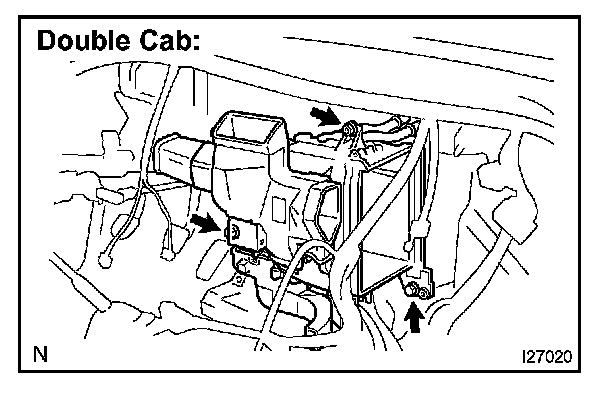

6. REMOVE HEATER UNIT
Remove the 3 nuts and heater unit.

INSTALLATION
The installation procedures are the removal procedures in reverse order
