Toyota Truck
>>
2005
>>
Tundra 4WD V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Seat Belt
Seat Belt

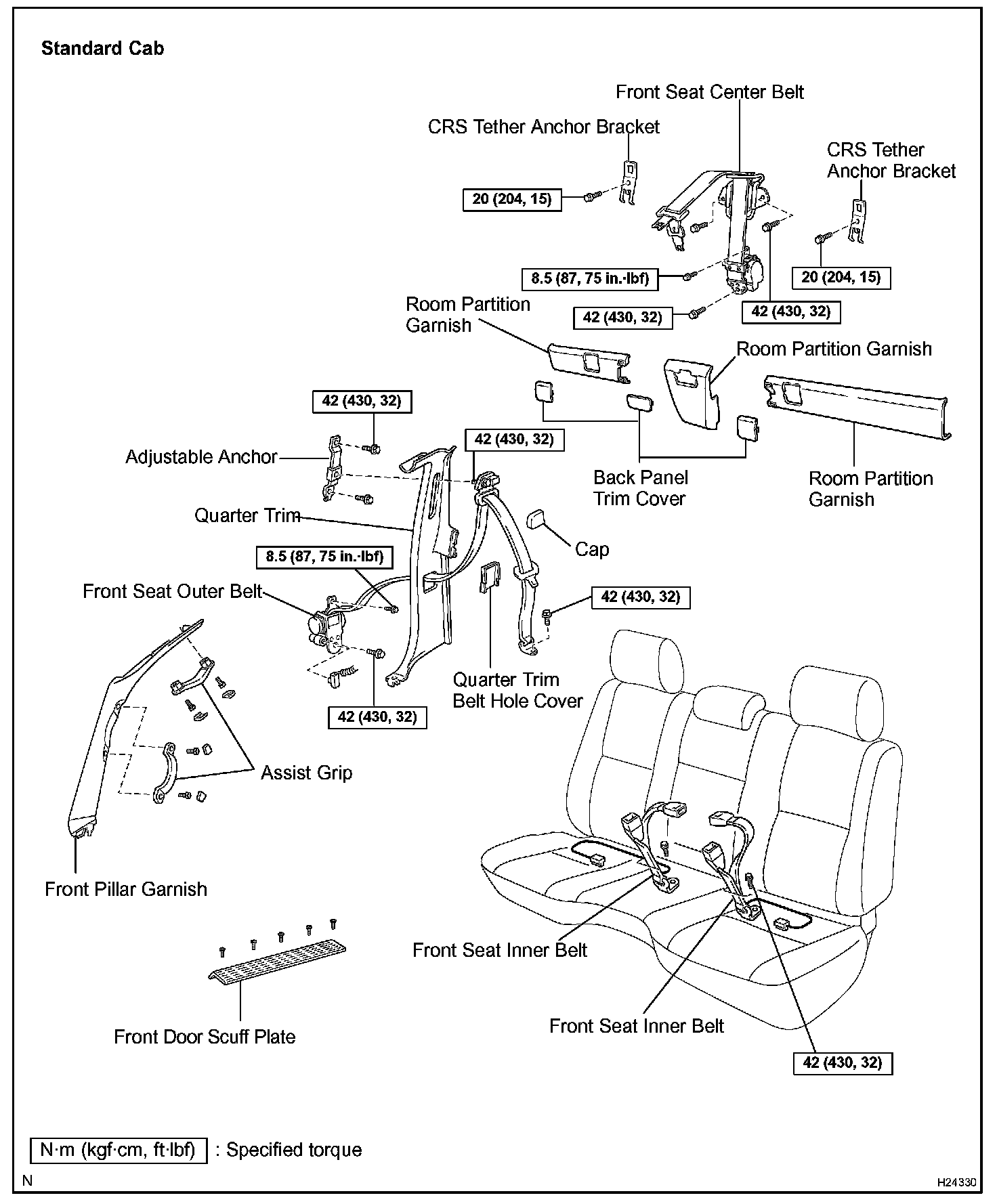

Seat Belt (Standard Cab):

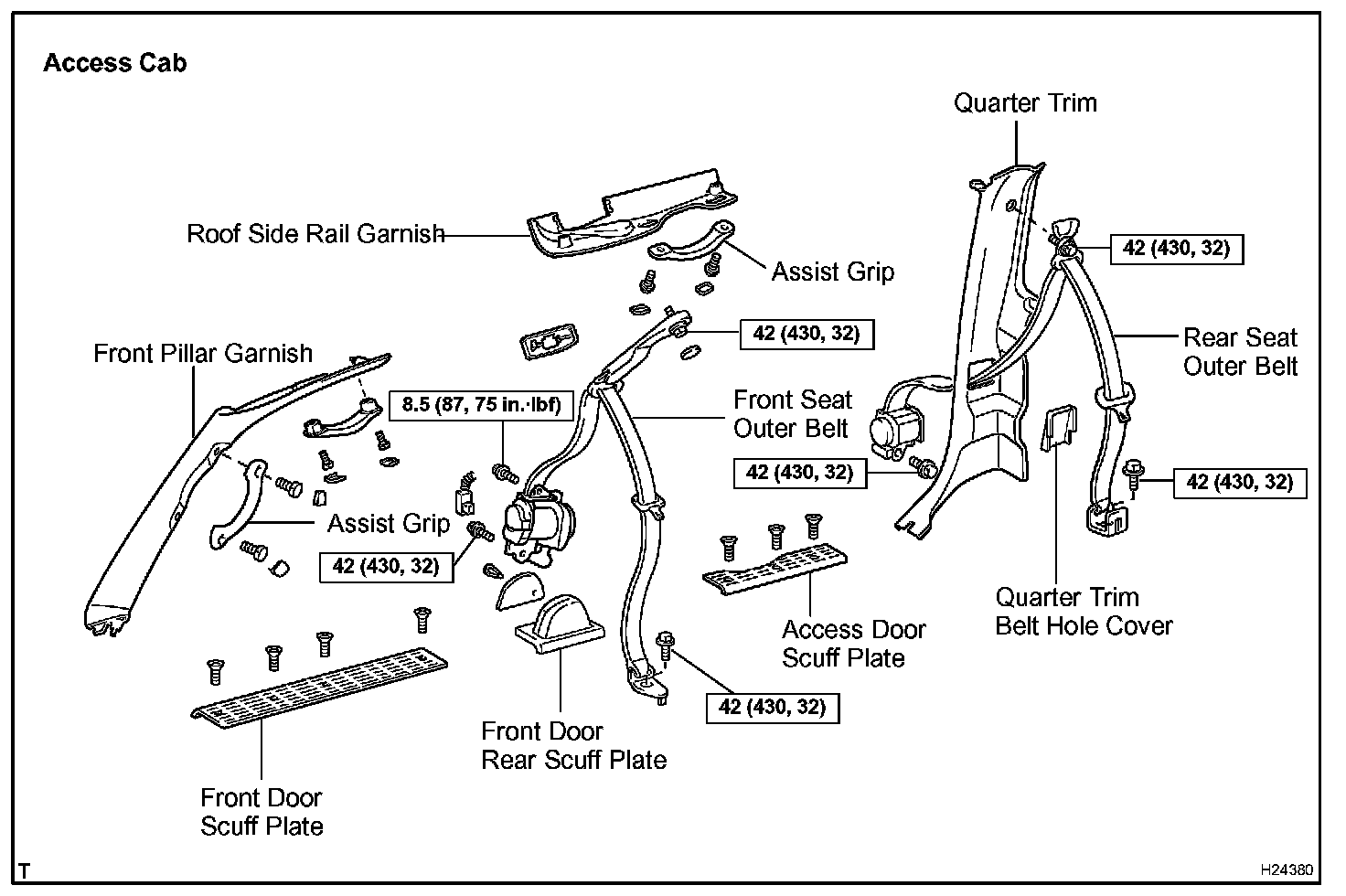

Seat Belt (Access Cab):

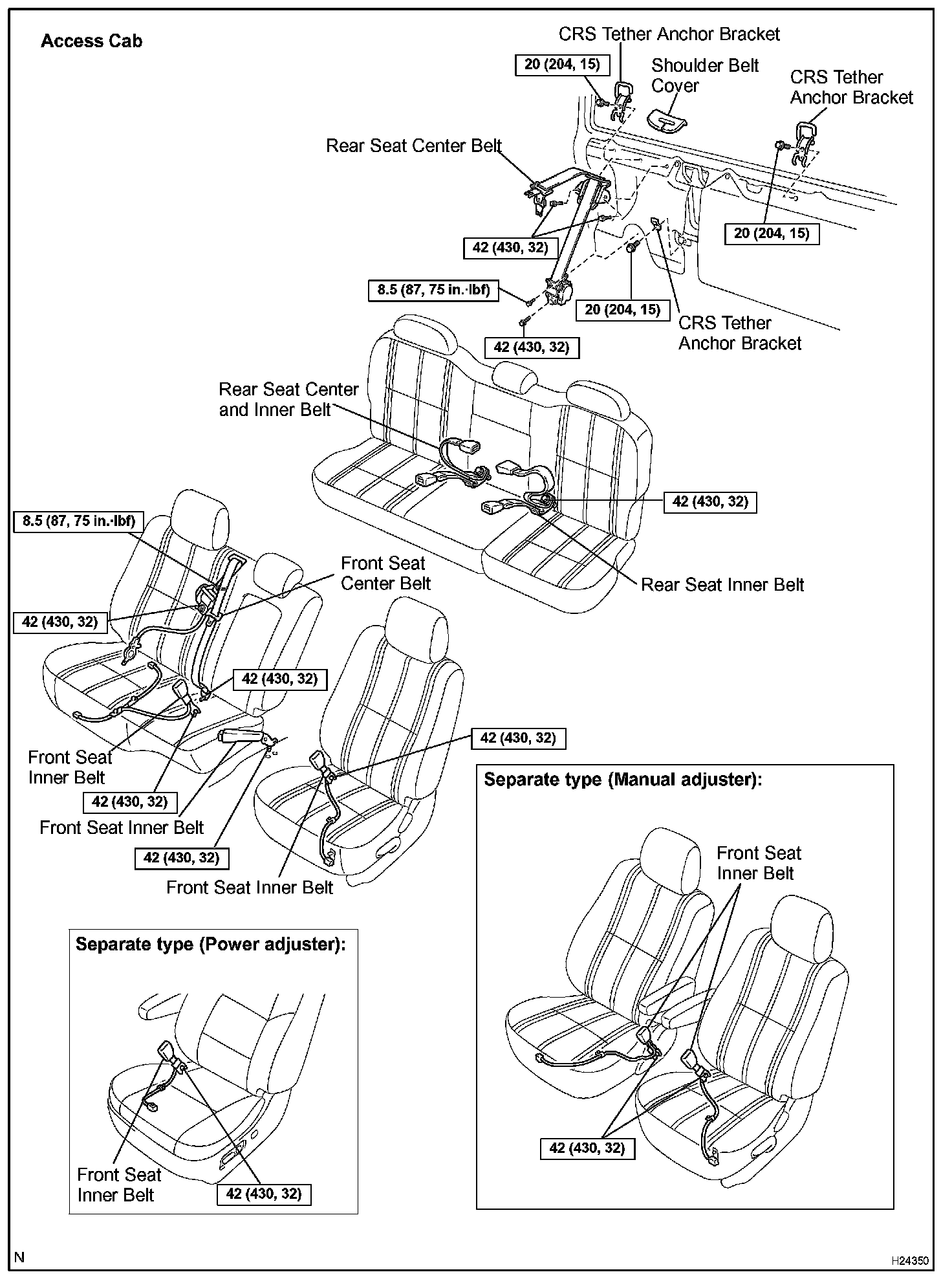

Seat Belt (Access Cab):

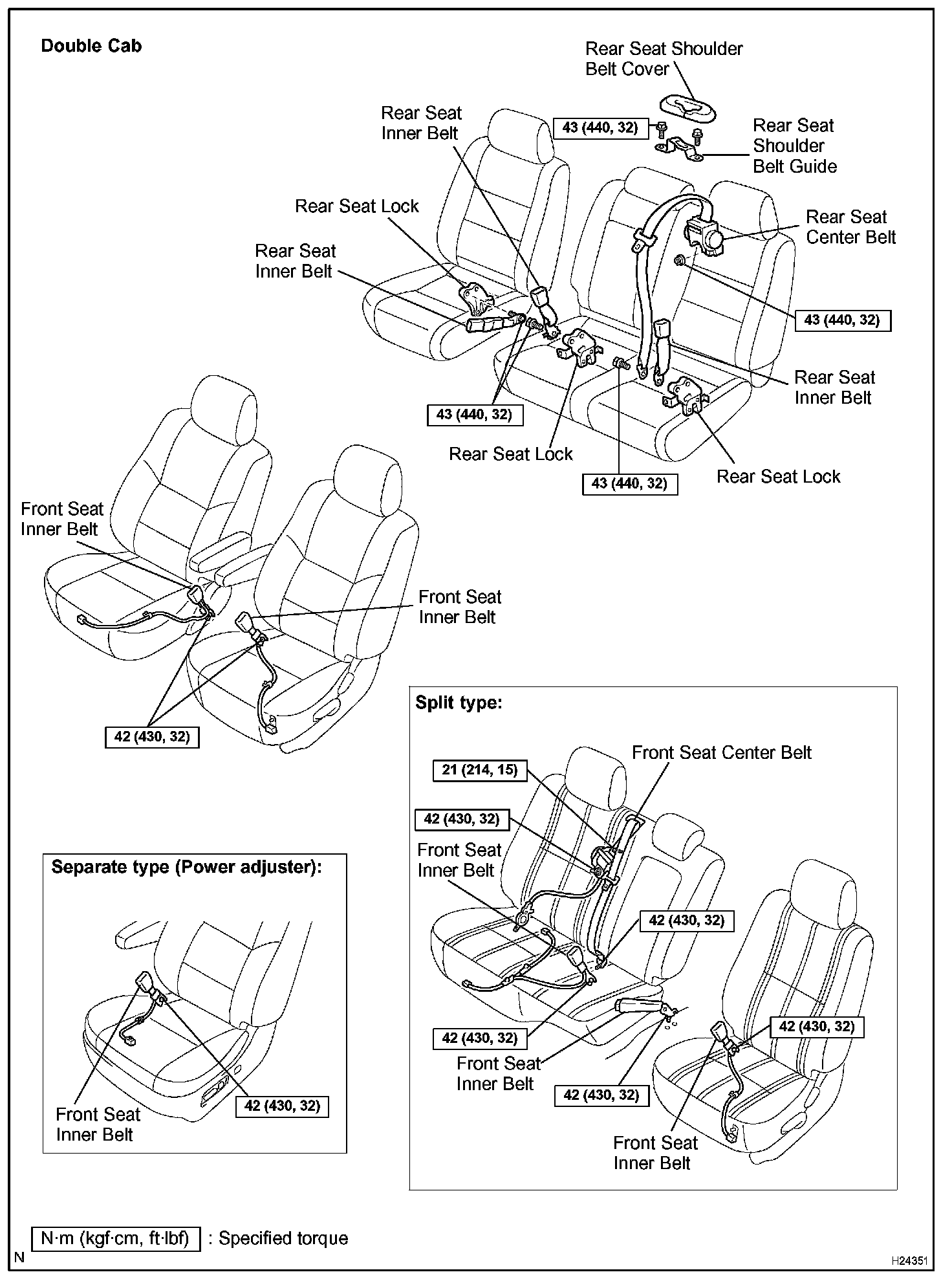

Seat Belt (Double Cab):

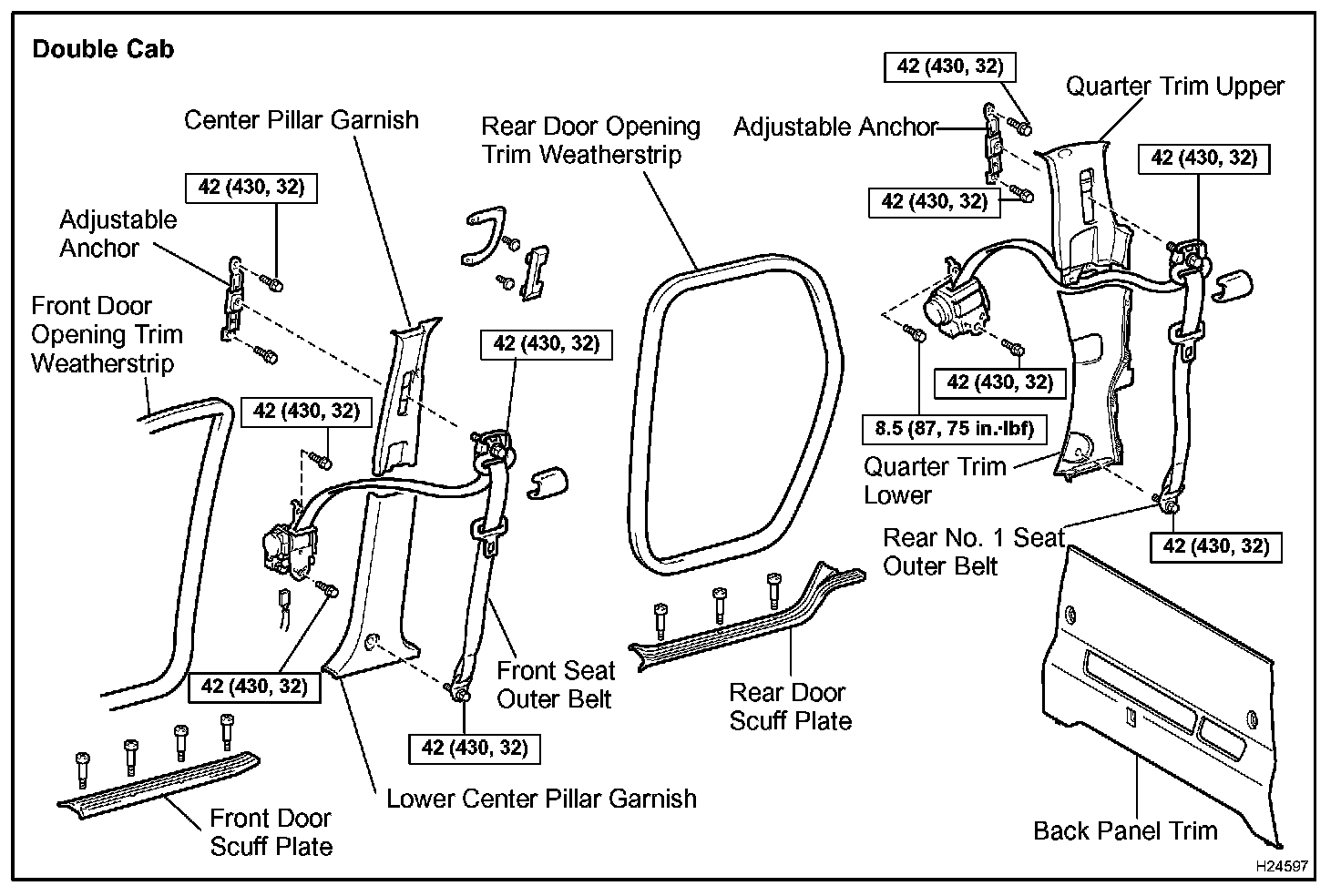

Seat Belt (Double Cab):
