Multiple Junction Connector
Multiple Junction Connector

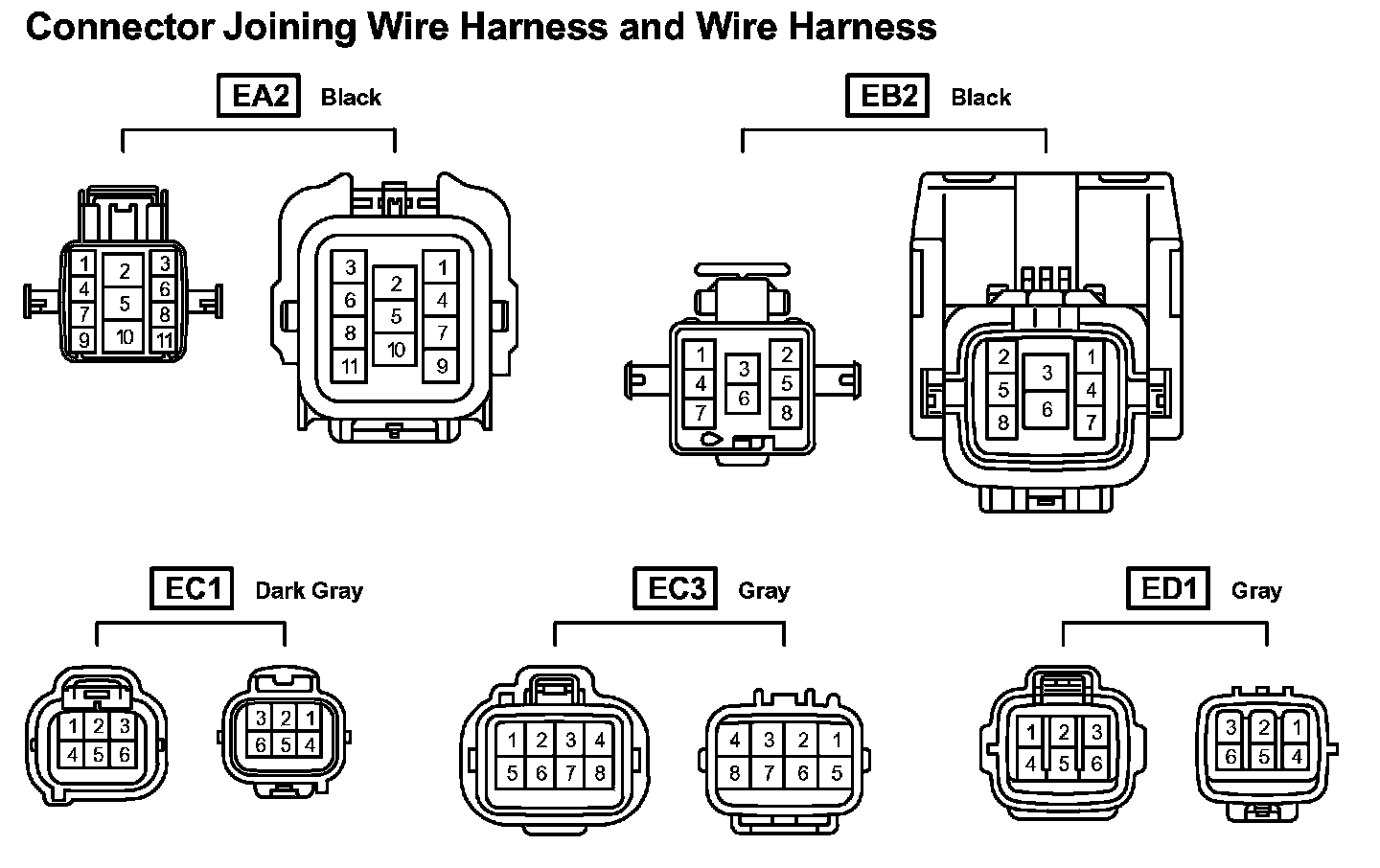

EA2 - ED1:

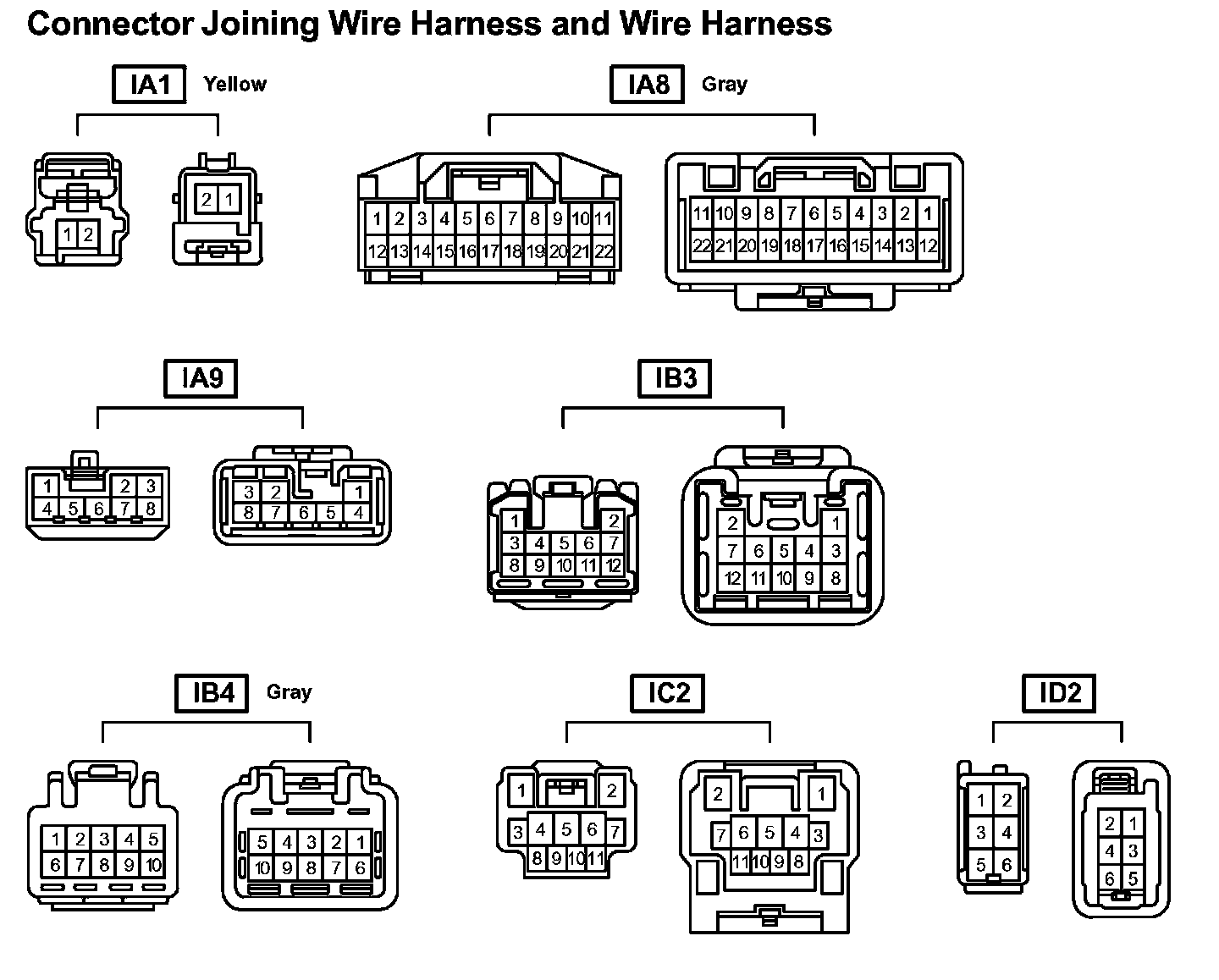

IA1 - ID2:

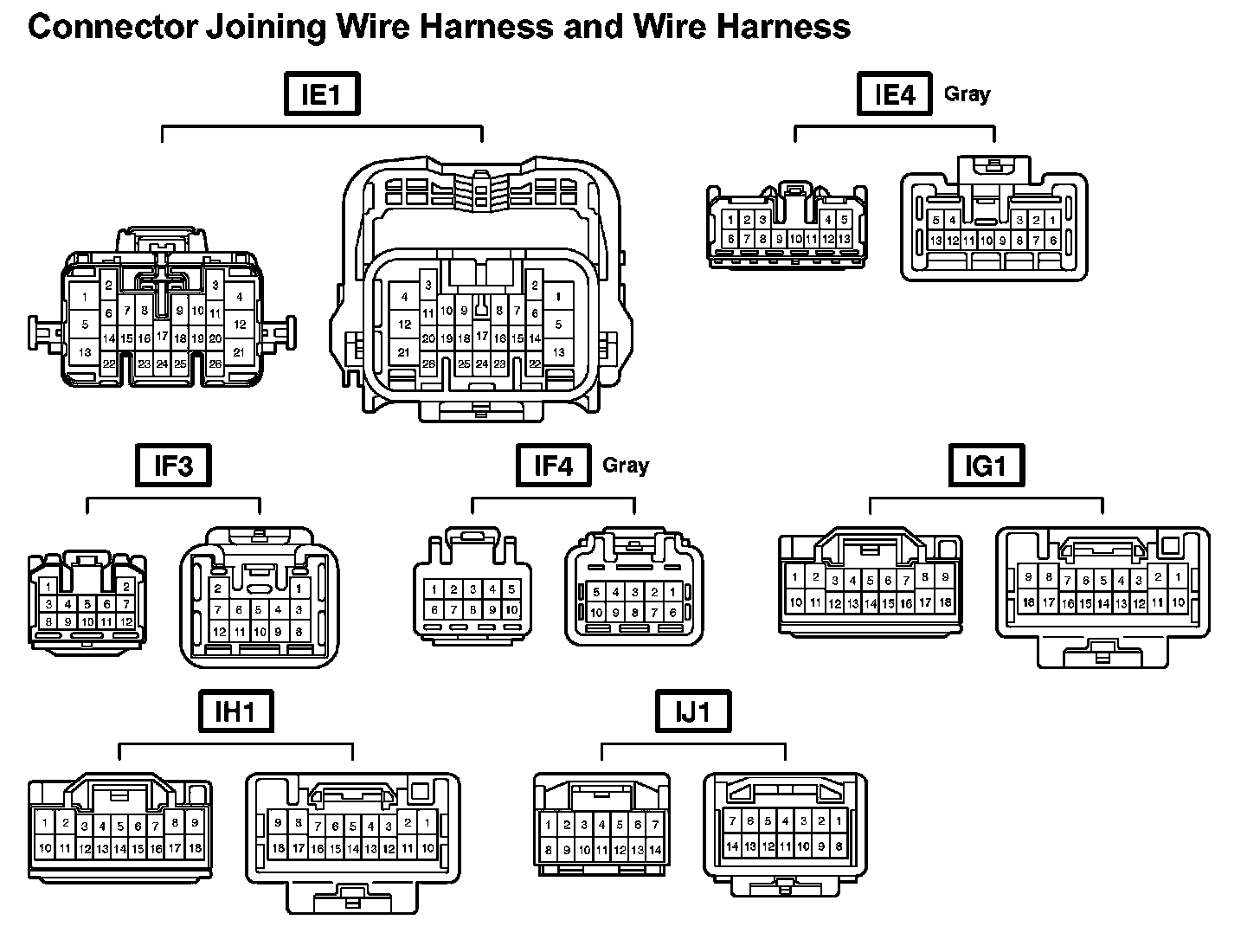

IE1 - IJ1:

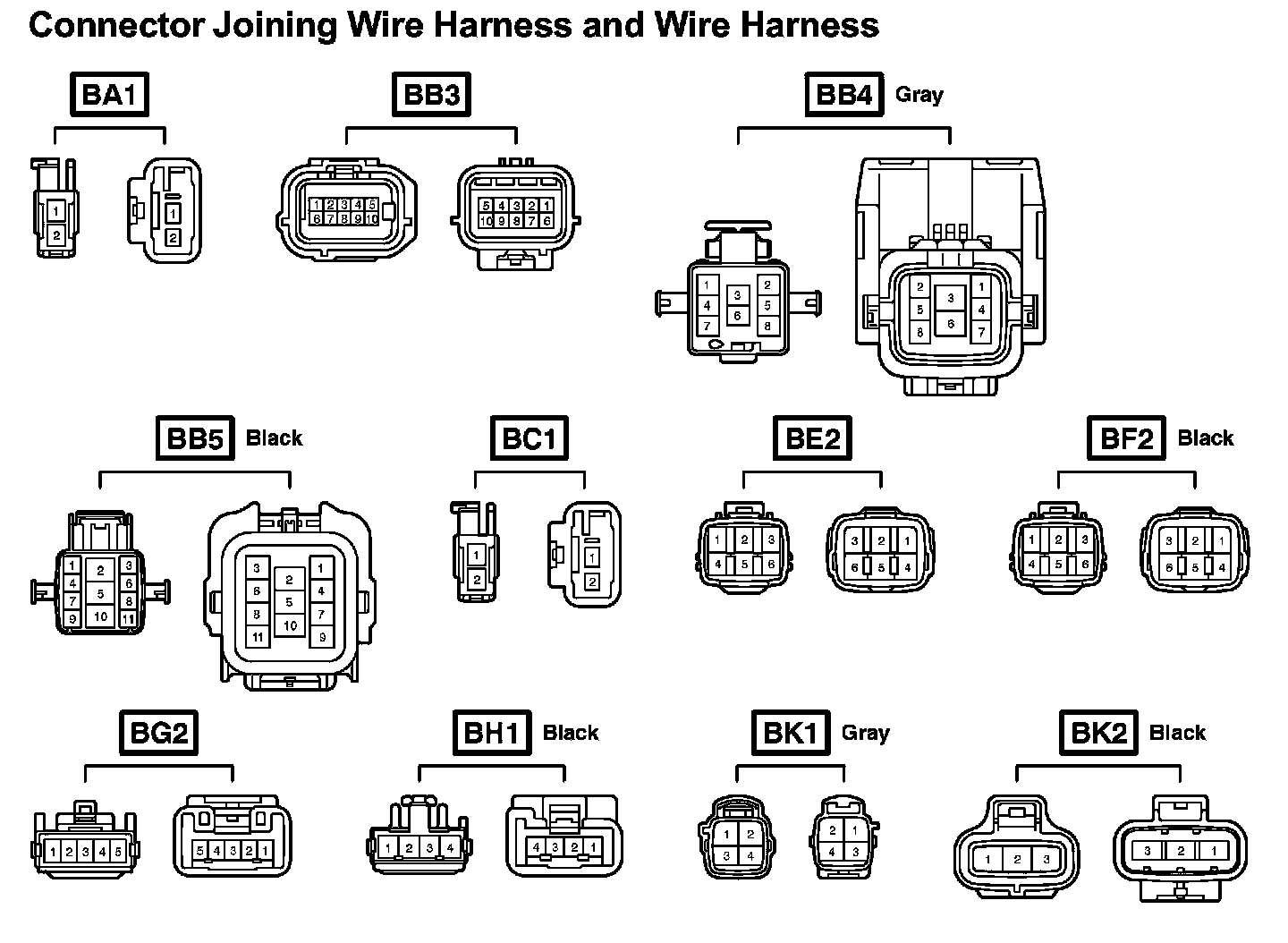

BA1 - BK2:

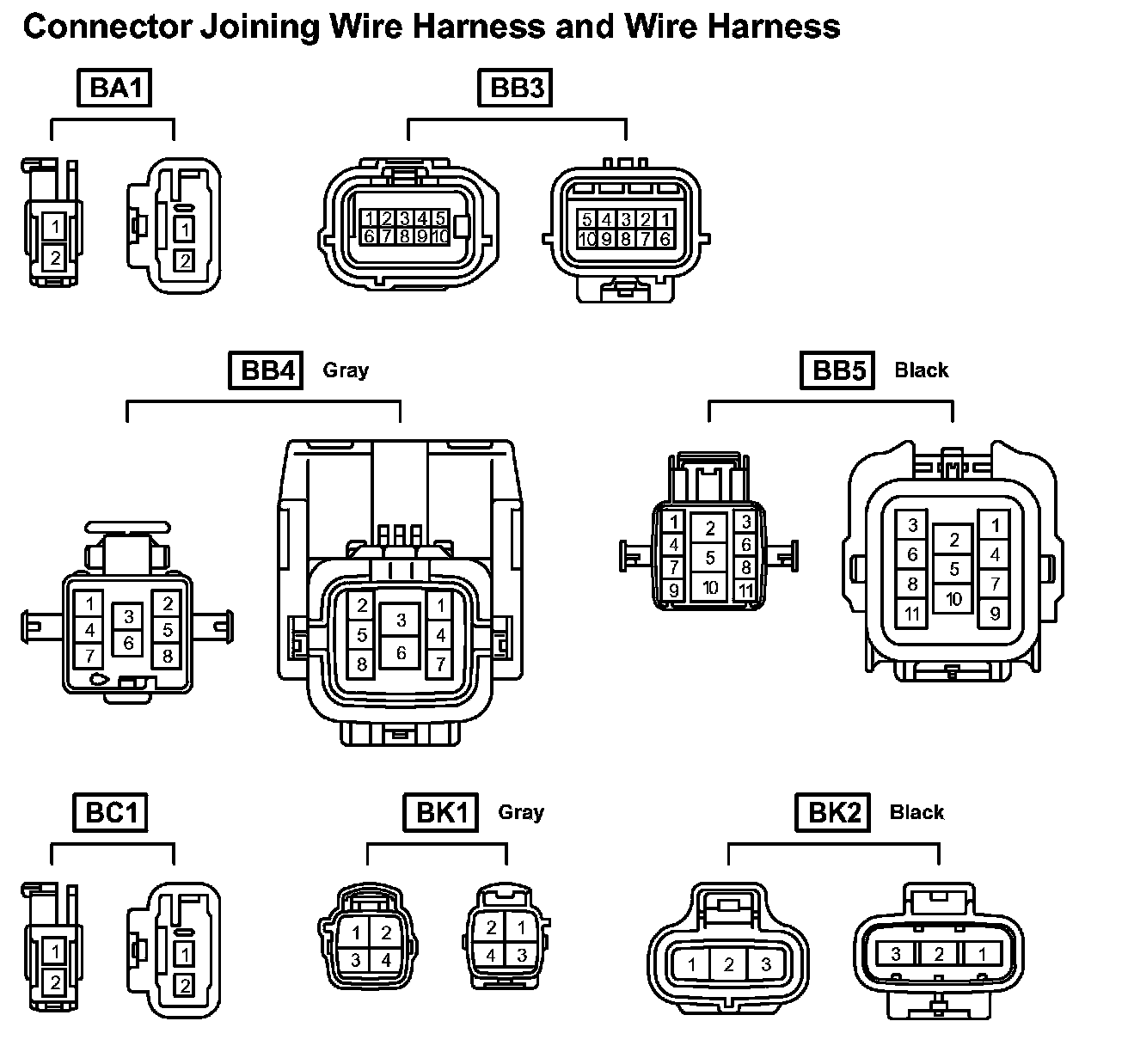

BA1 - BK2:

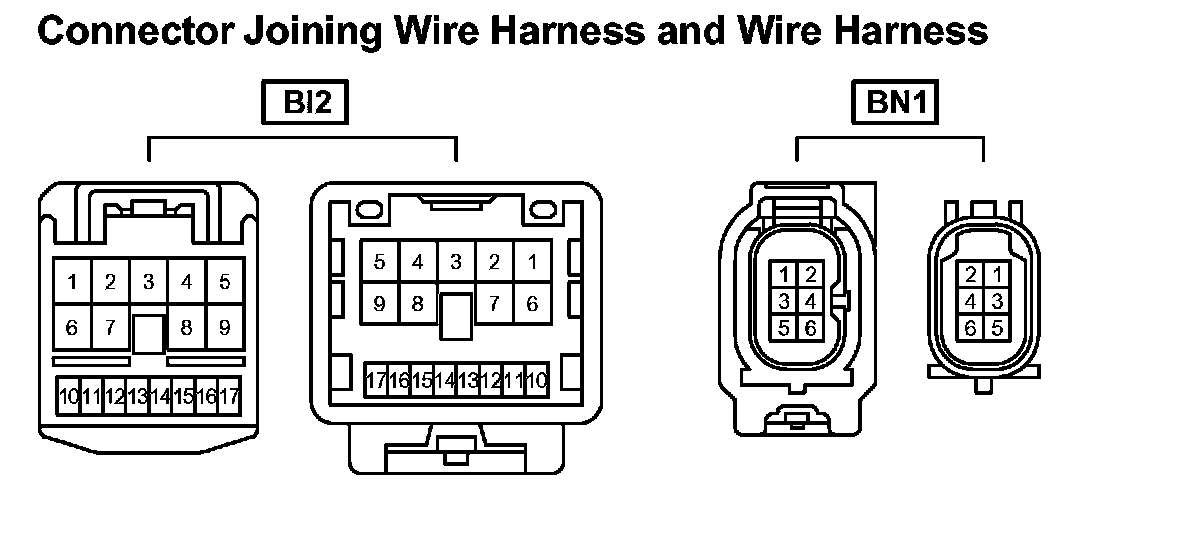

BI2 - BN1:

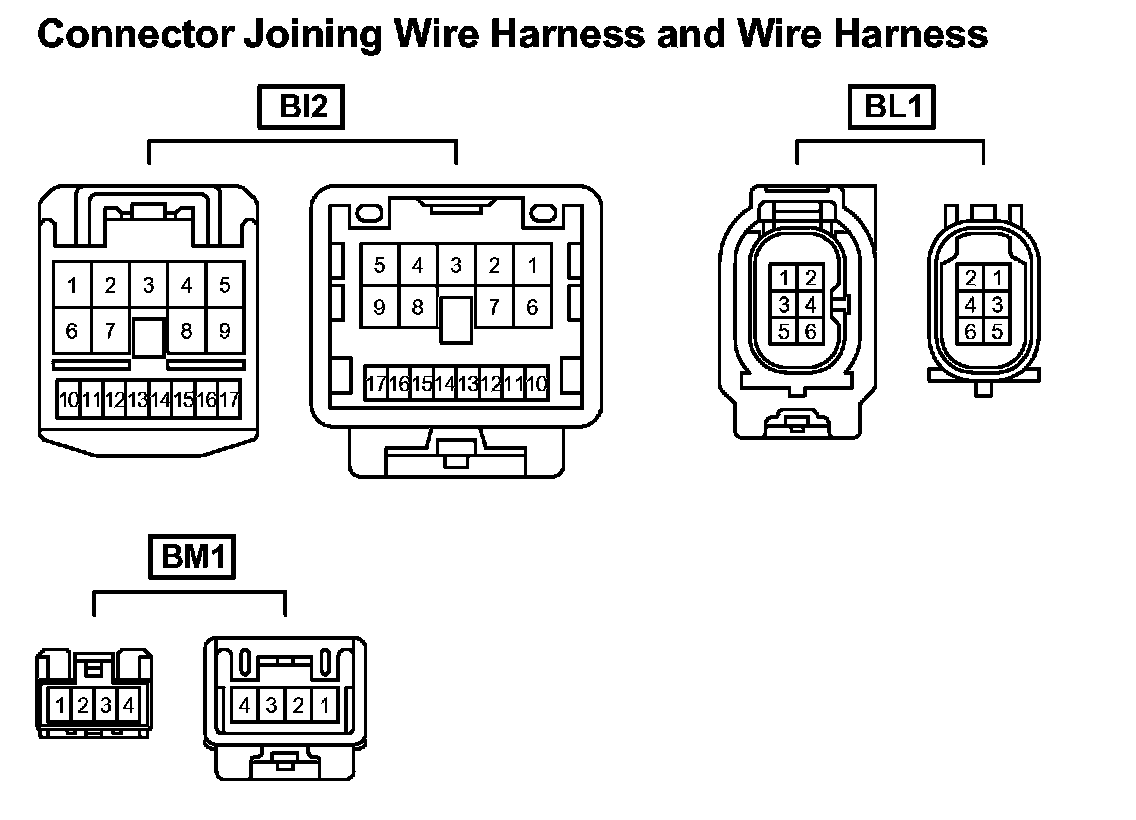

BI2 - BM1:
EB2 - ED1:

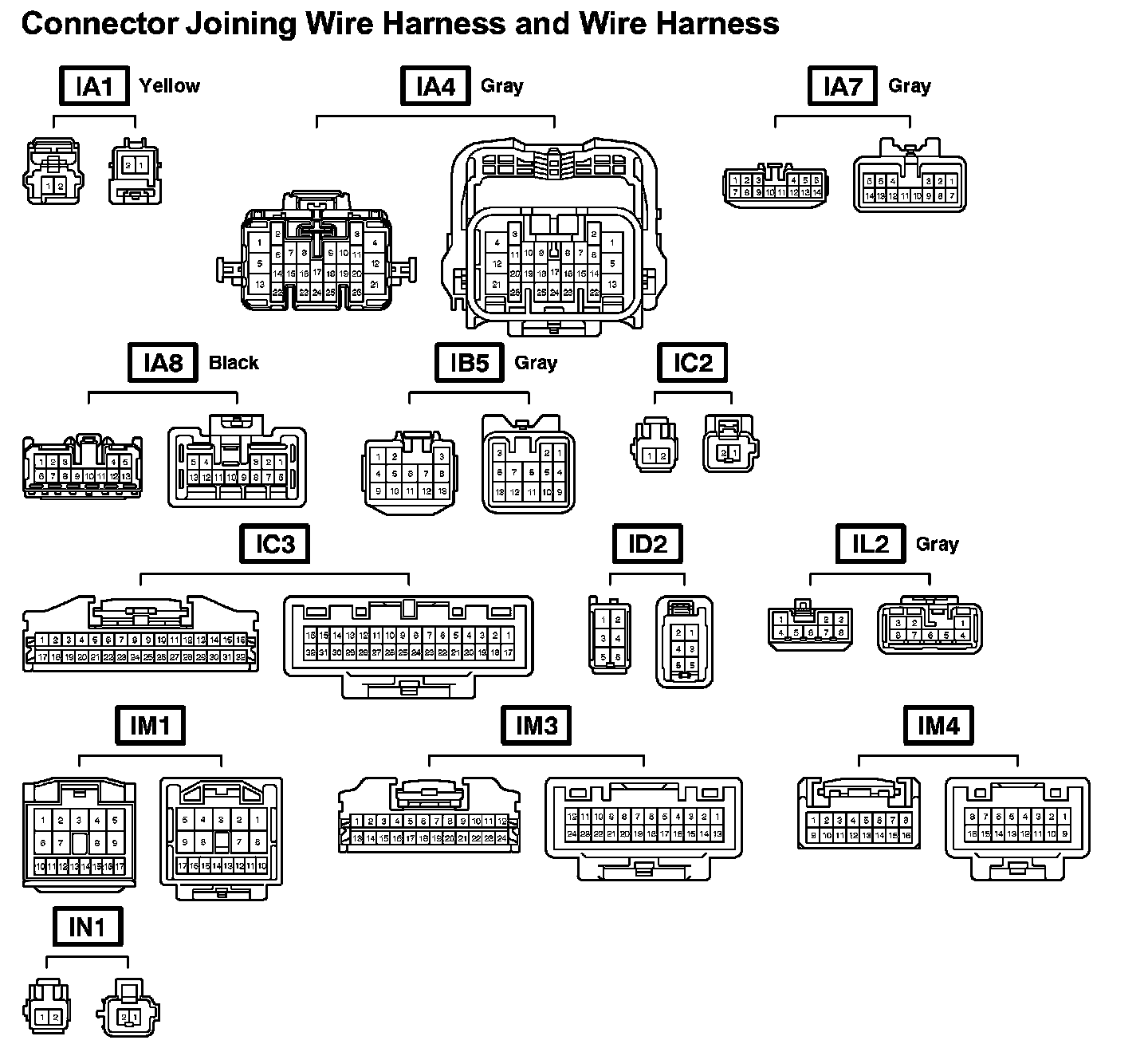

IA1 - IN1:

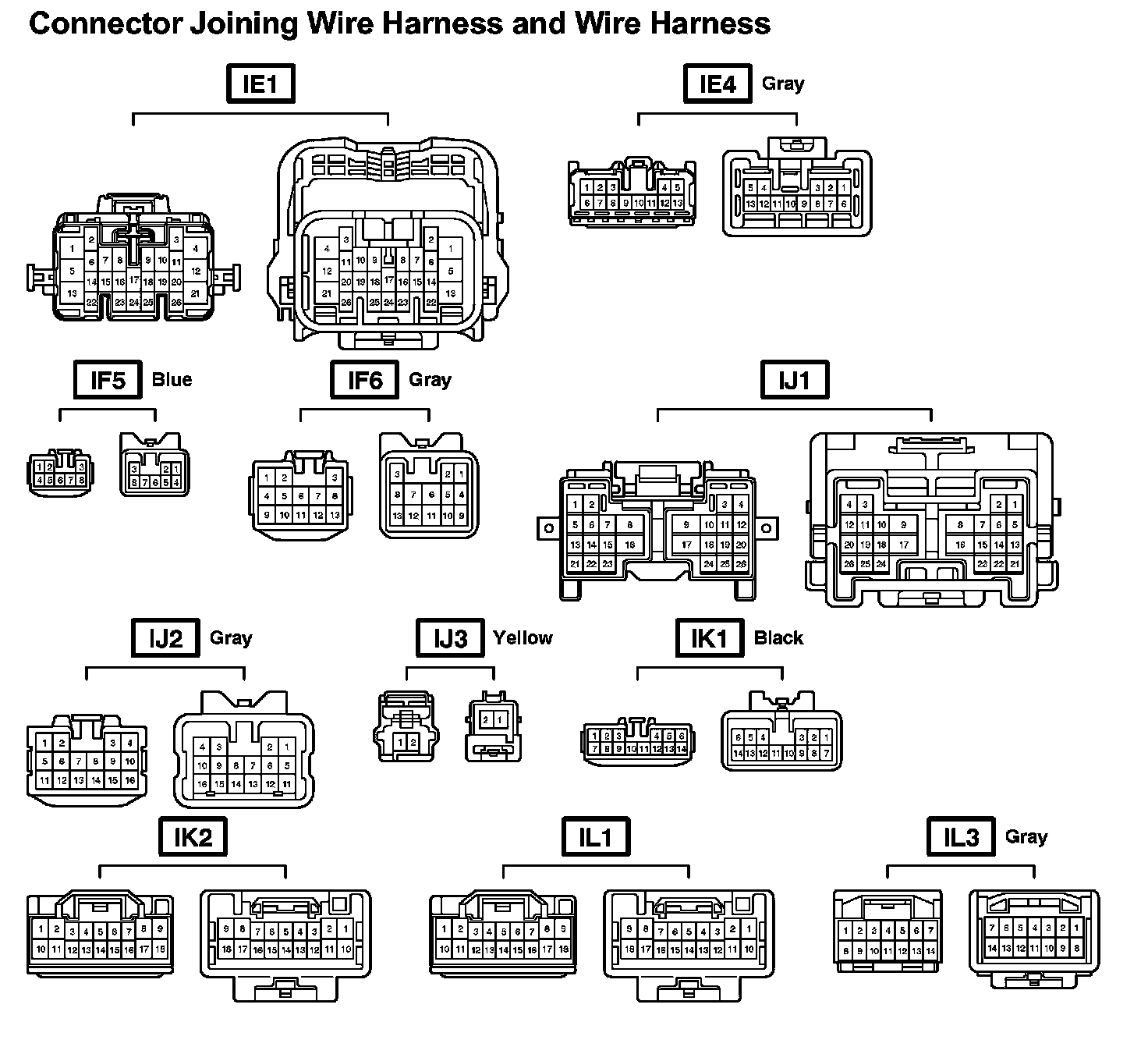

IE1 - IL3:

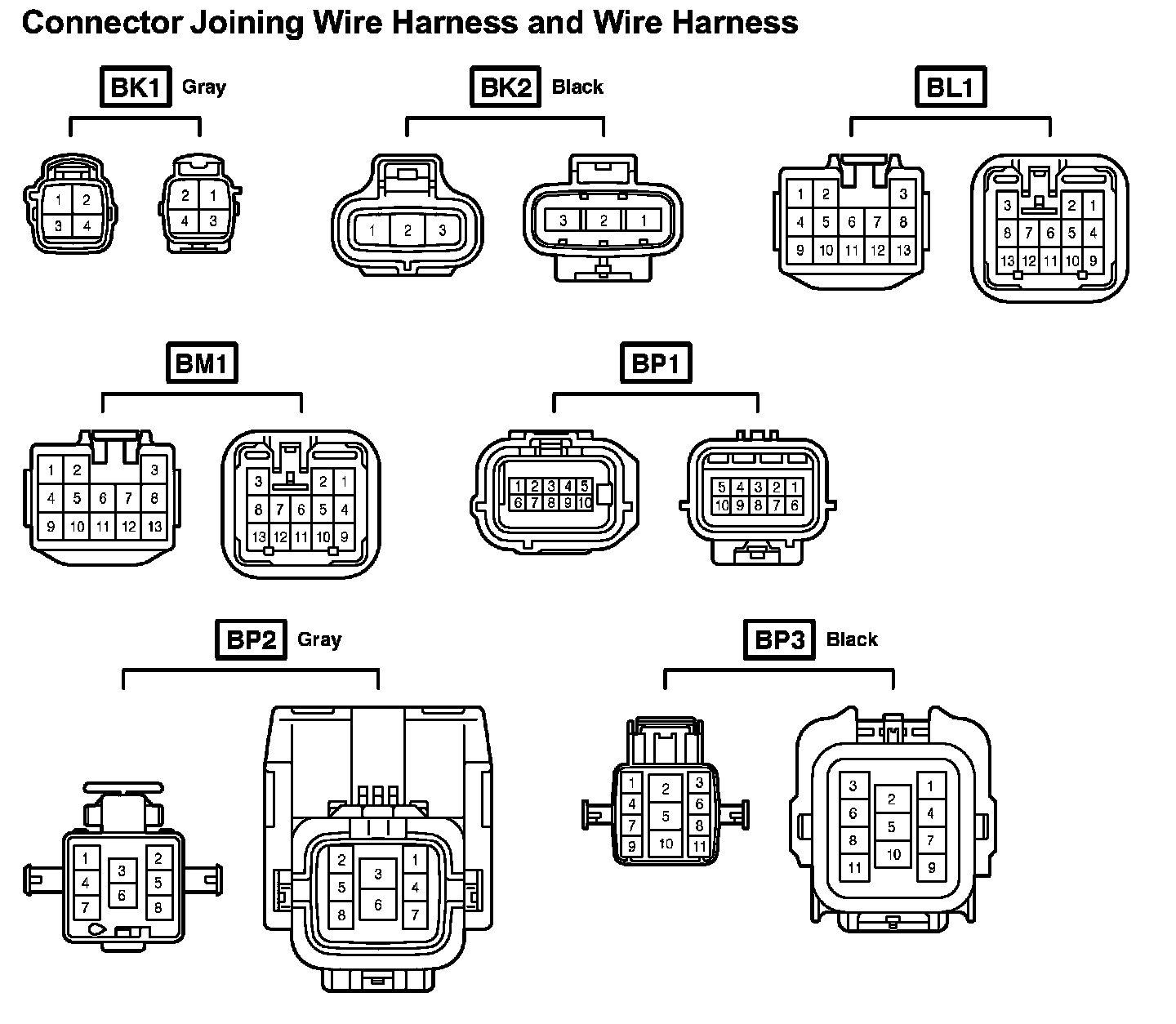

BK1 - BP3:

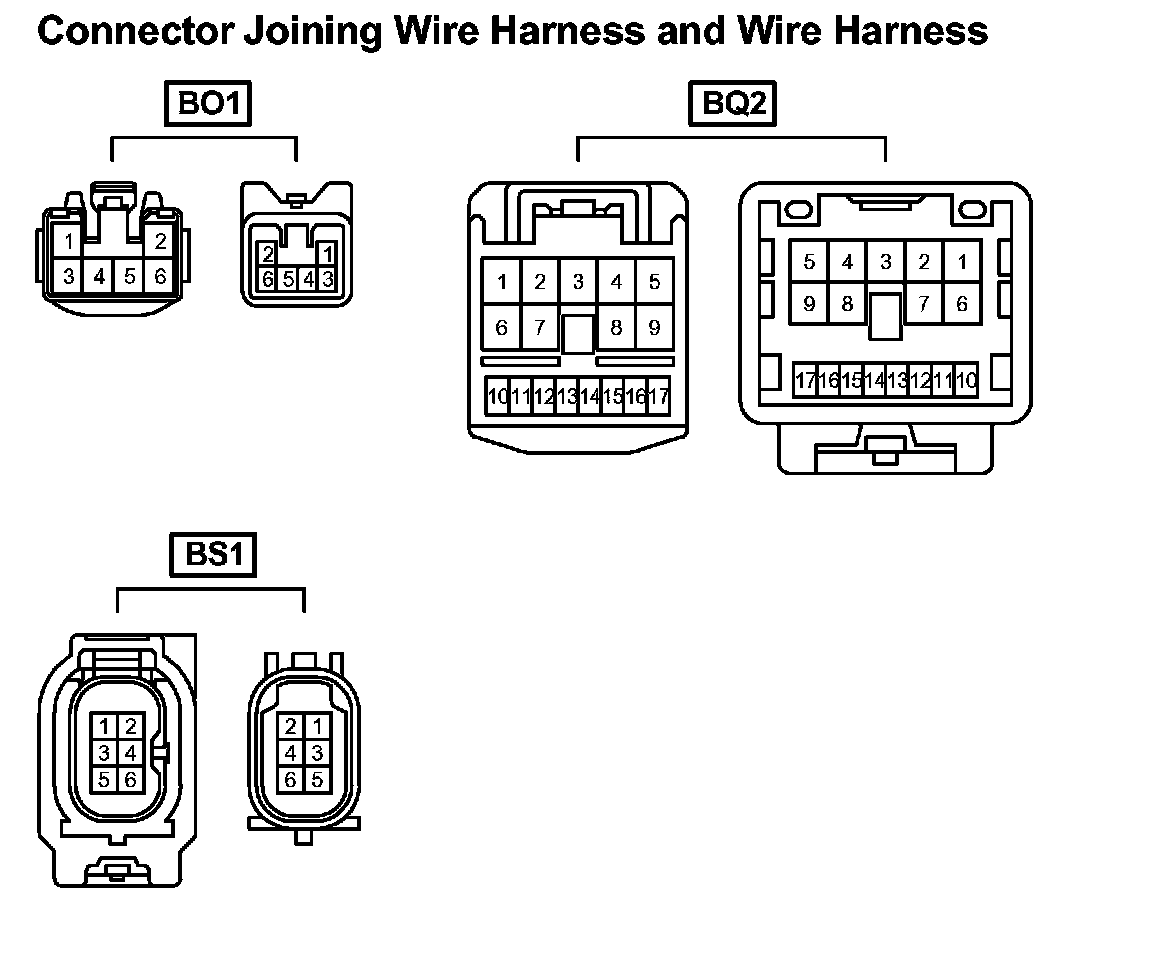

BO1 - BS1:
