Rear

REAR SPEED SENSOR

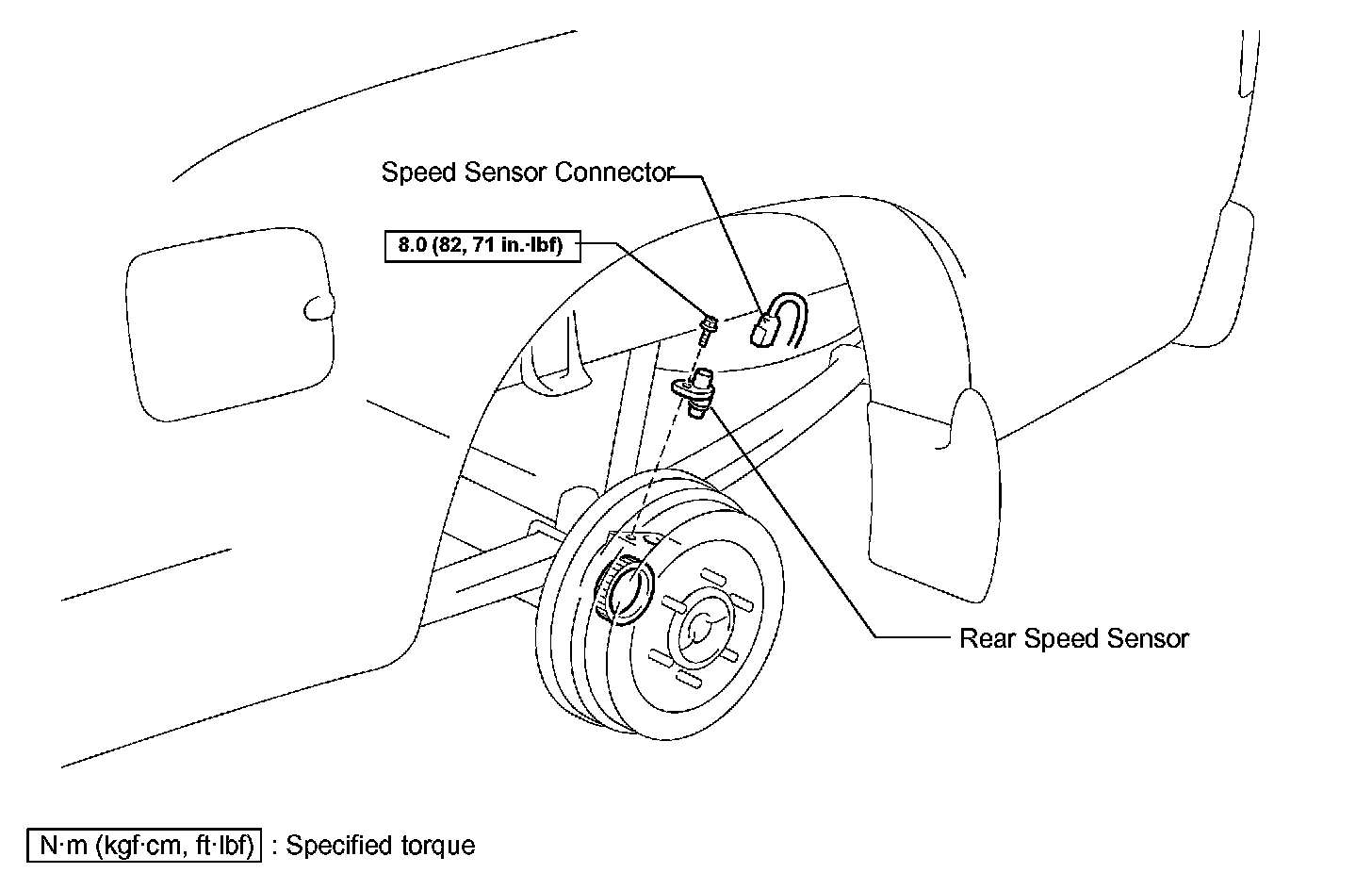

COMPONENTS

REMOVAL





1. REMOVE REAR WHEEL
Torque: 113 Nm (1.150 kgf-cm, 83 ft. lbs.)
2. DISCONNECT SPEED SENSOR CONNECTOR

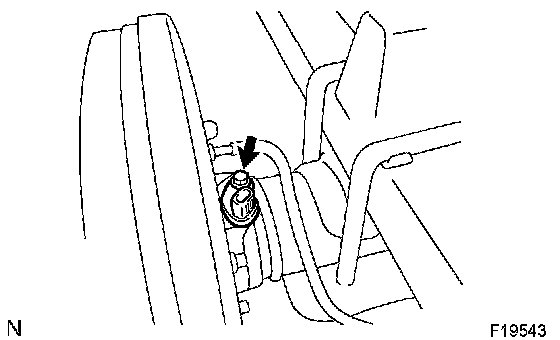

3. REMOVE SPEED SENSOR
a. Remove the bolt and speed sensor from the axle carrier.
Torque: 8.0 Nm (82 kgf-cm, 71 ft. lbs.)


INSTALLATION
Installation is in the reverse order of removal.

HINT: After installation, check the speed sensor signal.
