VSC Warning Buzzer Circuit

VSC WARNING BUZZER CIRCUIT

CIRCUIT DESCRIPTION
The brake and VSC warning buzzers sound while the accumulator pressure is abnormally low or an abnormality causing low fluid pressure occurs, and then the VSC is activated.

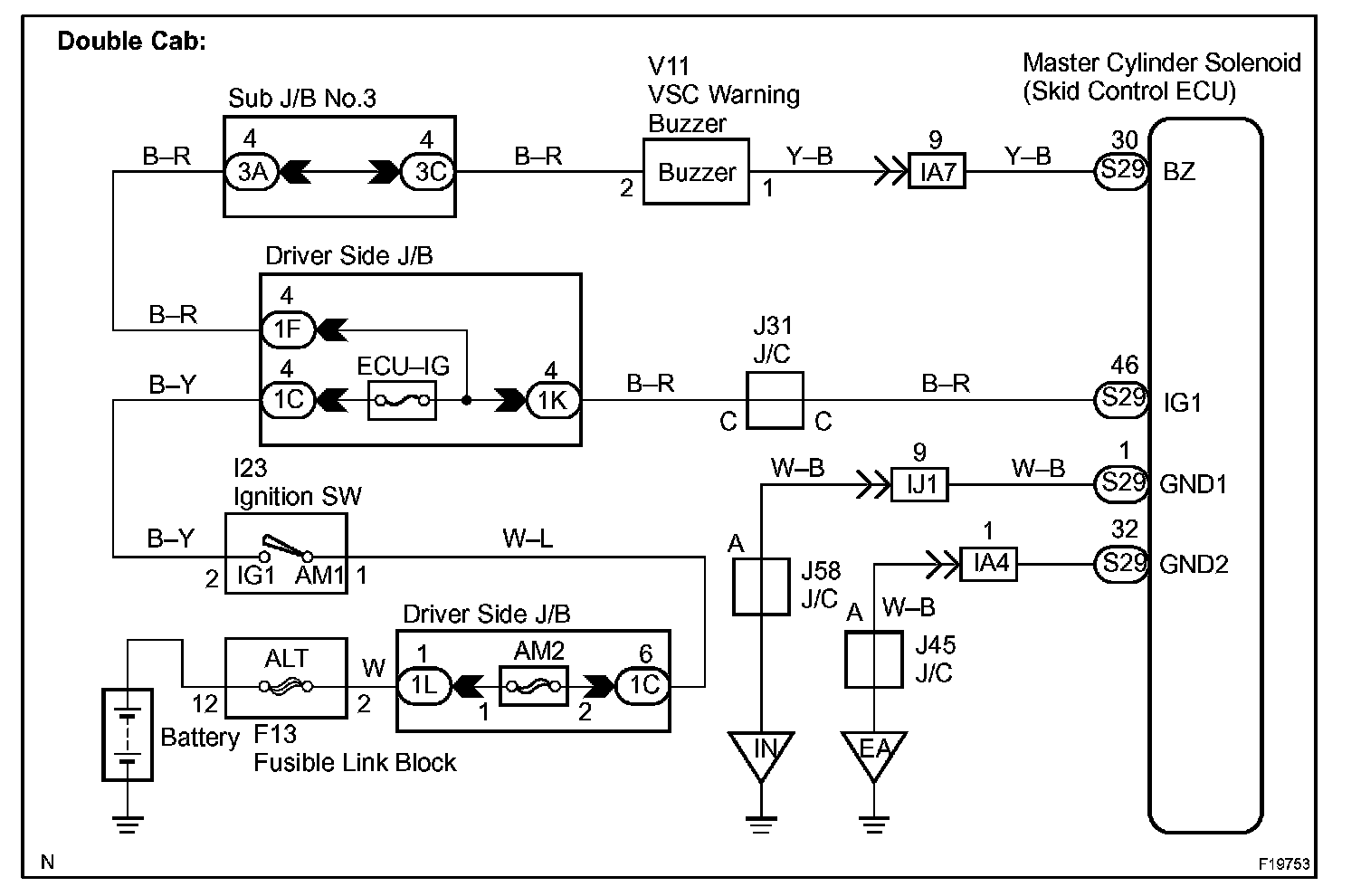

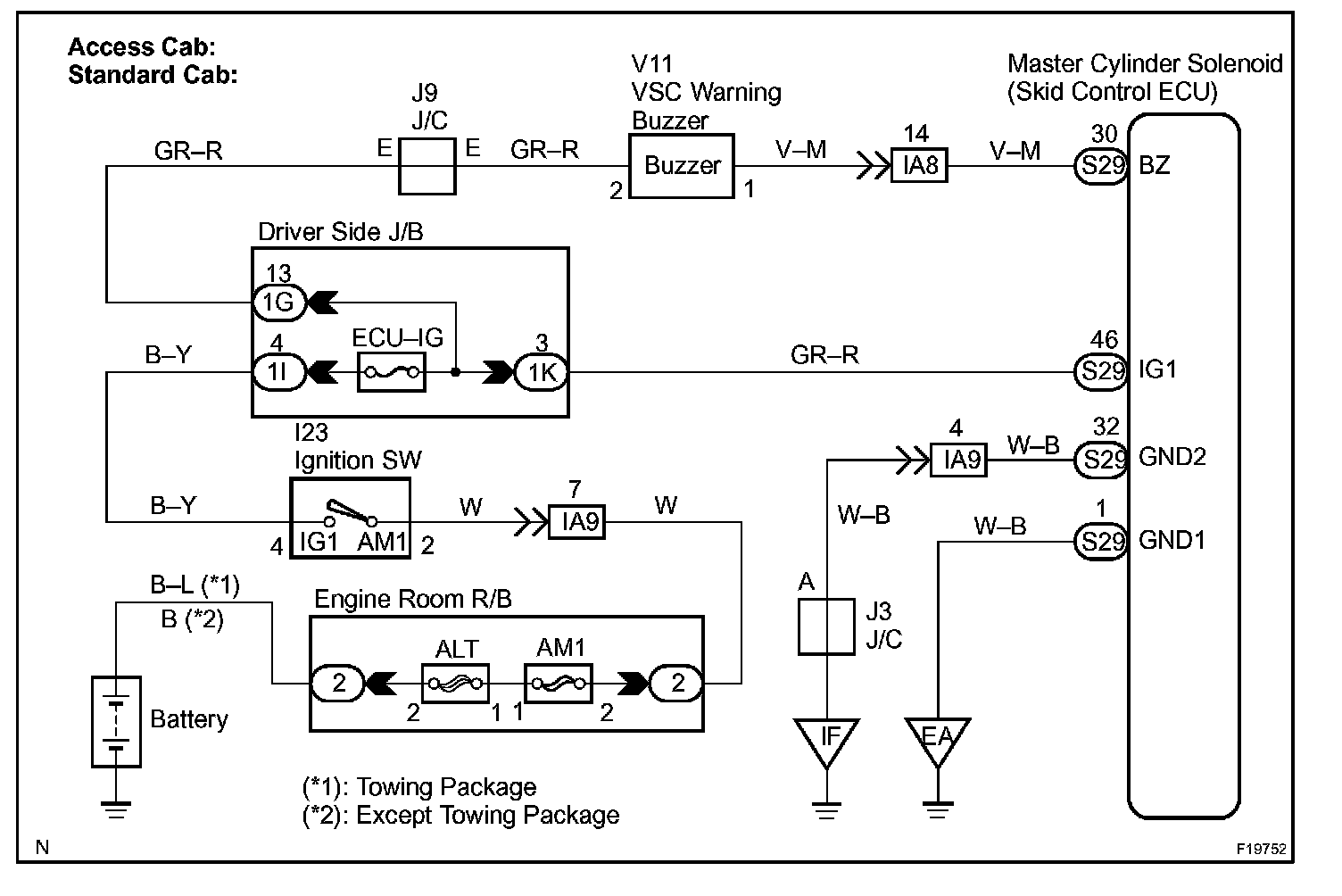

Wiring Diagram:

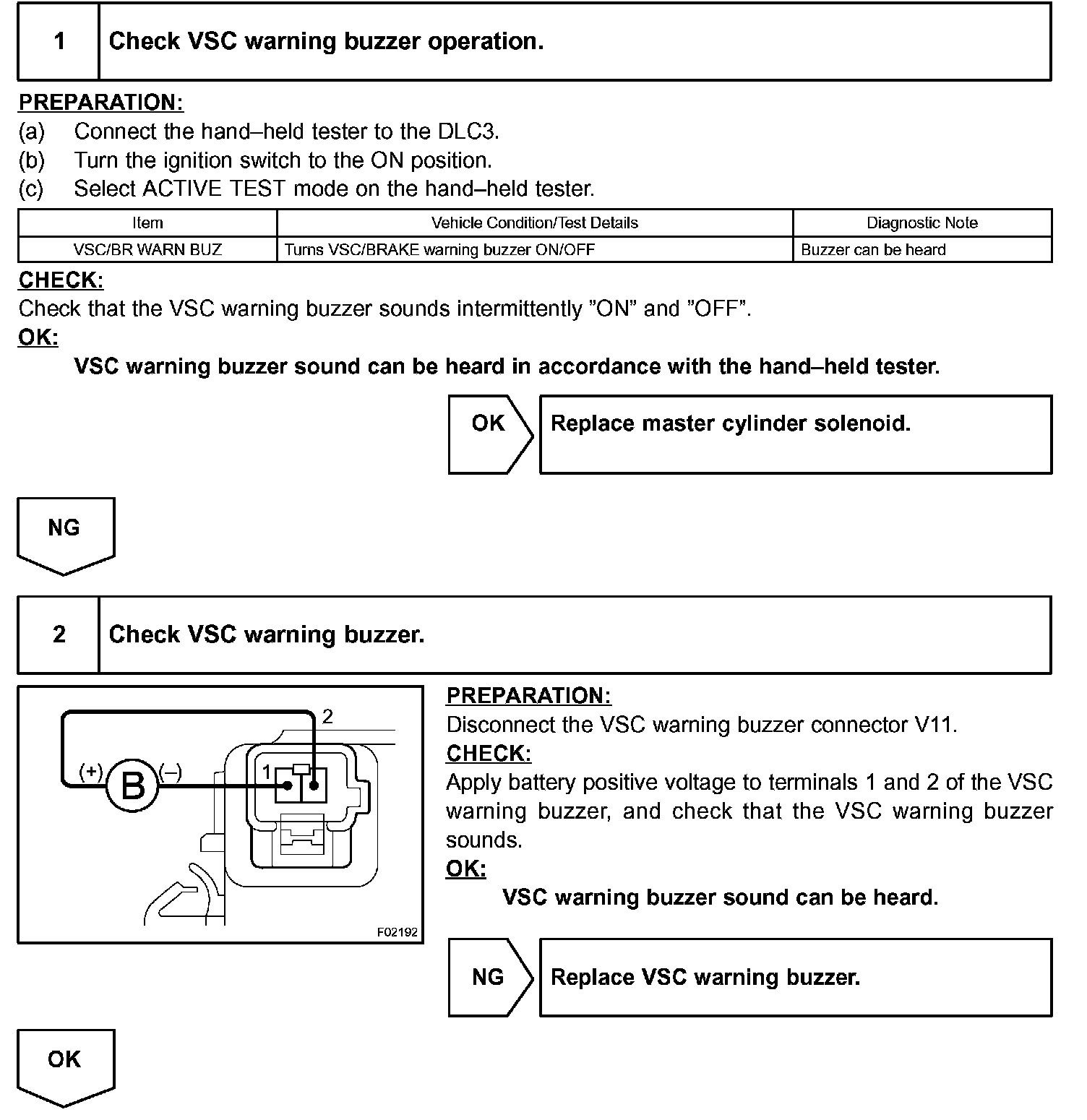

Step 1 - 2:

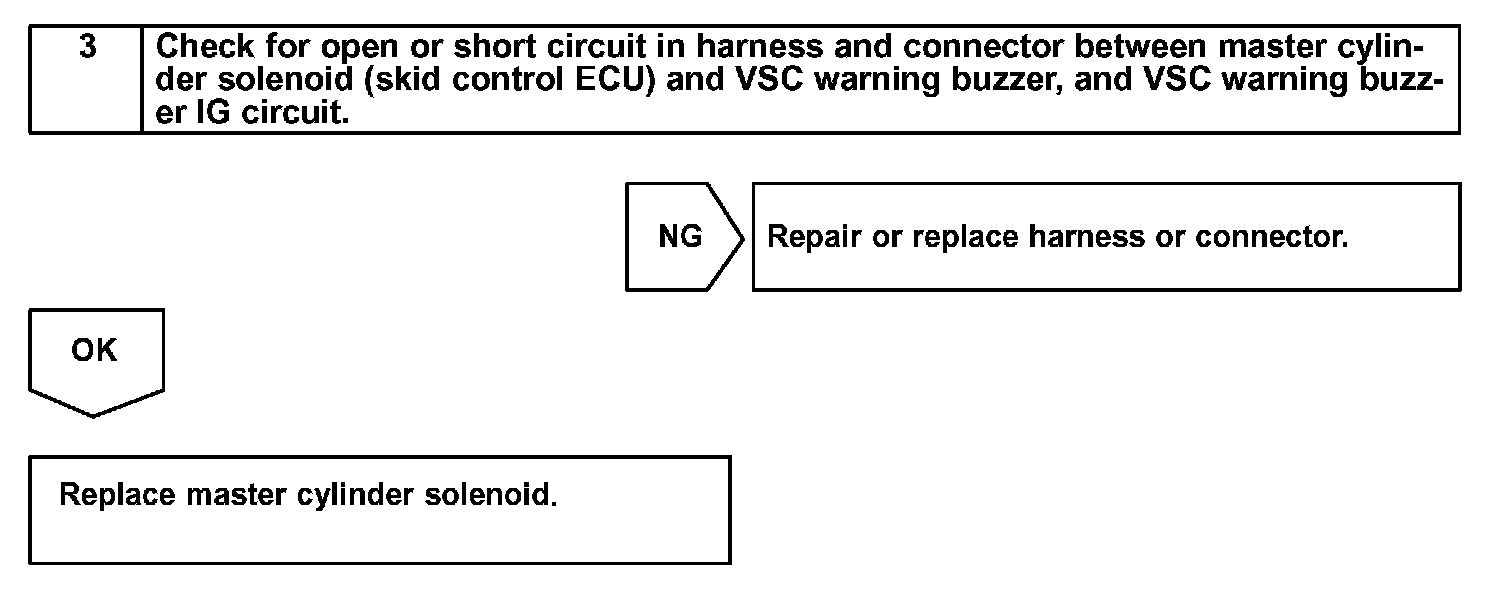

Step 3:

INSPECTION PROCEDURE

NOTE: When replacing the master cylinder solenoid, perform zero point calibration.
