VSC TRAC Warning Light Circuit (Does Not Light Up)

VSC TRAC WARNING LIGHT CIRCUIT (DOES NOT LIGHT UP)

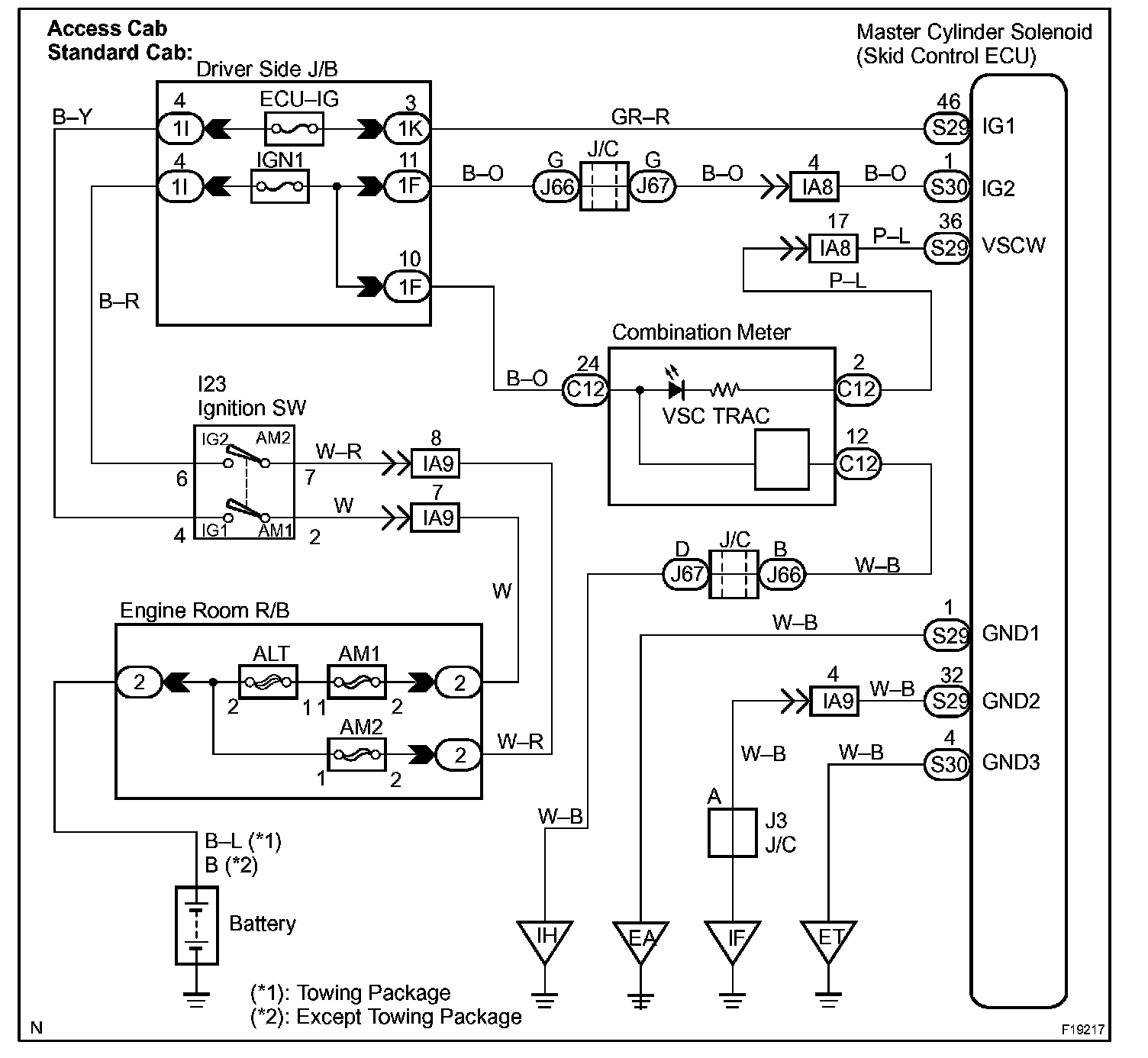

Wiring Diagram:

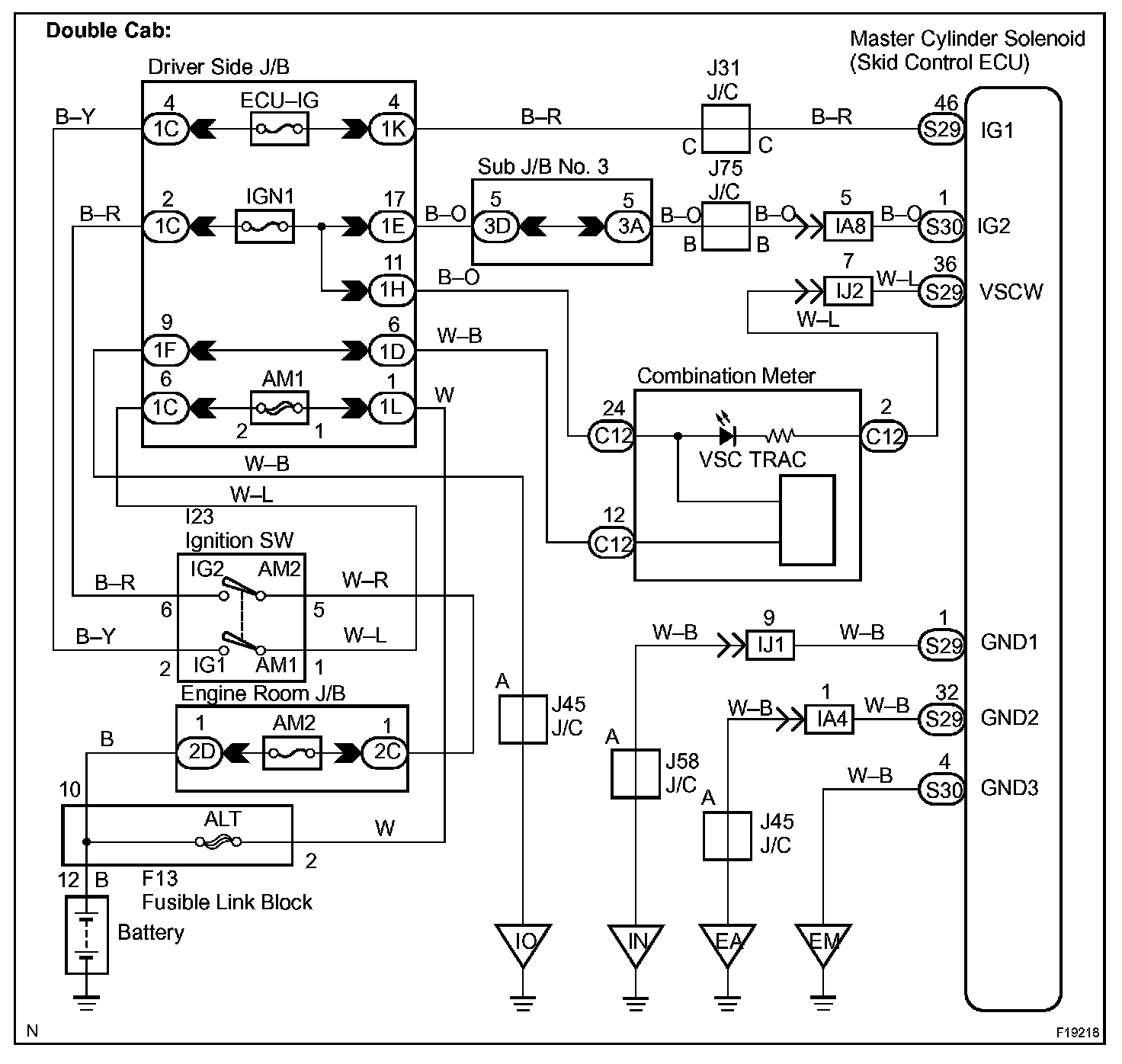

Wiring Diagram:

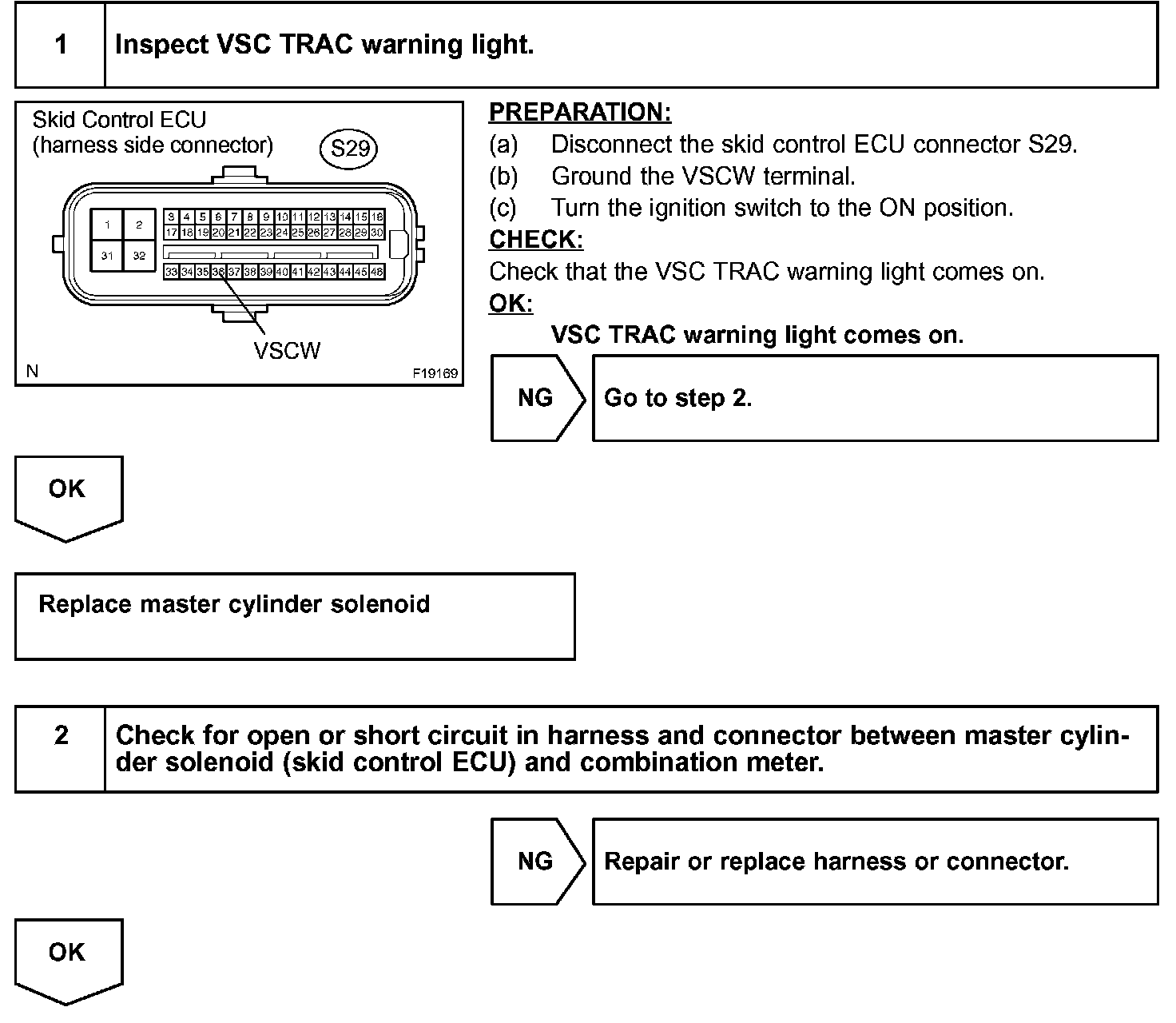

Step 1 - 2:




Step 3:




INSPECTION PROCEDURE

NOTE: When replacing the master cylinder solenoid, perform zero point calibration.
