SLIP Indicator Light Circuit (Remains On)

SLIP INDICATOR LIGHT CIRCUIT (REMAINS ON)

CIRCUIT DESCRIPTION
- The SLIP indicator blinks during TRAC, VSC and AUTO LSD operation.
- When the system fails, the SLIP indicator comes on to warn the driver.

Wiring Diagram:

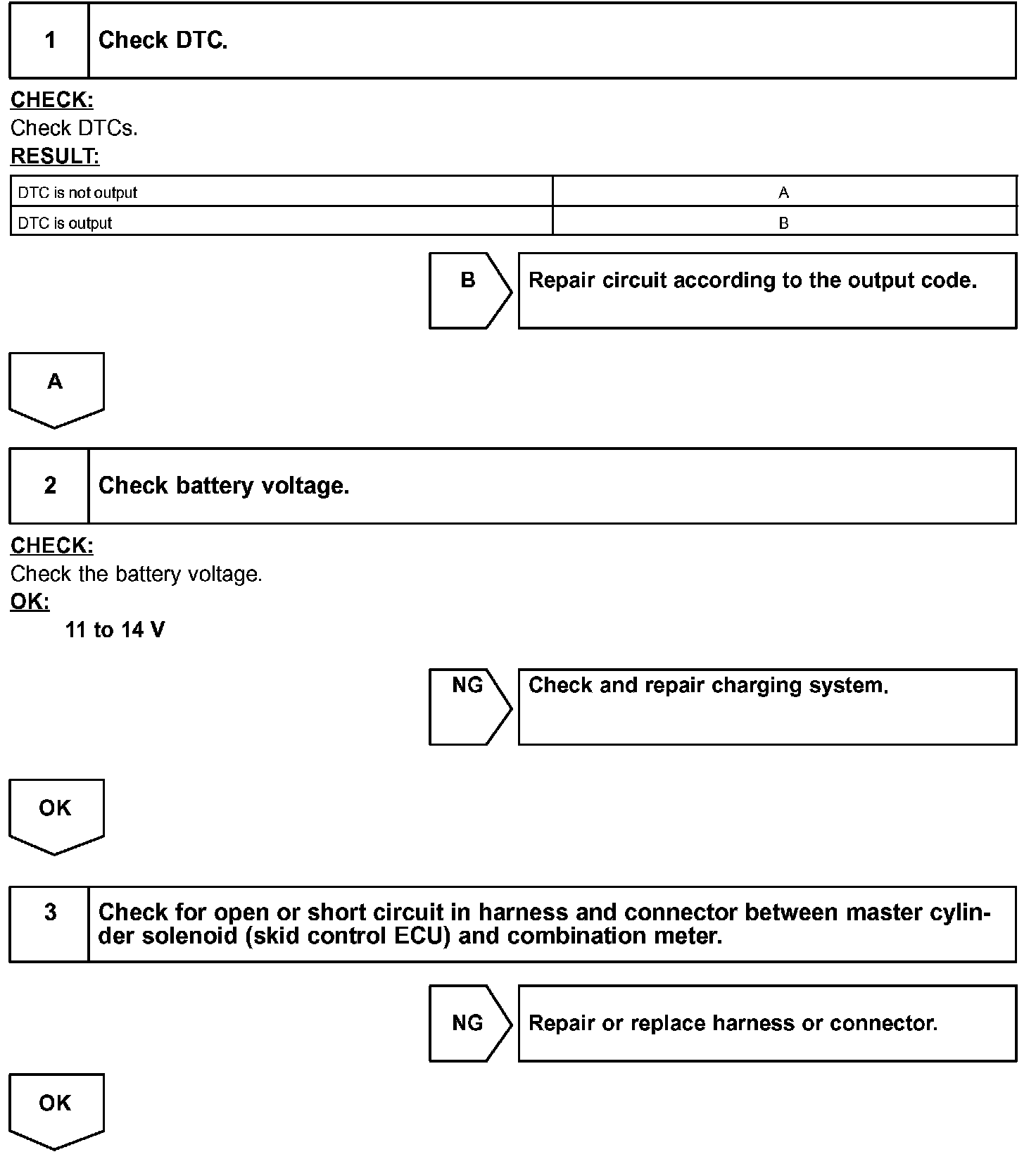

Step 1 - 3:

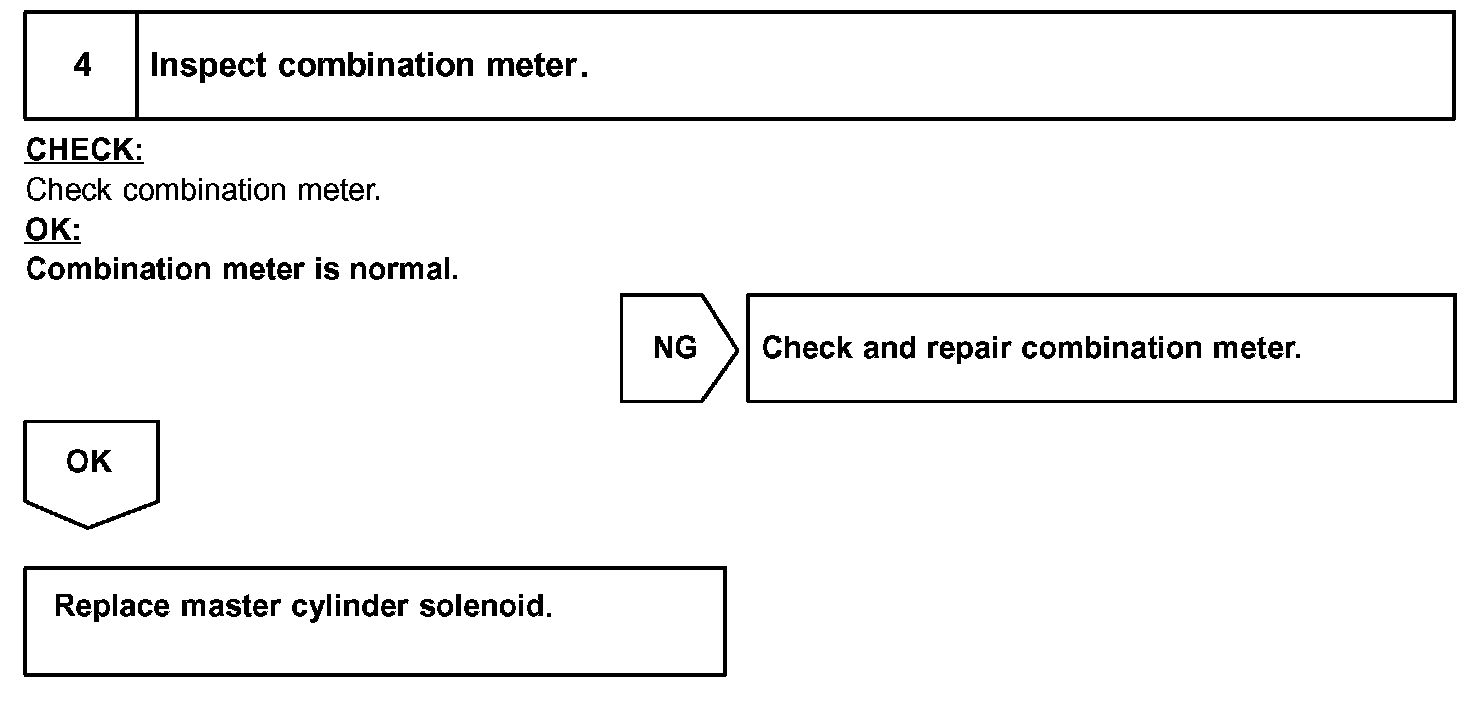

Step 4:

INSPECTION PROCEDURE

NOTE: When replacing the master cylinder solenoid, perform zero point calibration.
