Anti-Lock Brake System

ABS WARNING LIGHT CIRCUIT

CIRCUIT DESCRIPTION
If the ECU detects trouble, the ABS warning light comes on while the ABS control is prohibited and at the same time, the ECU records a DTC in memory.

After removing the short pin of the DLC3, connect terminals TC and CG of the DLC3 to make the ABS warning light blink and to output the DTC.

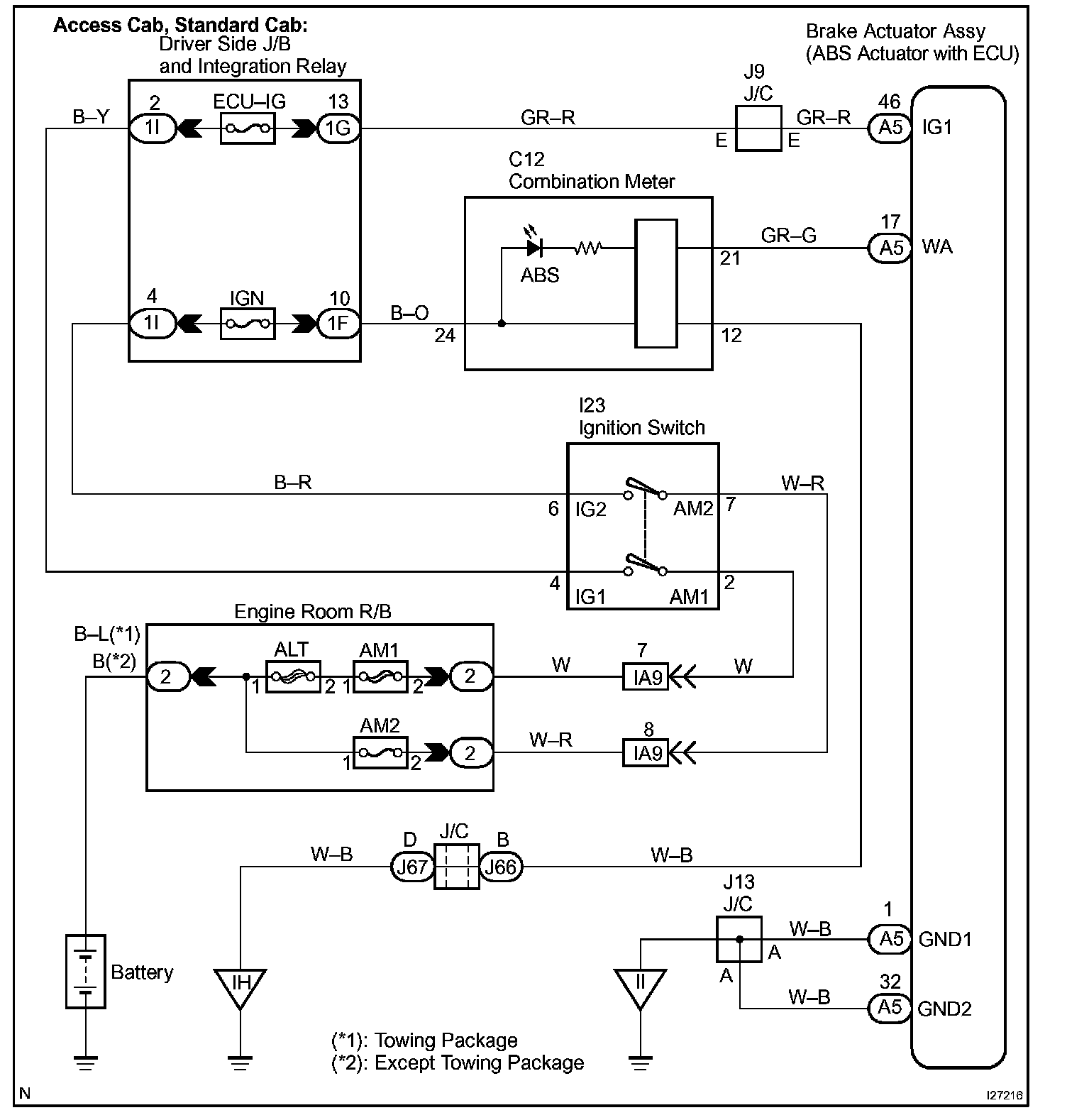

Wiring Diagram:

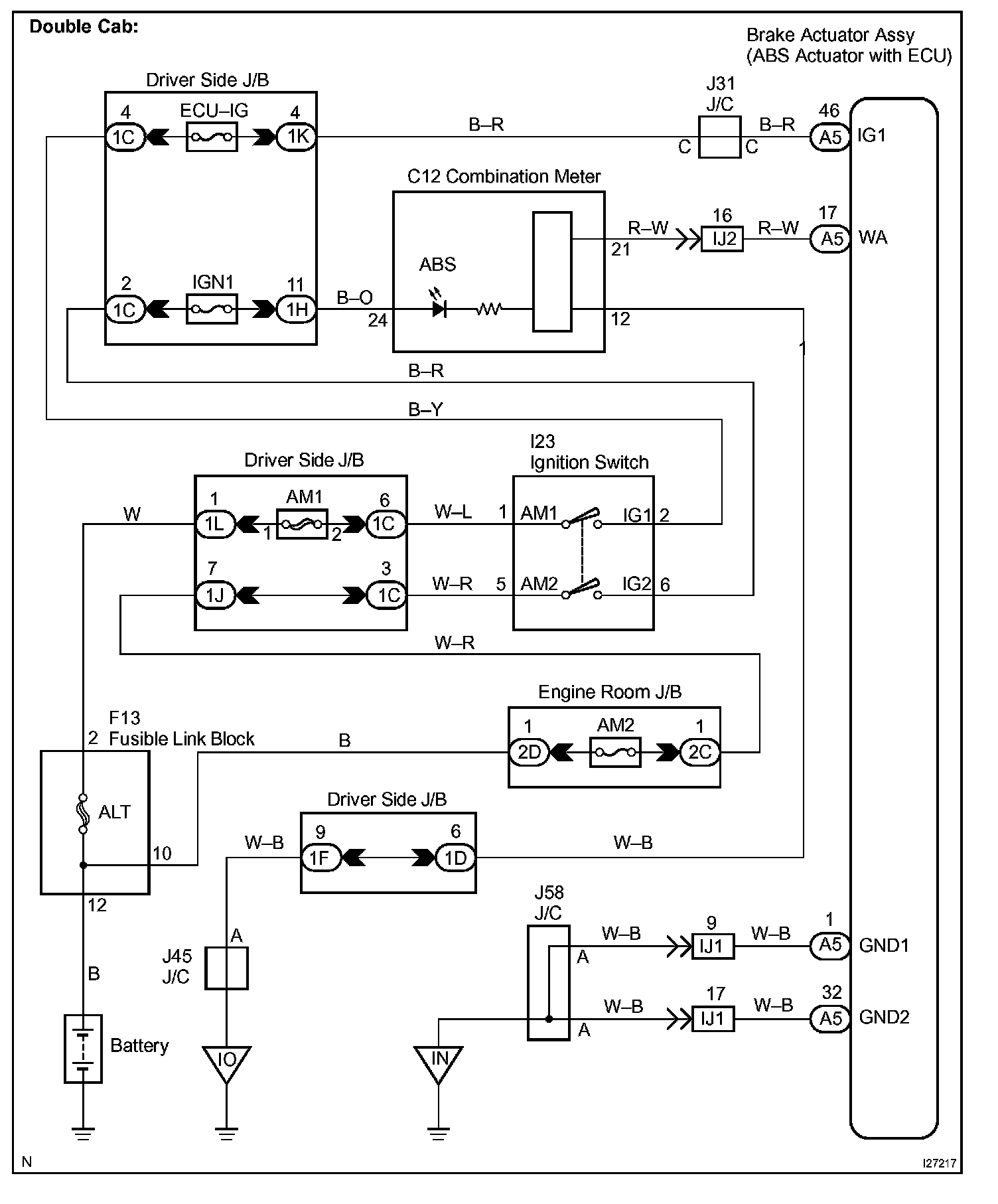

Wiring Diagram:

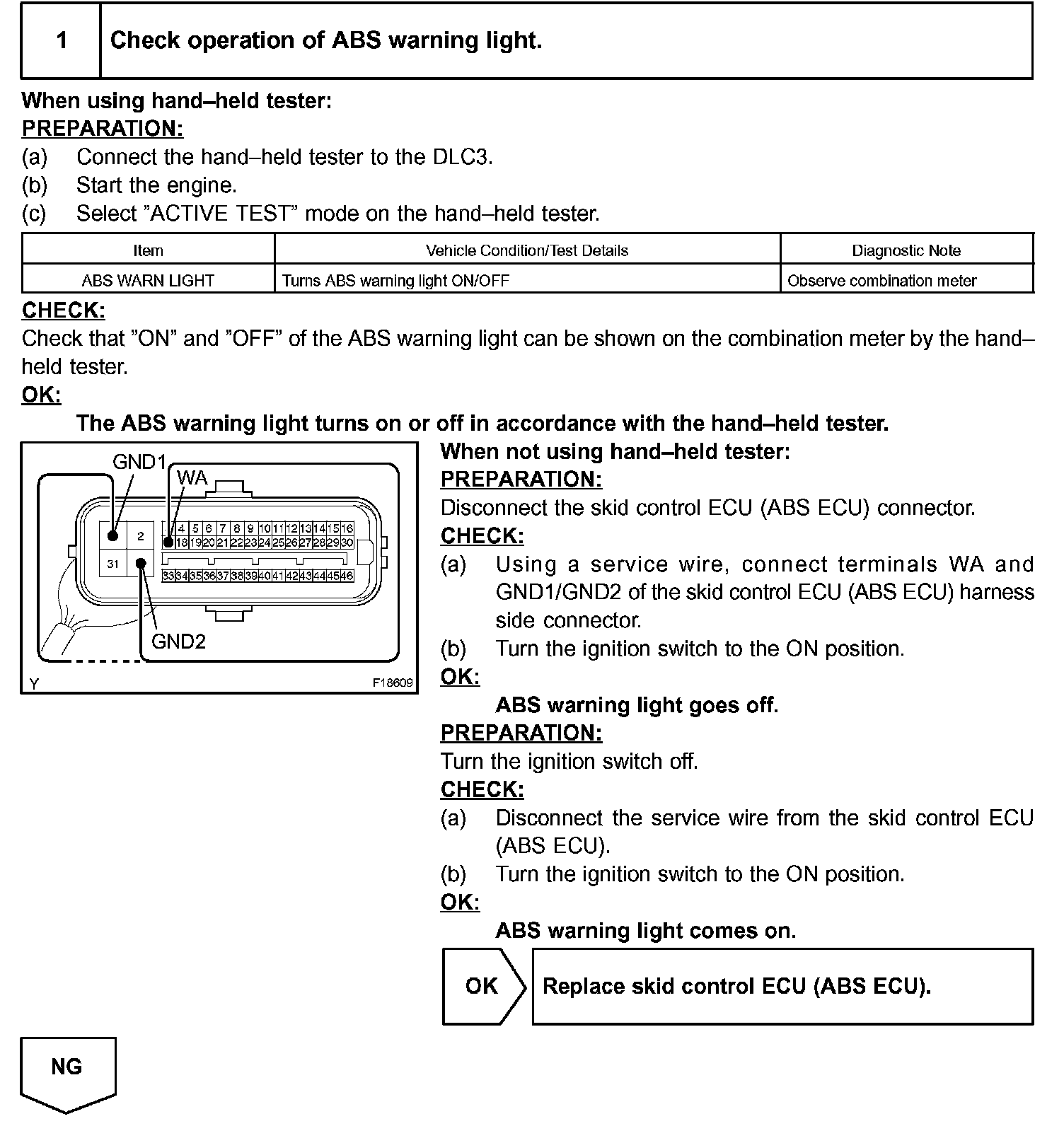

Step 1:

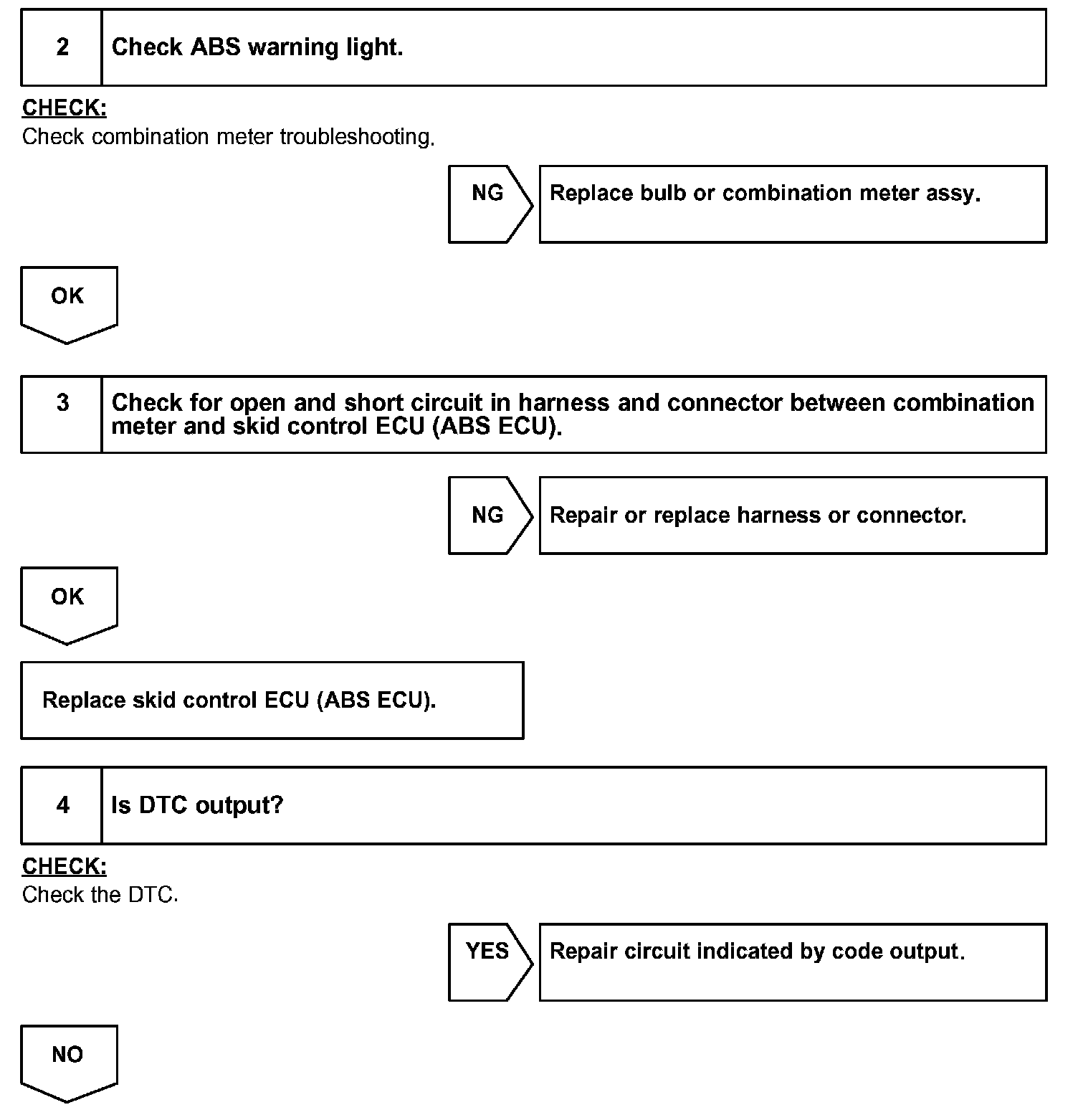

Step 2 - 4:

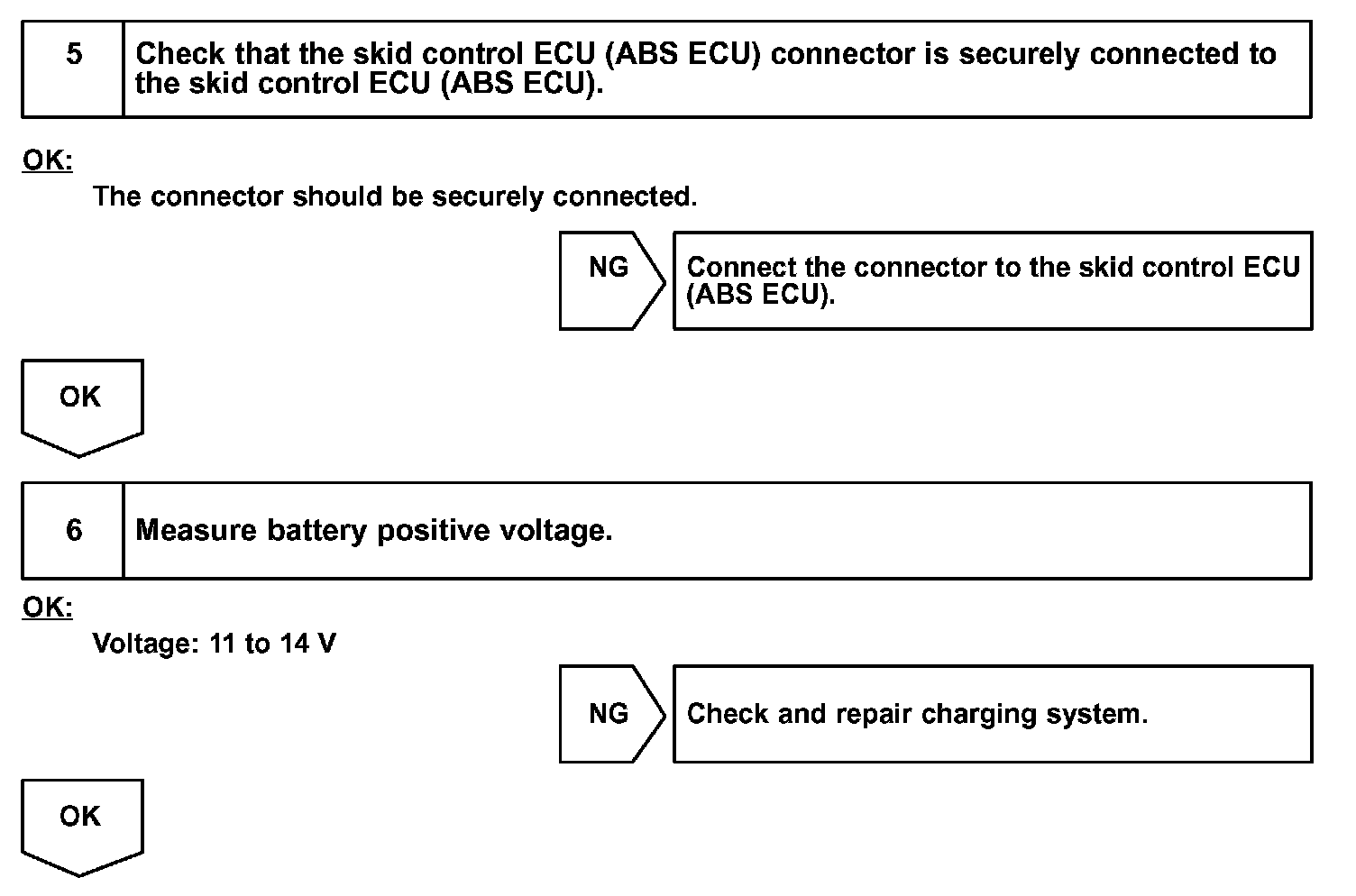

Step 5 - 6:

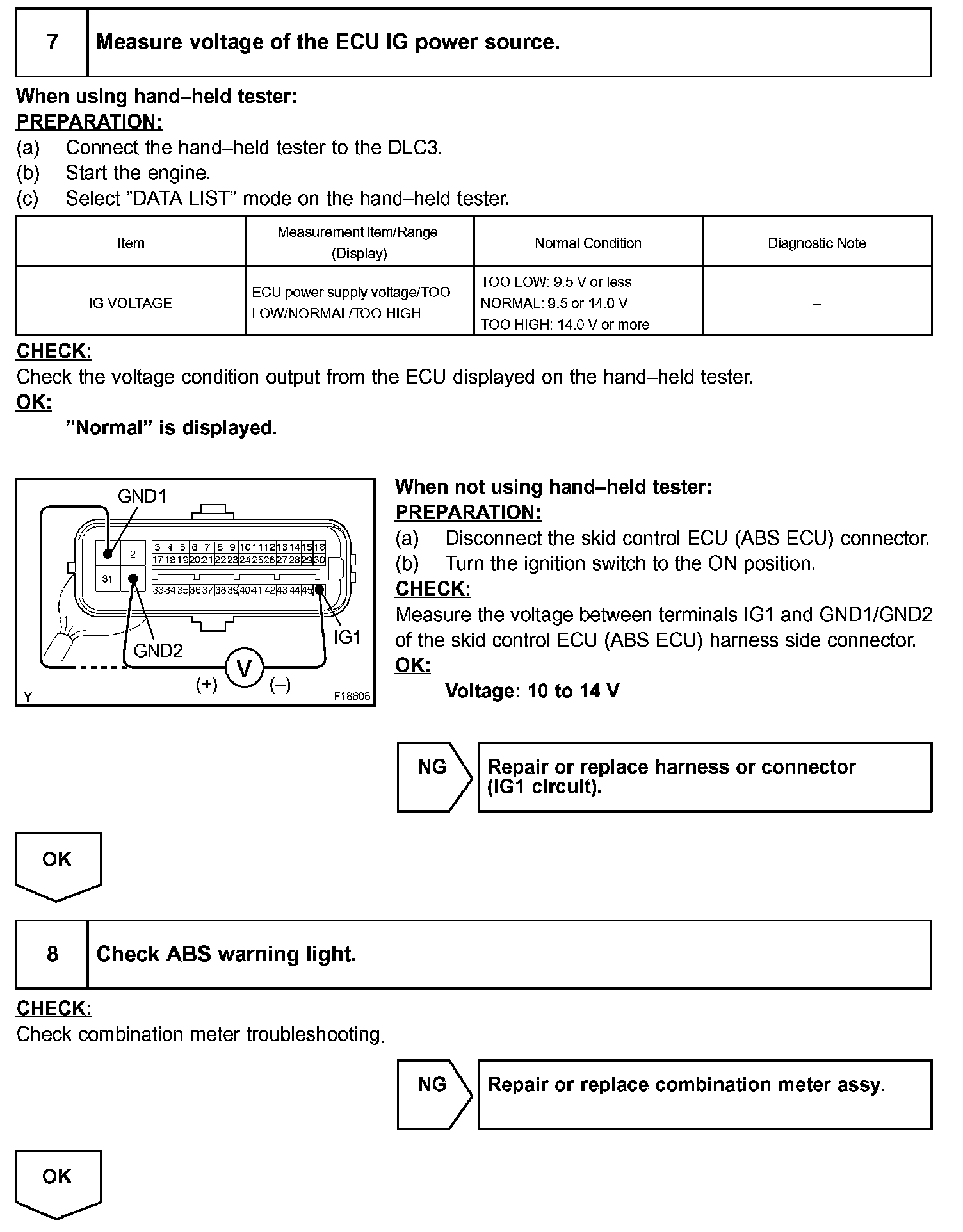

Step 7 - 8:

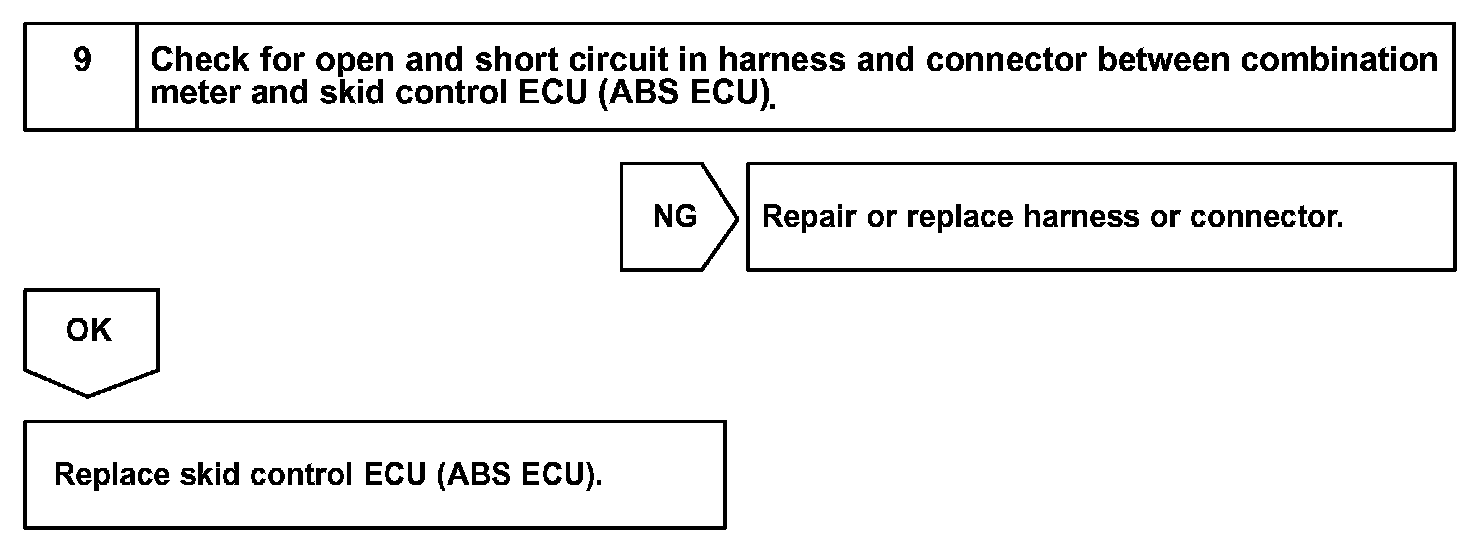

Step 9:

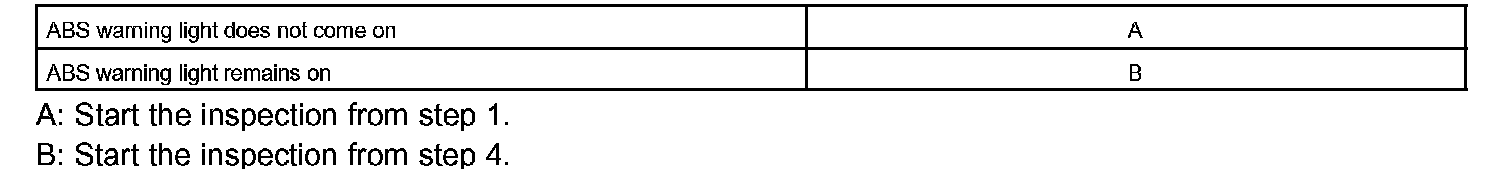

INSPECTION PROCEDURE






HINT: Troubleshoot in accordance with the chart for each trouble symptom.
