Door Courtesy Light Circuit
DOOR COURTESY LIGHT CIRCUITCIRCUIT DESCRIPTION
The door courtesy light turns on when the door is opened and turns off when the door is closed.

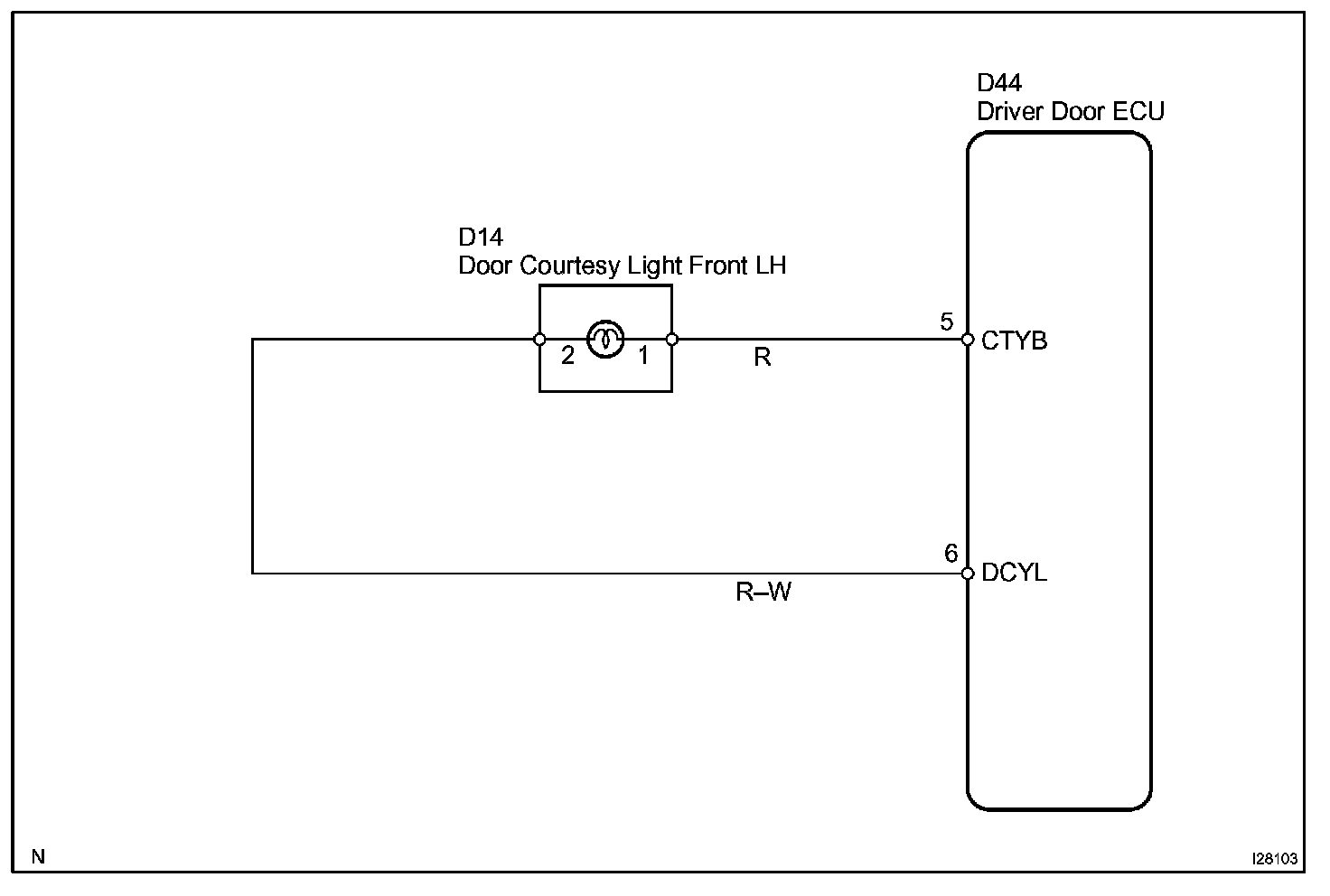

Wiring Diagram:

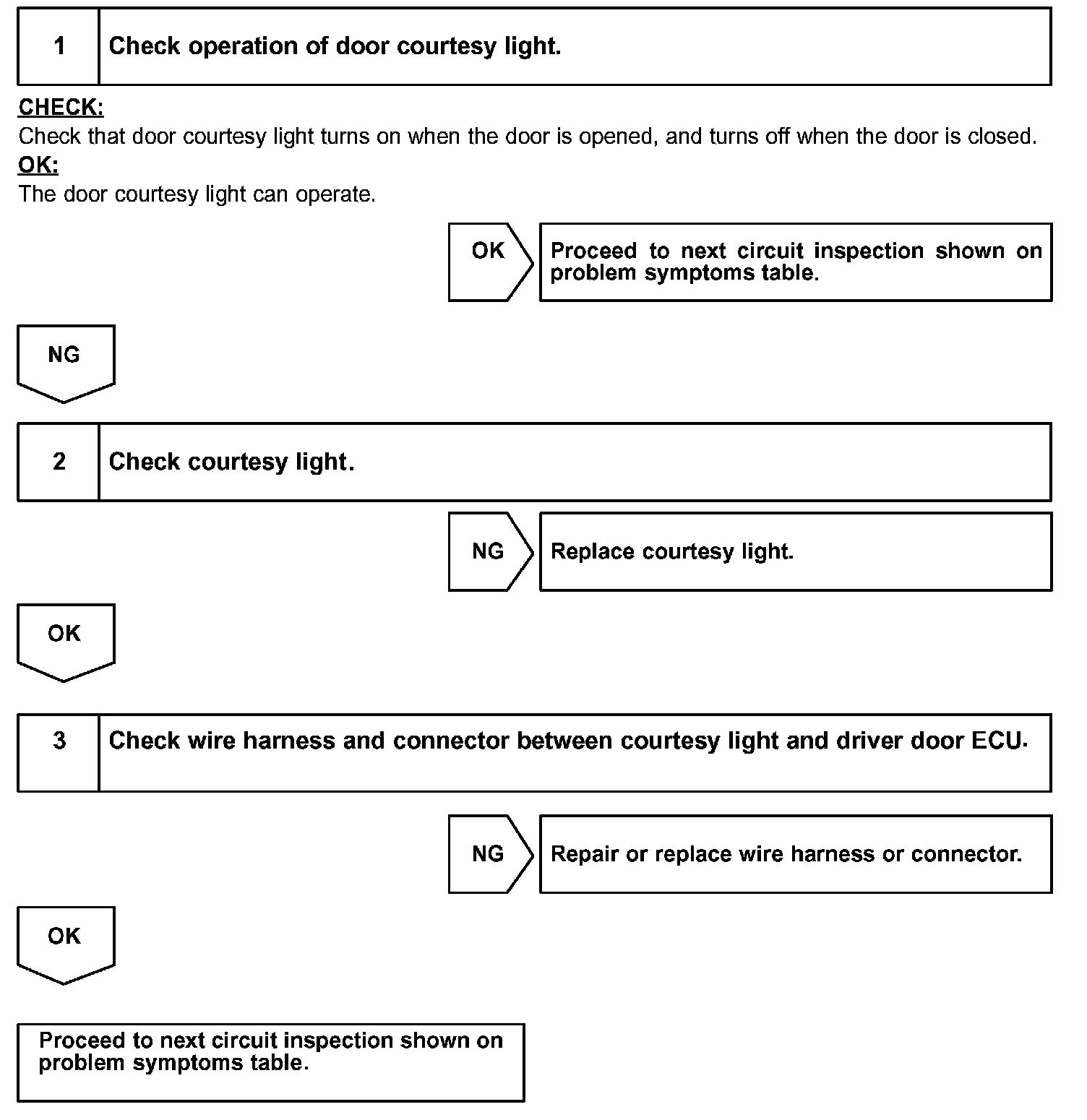

Step 1 - 3:
INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
The door courtesy light turns on when the door is opened and turns off when the door is closed.
INSPECTION PROCEDURE
