Horn Circuit
HORN CIRCUITCIRCUIT DESCRIPTION
The horn is connected to the body ECU and activated by the body ECU during warning of the theft deterrent system horn switch is turned on.

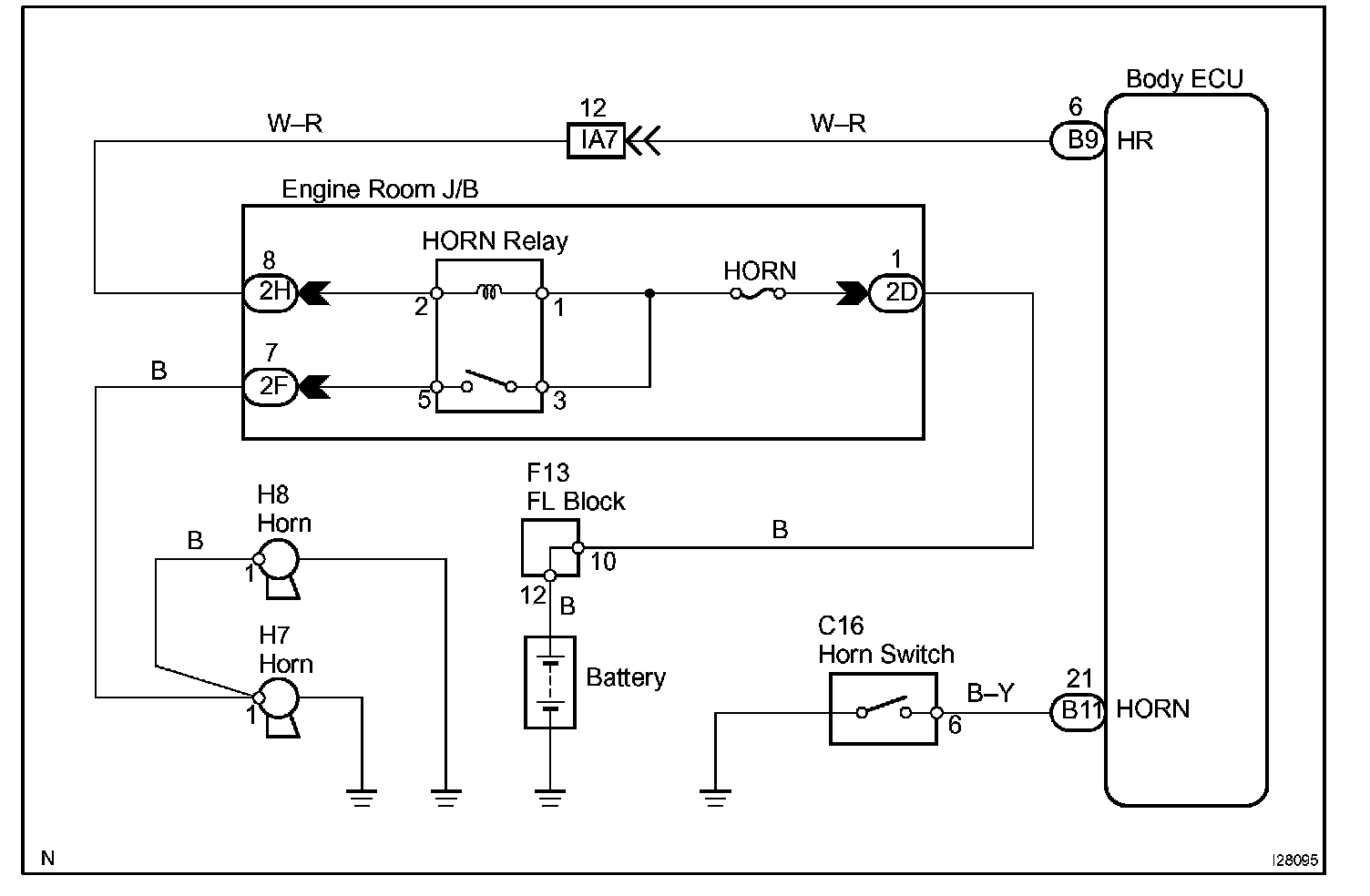

Wiring Diagram:

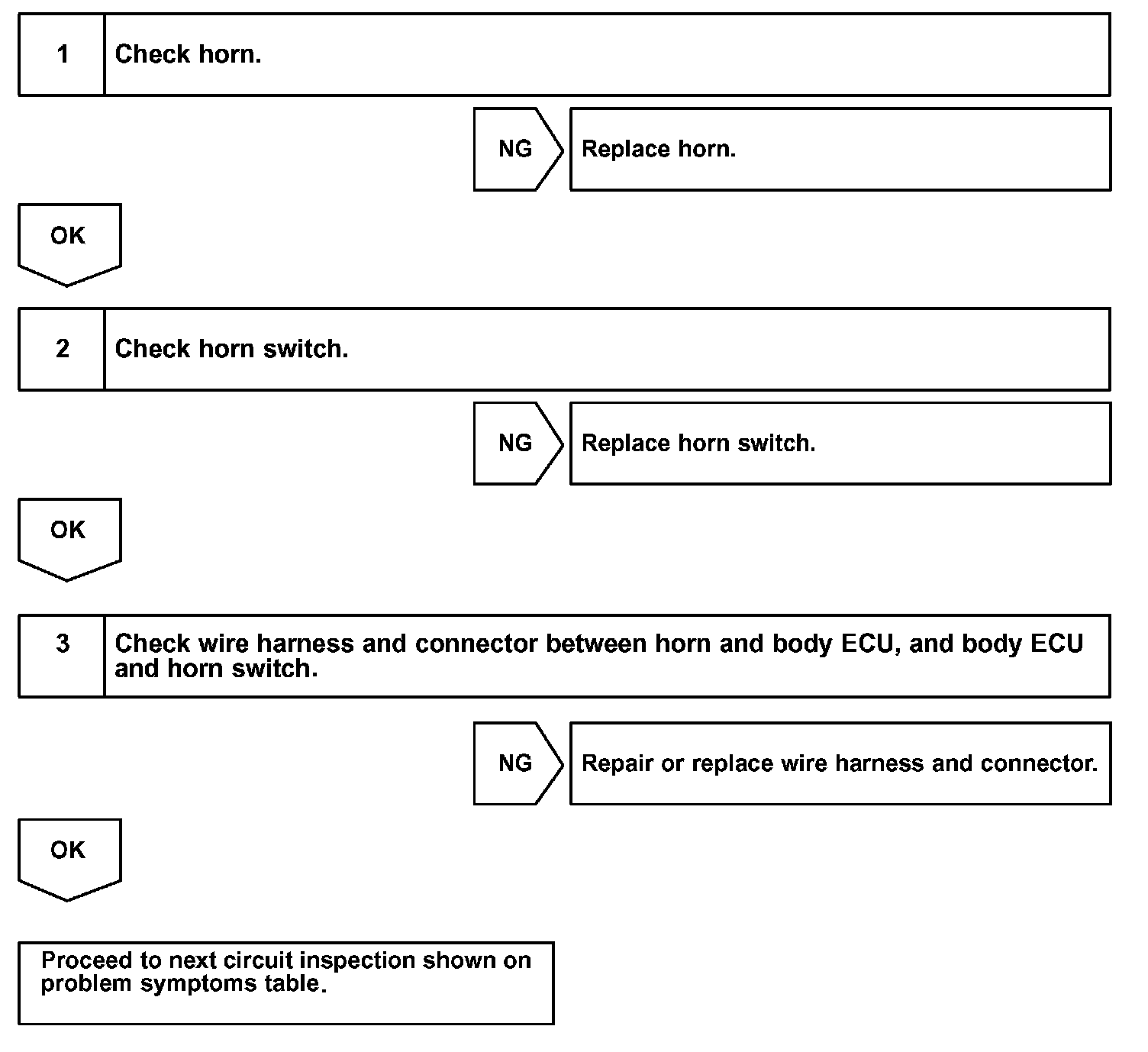

Step 1 - 3:
INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
The horn is connected to the body ECU and activated by the body ECU during warning of the theft deterrent system horn switch is turned on.
INSPECTION PROCEDURE
