Door Lock Motor Circuit
Door Lock Motor Circuit
DOOR LOCK MOTOR CIRCUIT

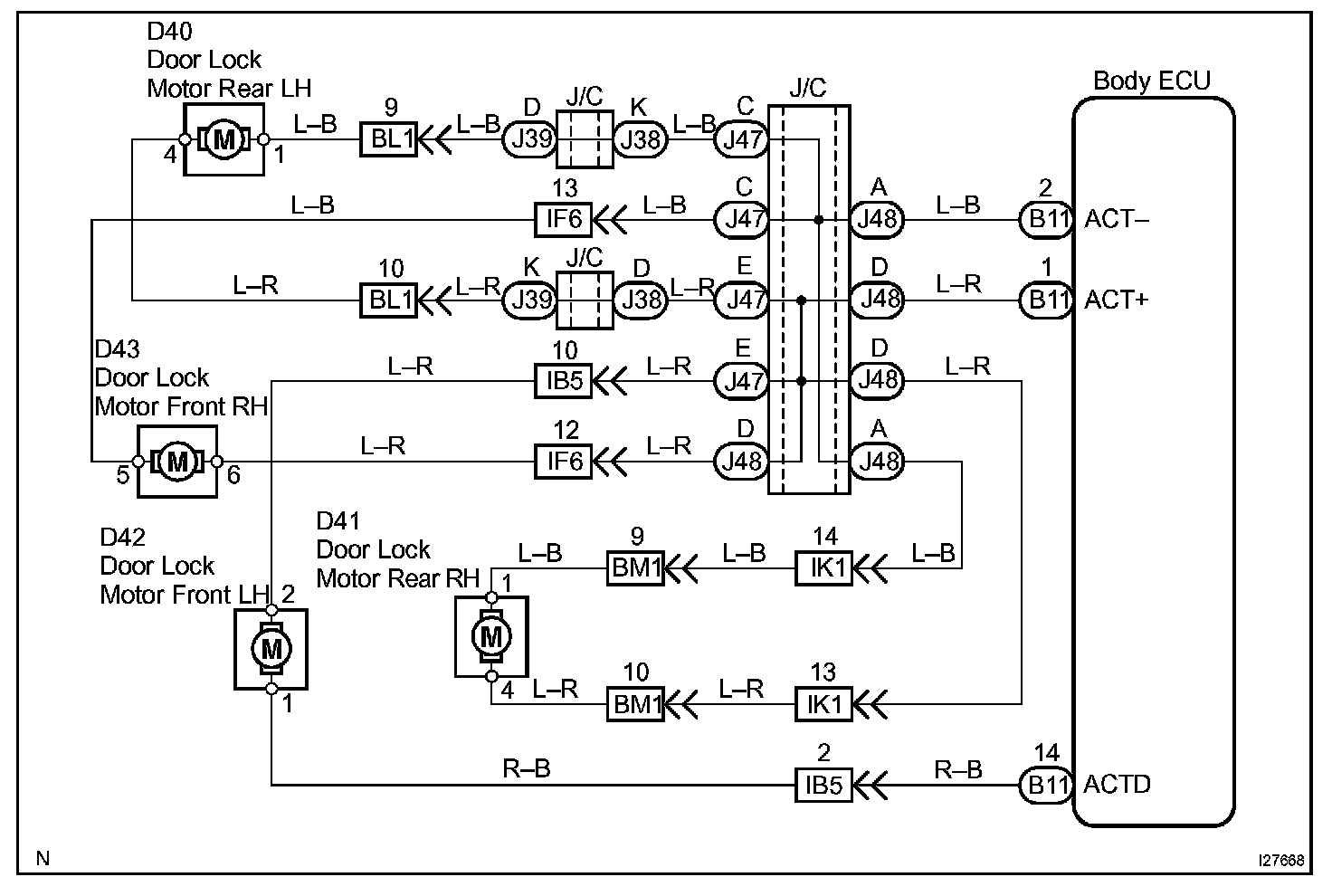

Wiring Diagram:

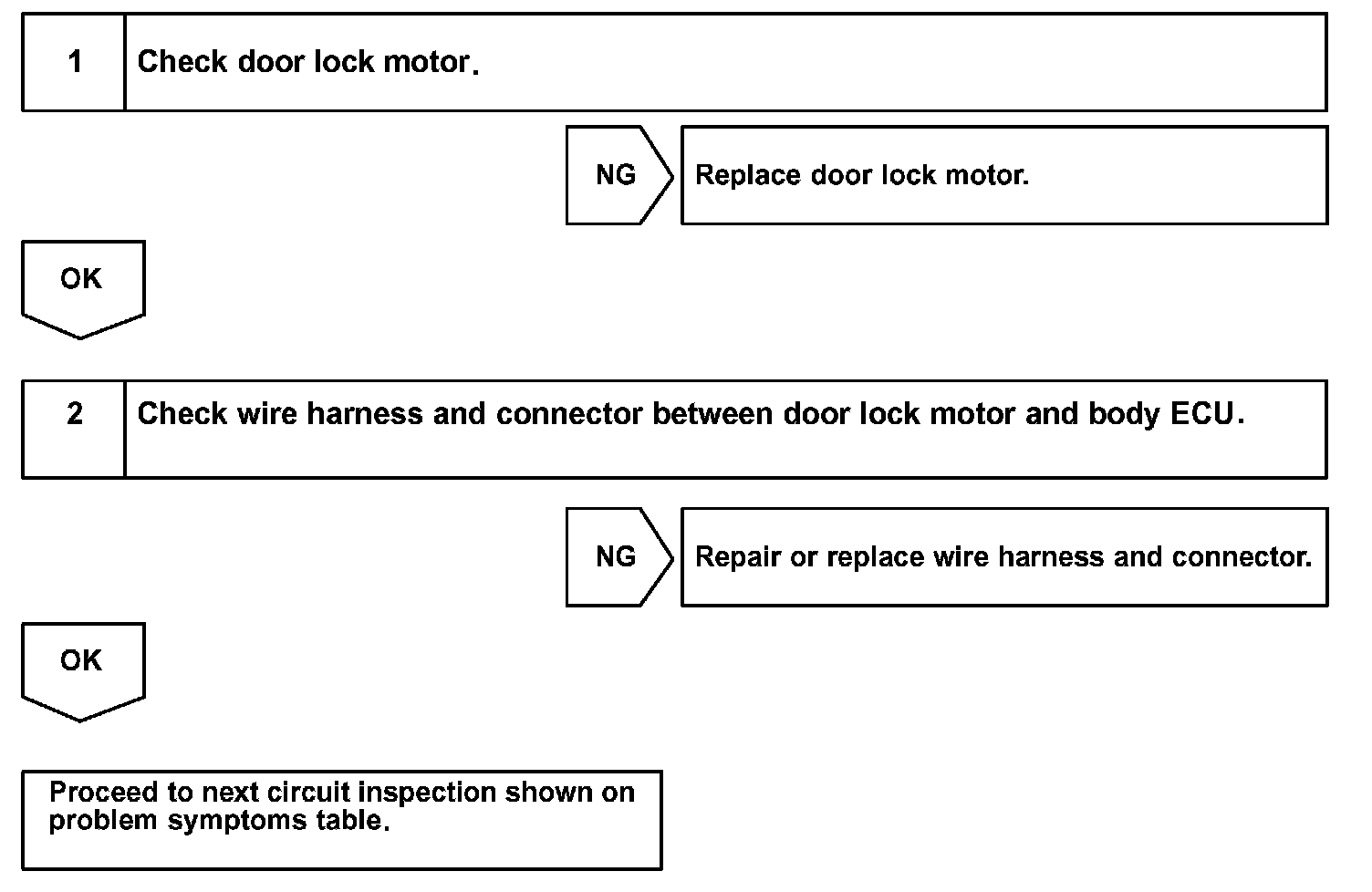

Step 1 - 2:
INSPECTION PROCEDURE
