Daytime Running Light Relay Circuit
Daytime Running Light Relay Circuit
DAYTIME RUNNING LIGHT RELAY CIRCUIT

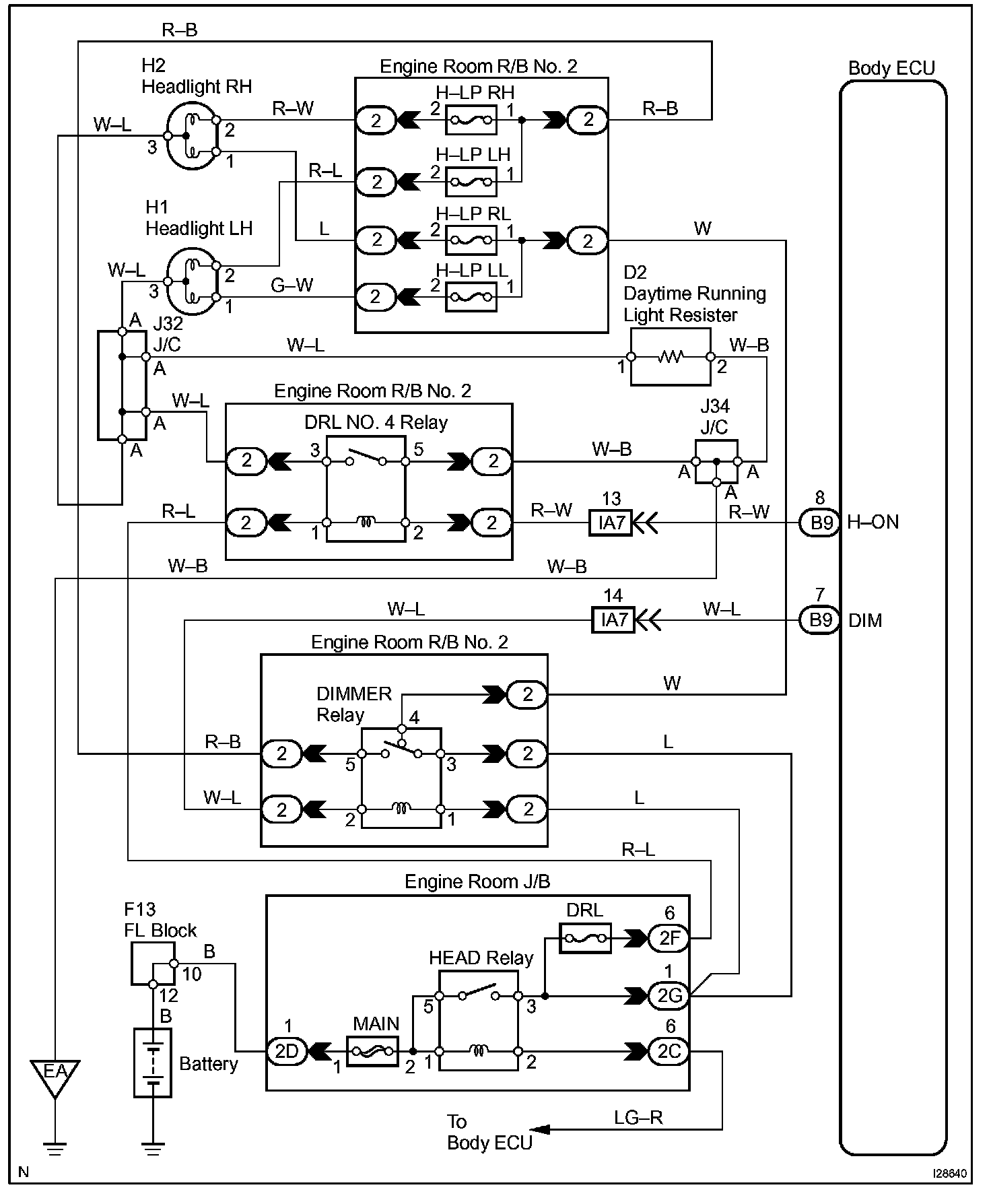

Wiring Diagram:

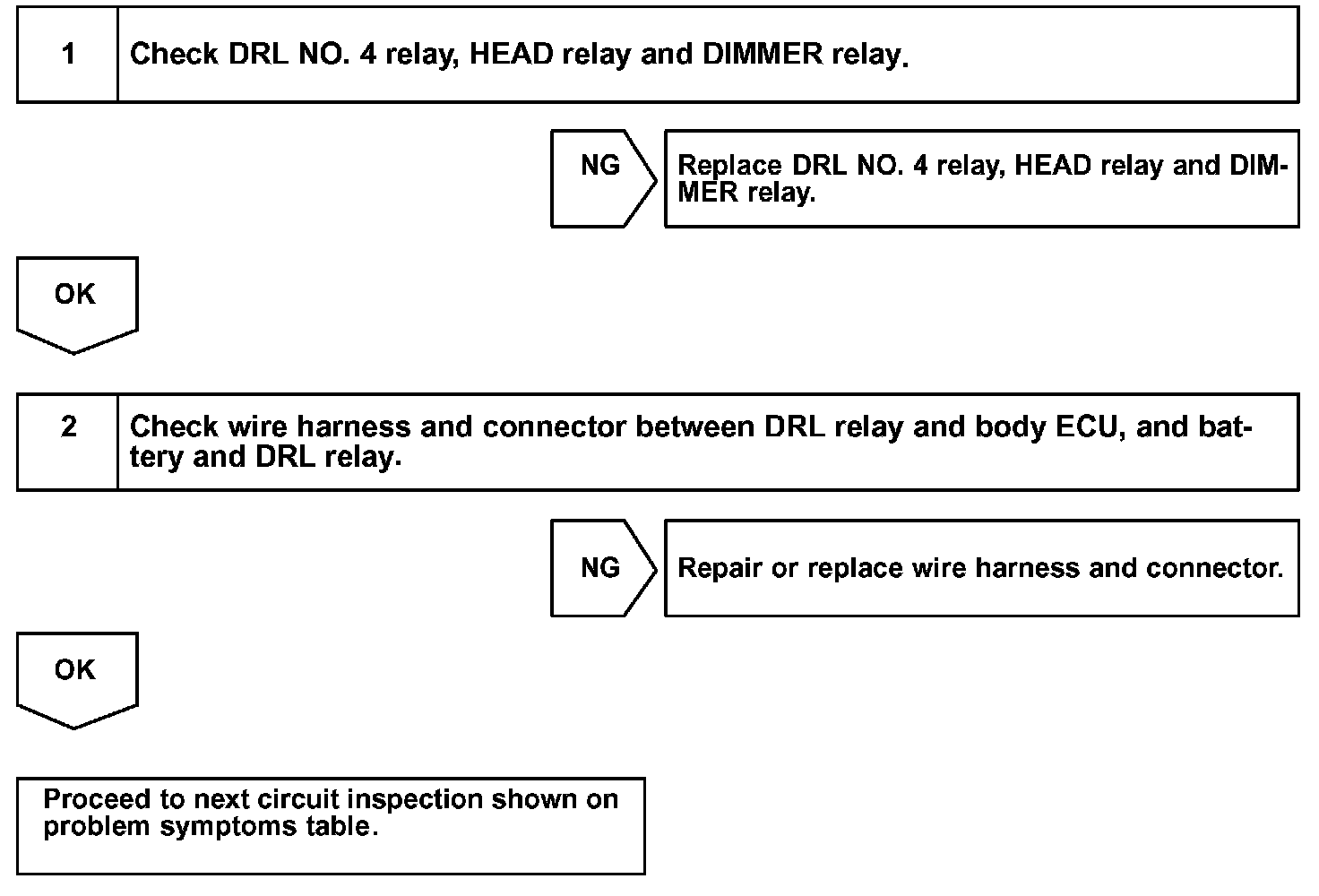

Step 1 - 2:
INSPECTION PROCEDURE
