Problem Symptoms Table
PROBLEM SYMPTOMS TABLEHINT:
- Before performing verification listed in the table, check the fuse and relay.
- Methods used to verify the cause of the problem are listed in order of probability in the verification column.

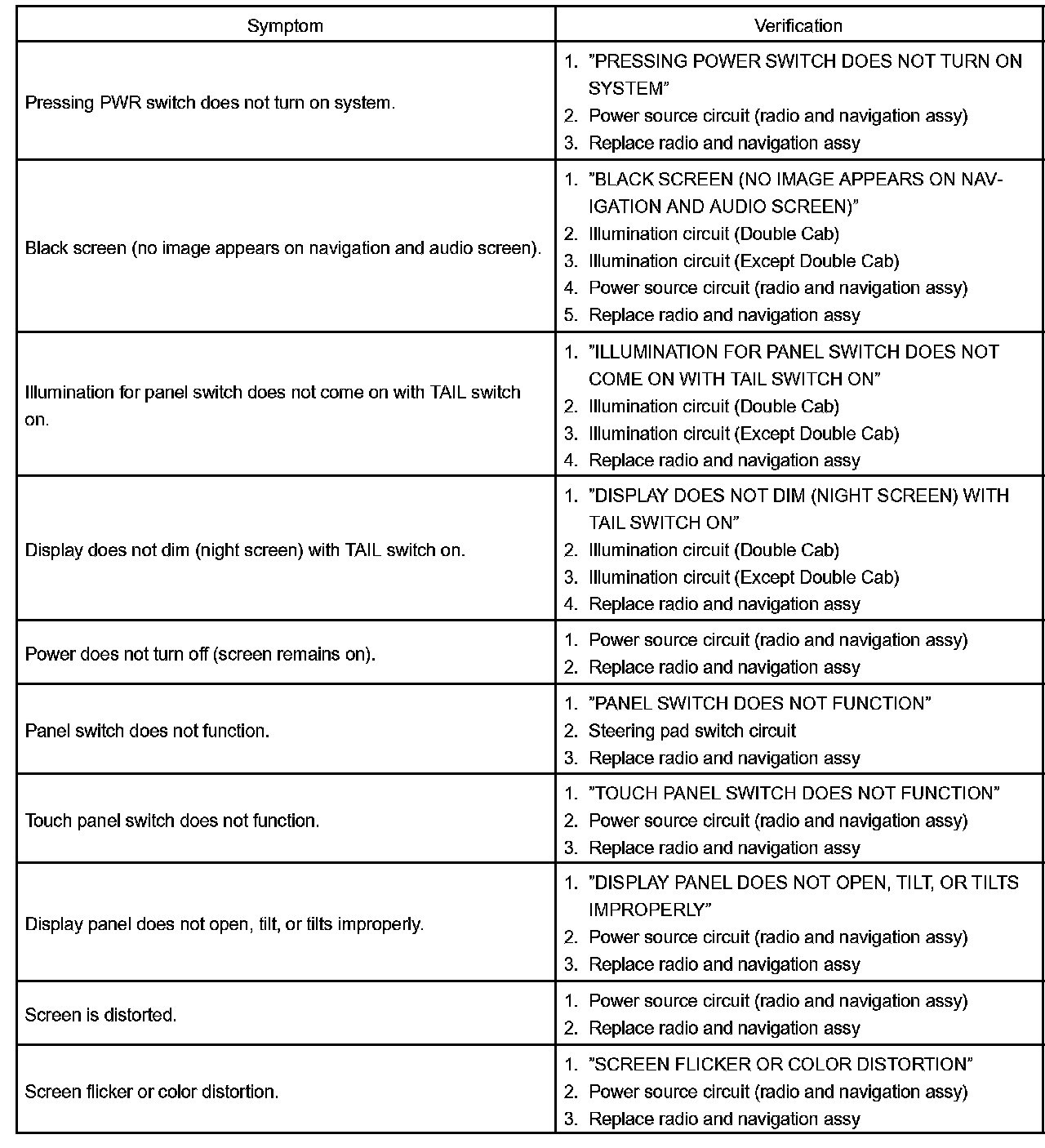

Problem Symptoms Table:
DISPLAY FUNCTION

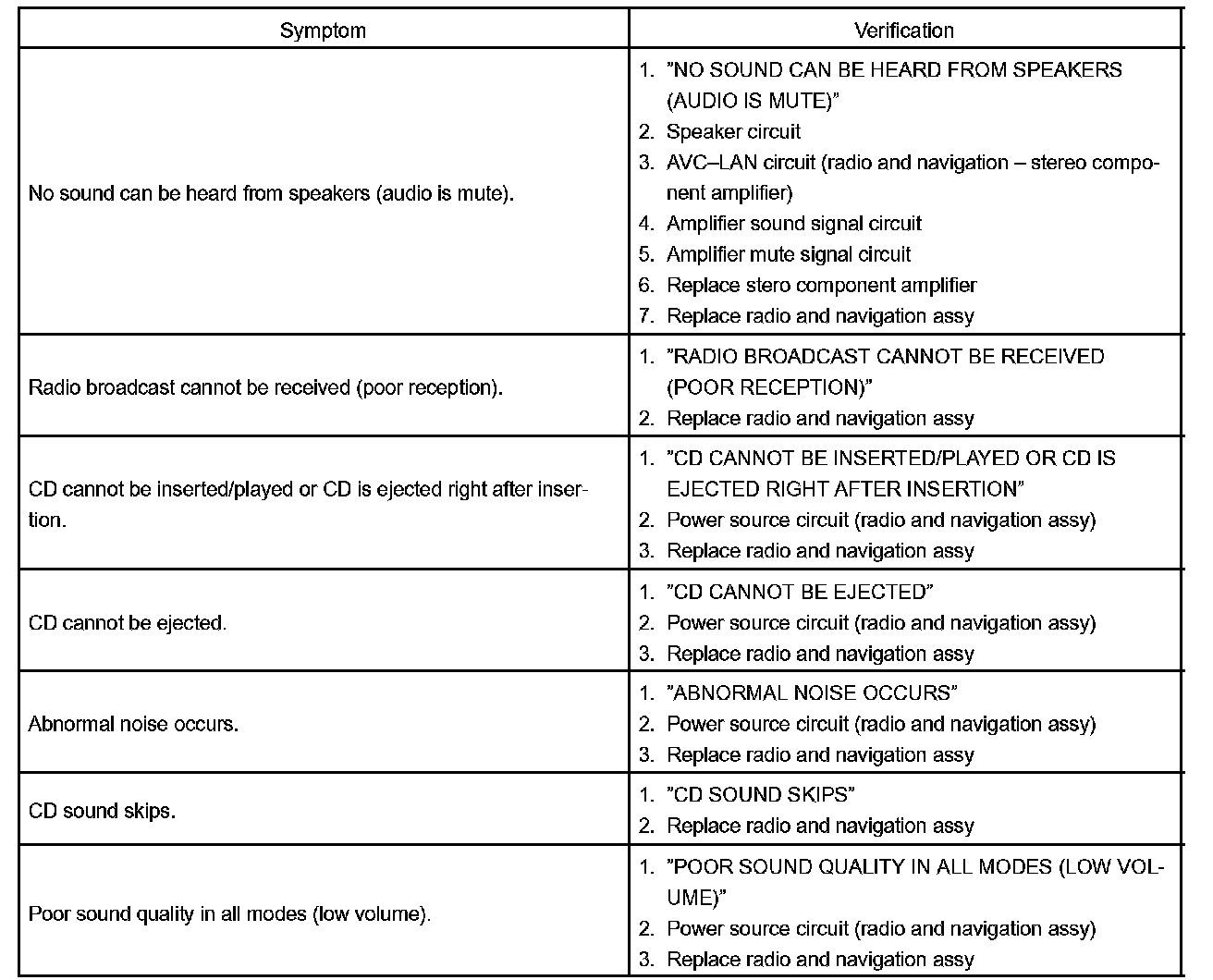

Problem Symptoms Table:
AUDIO FUNCTION

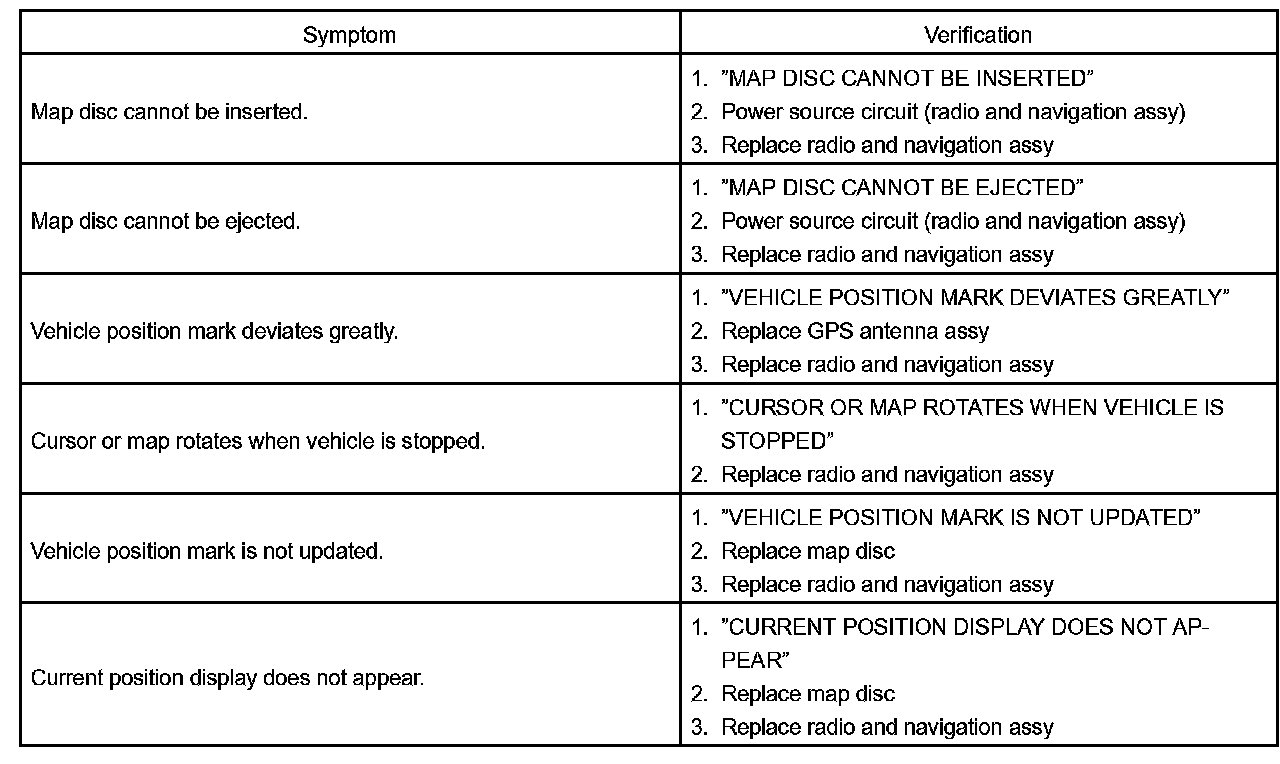

Problem Symptoms Table Part 1:

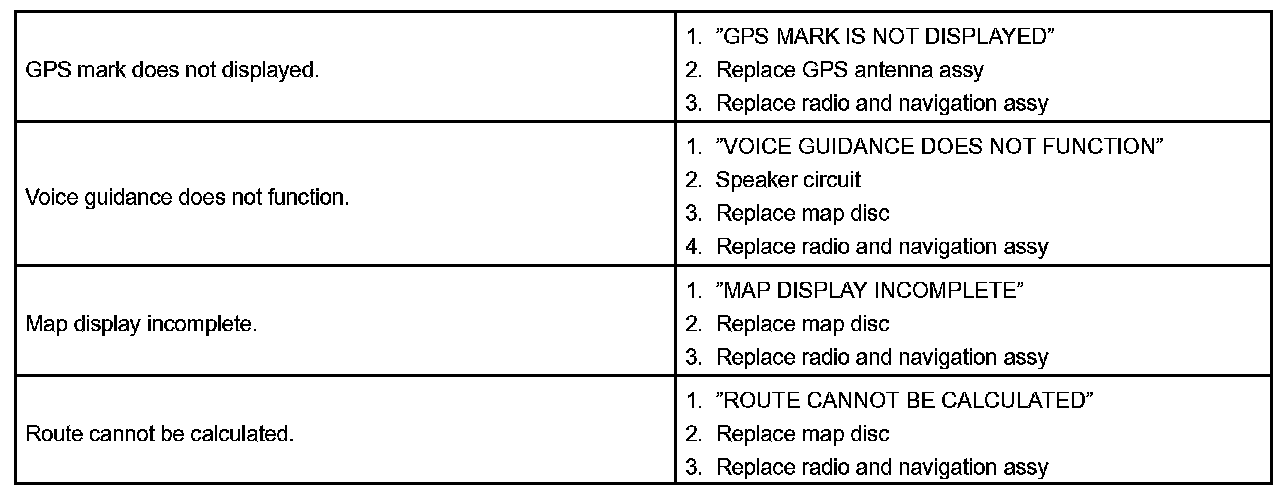

Problem Symptoms Table Part 2:
NAVIGATION FUNCTION
Problem Symptoms Table:
STEERING PAD SWITCH ASSEMBLY FUNCTION
