Power Source Circuit (Radio and Navigation Assembly)
POWER SOURCE CIRCUIT (RADIO AND NAVIGATION ASSEMBLY)CIRCUIT DESCRIPTION
This circuit provides power to the radio and navigation assembly.

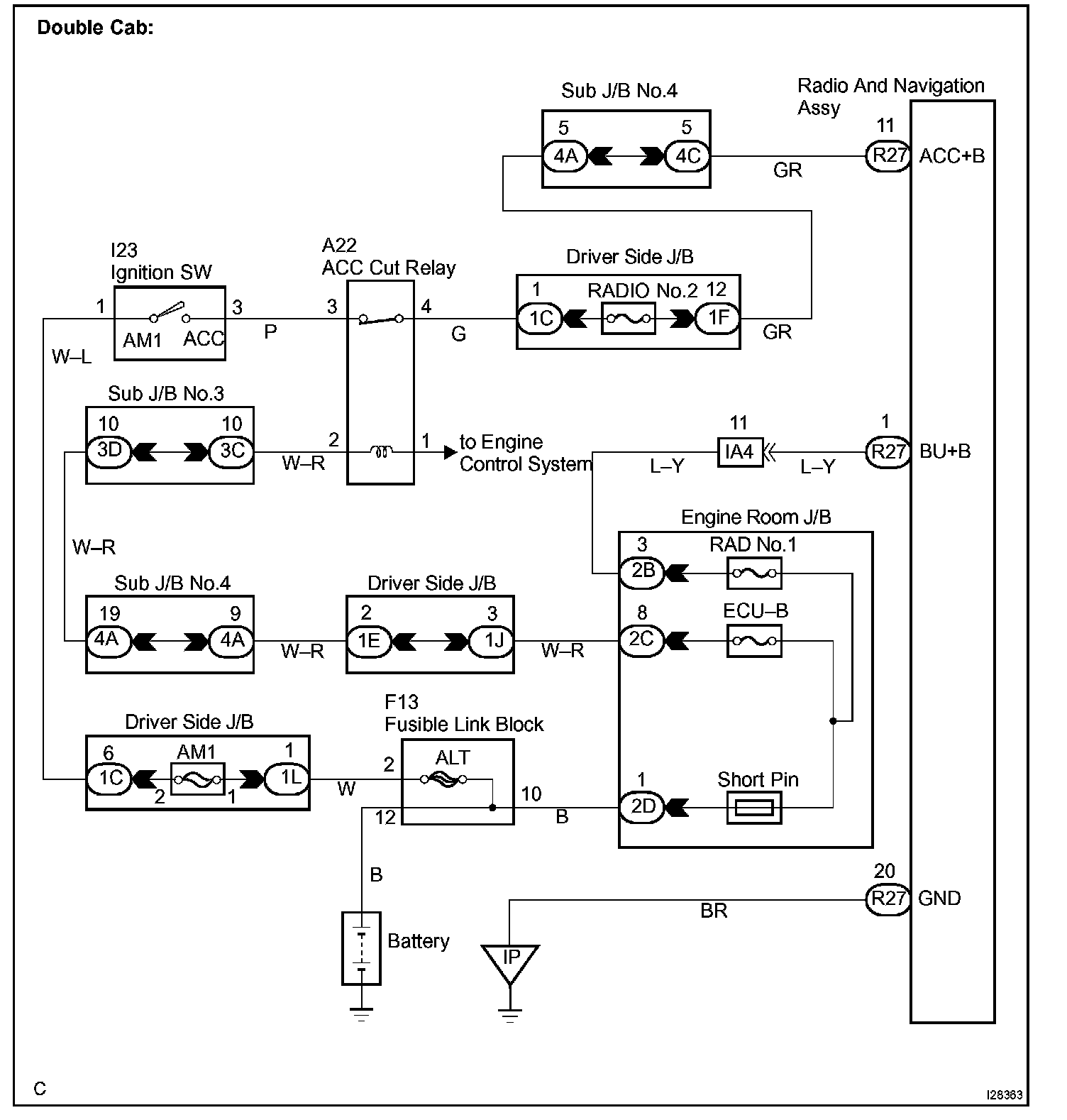

Wiring Diagram:
Wiring Diagram:

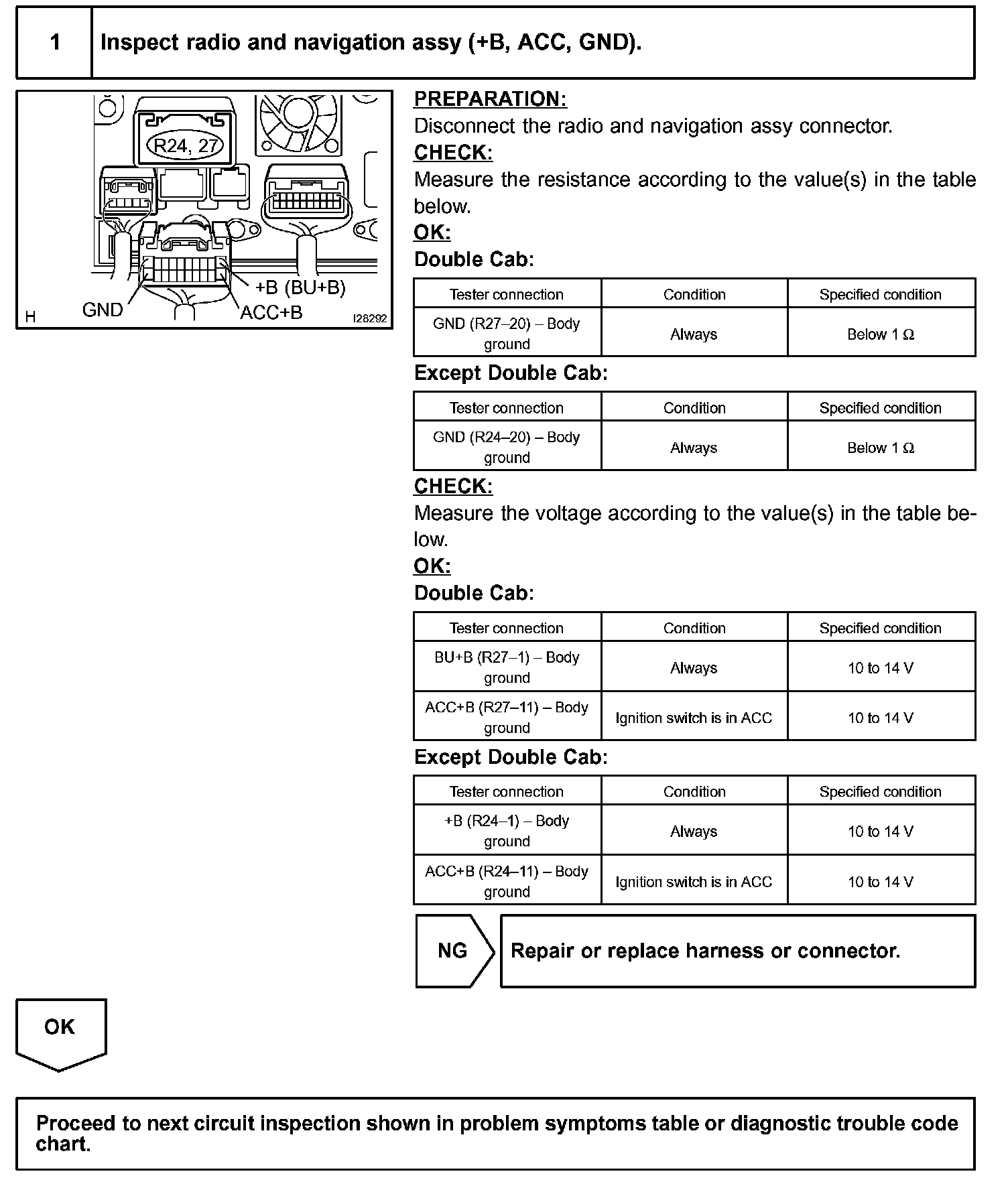

Step 1:
INSPECTION PROCEDURE
