Power Source Circuit (Multi-Display Controller Sub-Assy)

POWER SOURCE CIRCUIT (MULTI-DISPLAY CONTROLLER SUB-ASSEMBLY)

CIRCUIT DESCRIPTION
This circuit provides power to the multi-display controller sub-assembly.

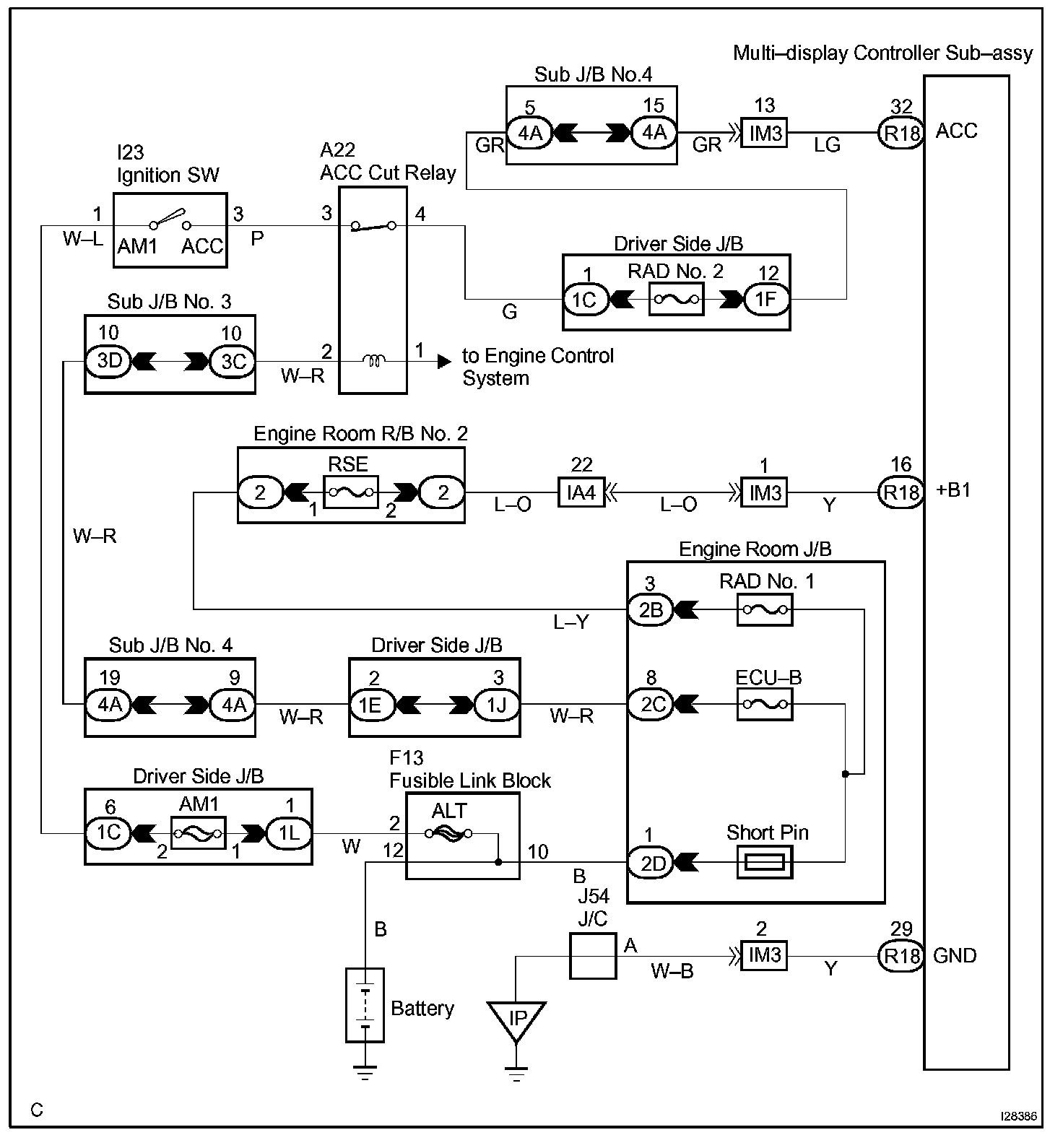

Wiring Diagram:

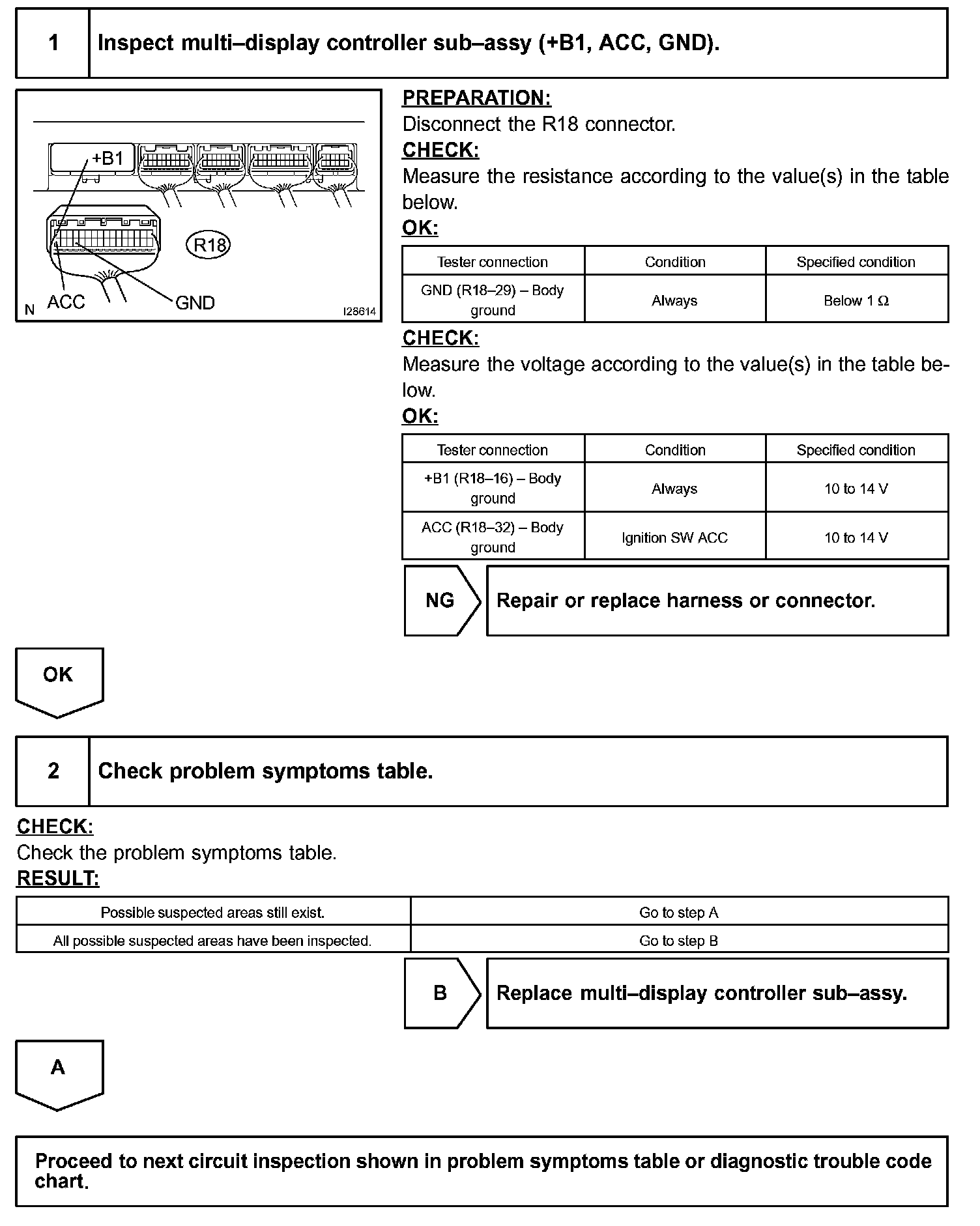

Step 1 - 2:

INSPECTION PROCEDURE
