Alarm Module: Testing and Inspection

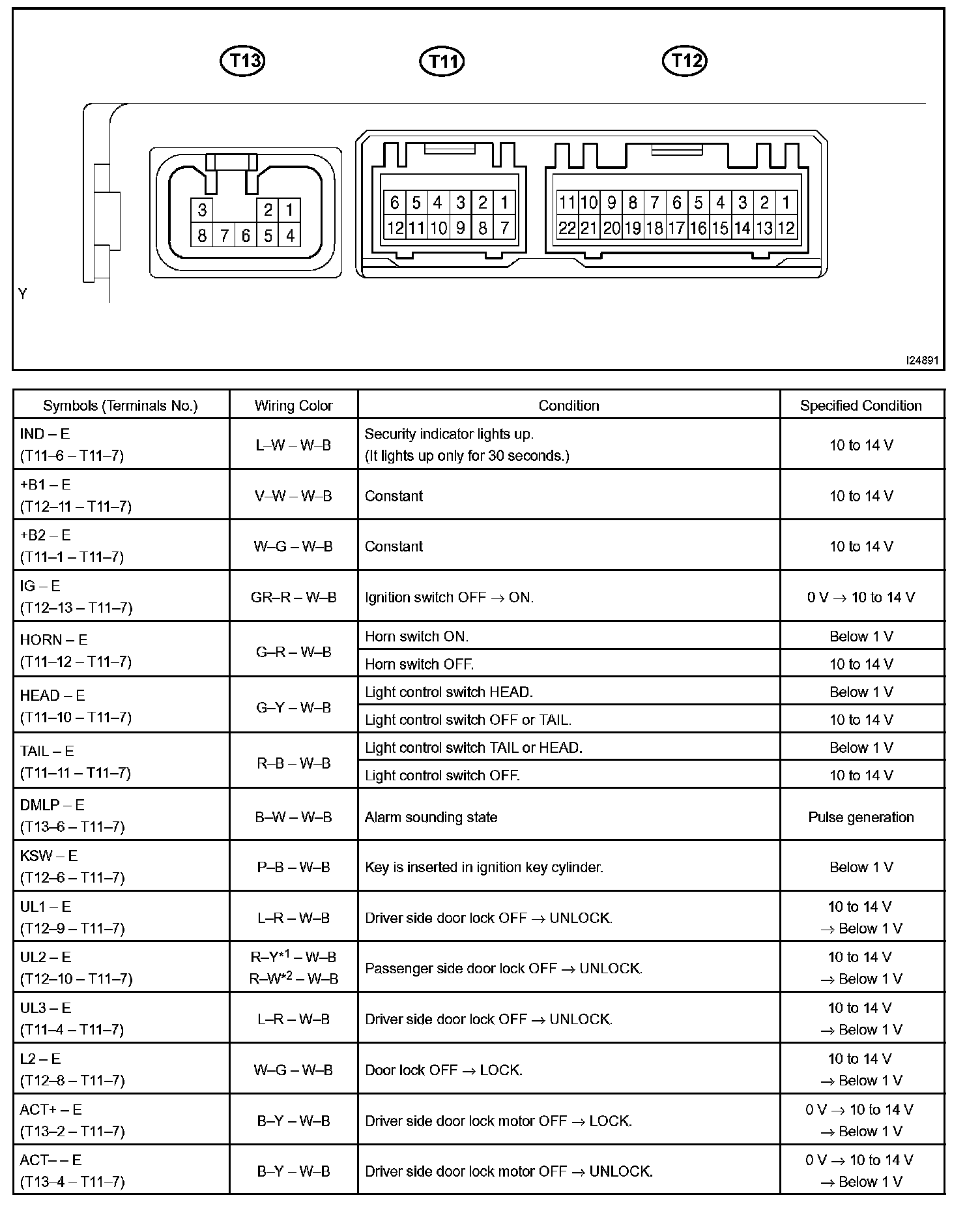

Terminals Of Control Module / Pinouts Part 1:

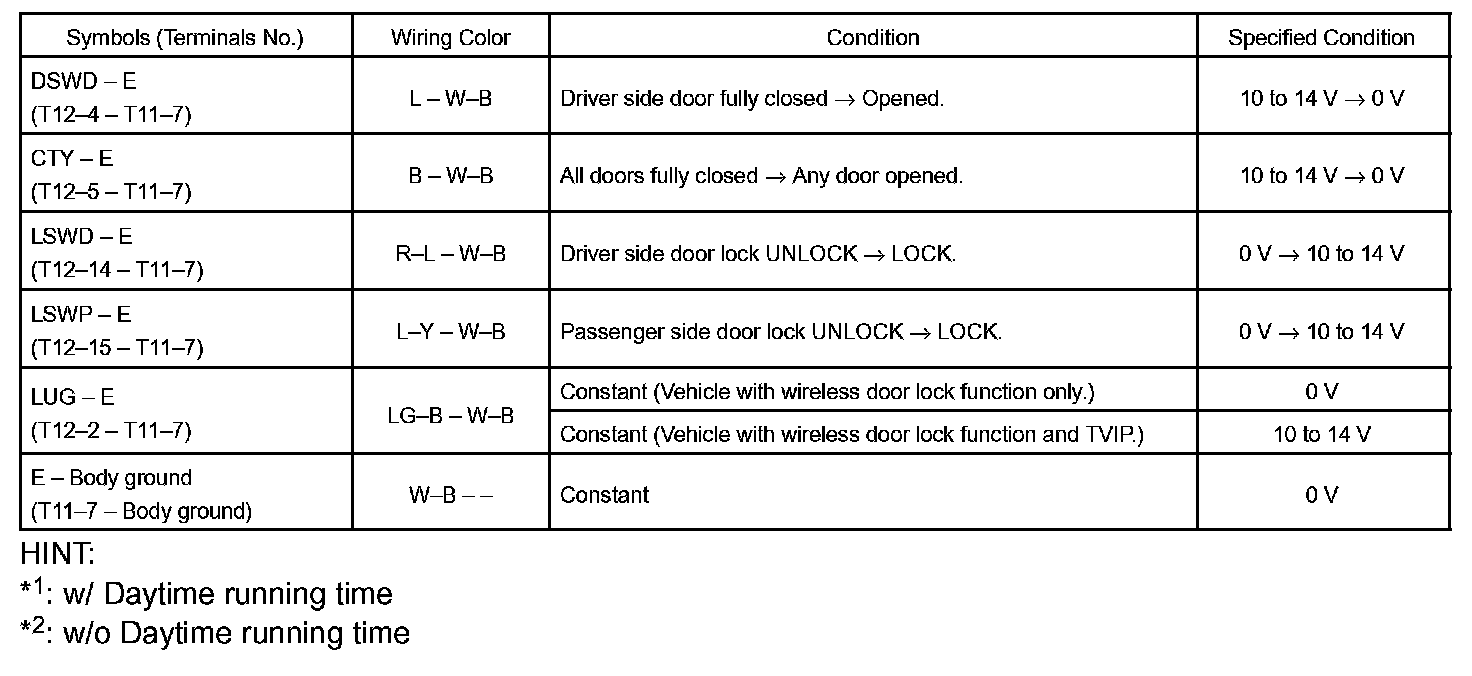

Terminals Of Control Module / Pinouts Part 2:
