Entertainment Systems

DIAGNOSTIC TROUBLE CODE CHART






HINT: DTC of the device which is directly connected via AVC-LAN, is displayed on the "audio system or navigation system" and the "television display assembly" and the "multi-display controller sub-assembly" and the "disc player controller" respectively.

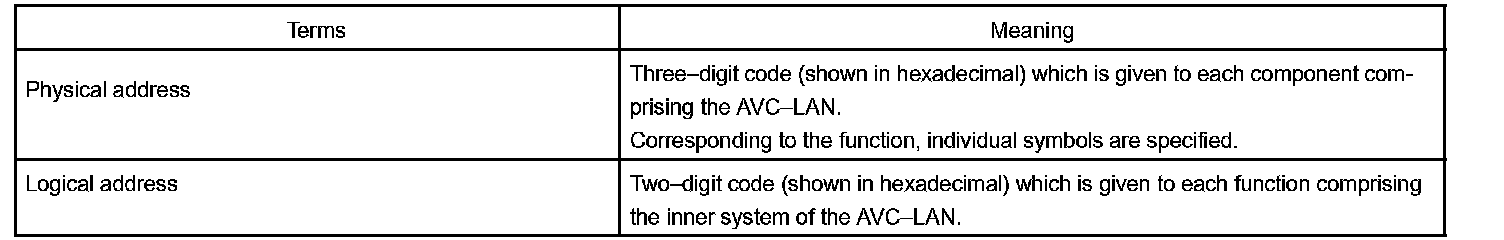

The DTC of the Main AVC-LAN circuit is displayed on the radio receiver assembly or multi-display, and the DTC of the Sub AVC-LAN circuit is displayed on the television display assembly. Titles for each unit are stated in the following order: parts name, (physical address) and [name indicated on the DTC display].

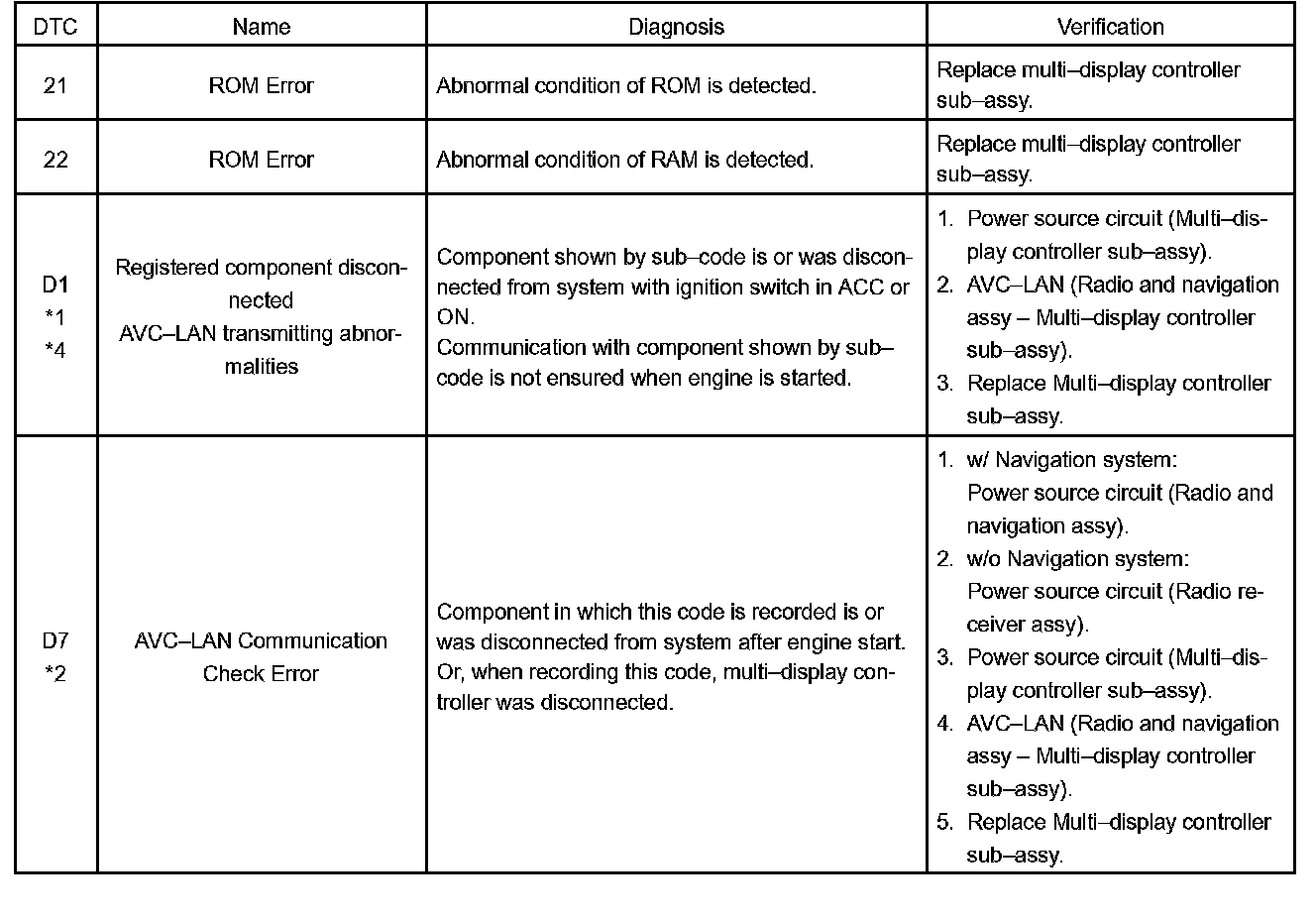

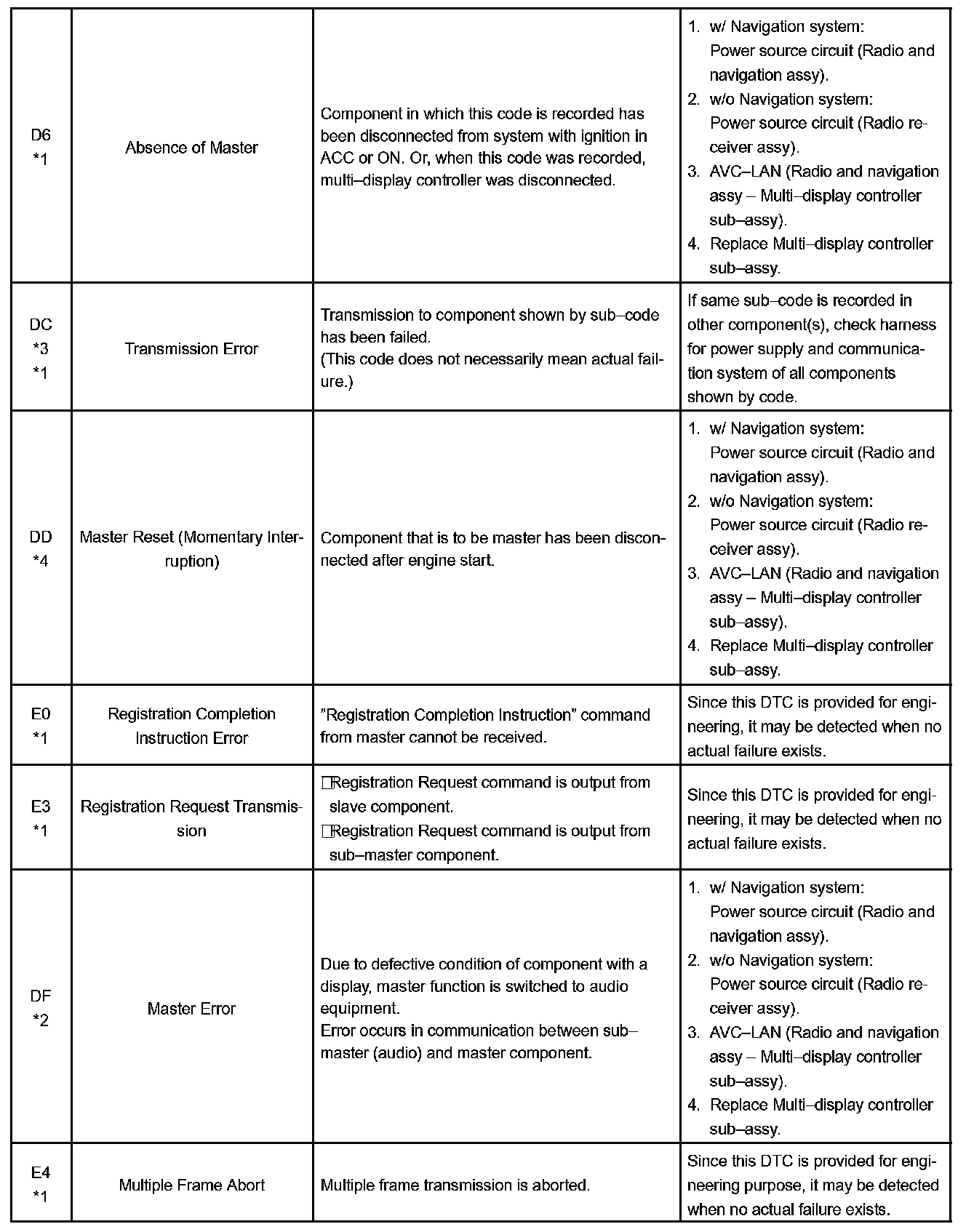

1. Multi-display controller sub-assembly (Physical address: 1F6) [RSE ECU, MAIN]

HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting an engine.
- *2: This code is stored when 210 sec. has passed after the power supply connector is pulled out after engine start.
- *3: This code may be stored when the engine key is turned back to the ON position and then turned again to the START position in 1 minute after engine start.
- *4: This code may be stored when the engine key is turned back to the ON position and then turned again to the START position after engine start.







a. Logical address: 01 (Communication control)

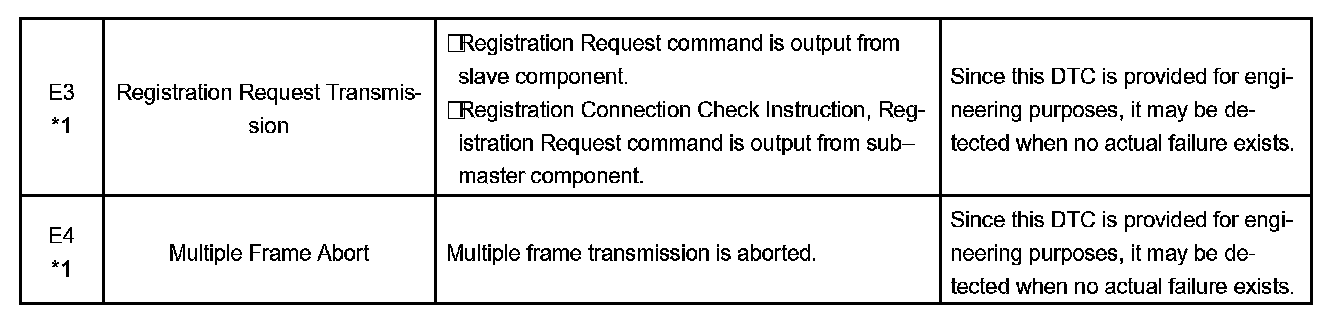

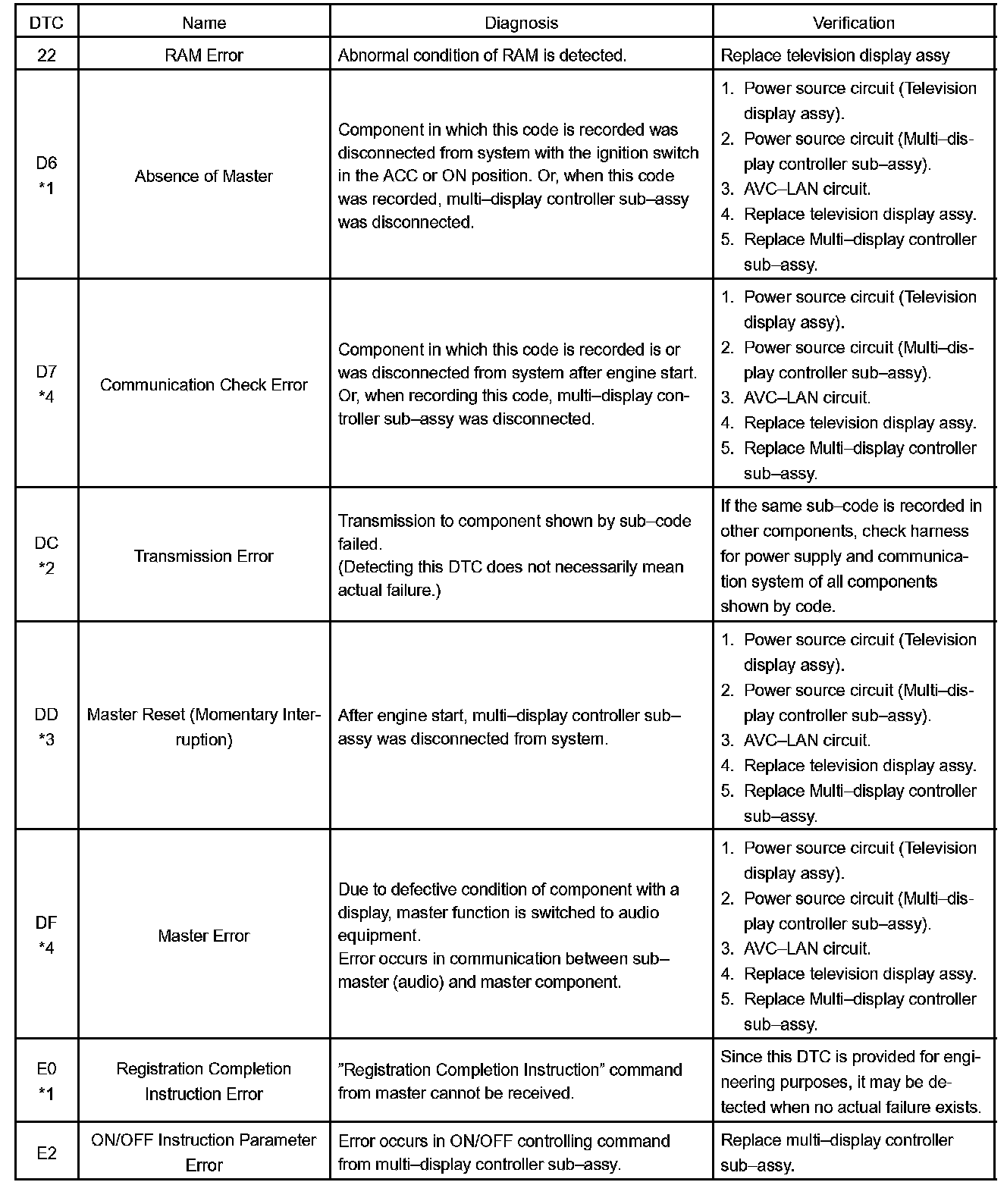

2. Television display assembly (Physical address: 1B0) [Rr-TV]

HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting the engine.
- *2: This code may be stored when the engine key is turned again in 1 minute after the engine start.
- *3: This code may be stored when the engine key is turned again after the engine start.
- *4: The code is stored 210 seconds after the power supply connector of the master component is disconnected with the ignition switch in the ACC or ON position.







a. Logical address: 01 (Communication control)

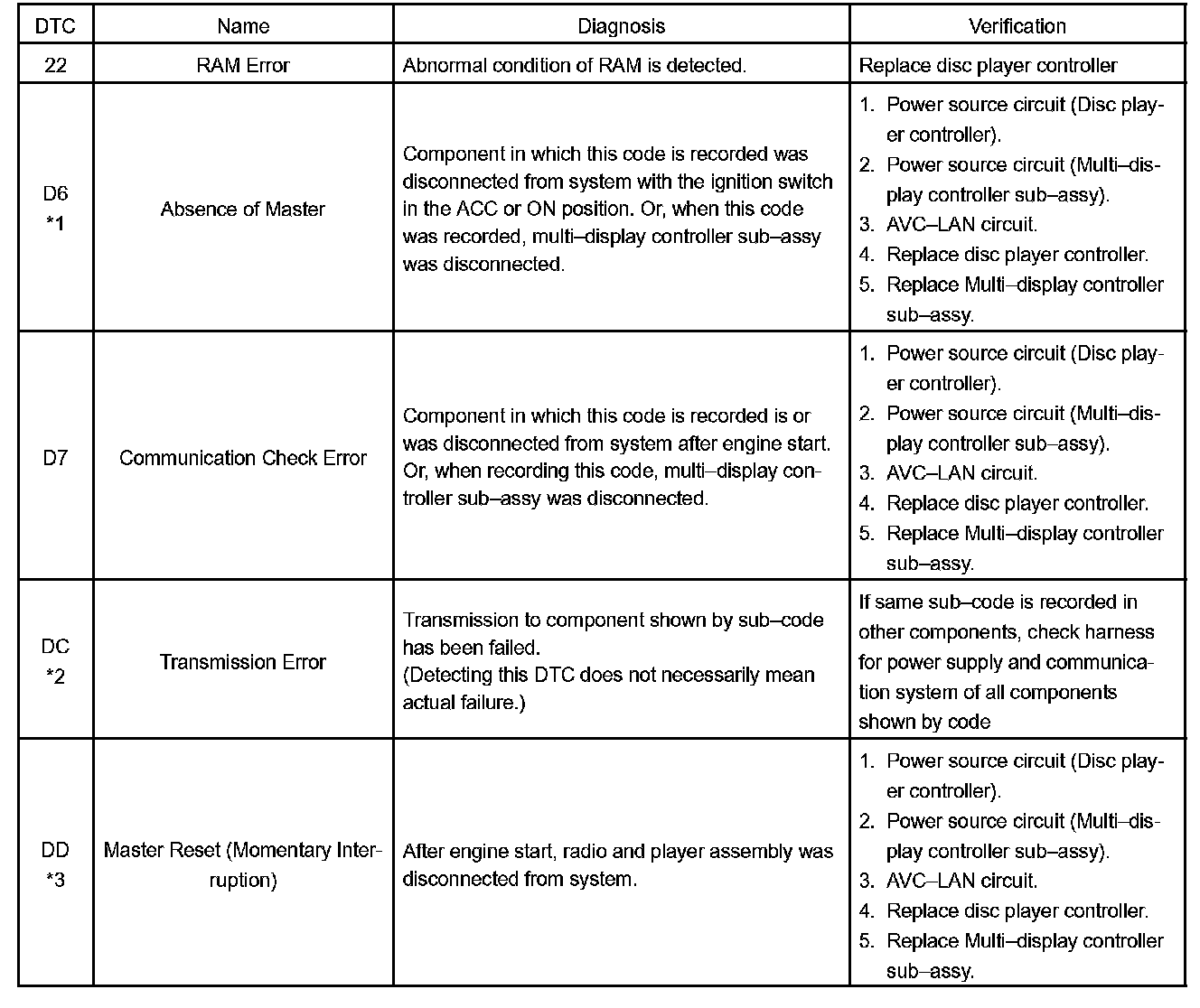

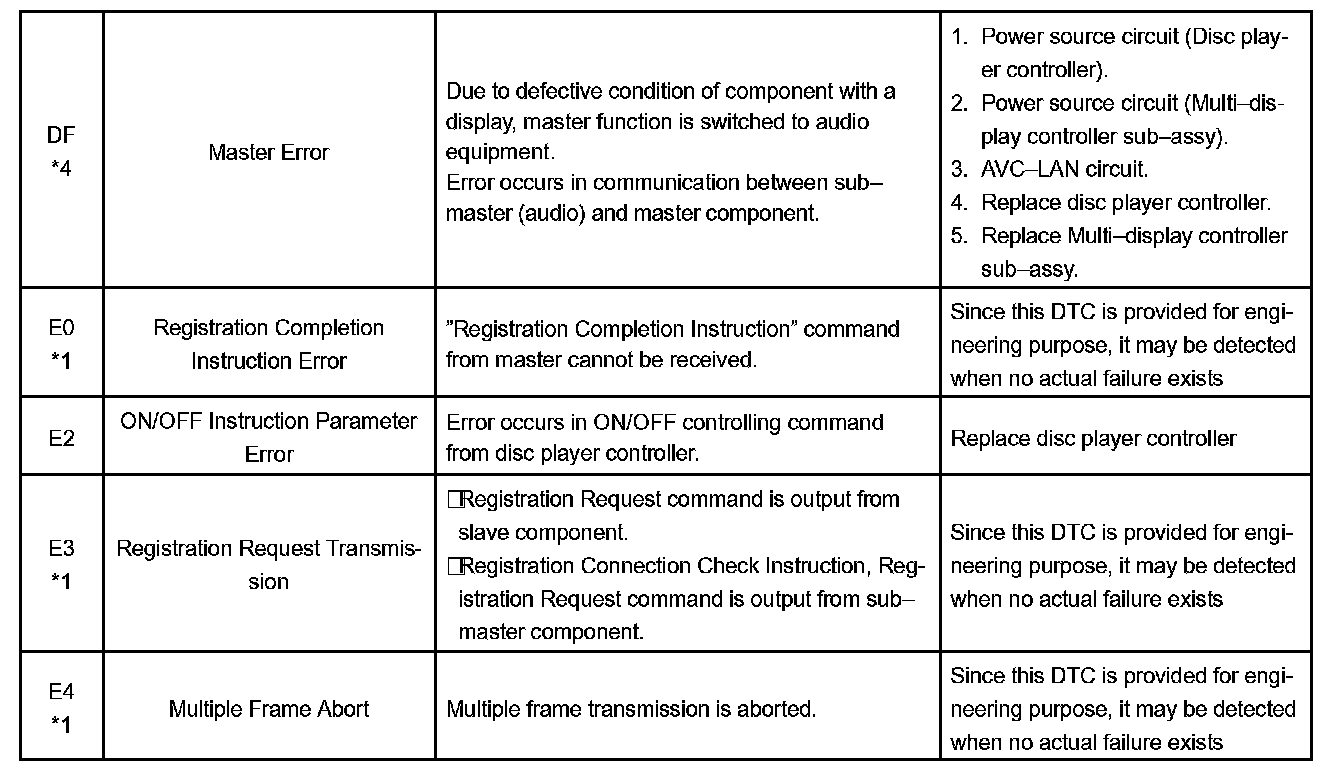

3. Disc player controller (Physical address: 1A0) [DVD-P]

HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting an engine.
- *2: This code may be stored when the engine key is turned again 1 min. after the engine starts.
- *3: This code may be stored when the engine key is turned again after the engine starts.
- *4: When 210 sec. have passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.







a. Logical address: 01 (Communication control)

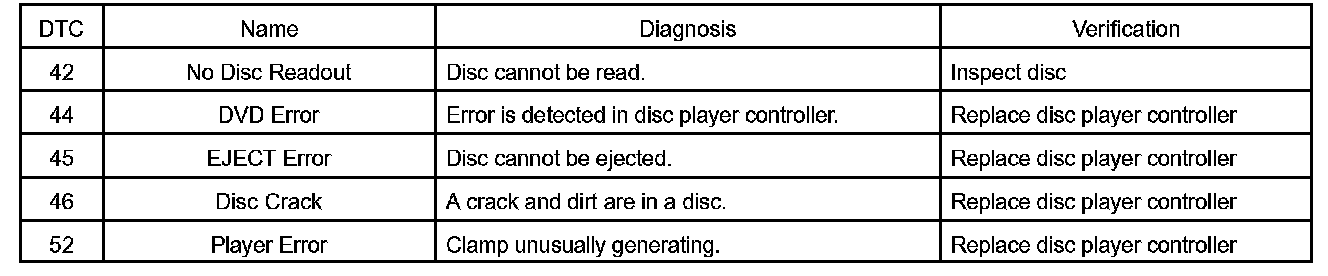

b. Logical address: 44 (DVD)
