Fluid Line/Hose: Service and Repair

OIL W/HOSE COOLER ASSY (A750E/A750F)

REPLACEMENT
1. REMOVE RADIATOR GRILLE
2. DRAIN AUTOMATIC TRANSMISSION FLUID





3. REMOVE OIL W/HOSE COOLER ASSY

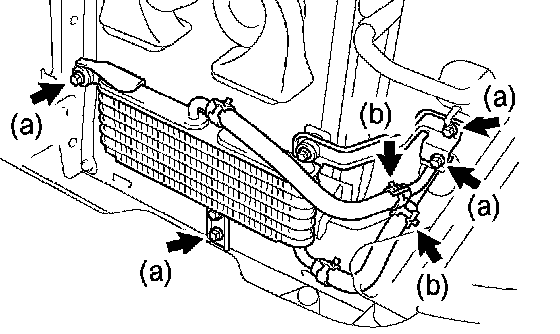

a. Loosen the 2 clips and disconnect the 2 oil cooler hoses.
b. Remove the 4 bolts and the oil w/hose cooler.





4. INSTALL OIL W/HOSE COOLER ASSY

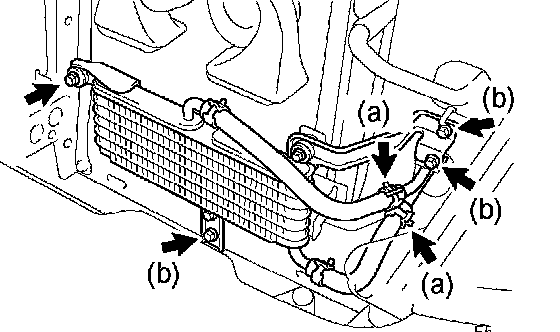

a. Install the oil w/hose cooler with the 4 bolts.
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)
b. Install the 2 oil cooler hoses and 2 clips.
5. ADD AUTOMATIC TRANSMISSION FLUID
6. INSPECT AUTOMATIC TRANSMISSION FLUID
7. INSTALL RADIATOR GRILLE
