Oil Pan, Engine
OIL PANRemove any old packing material and be careful not to drop any oil on the contact surfaces of the cylinder block, rear oil seal retainer and oil pan.

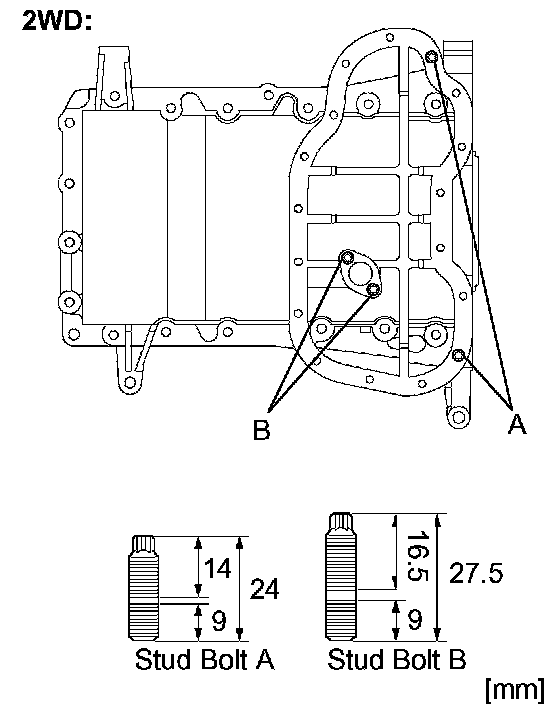

Install the 4 stud bolts (for 2WD).
Torque 4.0 Nm (41 kgf-cm, 35 inch lbs.)

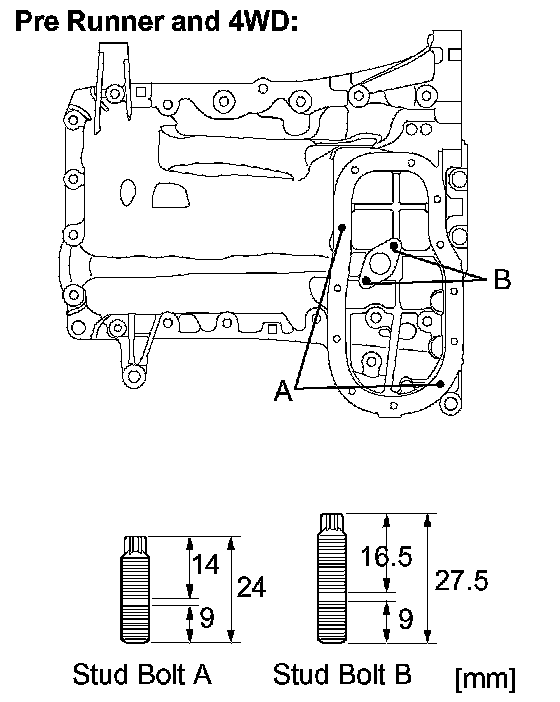

Install the 4 stud bolts (for Pre Runner and 4WD)
Torque 4.0 Nm (41 kgf-cm, 35 inch lbs.)

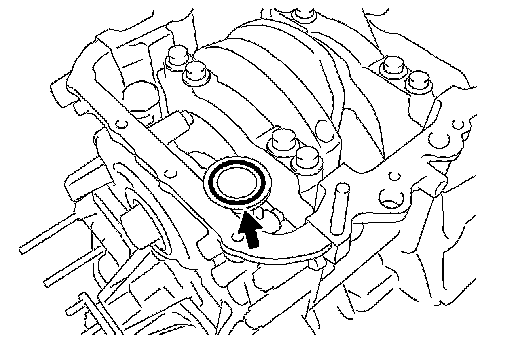

Install a new O-ring onto the oil pump.

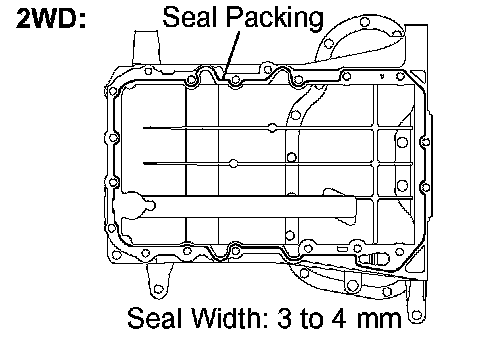

Apply a continuous bead of seal packing (diameter 3 to 4 mm (0.12 to 1.16 inch)) to the oil pan as shown in the illustration (for 2WD).
Seal packing: Part No.08826-00080 or equivalent
NOTICE: Install the oil pan within 3 minutes of applying the seal packing. After installation, the oil pan bolts and nuts must be tightened within 15 minutes. Otherwise, the seal packing must be removed and reapplied.

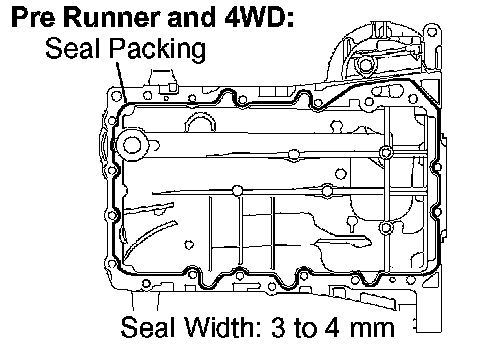

Apply a continuous bead of the seal packing (diameter 3 to 4 mm (0.12 to 0.16 inch)) to the oil pan as shown in the illustration (for Pre Runner and 4WD).
Seal packing: Part No.08826-00080 or equivalent
NOTICE: Install the oil pan within 3 minutes of applying the seal packing. After installation, the oil pan bolts and nuts must be tightened within 15 minutes. Otherwise, the seal packing must be removed and reapplied.

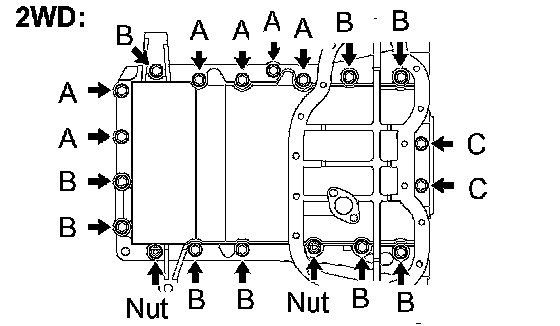

Install the oil pan with the 17 bolts and 2 nuts. Tighten the bolts and nuts uniformly in several steps (for 2WD).
Torque:
10 Nm (102 kgf-cm, 7.4 ft. lbs.) for 10 mm (0.39 inch) head
21 Nm (214 kgf-cm, 16 ft. lbs.) for 12 mm (0.47 inch) head

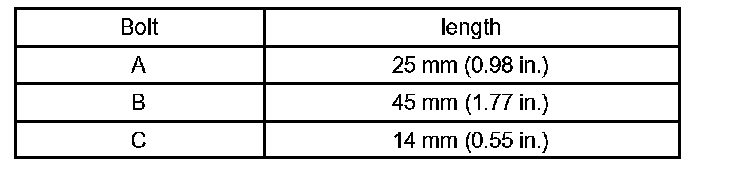

HINT: Each bolt length is as above

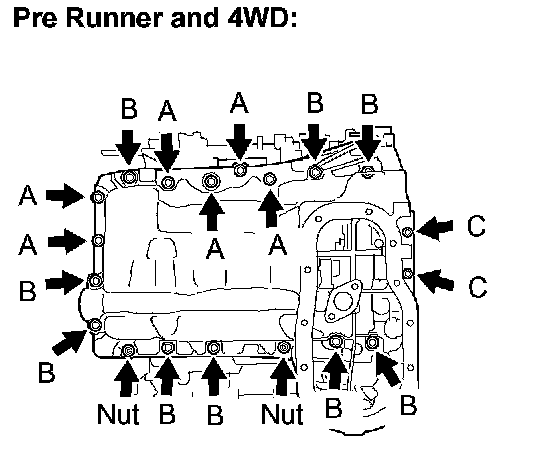

Install the oil pan with the 17 bolts and 2 nuts. Tighten the bolts and nuts uniformly in several steps (for Pre Runner and 4WD).
Torque:
10 Nm (102 kgf-cm, 7 ft. lbs.) for 10 mm (0.39 inch) head
21 Nm (214 kgf-cm, 16 ft. lbs.) for 12 mm (0.47 inch) head

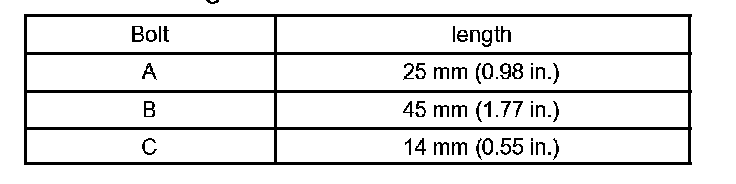

HINT: Each bolt length is as above
