Pressure Plate
Pressure Plate

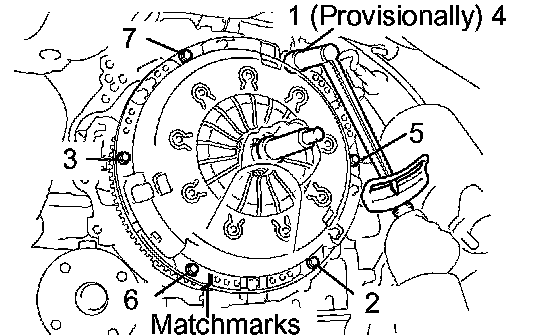

Following the procedures shown in the illustration, tighten the 6 bolts, in the order starting with the bolt located near the knock pin on the top.
Torque
19 Nm (195 kgf-cm, 14 ft. lbs.)
