Canister Purge Control Valve: Service and Repair
DUTY VACUUM SWITCHING VALVEREPLACEMENT
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE V-BANK COVER
3. REMOVE DUTY VACUUM SWITCHING VALVE

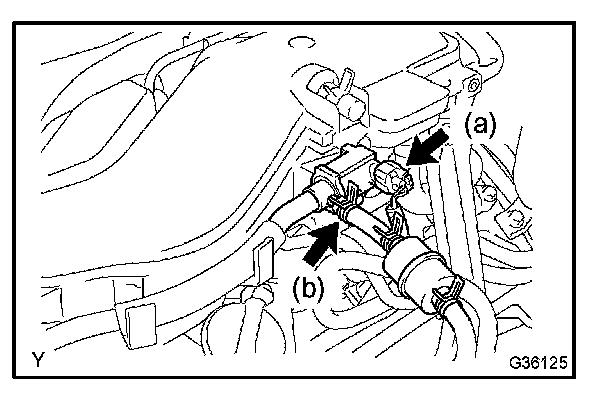

a. Disconnect the connector.
b. Disconnect the fuel vapor feed hose.

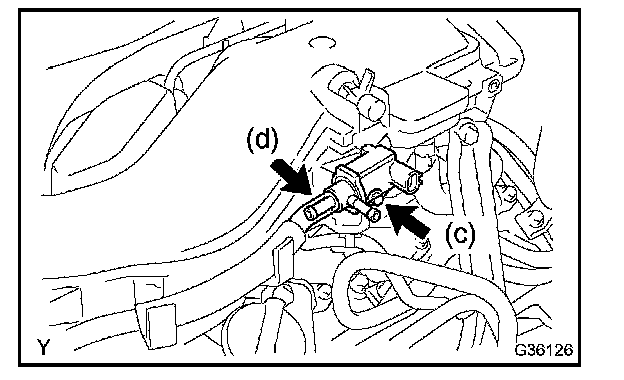

c. Remove the bolt, then separate the vacuum switching valve from the intake air surge tank.
d. Disconnect the hose, then remove the vacuum switching valve.
4. INSTALL DUTY VACUUM SWITCHING VALVE
a. Connect the hose to the vacuum switching valve.
b. Install the vacuum switching valve with the bolt.
Torque: 9.0 N.m (92 Kgf.cm, 80 in.lbf)
c. Connect the vapor feed hose.
d. Connect the connector.
5. INSTALL V-BANK COVER
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N.m (40 Kgf.cm, 35 in.lbf)
