Engine Control System - SFI System

DIAGNOSTIC TROUBLE CODE CHART

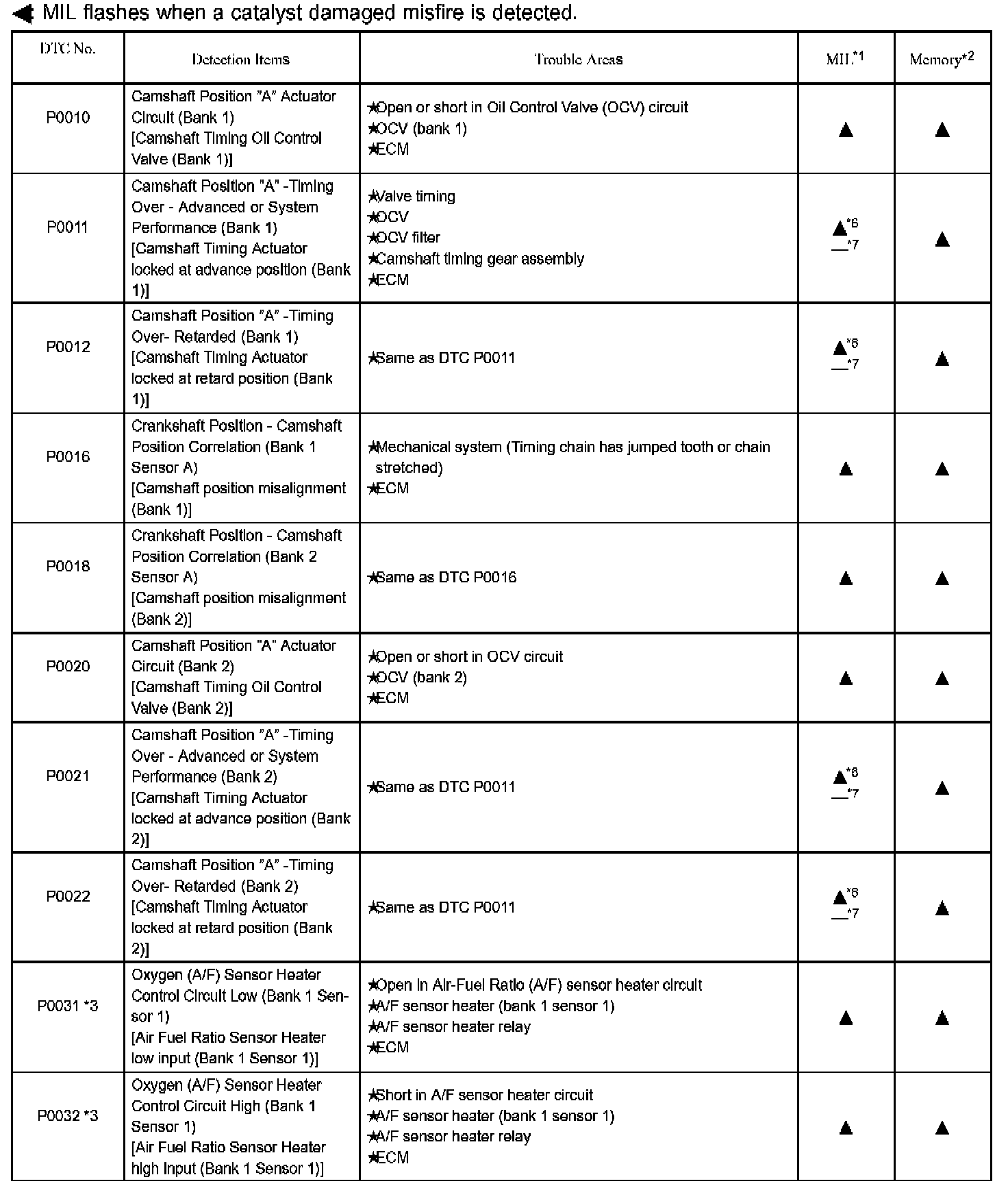

P0010 - P0032:

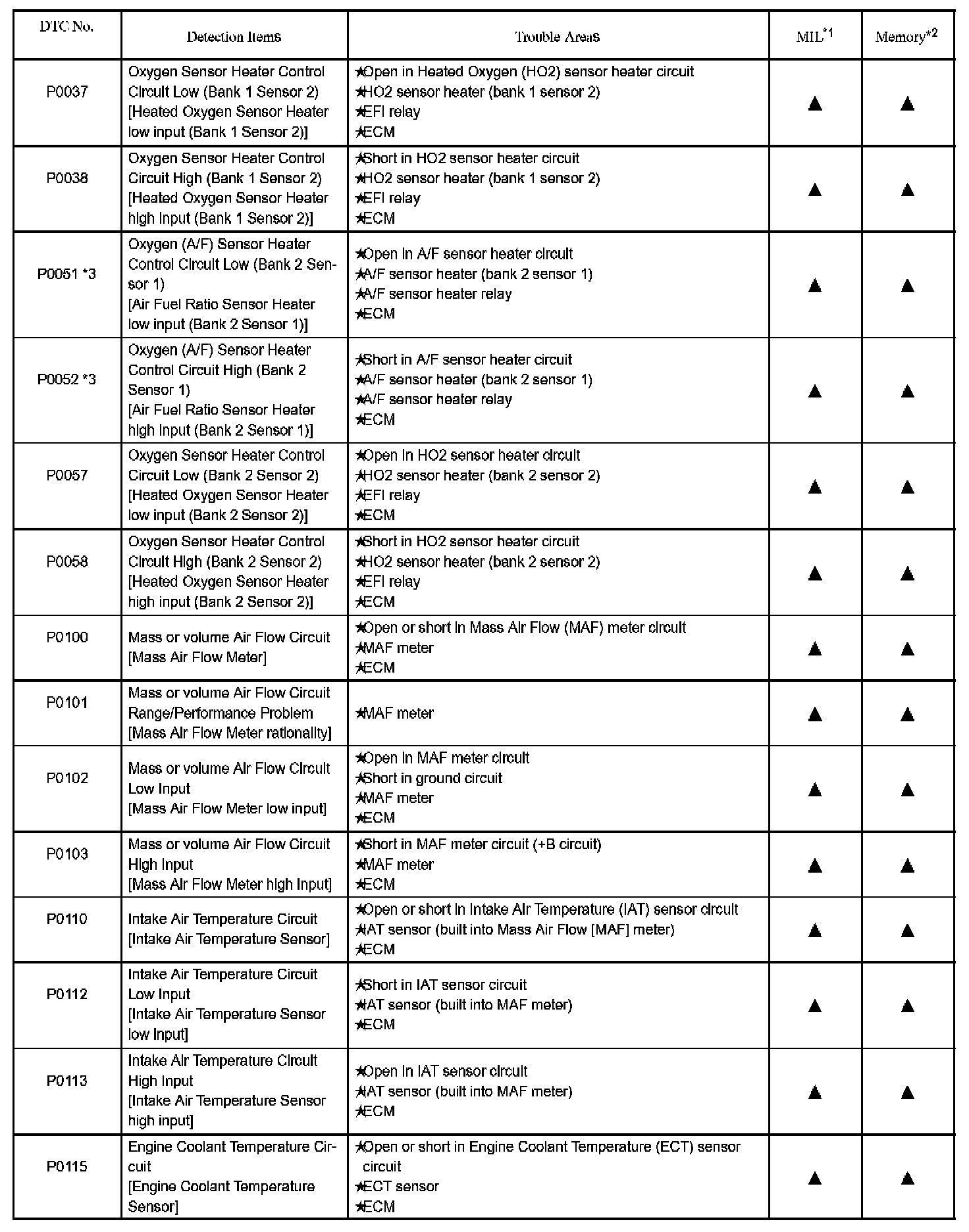

P0037 - P0115:

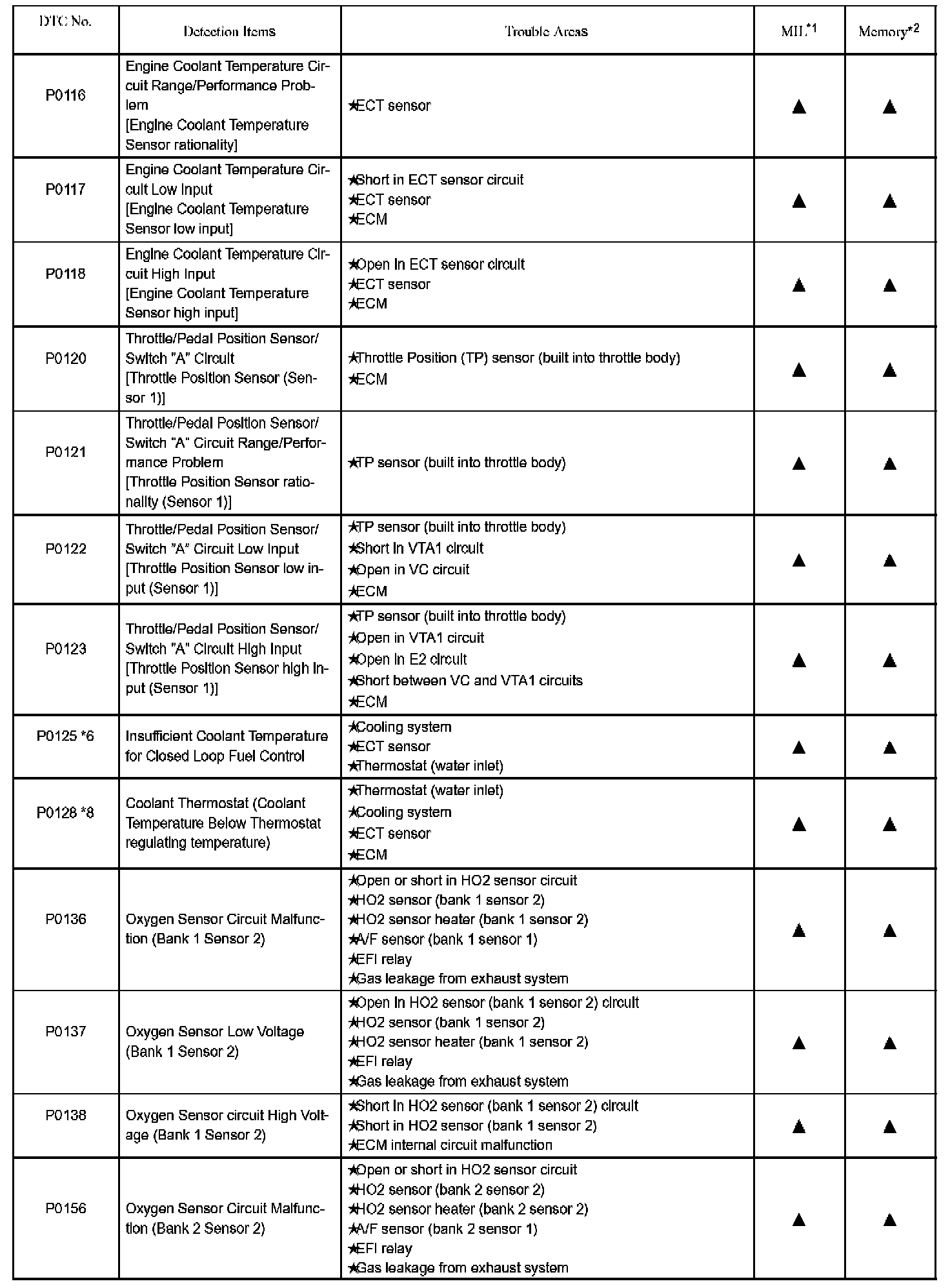

P0116 - P0156:

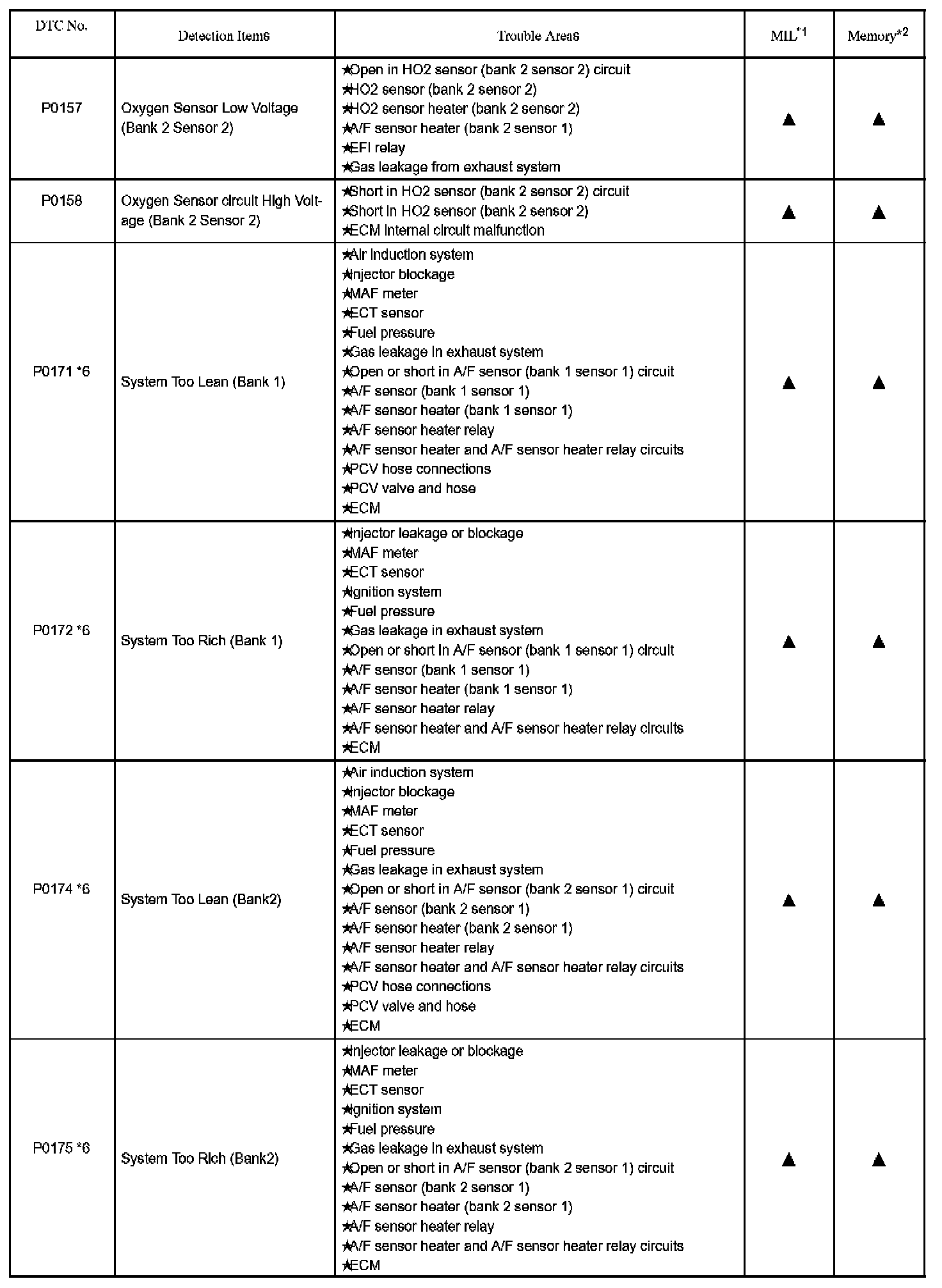

P0157 - P0175:

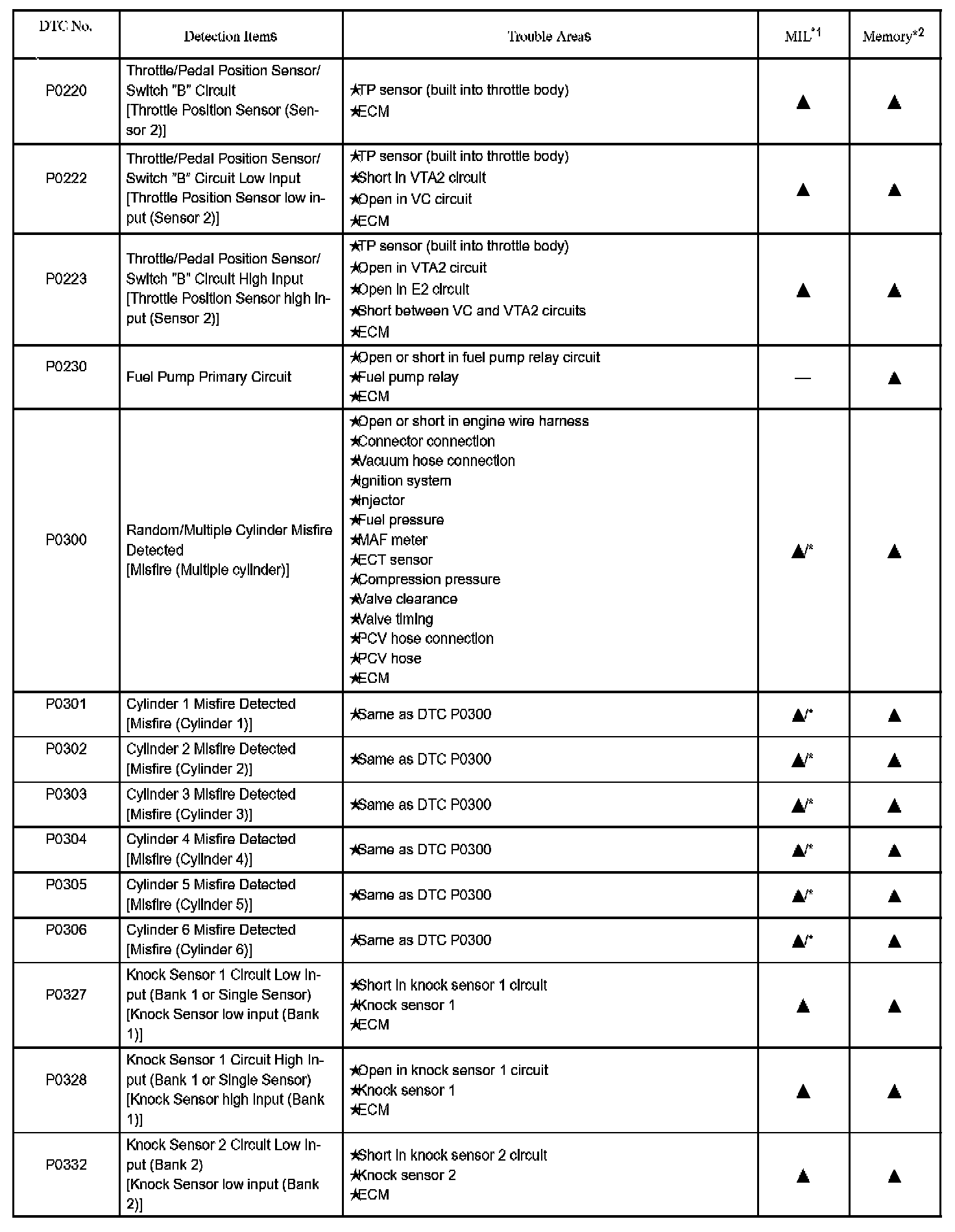

P0220 - P0332:

P0333 - P0430:

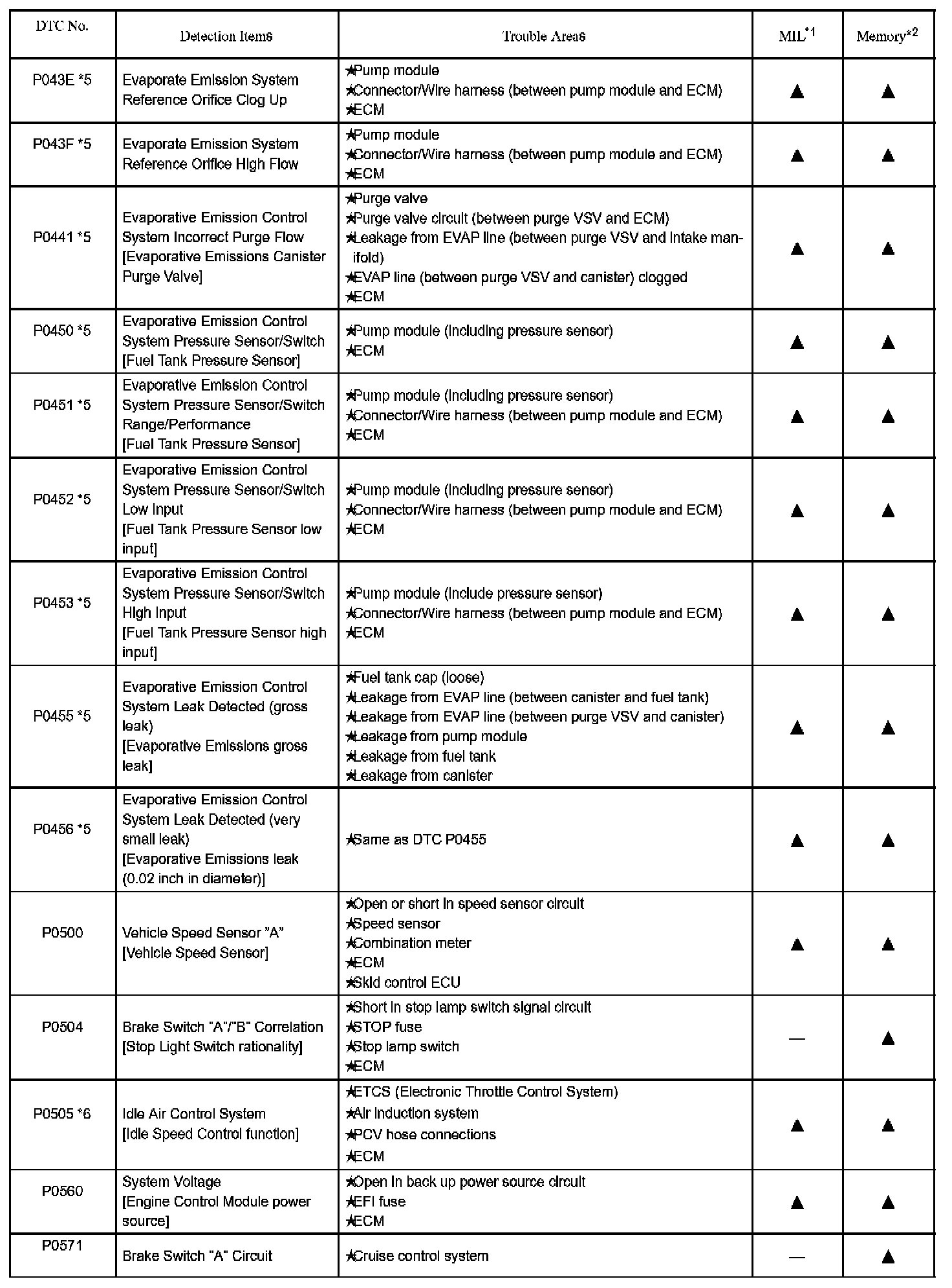

P043E - P0571:

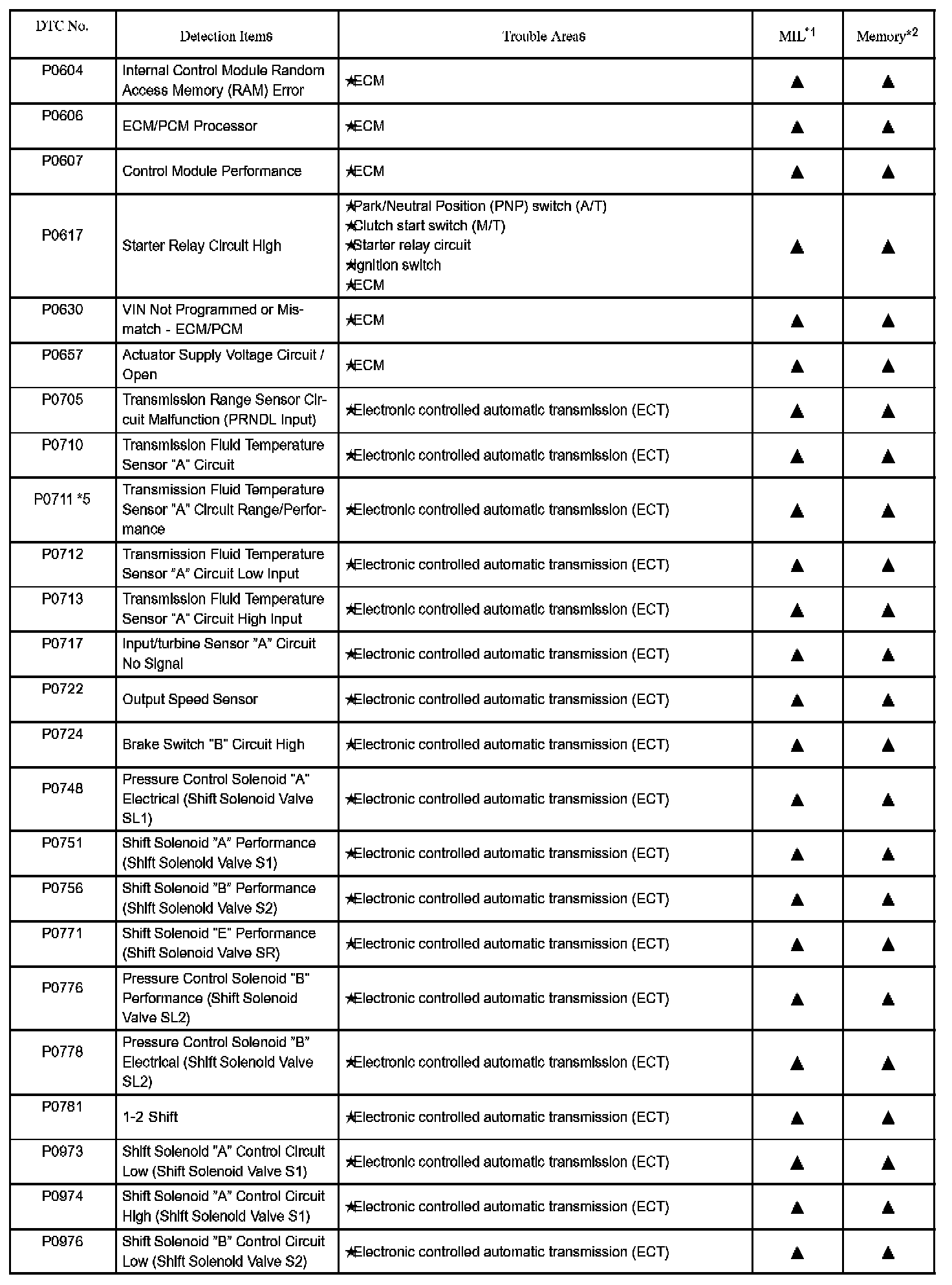

P0604 - P0976:

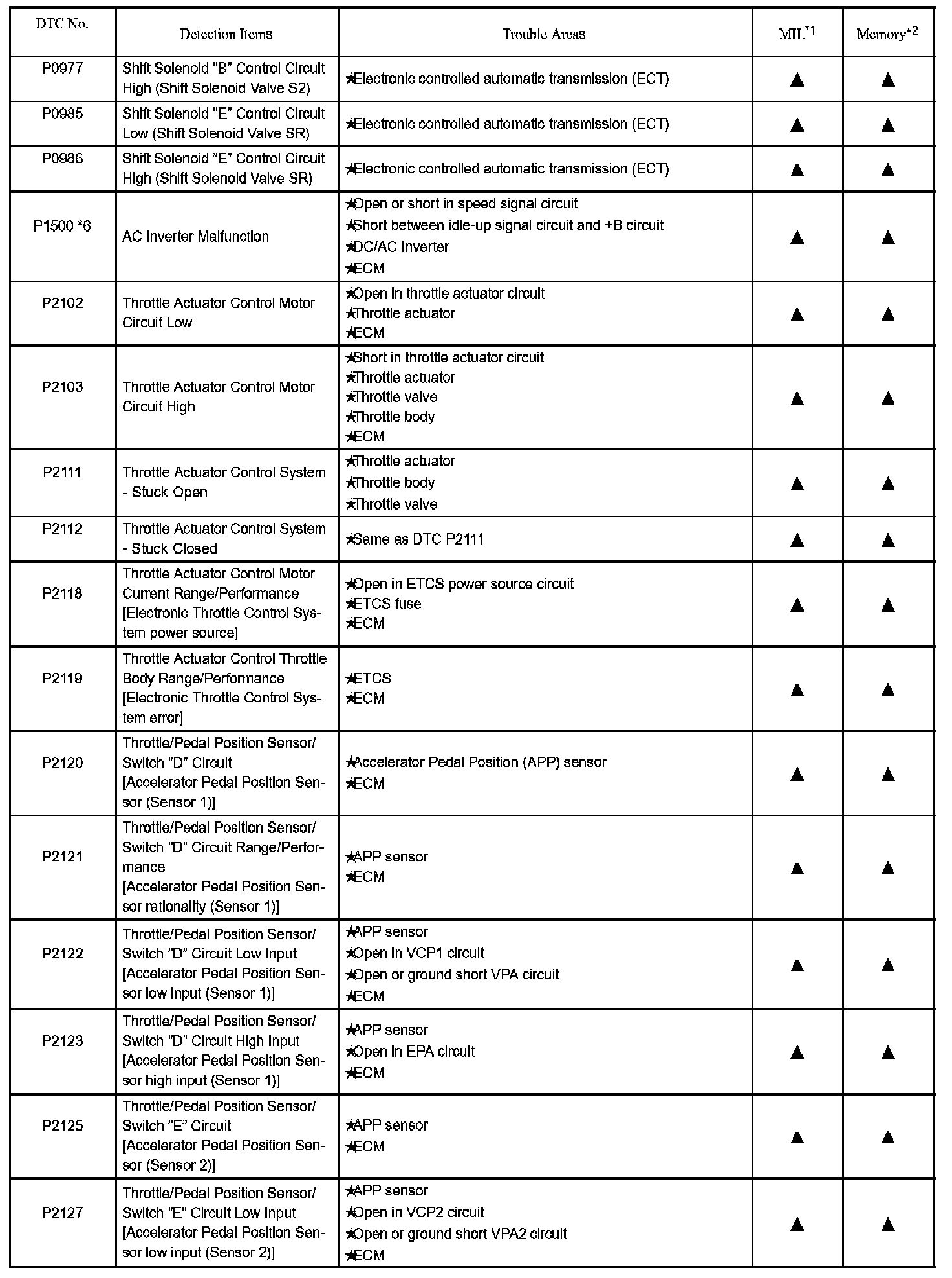

P0977 - P2127:

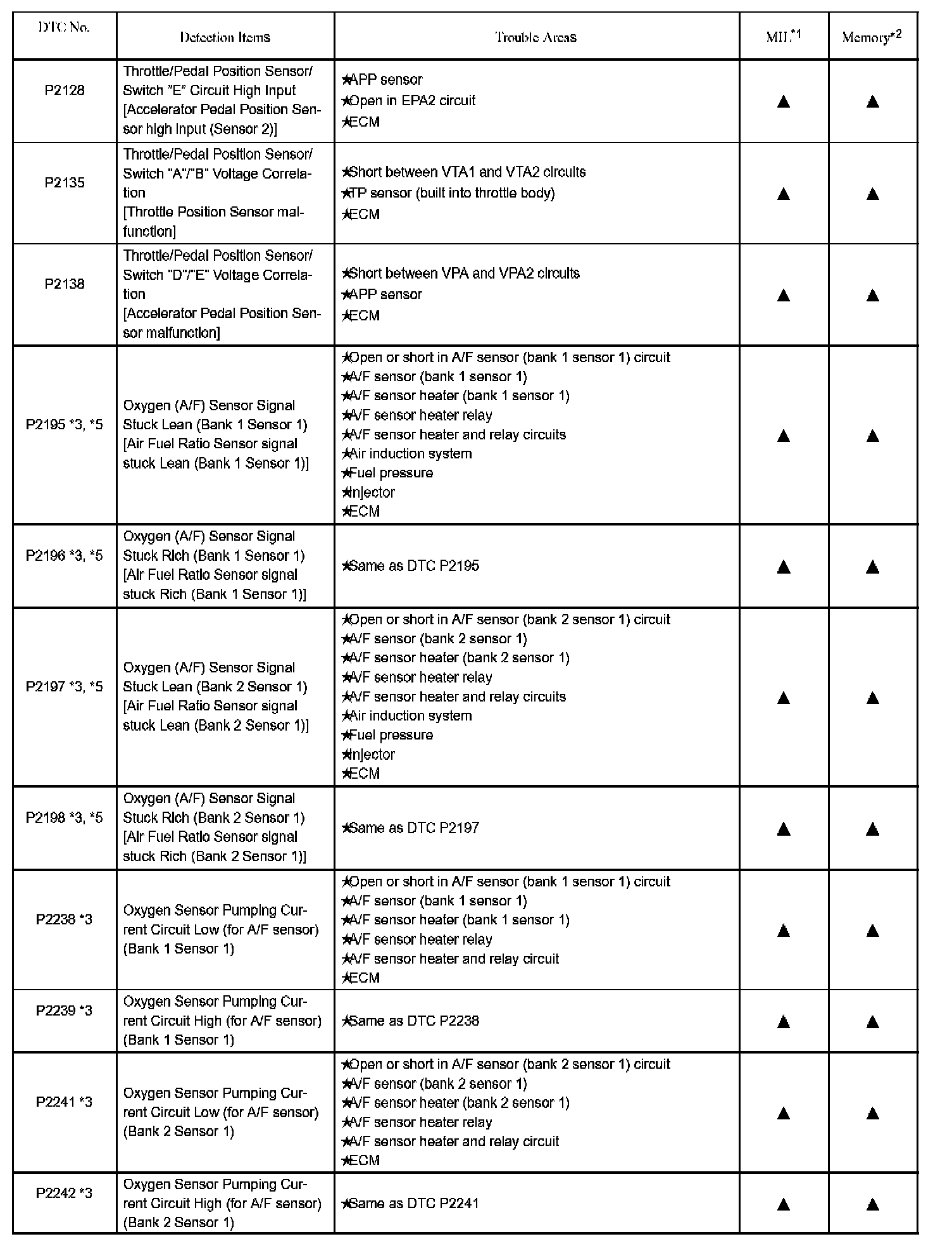

P2128 - P2242:

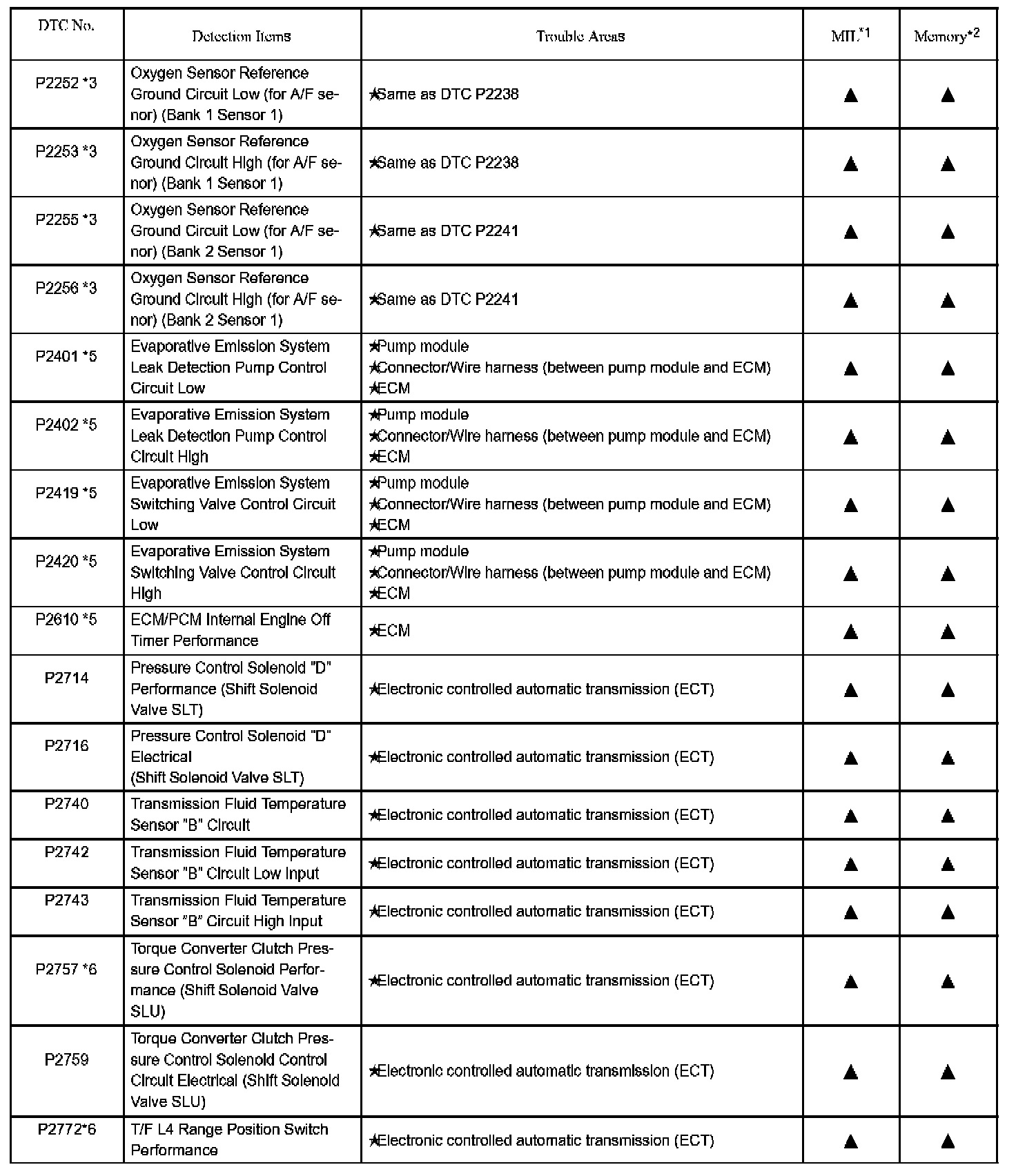

P2252 - P2772:

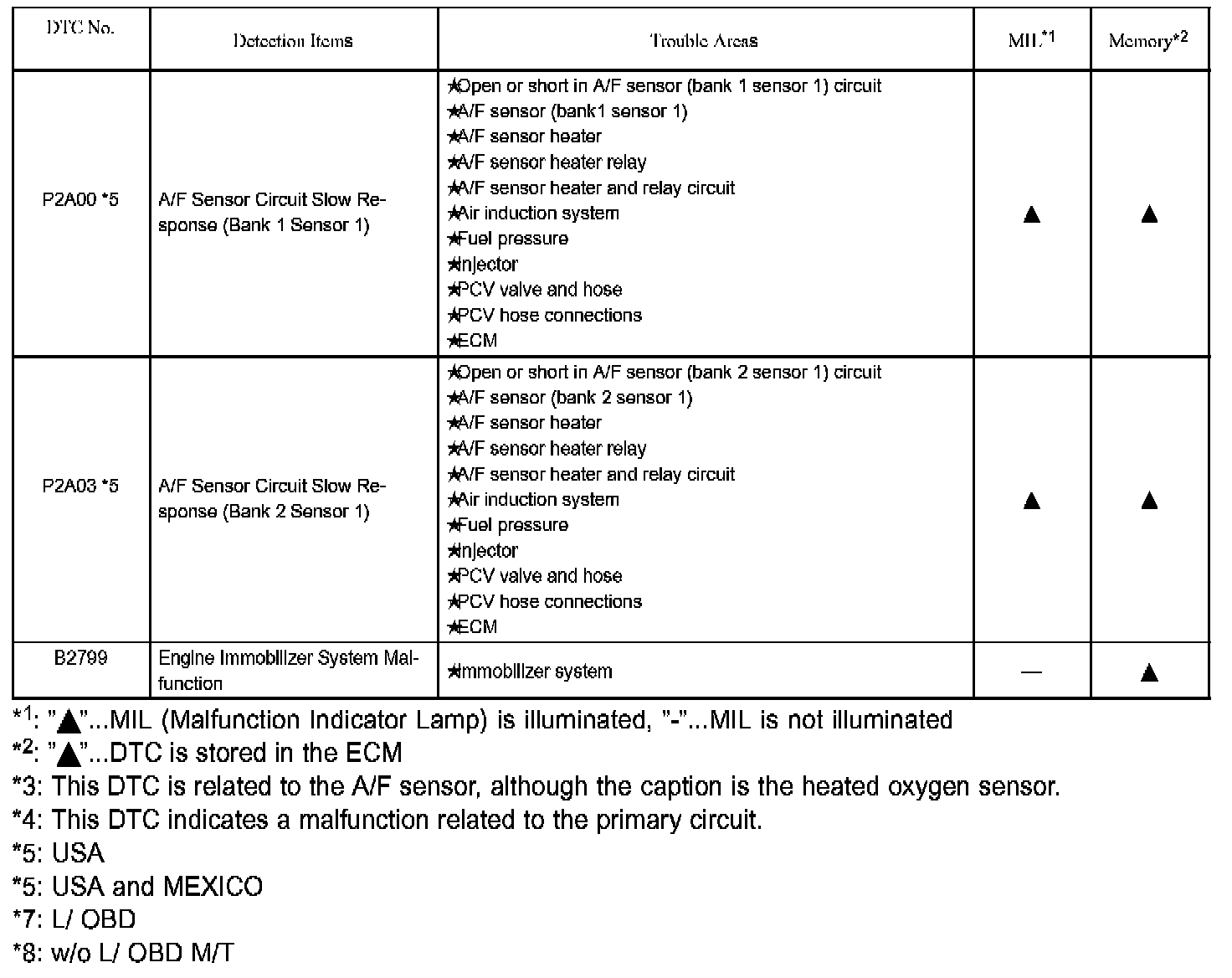

P2A00 - B2799:

HINT: The parameters listed in the chart are for reference only. Factors such as instrument type may cause readings to differ slightly from stated values.

If any DTCs are displayed during a check mode DTC check, check the circuit for the DTCs listed in the table.
