Wiper Blade: Service and Repair

Wiper Rubber LH:

WIPER RUBBER LH

REPLACEMENT




1. REMOVE FR WIPER BLADE LH

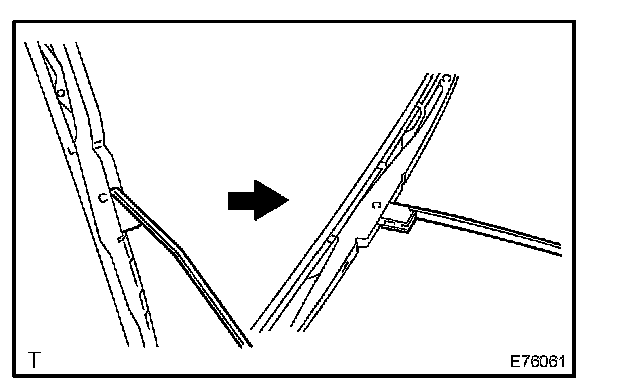

a. Raise the front wiper blade to the position as shown in the illustration.

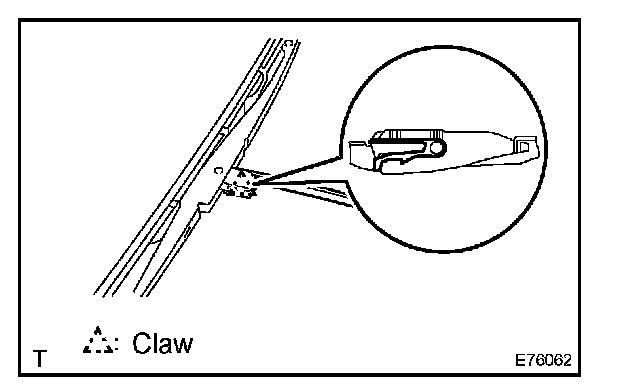

b. Disengage the claw and remove the front wiper blade LH from the front wiper arm LH.

NOTE: Do not bend the front wiper arm with the front wiper blade LH removed, as the arm tip could damage the windshield surface.




2. REMOVE WIPER RUBBER LH

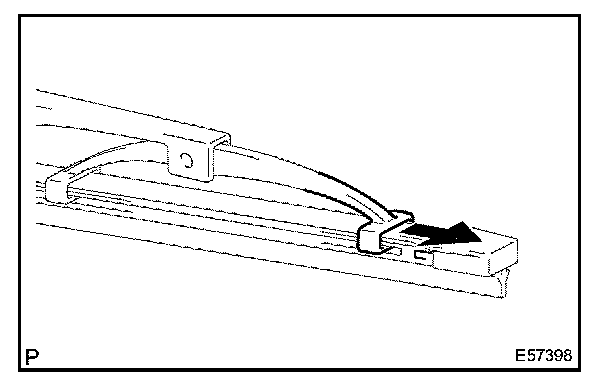

a. Remove the front wiper rubber LH from the front wiper blade.




b. Remove the 2 wiper rubber backing plates from the wiper rubber LH.




3. INSTALL WIPER RUBBER LH
a. Install the 2 wiper rubber backing plates onto the wiper rubber LH.

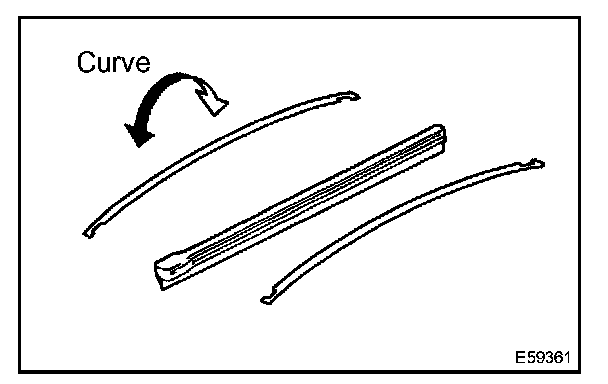

NOTE: Be sure to install the wiper rubber backing plates in the correct direction.




b. Install the wiper rubber LH so that the head part (Larger side) of the wiper rubber faces the arm axle side.

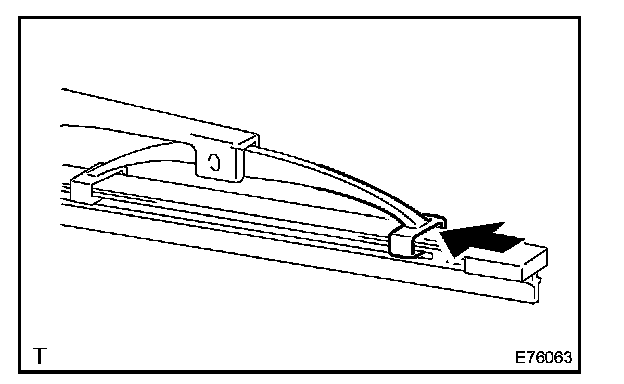

NOTE: Push the front wiper blade into the grooves of the wiper rubber to engage them completely.




4. INSTALL FR WIPER BLADE LH

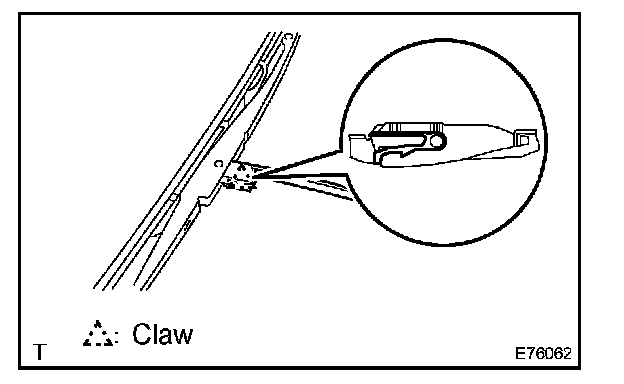

a. Engage the claw and install the front wiper blade LH onto the front wiper arm LH.

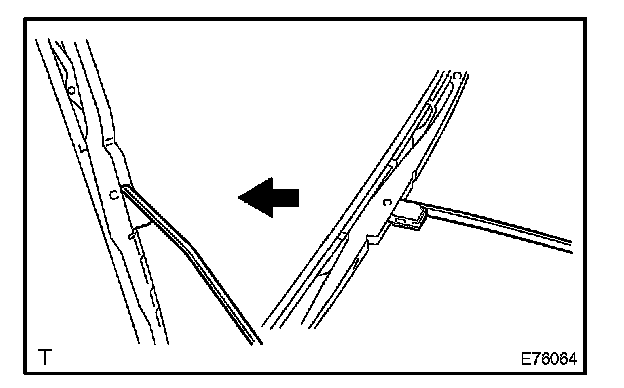

b. Hold down the front wiper blade LH as shown in the illustration.
