Windshield Washer Spray Nozzle: Testing and Inspection

WASHER NOZZLE SUB-ASSEMBLY

INSPECTION




1. INSPECT WASHER NOZZLE SUB-ASSEMBLY

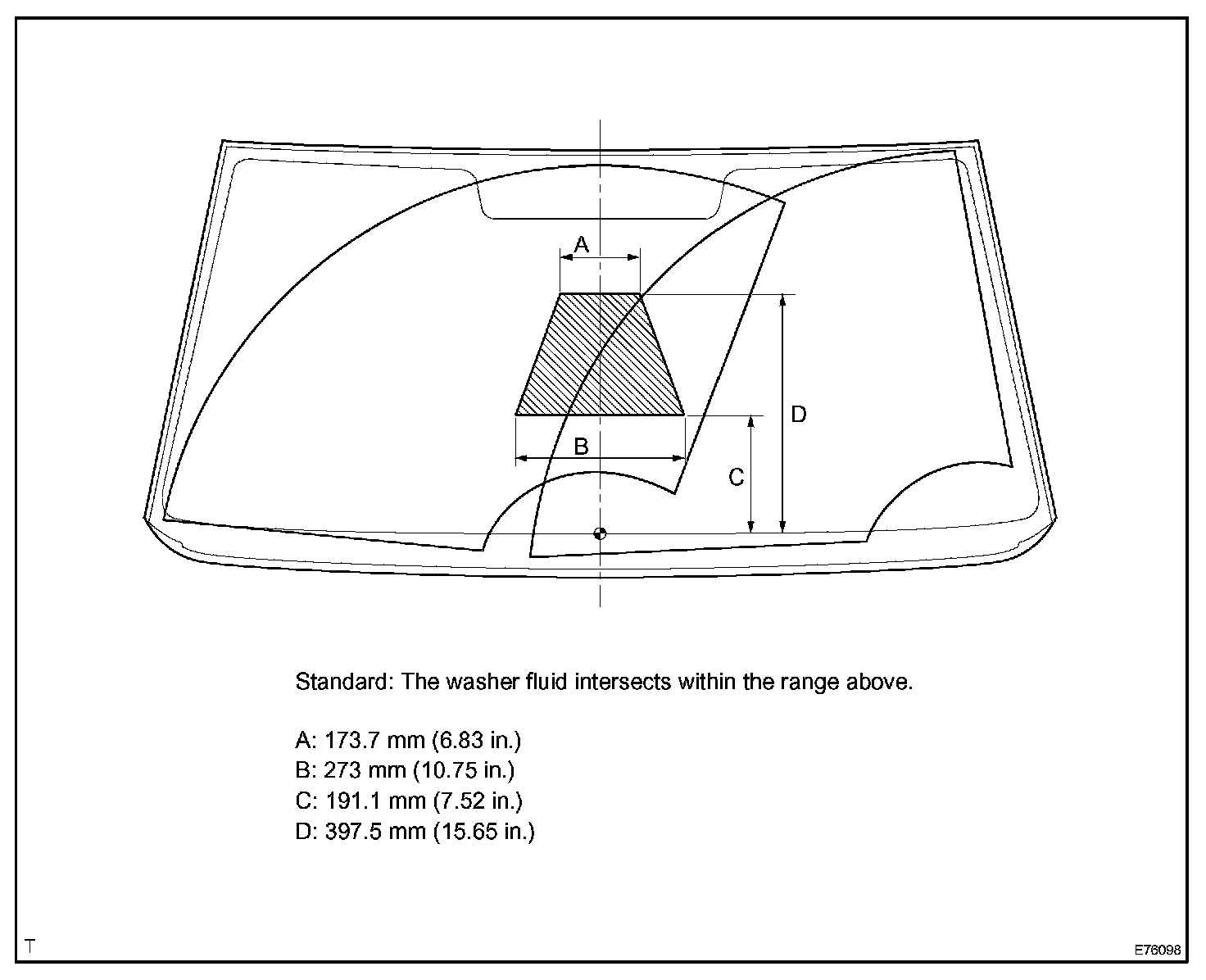

a. With the engine running, check that the washer fluid hits in the range indicated by the hatched lines on the windshield.

HINT: This washer nozzle does not have an adjustment function because it has a spray type nozzle.
