Power Windows Do Not Operate At All

POWER WINDOWS DO NOT OPERATE AT ALL

CIRCUIT DESCRIPTION

If none of the door windows operate, there may be a failure in the supply of power to the power window regulator master switch assembly, or the power window regulator master switch itself may be malfunctioning.

Wiring Diagram:

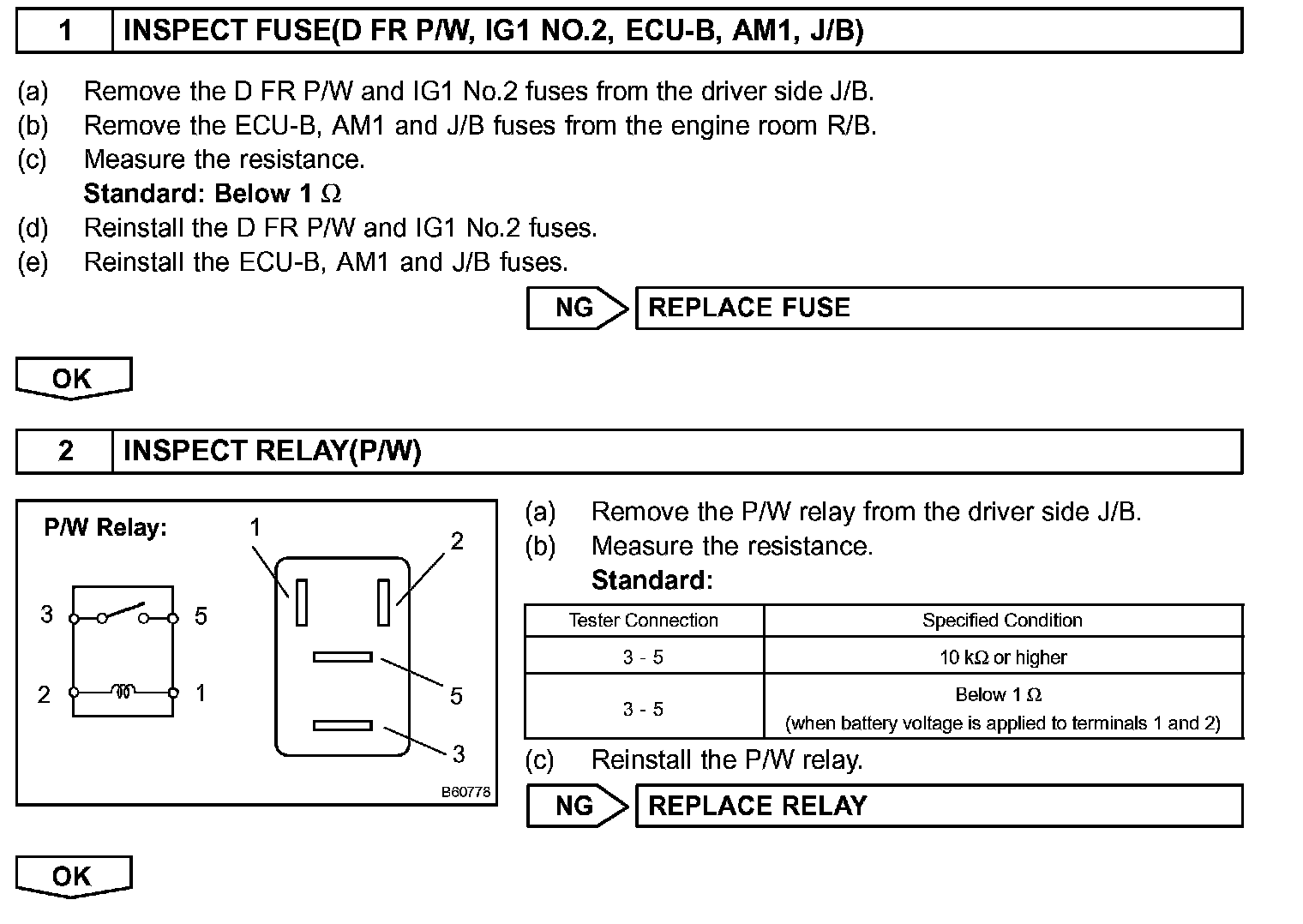

Step 1 - 2:

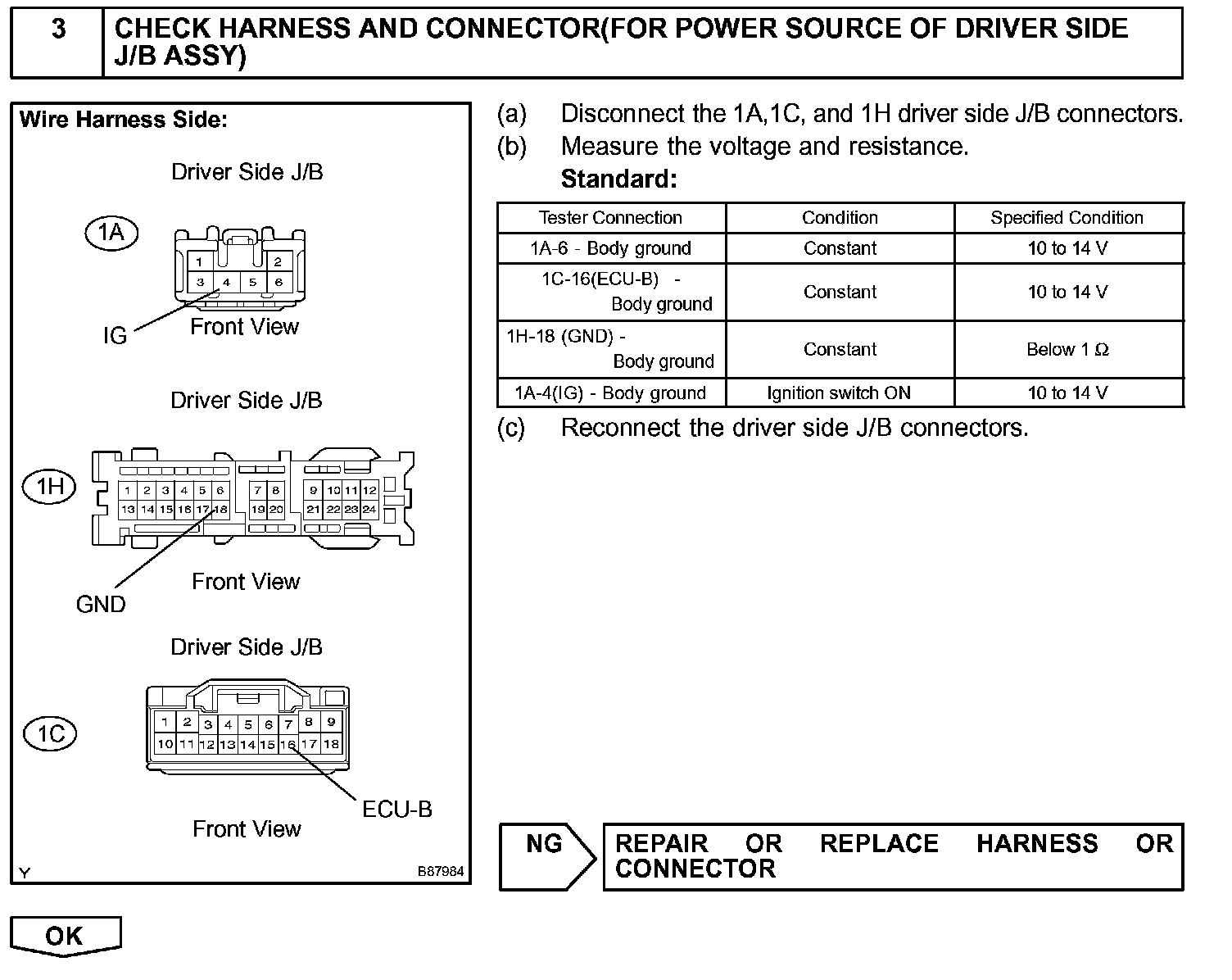

Step 3:

Step 4:

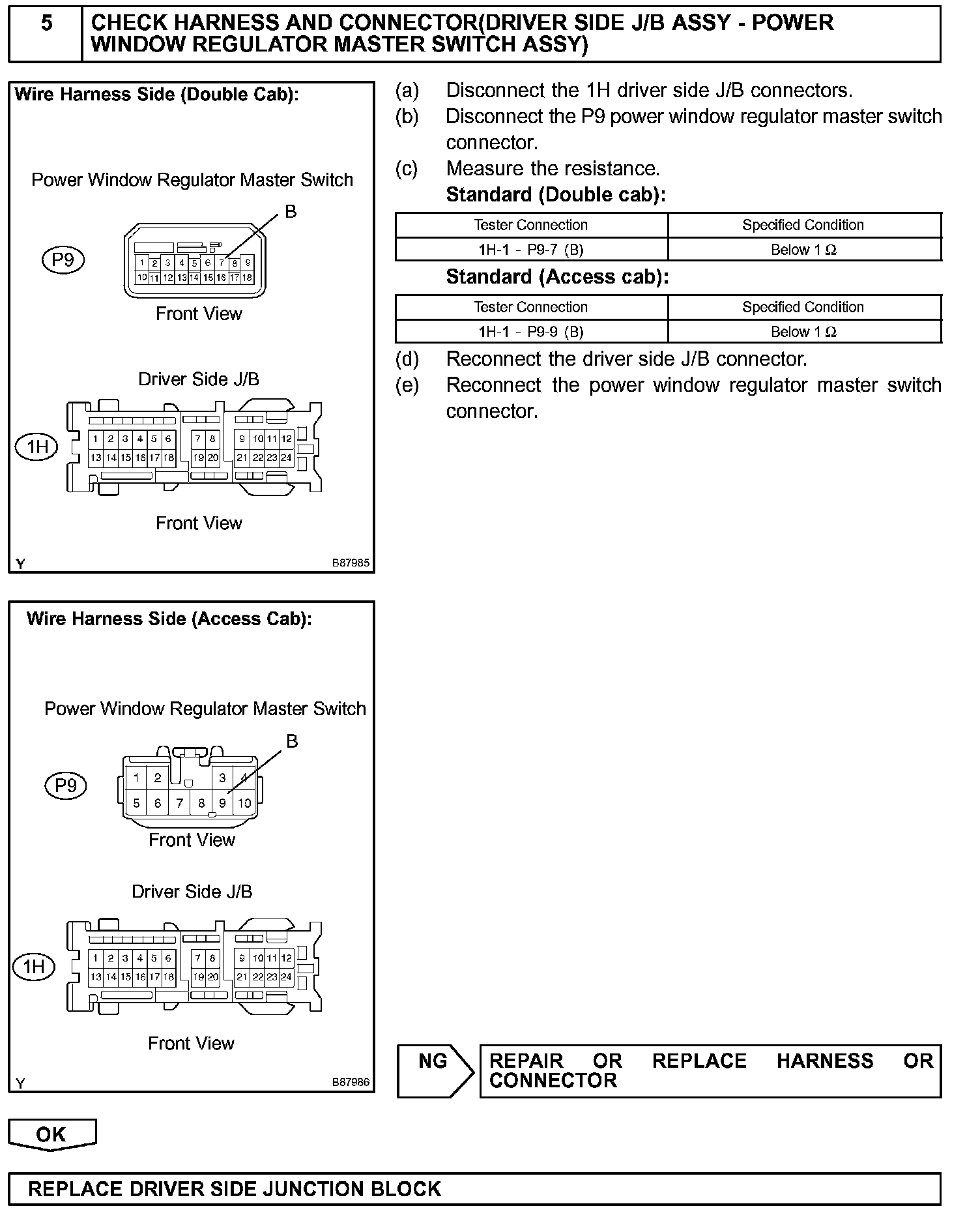

Step 5:

INSPECTION PROCEDURE
