Manual Up/Down Function Does Not Operate At Rear RH
MANUAL UP/DOWN FUNCTION DOES NOT OPERATE AT REAR RHCIRCUIT DESCRIPTION
If the rear RH side manual UP/DOWN function does not operate, the power window regulator motor assembly, the power window regulator switch assembly or the wire harness may be malfunctioning.
Wiring Diagram:

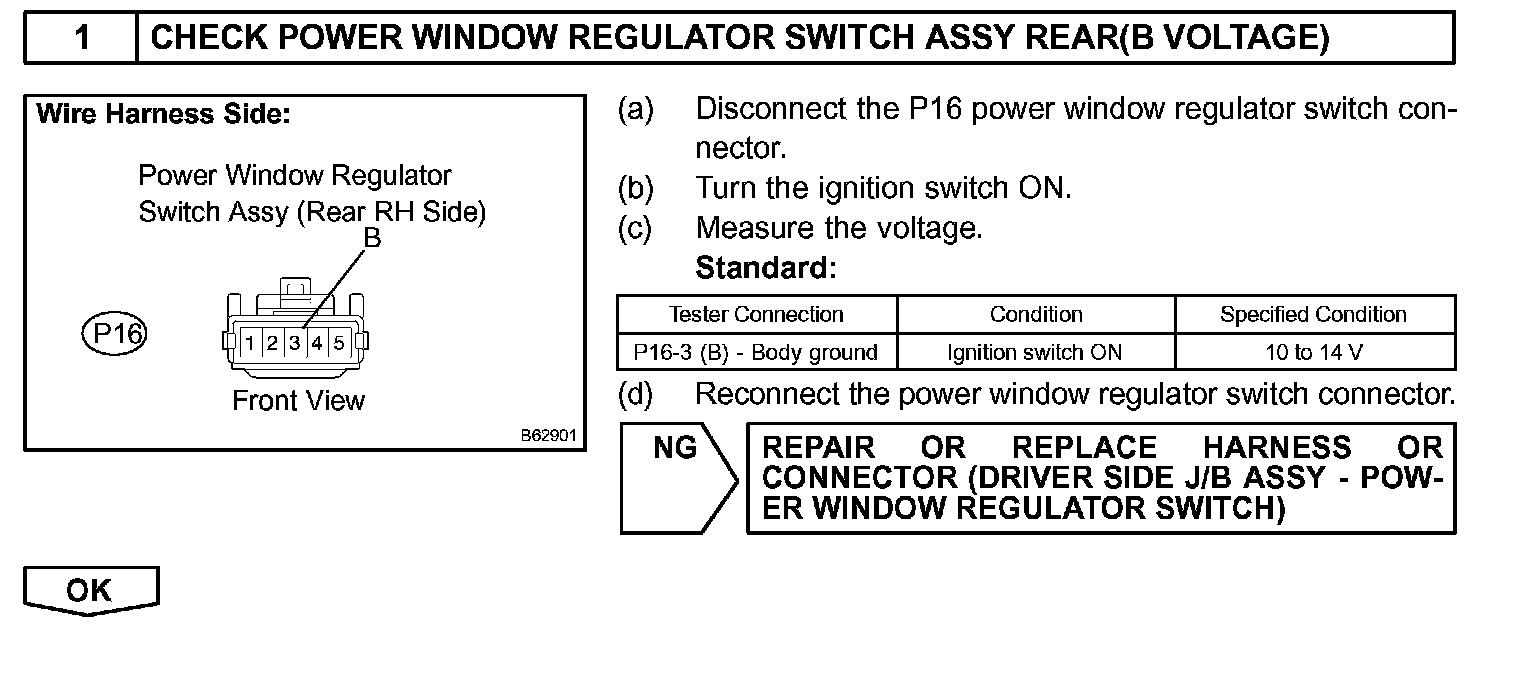

Step 1:

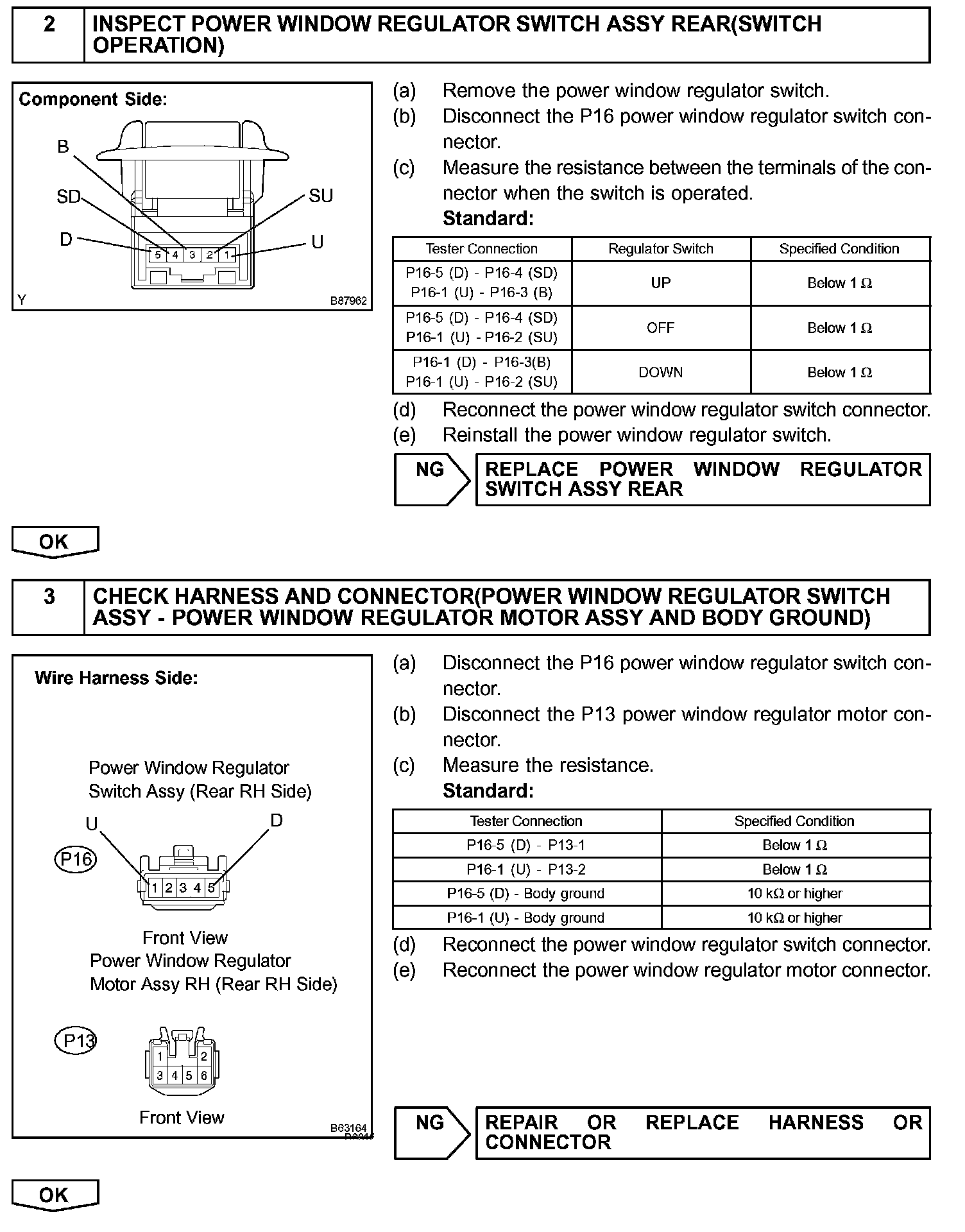

Step 2 - 3:

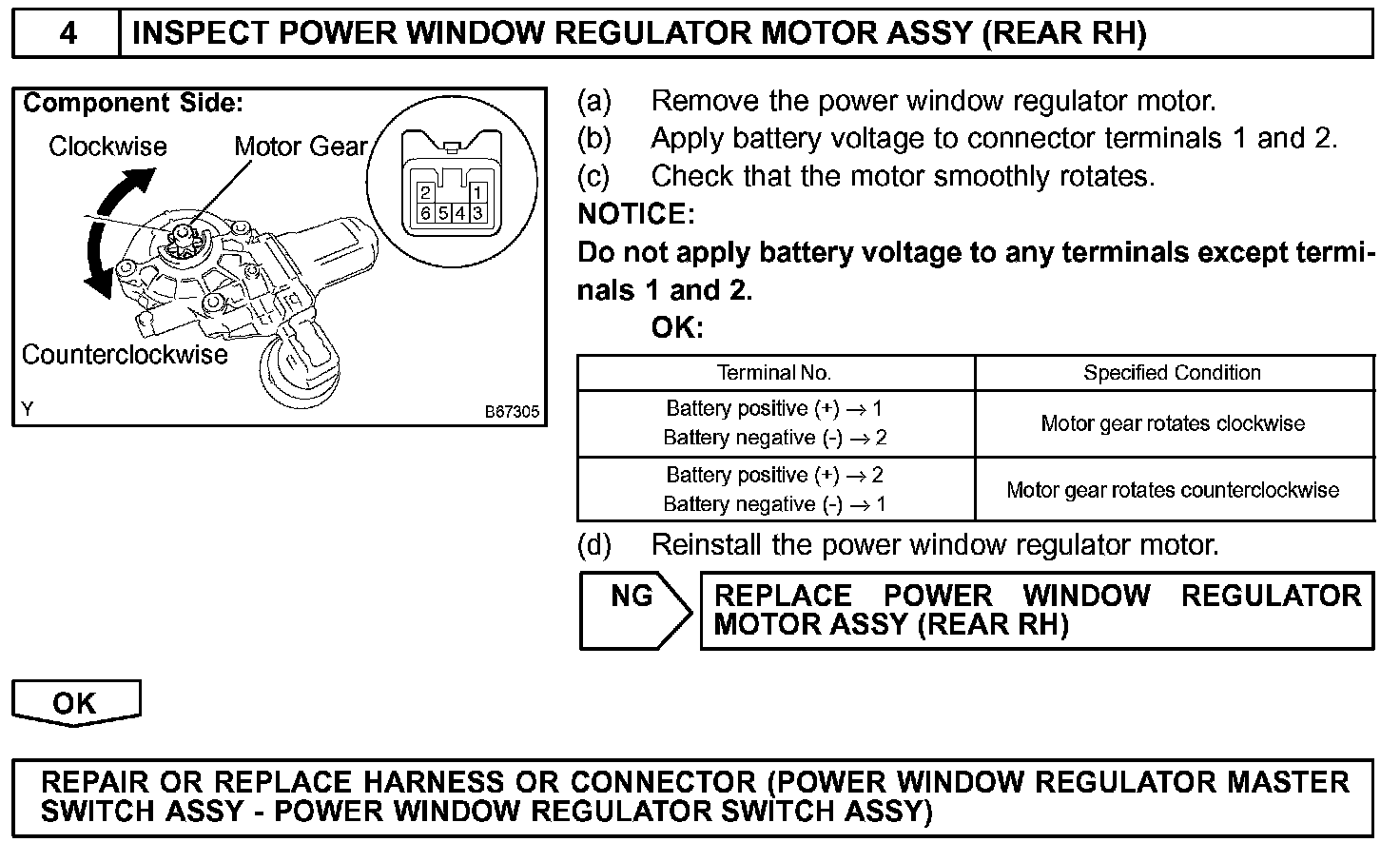

Step 4:
INSPECTION PROCEDURE
