Inspection

REAR DIFF. LOCK SYSTEM

INSPECTION

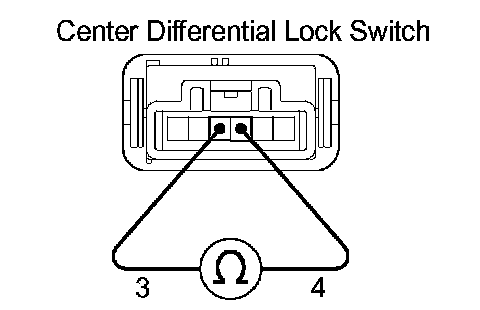

1. INSPECT CENTER DIFFERENTIAL LOCK SWITCH
a. Check the resistance.
(1) Measure the resistance using an ohmmeter.

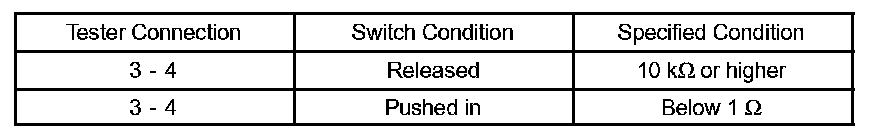

Standard

If the result is not as specified, replace the center differential lock switch

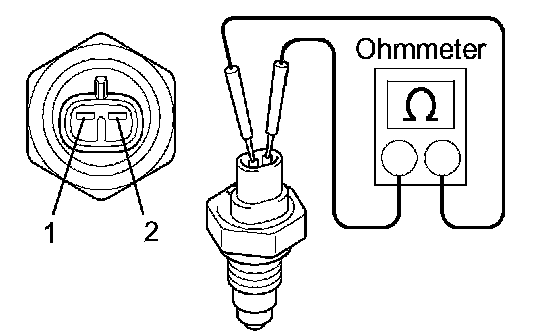

2. INSPECT TRANSFER INDICATOR SWITCH NO.1
a. Check the resistance.
(1) Measure the resistance using an ohmmeter.

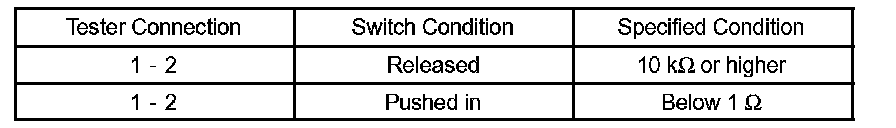

Standard

If the result is not as specified, replace the transfer indicator switch No.1
