Shifter A/T: Service and Repair

FLOOR SHIFT ASSY

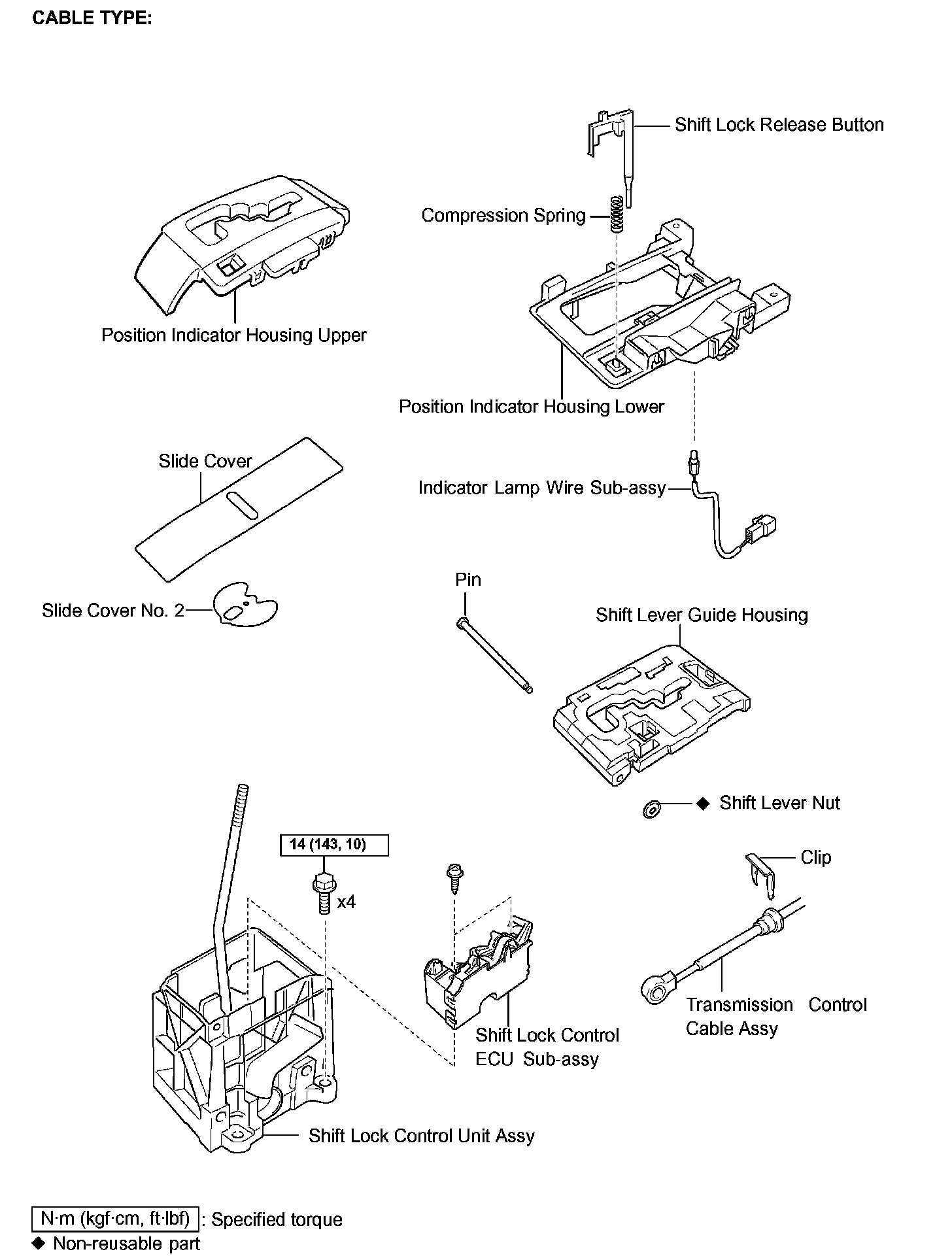

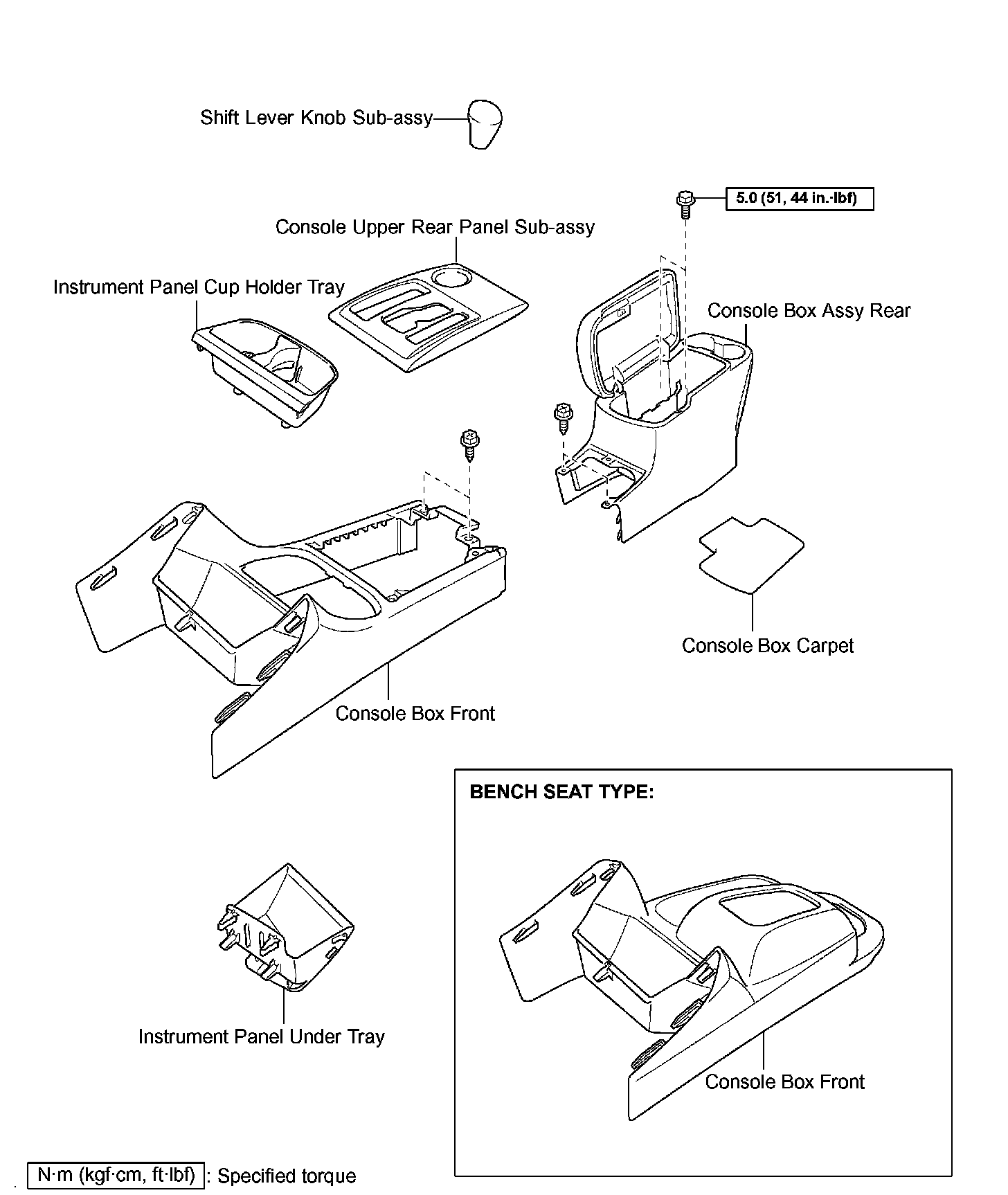

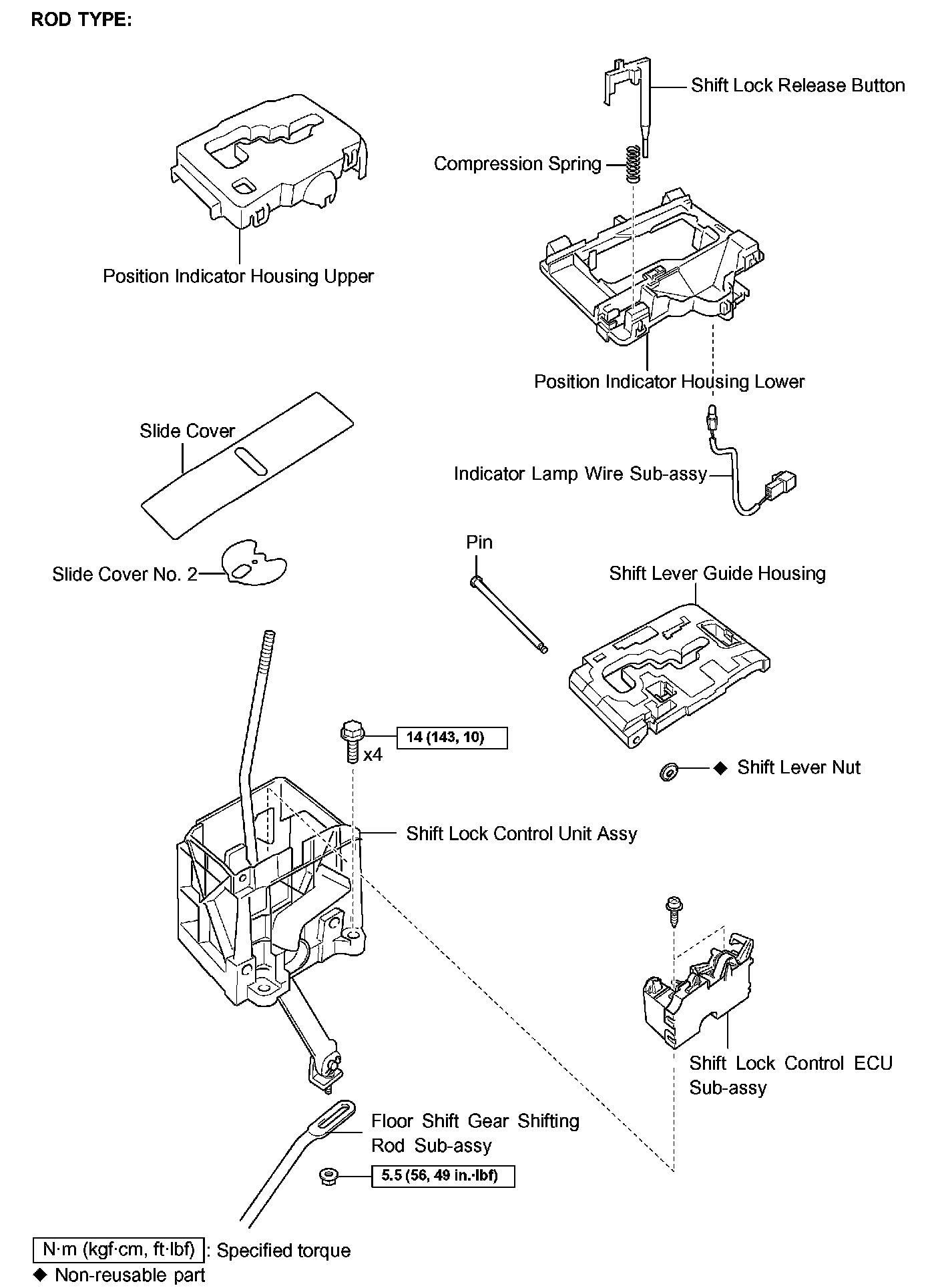

COMPONENTS

OVERHAUL
1. REMOVE SHIFT LEVER KNOB SUB-ASSY
2. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY
3. REMOVE CONSOLE BOX ASSY REAR
4. REMOVE INSTRUMENT PANEL CUP HOLDER TRAY
5. REMOVE CONSOLE BOX FRONT





6. DISCONNECT TRANSMISSION CONTROL CABLE ASSY
a. CABLE TYPE:

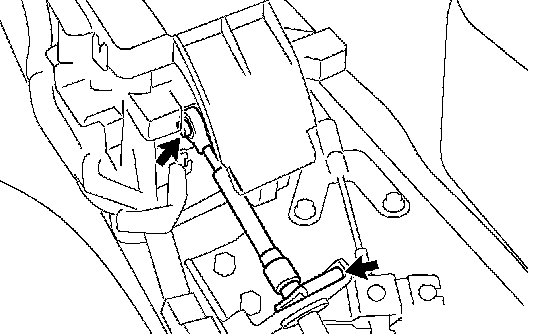

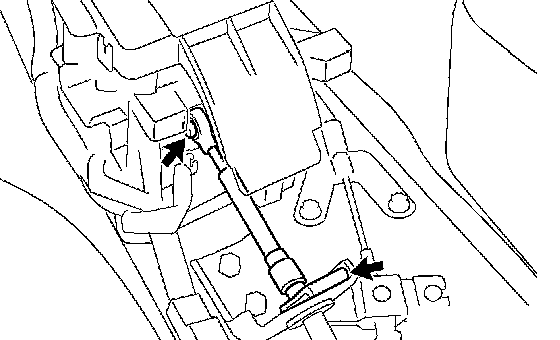

(1) Disconnect the transmission control cable assy from the shift lever assy.
(2) Remove the clip and disconnect the transmission control cable.





7. SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSY
a. ROD TYPE:

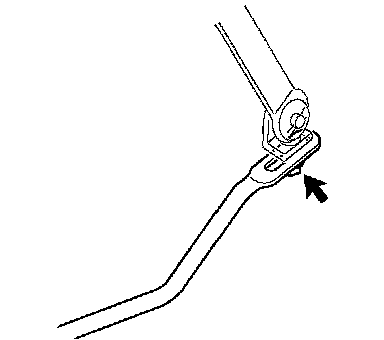

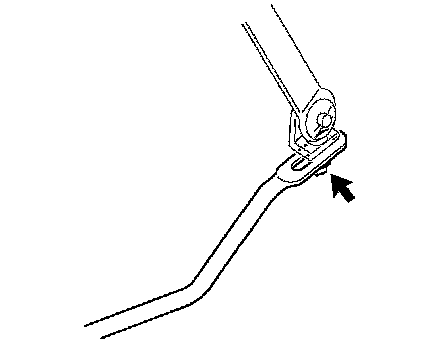

(1) Remove the nut, then separate the floor shift gear shifting rod.





8. REMOVE FLOOR SHIFT ASSY

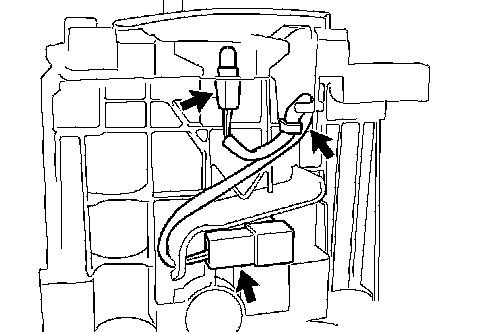

a. Disconnect the 2 connectors and 2 clamps.

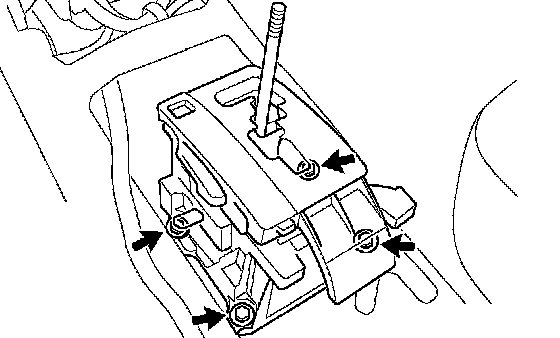

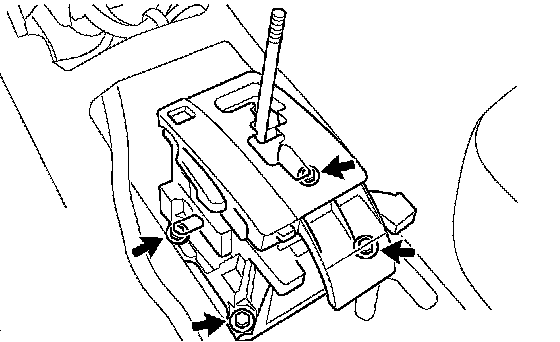

b. Remove the 4 bolts and floor shift assy.





9. REMOVE POSITION INDICATOR HOUSING UPPER

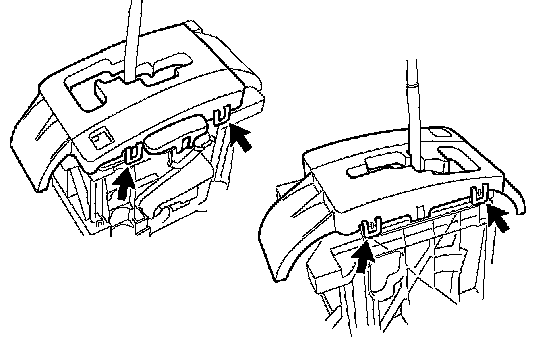

a. Release the 4 claws with a screwdriver and remove the position indicator housing and slide cover.

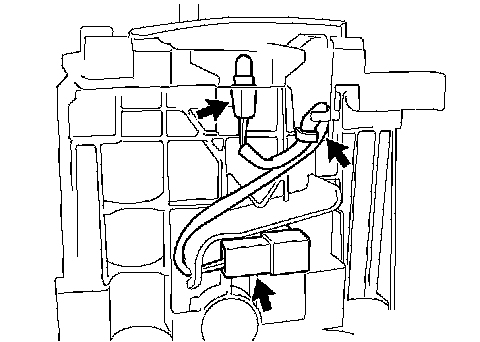

10. REMOVE INDICATOR LAMP WIRE SUB-ASSY
a. Remove the indicator lamp wire sub-assembly.
b. Remove the bulb from the indicator lamp wire sub-assy.
11. REMOVE SHIFT LOCK RELEASE BUTTON





12. REMOVE POSITION INDICATOR HOUSING LOWER
a. CABLE TYPE:

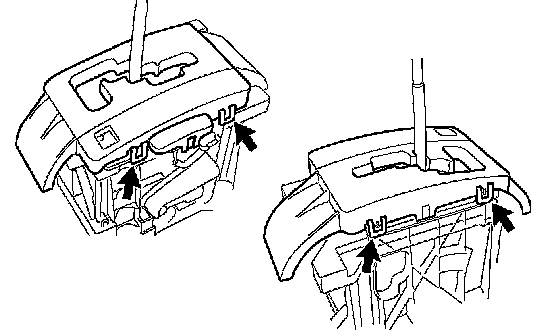

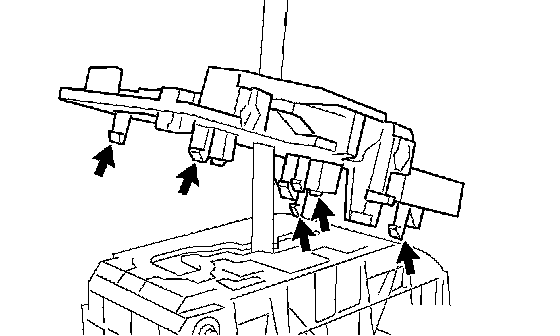

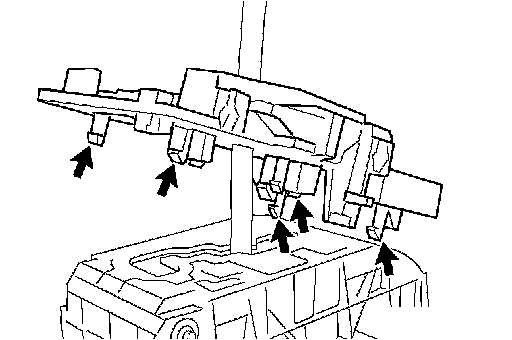

(1) Release the 5 claws with a screwdriver and remove the position indicator housing lower.





b. ROD TYPE:

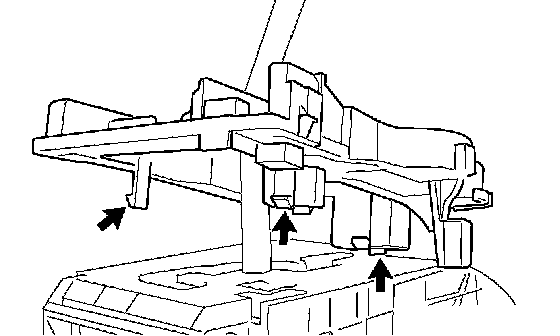

(1) Release the 3 claws with a screwdriver and remove the position indicator housing lower.





13. REMOVE SHIFT LOCK CONTROL ECU SUB-ASSY

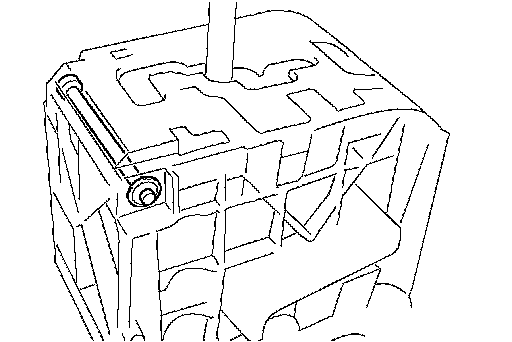

a. Remove the shift lever nut and shift lever lock pin.
b. Remove the shift lever guide housing.
c. Release the 2 claws with a screwdriver and remove the shift lock release link and spring.

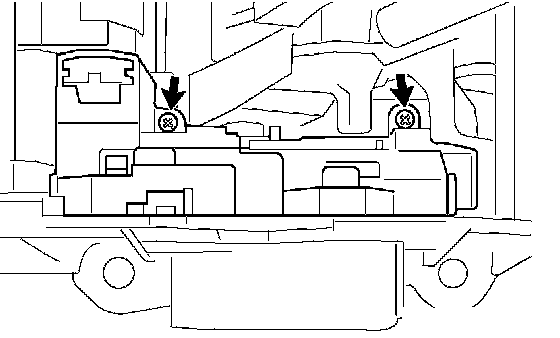

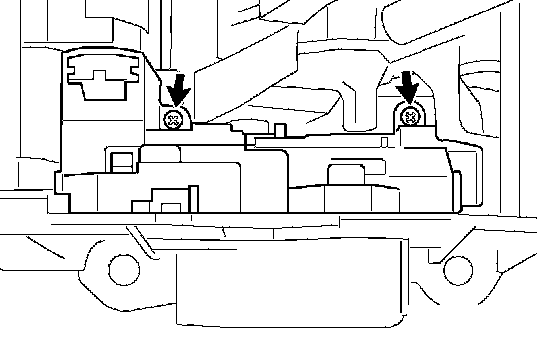

d. Remove the 2 screws and the shift lock control ECU.





14. INSTALL SHIFT LOCK CONTROL ECU SUB-ASSY
a. Install the shift lock control ECU with the 2 screws.
b. Install the spring and shift lock release link.
c. Install the shift lever guide housing .
d. Install the lever lock and new shift lever nut.








15. INSTALL POSITION INDICATOR HOUSING LOWER
a. Install the position indicator housing lower.

HINT: Firmly make the claws fit.

16. INSTALL SHIFT LOCK RELEASE BUTTON





17. INSTALL INDICATOR LAMP WIRE SUB-ASSY
a. Install the bulb into the indicator lamp wire sub-assembly.
b. Install the indicator lamp wire sub-assembly.





18. INSTALL POSITION INDICATOR HOUSING UPPER
a. Install the slide cover and position indicator housing sub-assembly onto the shift lever guide housing.

HINT: Firmly make the claws fit.





19. INSTALL FLOOR SHIFT ASSY
a. Install the floor shift with the 4 bolts.
Torque: 14 Nm (143 kgf-cm, 10 ft. lbs.)
b. Connect the 2 clamps and 2 connectors.





20. CONNECT TRANSMISSION CONTROL CABLE ASSY
a. CABLE TYPE:
(1) Connect the transmission control cable with the clip to floor shift assy.
(2) Install the transmission control cable onto the floor shift assy.





21. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSY
a. ROD TYPE:
(1) Install the floor shift gear shifting rod with nut.
Torque: 5.5 Nm (56 kgf-cm, 49 inch lbs.)
22. INSTALL CONSOLE BOX FRONT
23. INSTALL INSTRUMENT PANEL CUP HOLDER TRAY
24. INSTALL CONSOLE BOX ASSY REAR
25. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSY
26. INSTALL SHIFT LEVER KNOB SUB-ASSY
27. ADJUST SHIFT LEVER POSITION
28. INSPECT SHIFT LEVER POSITION
