Shift Cable: Service and Repair

TRANSMISSION CONTROL CABLE ASSY (ATM)

REPLACEMENT
1. REMOVE SHIFT LEVER KNOB SUB-ASSY
2. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY
3. REMOVE CONSOLE BOX ASSY REAR
4. REMOVE INSTRUMENT PANEL CUP HOLDER TRAY
5. REMOVE CONSOLE BOX FRONT
6. REMOVE VOLTAGE INVERTER ASSY (W/ VOLTAGE INVERTER)





7. REMOVE TRANSMISSION CONTROL CABLE ASSY

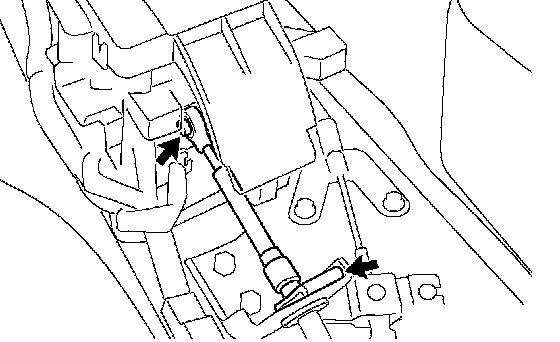

a. Disconnect the transmission control cable assy from the shift lever assy.

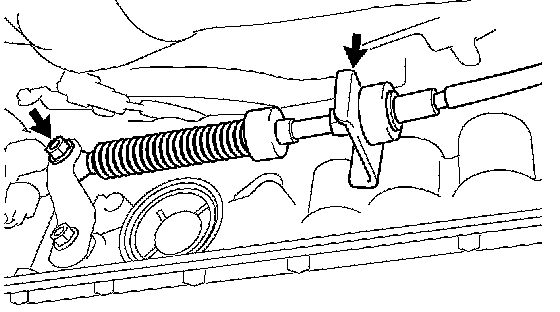

b. Remove the clip and disconnect the transmission control cable.

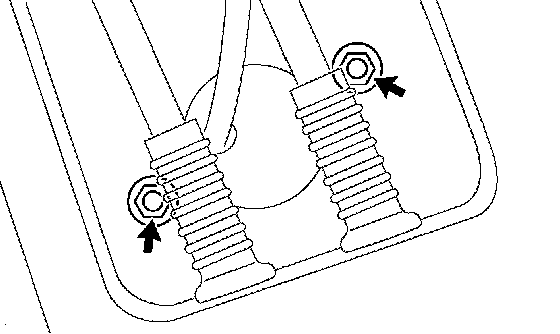

c. Remove the 2 nuts and disconnect the transmission control cable assy from the body.

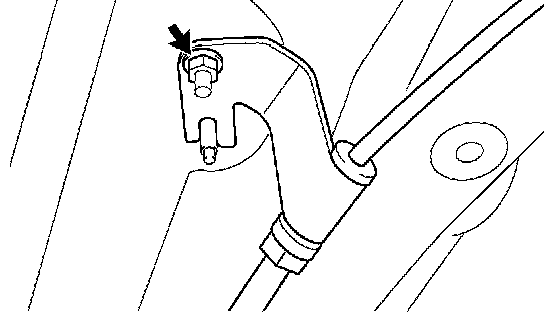

d. Remove the nut and disconnect the transmission control cable assy from the body.





e. Remove the clip and transmission control cable bracket.
f. Remove the nut and transmission control cable assy.





8. INSTALL TRANSMISSION CONTROL CABLE ASSY
a. Install the transmission control cable assy with the nut.
Torque: 14 Nm (143 kgf-cm, 10 ft. lbs.)
b. Install the transmission control cable bracket and lock plate.

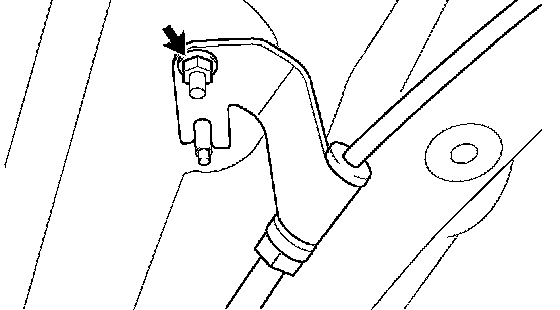

c. Connect the transmission control cable with the nut to the body.
Torque: 5.5 Nm (56 kgf-cm, 49 inch lbs.)

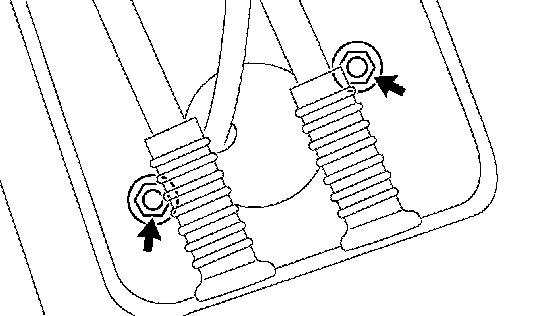

d. Connect the transmission control cable with the 2 nuts to the body.
Torque: 5.5 Nm (56 kgf-cm, 49 inch lbs.)

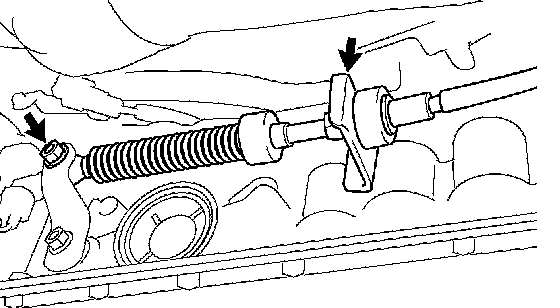

e. Connect the transmission control cable with the lock plate to the floor shift assy.
f. Install the transmission control cable onto the floor shift assy.
9. INSTALL VOLTAGE INVERTER ASSY (W/ VOLTAGE INVERTER)
10. INSTALL CONSOLE BOX FRONT
11. INSTALL INSTRUMENT PANEL CUP HOLDER TRAY
12. INSTALL CONSOLE BOX ASSY REAR
13. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSY
14. INSTALL SHIFT LEVER KNOB SUB-ASSY
15. ADJUST SHIFT LEVER POSITION
16. INSPECT SHIFT LEVER POSITION
