Shift Interlock Solenoid: Testing and Inspection

KEY INTER LOCK SOLENOID

INSPECTION





1. INSPECT KEY INTER LOCK SOLENOID
a. Disconnect the solenoid connector.

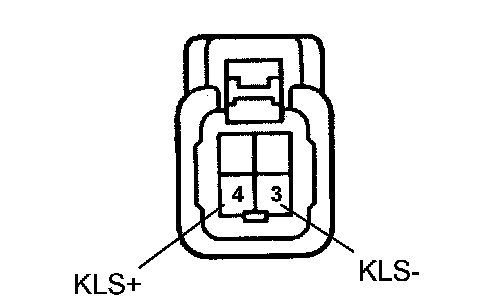

b. Connect KLS+
(4) terminal to the battery positive (+) terminal, and KLS-
(3) terminal to the battery negative (-) terminal, and apply about 12V between KLS+ and KLS terminals. Check that operation noise can be heard from the solenoid.
If the solenoid does not operate, replace the solenoid.
