Replacement
REPLACEMENT1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE STARTER ASSEMBLY

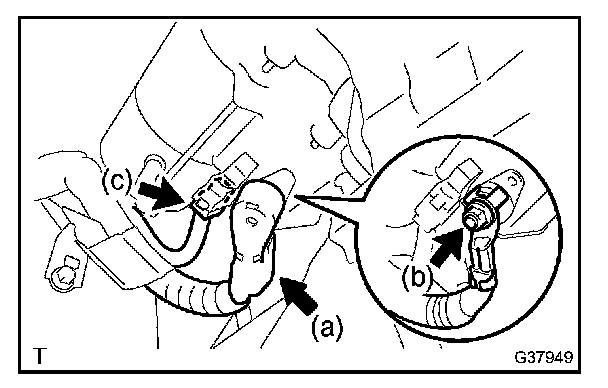

a. Remove the terminal cap.
b. Remove the nut, then remove the starter wire harness.
c. Disconnect the starter connector.

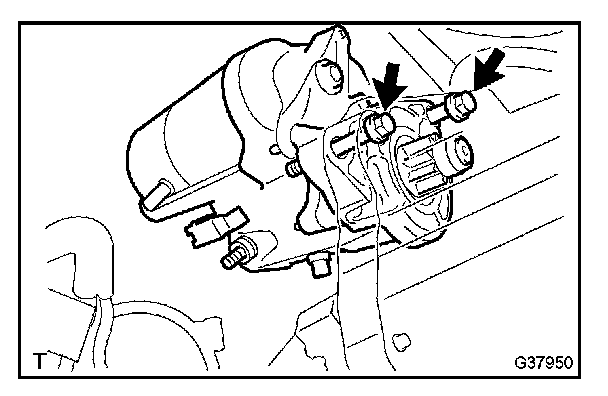

d. Remove the 2 bolts, then remove the starter.
3. INSTALL STARTER ASSEMBLY

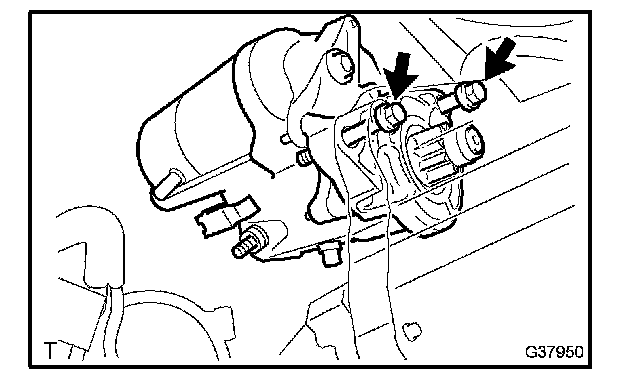

a. Install the starter with the 2 bolts.
Torque: 37 N.m (377 kgf.cm, 27 ft.lbf)

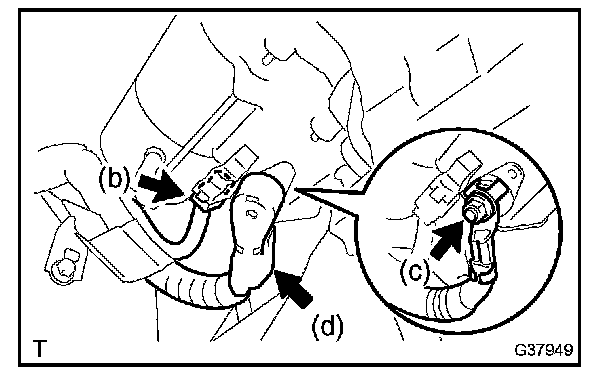

b. Connect the starter connector.
c. Install the starter wire harness with the nut.
Torque: 9.8 N.m (100 kgf.cm, 7 ft.lbf)
d. Install the terminal cap.
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N.m (40 kgf.cm, 35 in..lbf)
