Multiple Junction Connector: Application and ID

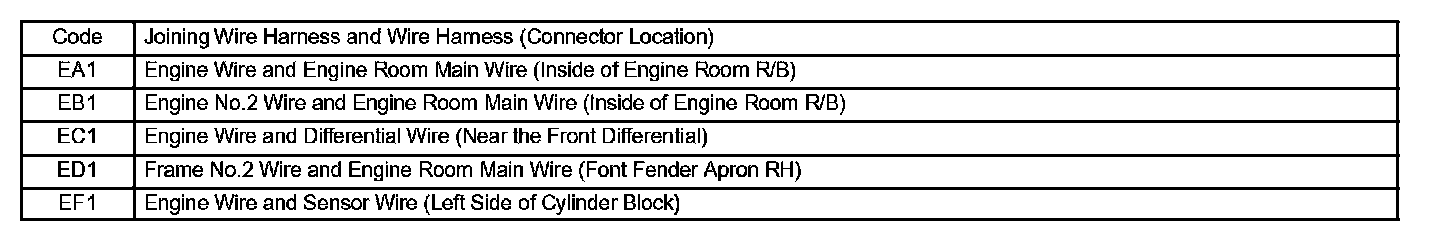

EA1 - EF1:

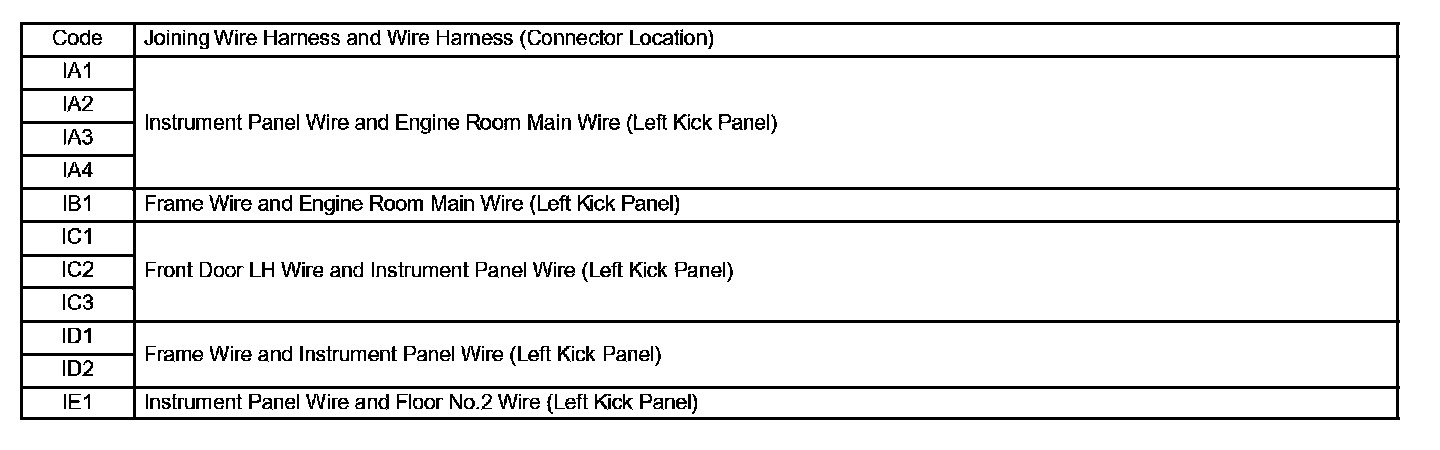

IA1 - IE1:

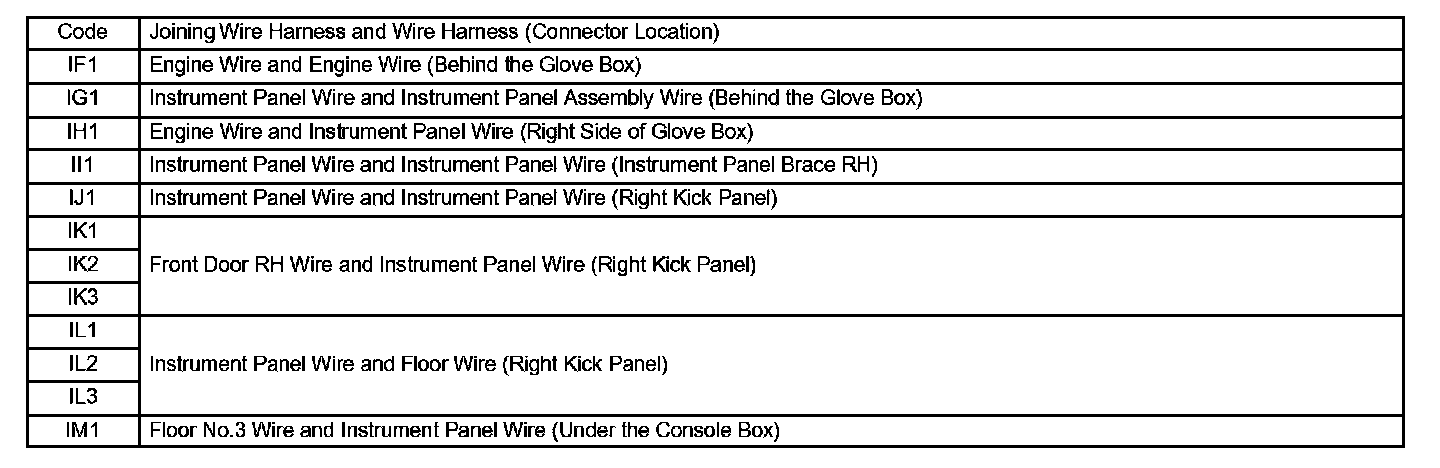

IFI - IM1:

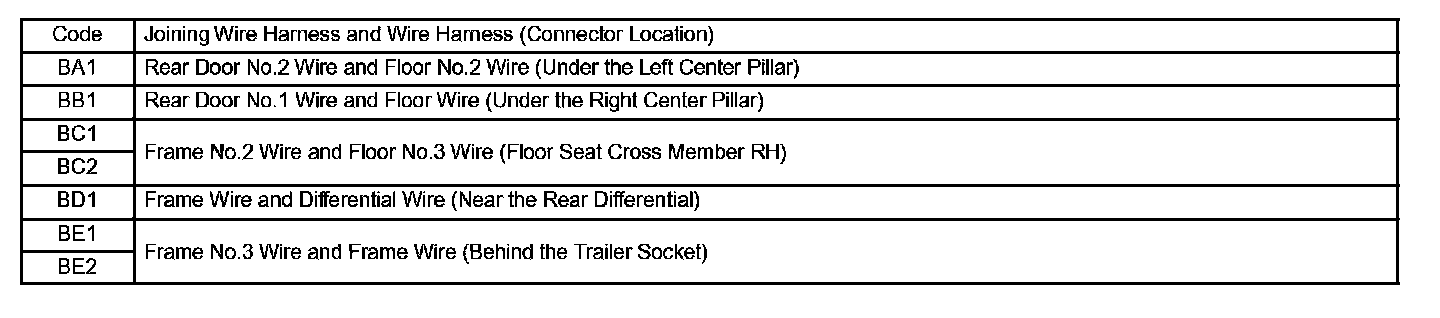

BA1 - BE2:

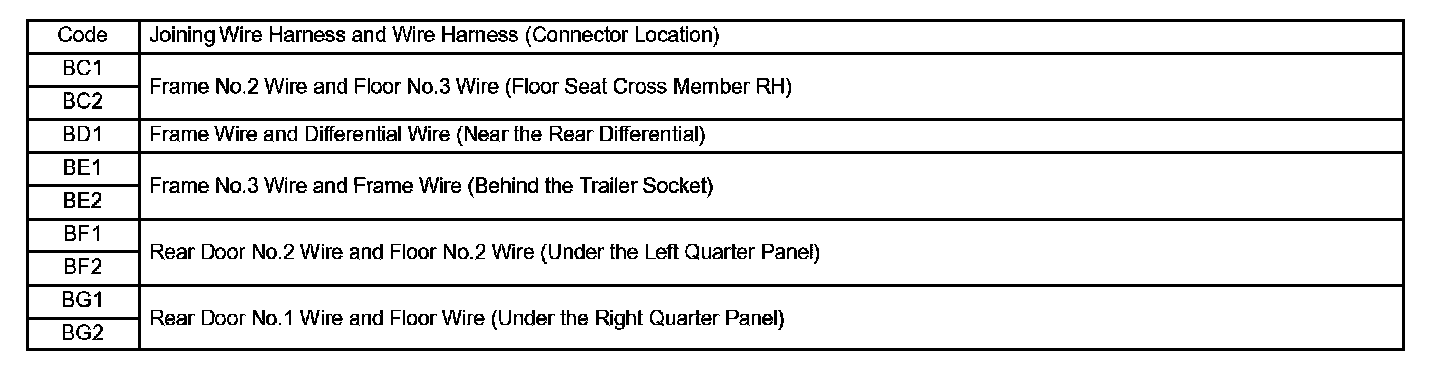

BC1 - BG2:

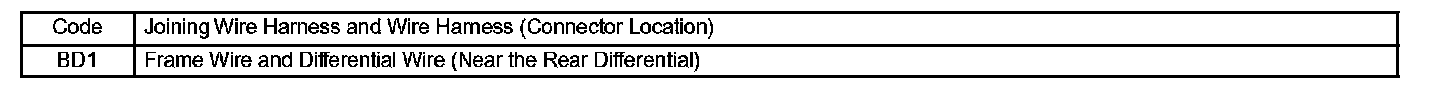

BD1:

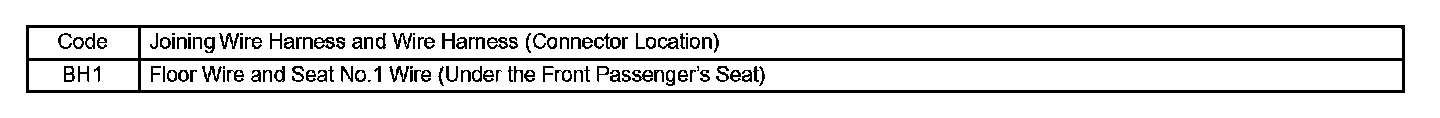

BH1:

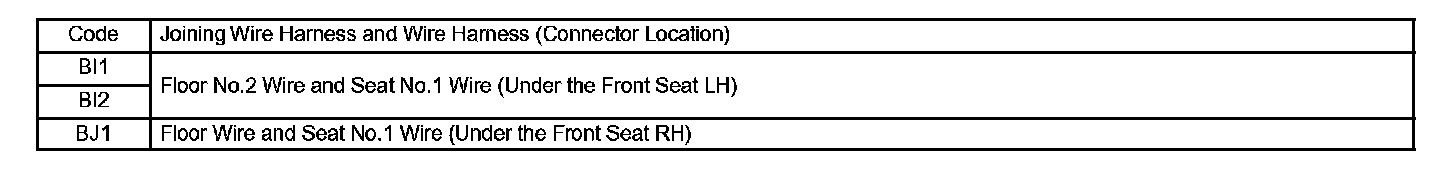

BI1 - BJ1:
