Brake Shoe

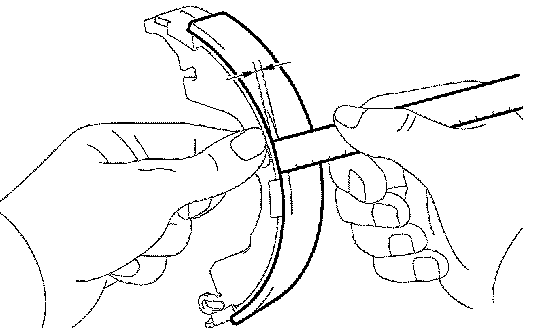

Using a ruler, measure the thickness of the shoe lining.
Standard thickness 5.0 mm (0.197 inch)
Minimum thickness 1.0 mm (0.039 inch)
If the lining thickness is the minimum value or less, or if there is any severe or uneven wear, replace the brake shoe.
