Home >> Toyota Truck >> 2005 >> Tacoma PreRunner L4-2.7L (2TR-FE) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Locations

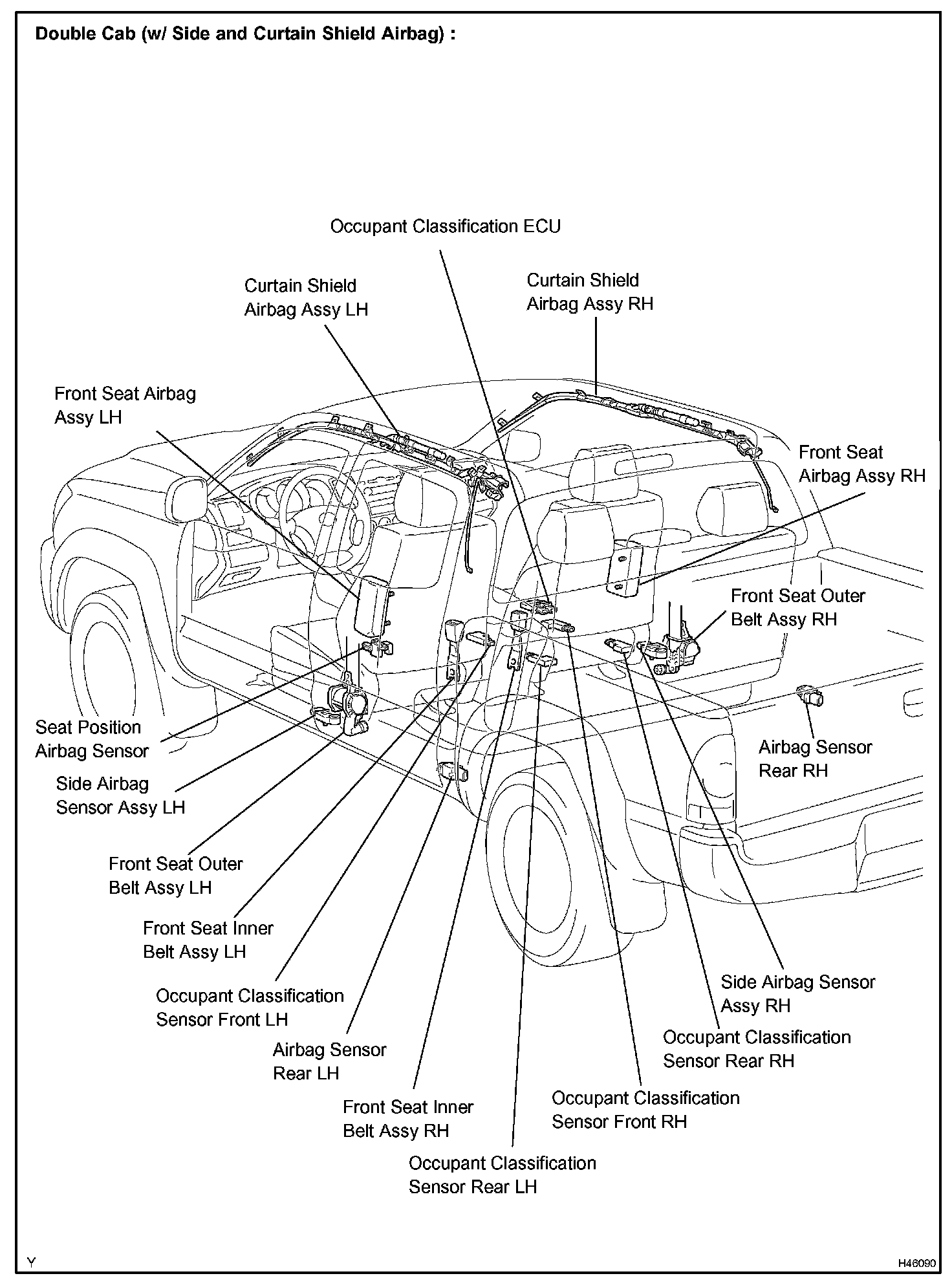

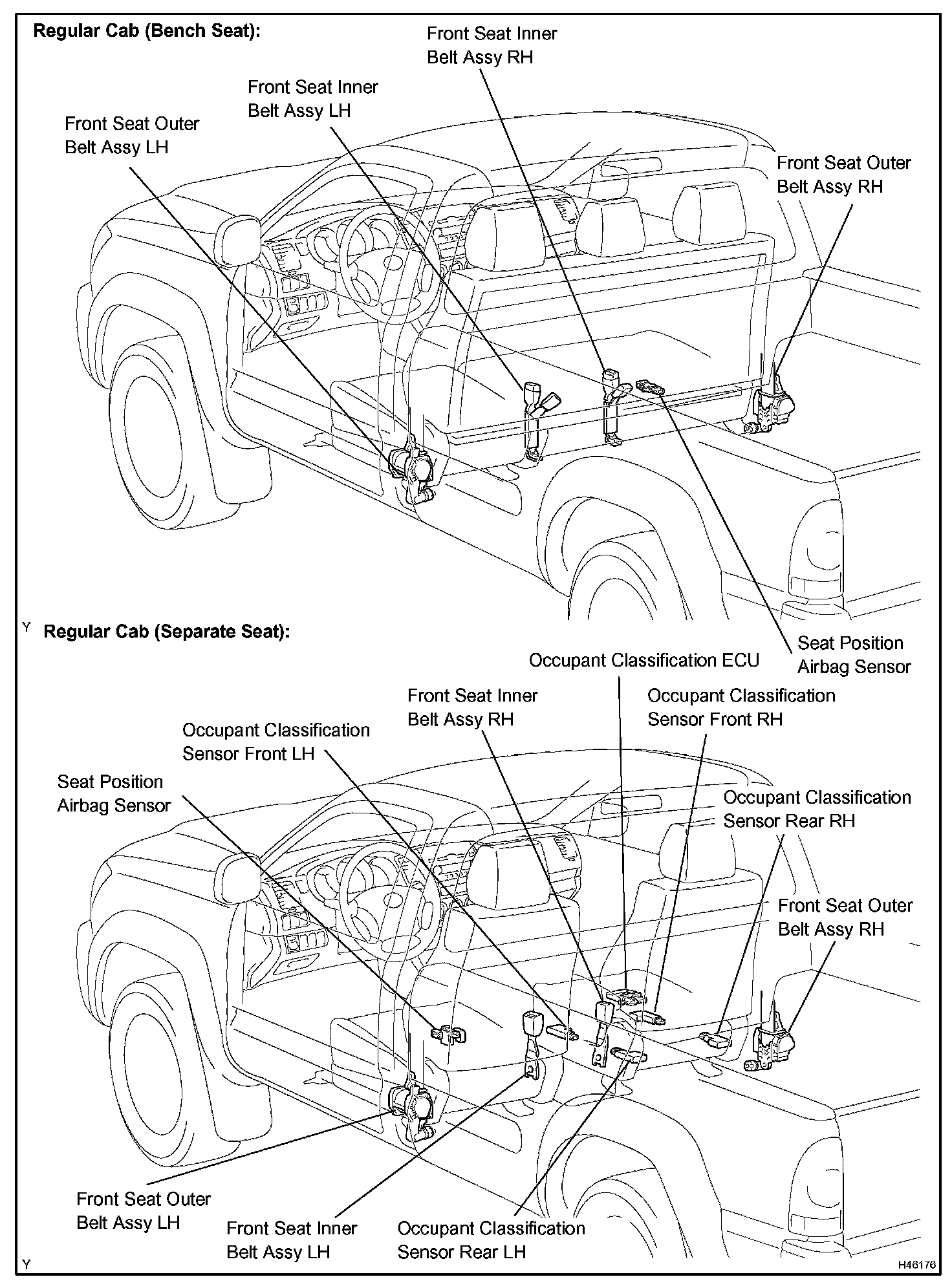

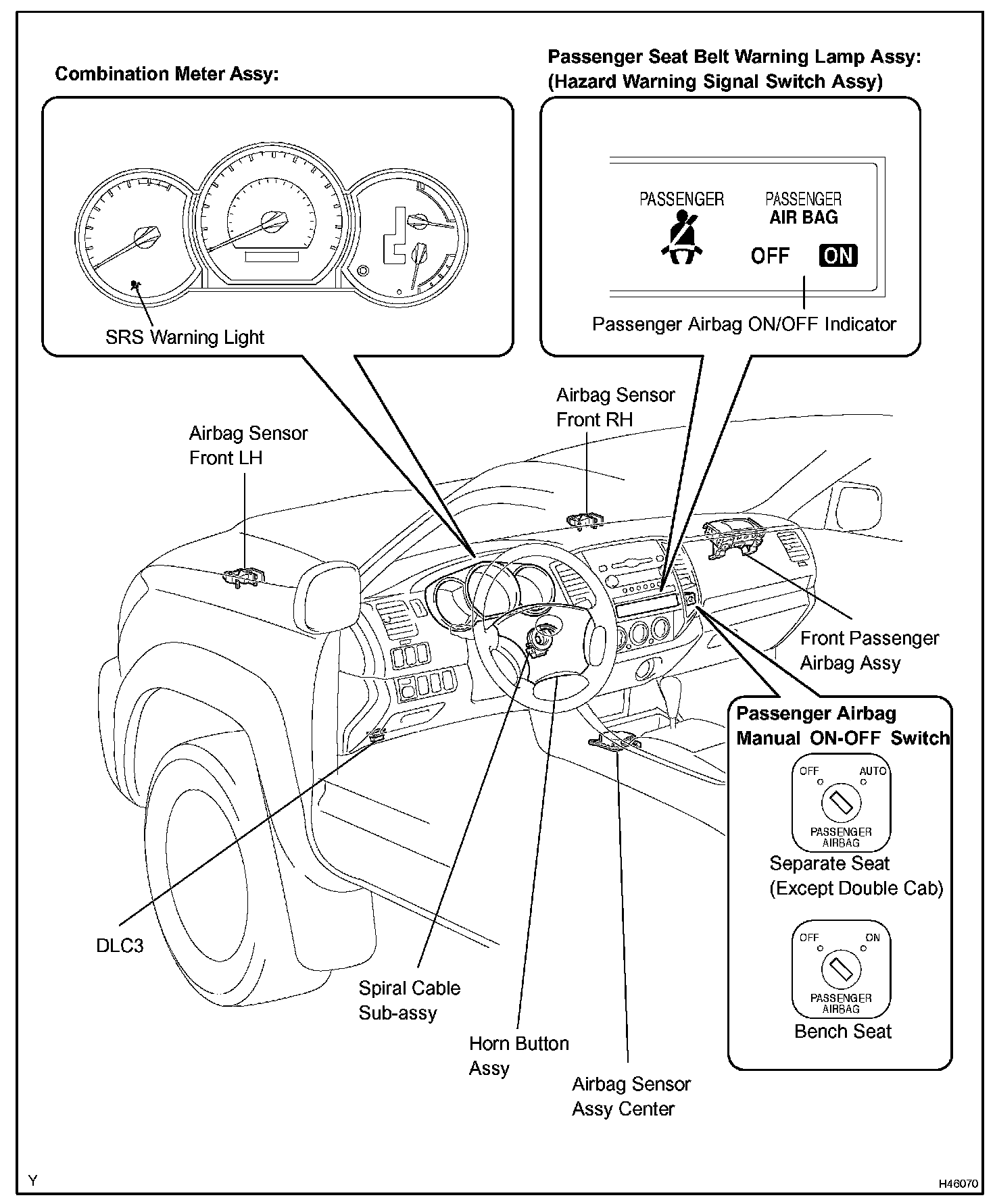

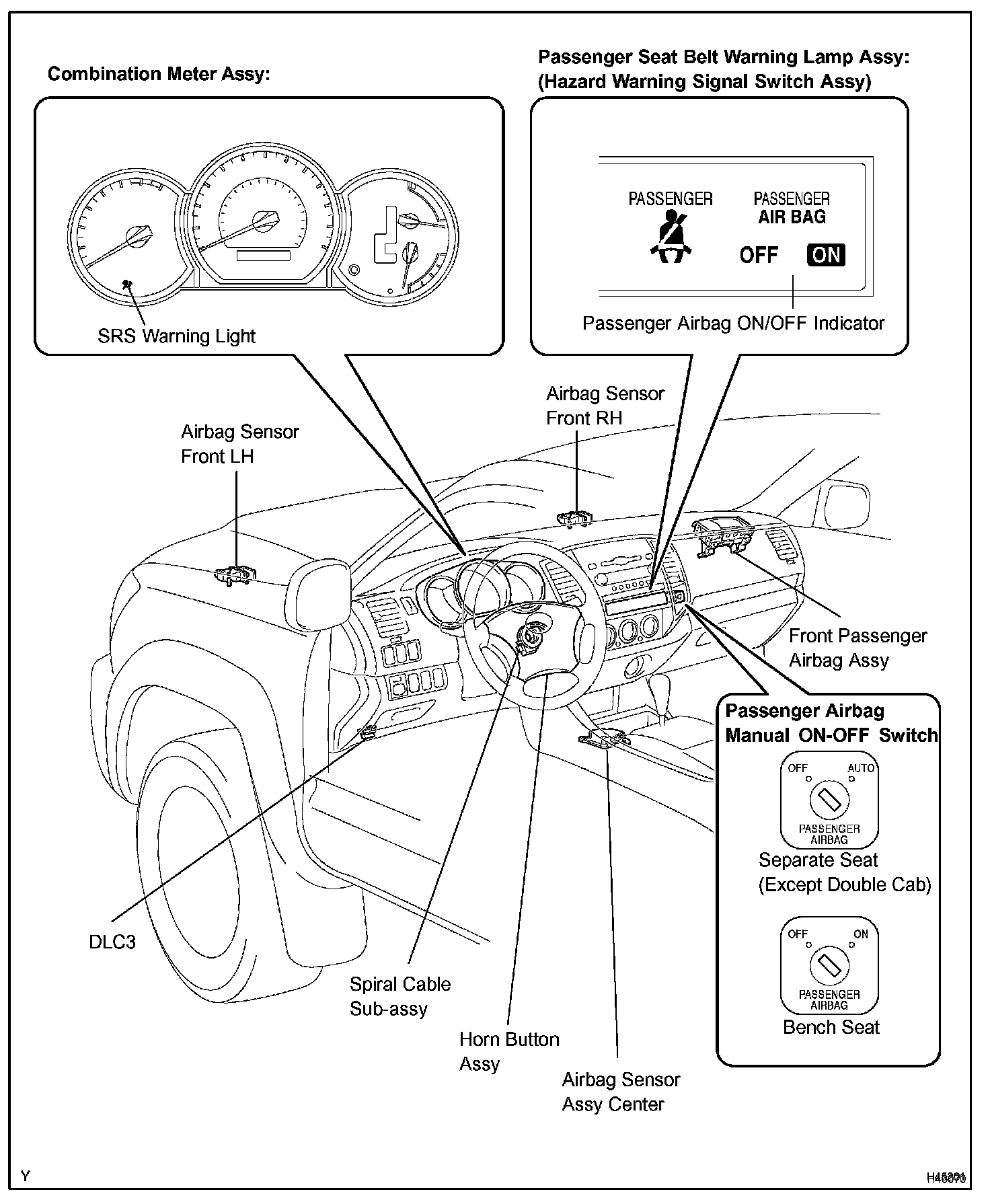

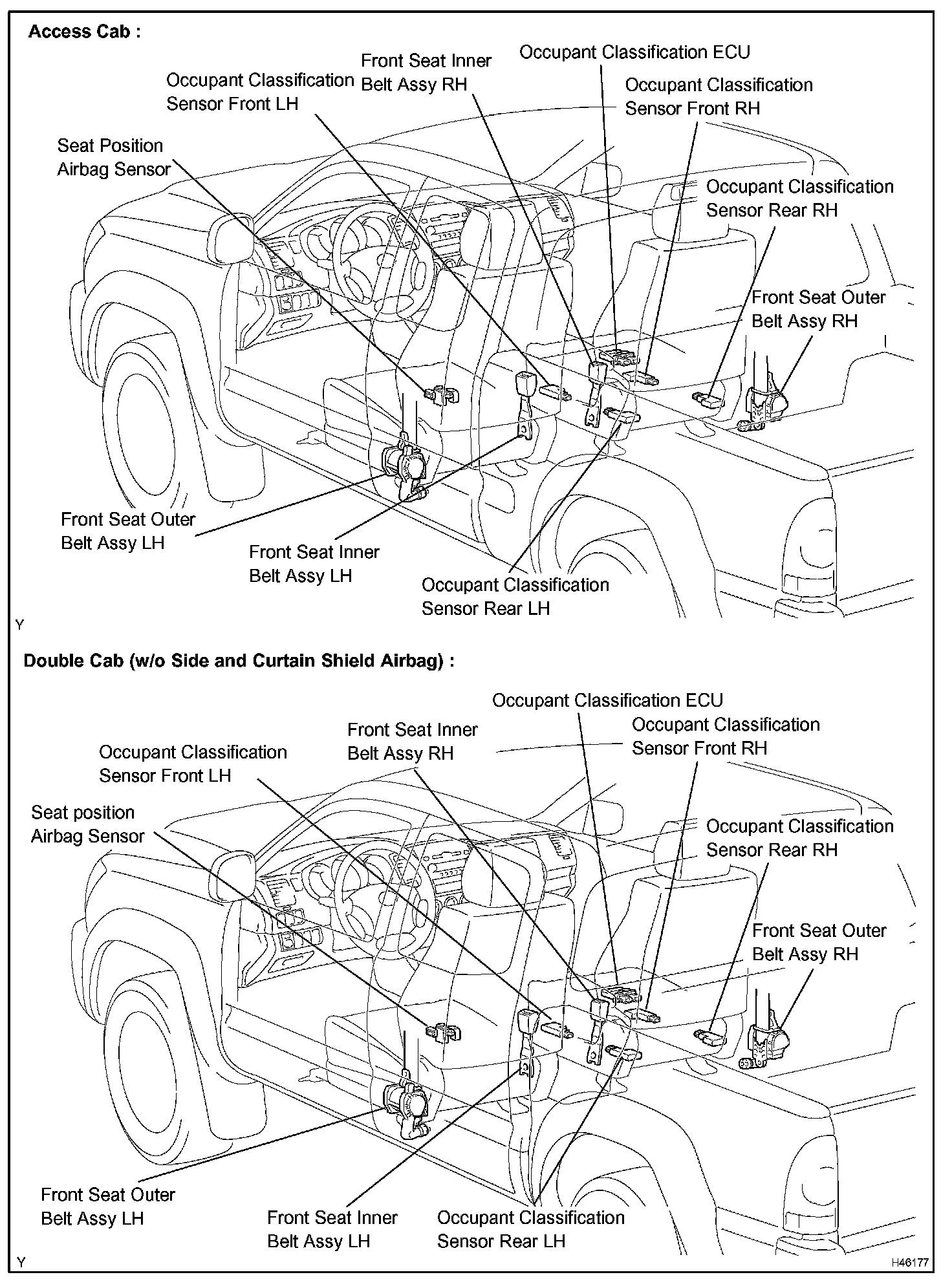

Air Bag Systems: Locations

Supplemental Restraint System:



Supplemental Restraint System:



Supplemental Restraint System:



Supplemental Restraint System:



Supplemental Restraint System:



Supplemental Restraint System:



Supplemental Restraint System:



Supplemental Restraint System:
