Fog/Driving Lamp Relay
>>
Testing and Inspection
Fog/Driving Lamp Relay: Testing and Inspection
INSPECT FOG LAMP RELAY
a.

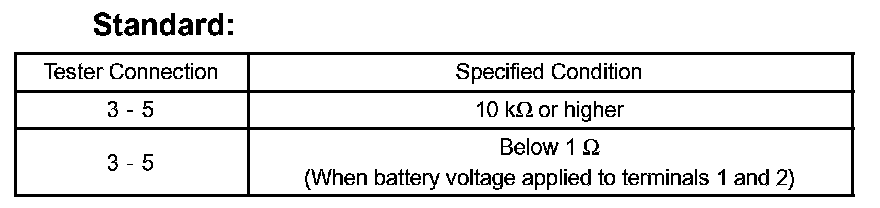

Check the resistance.
1.

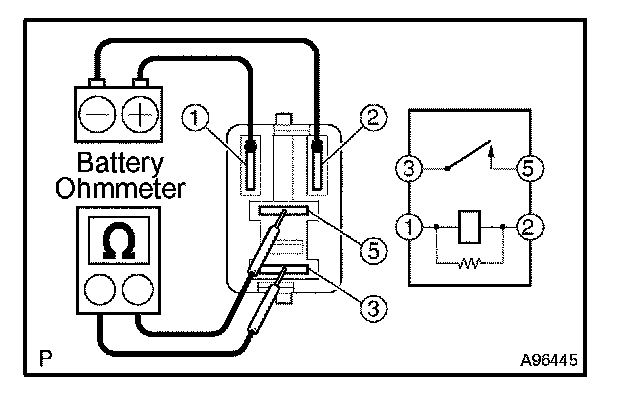

Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the fog lamp relay.
