Accelerator Pedal: Service and Repair
ACCELERATOR PEDAL ROD ASSEMBLYREPLACEMENT
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

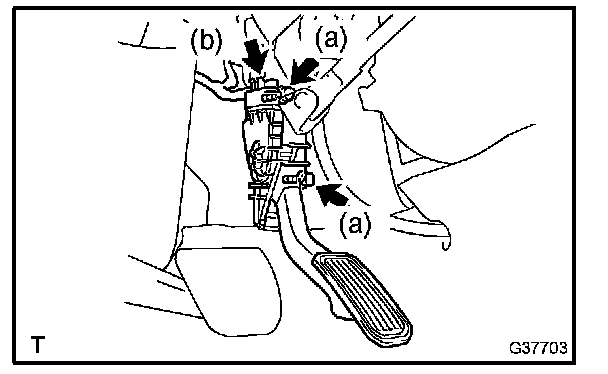

2. REMOVE ACCELERATOR PEDAL ROD ASSEMBLY
a. Disconnect the accelerator position sensor connector.
b. Remove the 2 bolts, then remove the accelerator pedal.
3. INSTALL ACCELERATOR PEDAL ROD ASSEMBLY
NOTE:
- Avoid any physical impact to the accelerator pedal assembly.
- Do not disassemble the accelerator pedal assembly.

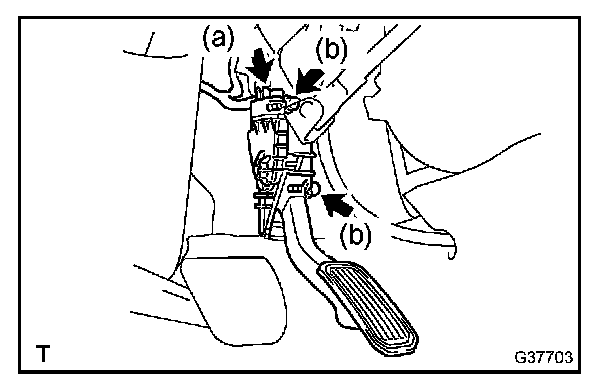

a. Install the accelerator pedal with the 2 bolts.
Torque: 5 N.m (51 kgf.cm, 44 in.lbf)
b. Connect the accelerator position sensor connector.
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
