Voltage Inverter Assy

VOLTAGE INVERTER ASSEMBLY

REPLACEMENT

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
3. REMOVE CONSOLE BOX ASSEMBLY REAR




4. REMOVE VOLTAGE INVERTER ASSEMBLY

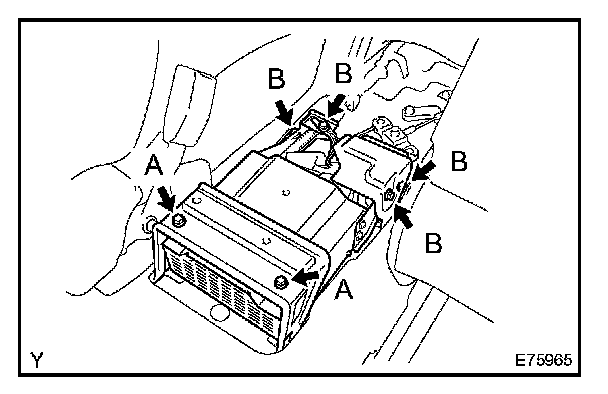

a. Remove the 6 bolts.

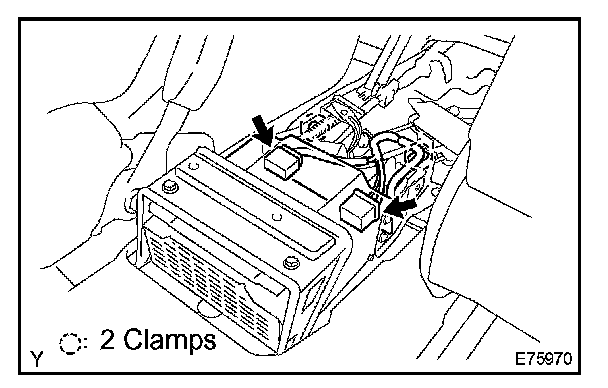

b. Disconnect the 2 connectors and remove the 2 wire harness clamps.




5. INSTALL VOLTAGE INVERTER ASSEMBLY

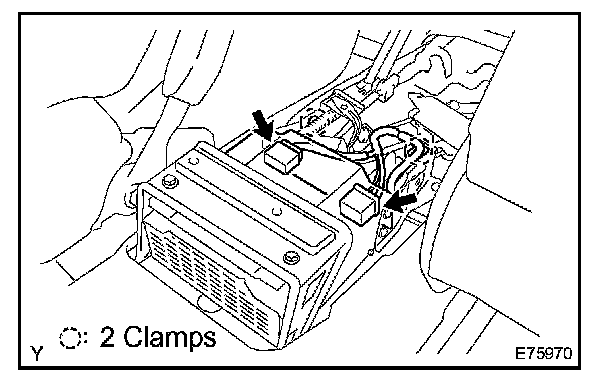

a. Connect the 2 connectors and install the 2 wire harness clamps.




b. Install the 6 bolts.

Torque:
7.5 N.m (76 kgf.cm, 66 in.lbf) for bolt A
15 N.m (153 kgf.cm, 11 ft.lbf) for bolt B

6. INSTALL CONSOLE BOX ASSEMBLY REAR
7. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
