Drive Belt: Testing and Inspection

INSPECT FAN AND GENERATOR V BELT

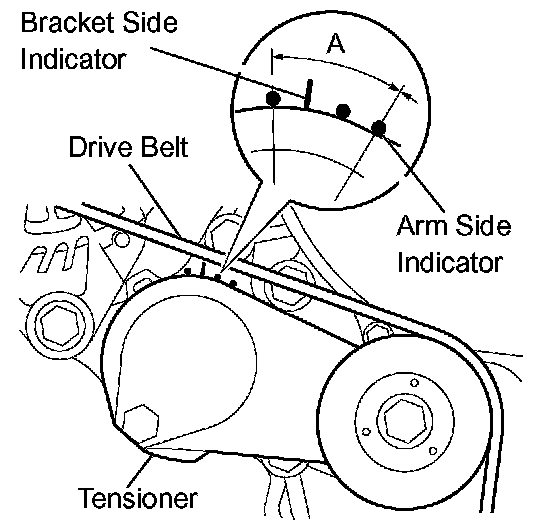

a. Check that the tensioner indicator mark is within range A shown in the illustration.
If the mark is not within range A, replace the V belt.
