Turn Signal Flasher: Testing and Inspection

INSPECT TURN SIGNAL FLASHER CIRCUIT (w/o Daytime Running Light)
a. Check the power source circuit and ground circuit.

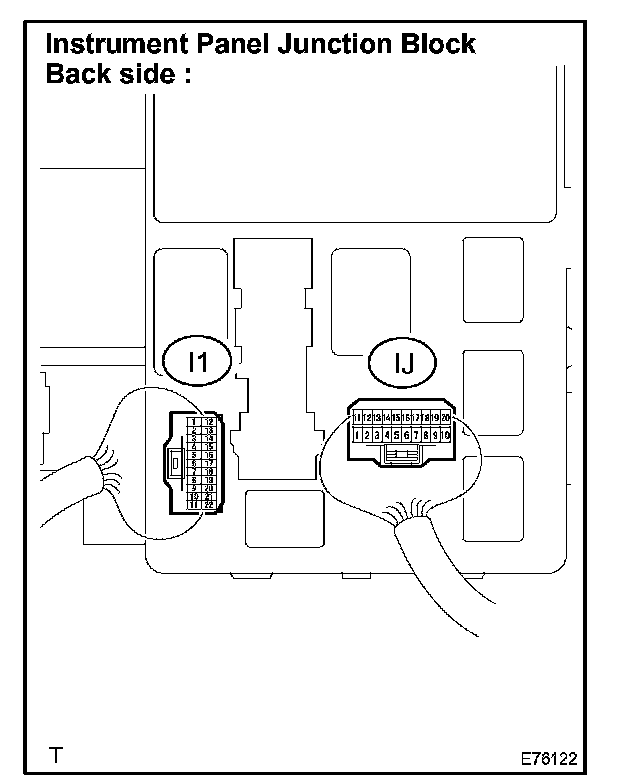

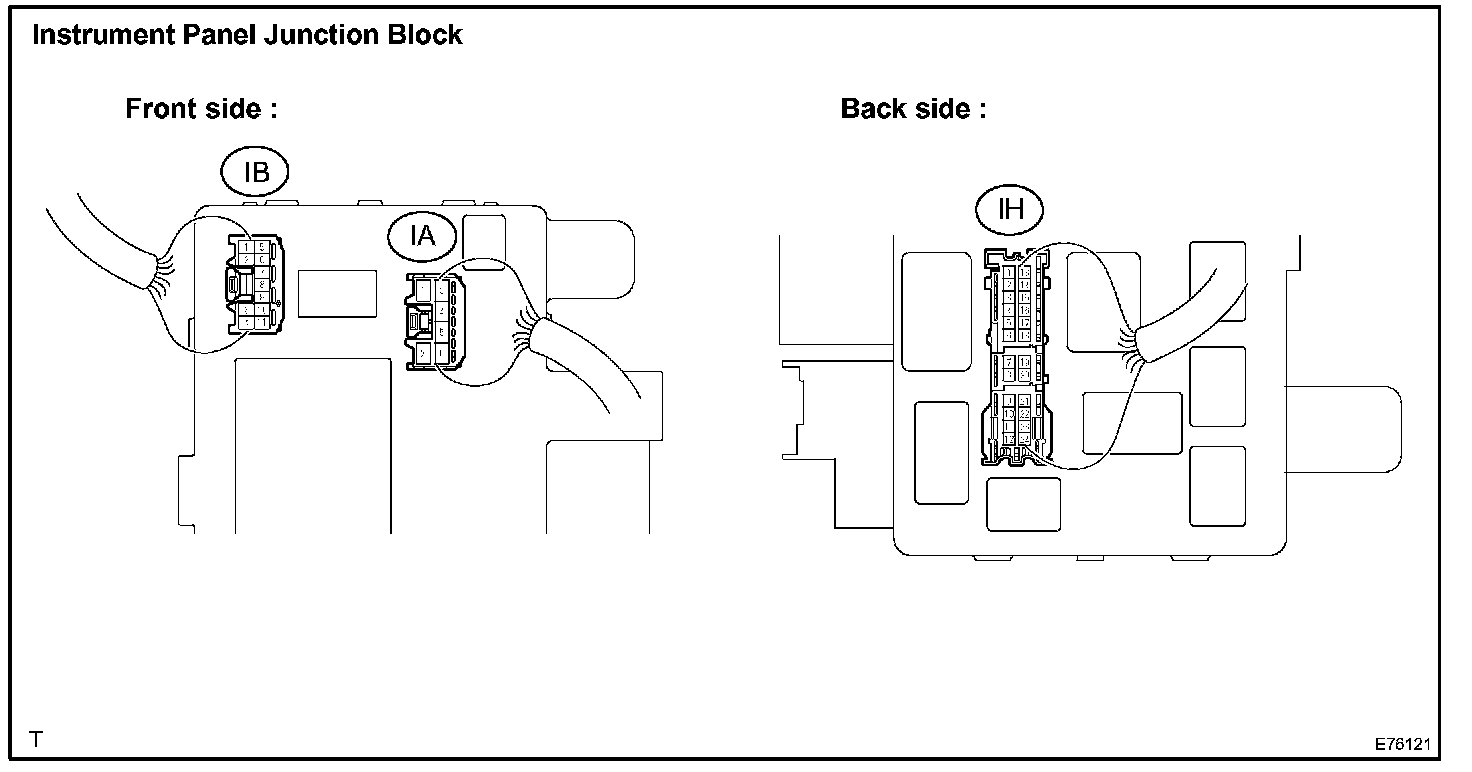

1. Remove the turn signal flasher assembly from the instrument panel junction block assembly.

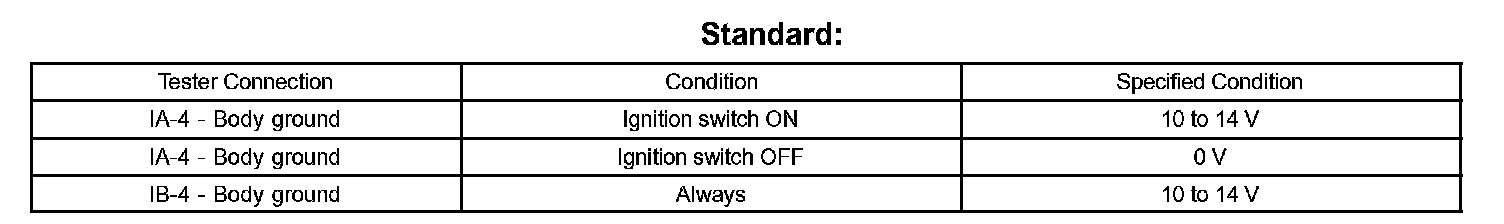

2. Measure the voltage and check the results in accordance with the value(s) in the table.

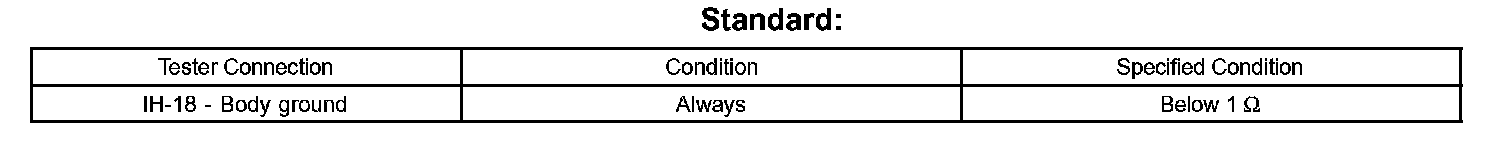

3. Measure the resistance and check the result in accordance with the value(s) in the table.




b. Check the output operation signal.
1. Install the turn signal flasher assembly onto the instrument panel junction block assembly.

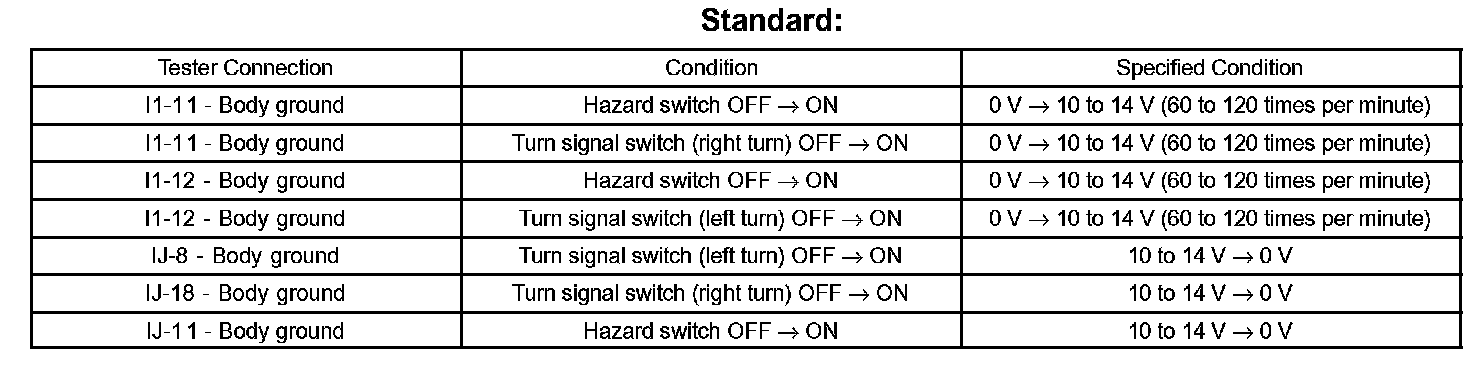

2. Measure the voltage and check the results in accordance with the value(s) in the table




INSPECT TURN SIGNAL FLASHER CIRCUIT (w/ Daytime Running Light)
a. Check the power source circuit and ground circuit.

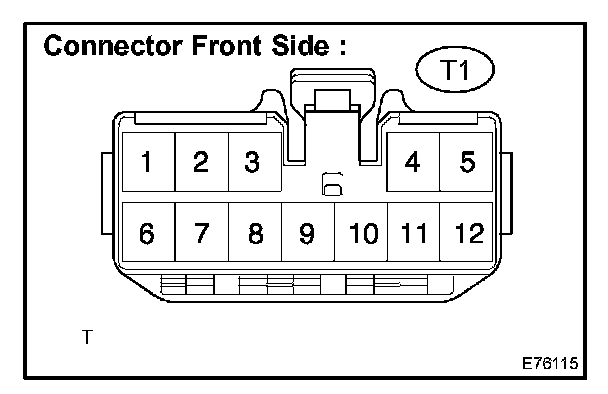

1. Disconnect the connector from the turn signal flasher assembly.

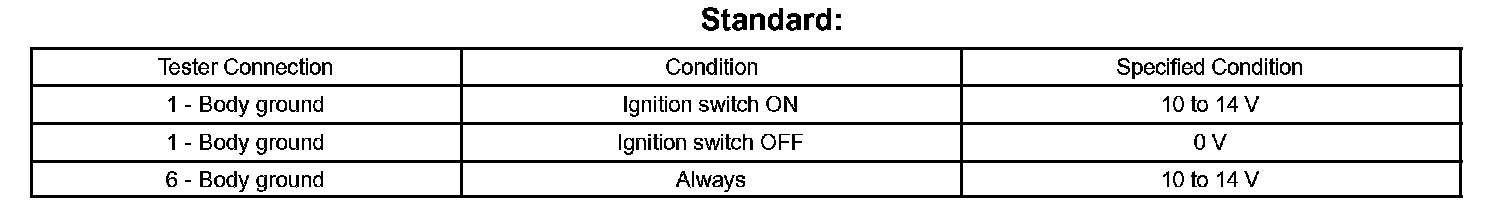

2. Measure the voltage and check the results in accordance with the value(s) in the table.

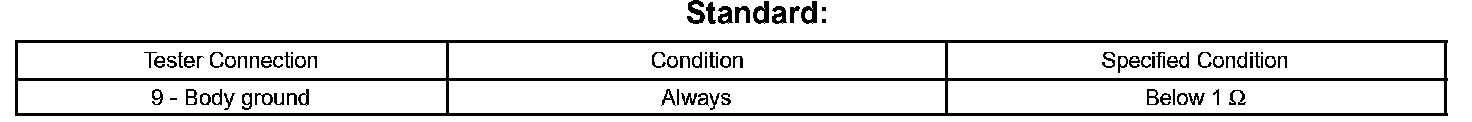

3. Measure the resistance and check the result in accordance with the value(s) in the table.

b. Check the output operation signal.

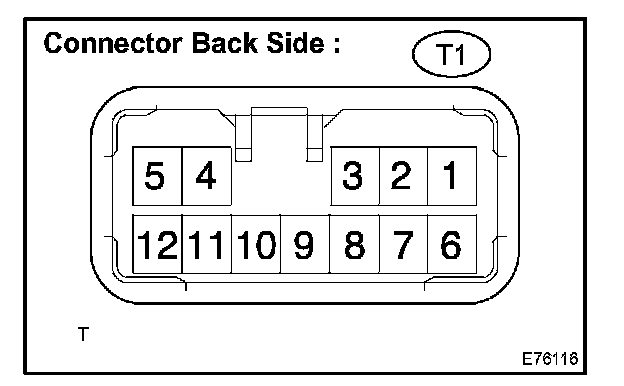

1. Connect the connector to the turn signal flasher assembly.

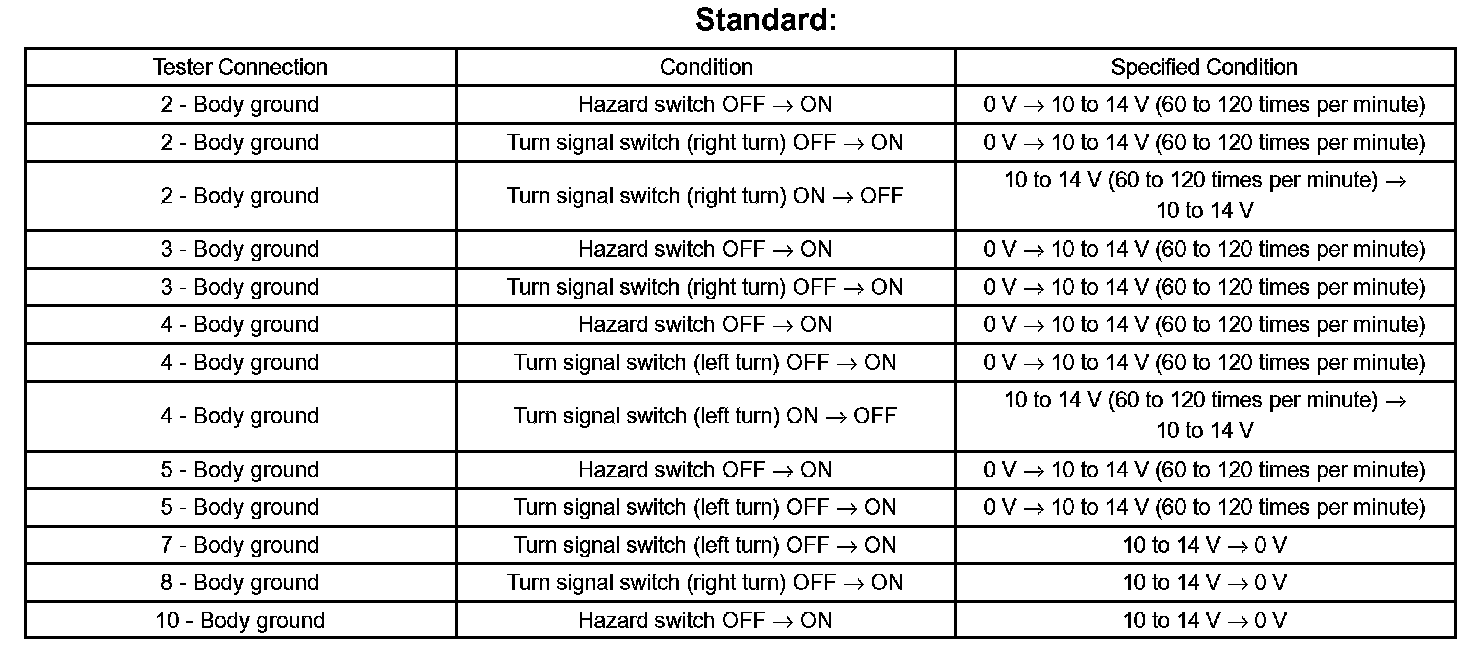

2. Measure the voltage and check the results in accordance with the value(s) in the table.
