Inspection

INSPECTION

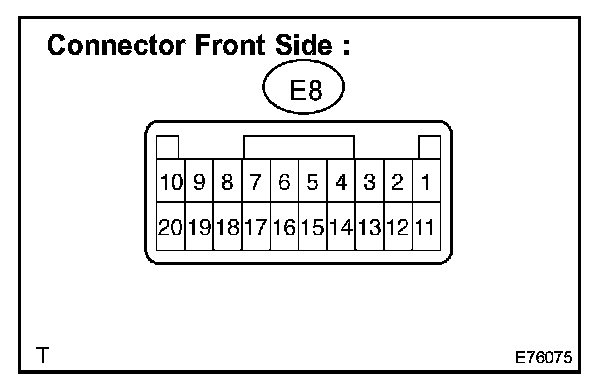

1. INSPECT HEADLAMP DIMMER SWITCH ASSEMBLY

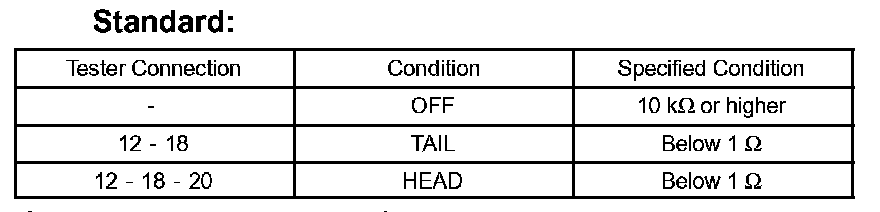

a. Check the resistance of the light control switch.
1. Measure the resistance using an ohmmeter, and check the results in accordance with the value(s) in the table.
If the result is not as specified, replace the headlamp dimmer switch assembly.

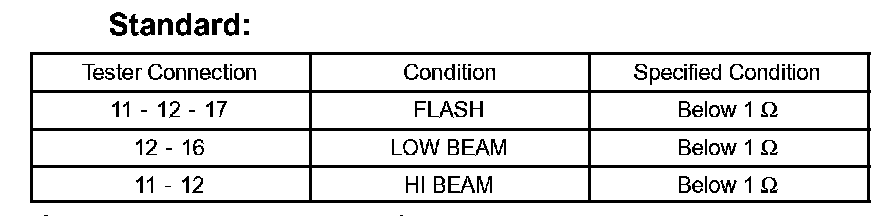

b. Check the resistance of the headlamp dimmer switch.
1. Measure the resistance using an ohmmeter, and check the results in accordance with the value(s) in the table.
If the result is not as specified, replace the headlamp dimmer switch assembly.

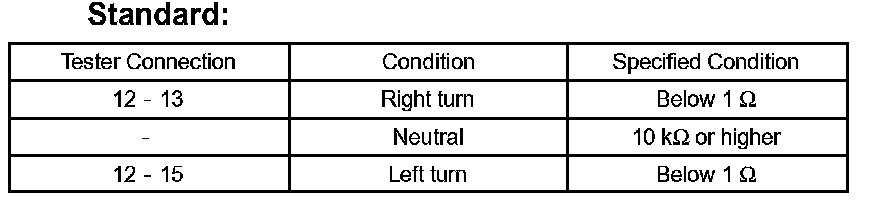

c. Check the resistance of the turn signal switch.
1. Measure the resistance using an ohmmeter, and check the results in accordance with the value(s) in the table.
If the result is not as specified, replace the headlamp dimmer switch assembly.

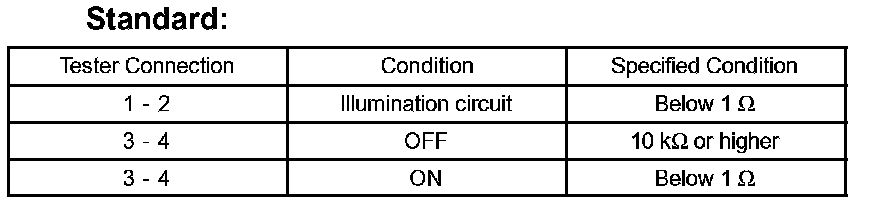

2. INSPECT FRONT FOG LAMP SWITCH

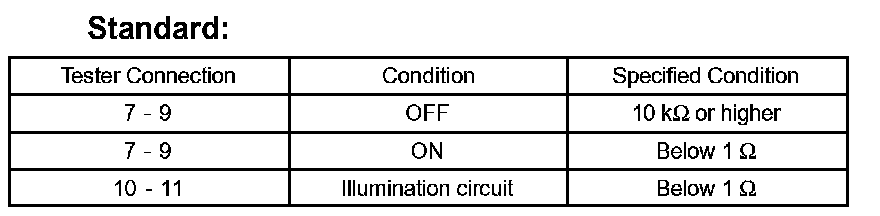

a. Check the resistance.
1. Measure the resistance using an ohmmeter, and check the results in accordance with the value(s) in the table.
If the result is not as specified, replace the front fog lamp switch assembly.

b. Check the illumination operation.
1. Connect the battery positive (+) lead to terminal 1 and the battery negative (-) lead to terminal 2, then check that the illumination comes on.

Standard: Illumination comes on.

If the illumination does not come on, replace the bulb.







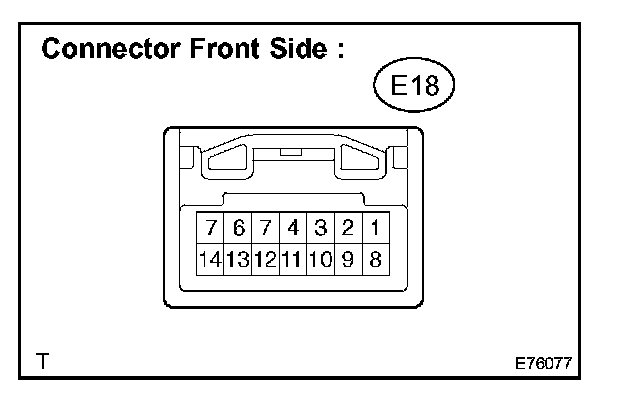

3. INSPECT HAZARD WARNING SIGNAL SWITCH ASSEMBLY
a. Check the resistance.
1. Measure the resistance using an ohmmeter, and check the results in accordance with the value(s) in the table.
If the result is not as specified, replace the hazard warning signal switch assembly.

b. Check the illumination operation.
1. Connect the battery positive (+) lead to terminal 11 and the battery negative (-) lead to terminal 10, then check that the illumination comes on.

Standard: Illumination comes on.

If the illumination does not come on, replace the bulb.




4. INSPECT FRONT DOOR COURTESY LAMP SWITCH ASSEMBLY

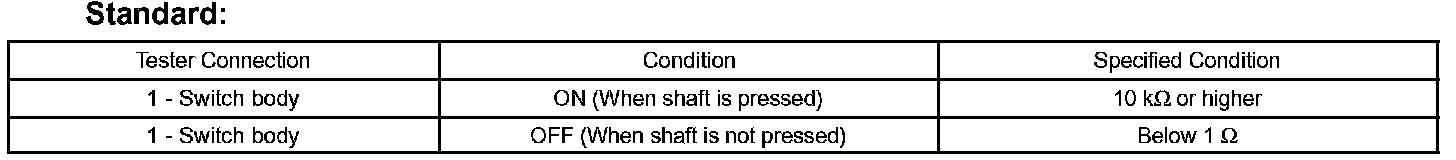

a. Check the resistance.
1. Measure the resistance using an ohmmeter, and check the results in accordance with the value(s) in the table.
If the result is not as specified, replace the front door courtesy lamp switch assembly.




5. INSPECT REAR DOOR COURTESY LAMP SWITCH ASSEMBLY
a. Check the resistance.
1. Measure the resistance using an ohmmeter, and check the results in accordance with the value(s) in the table.
If the result is not as specified, replace the rear door courtesy lamp switch assembly.

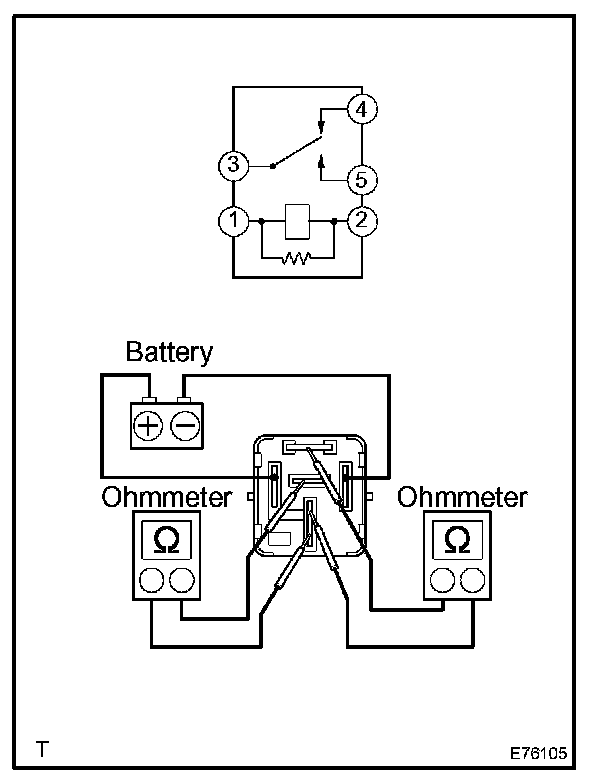

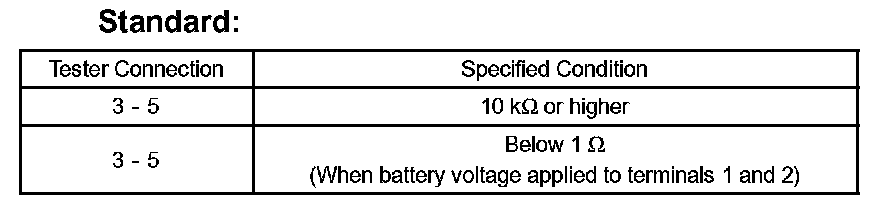

6. INSPECT HEADLAMP RELAY

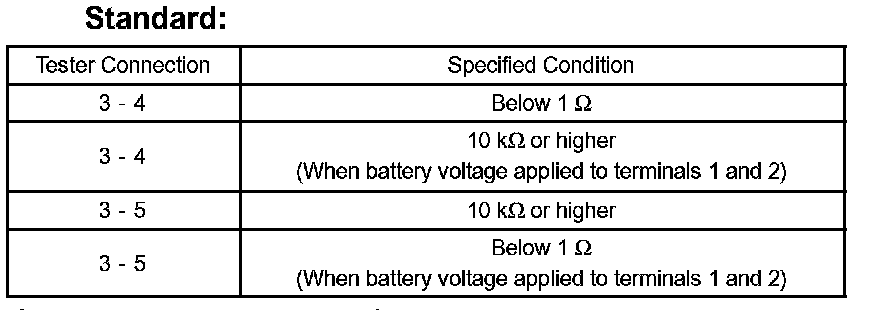

a. Check the resistance.
1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the headlamp relay.

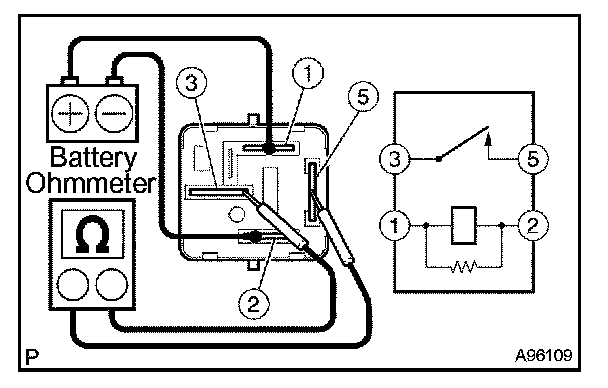

7. INSPECT TAIL LAMP RELAY

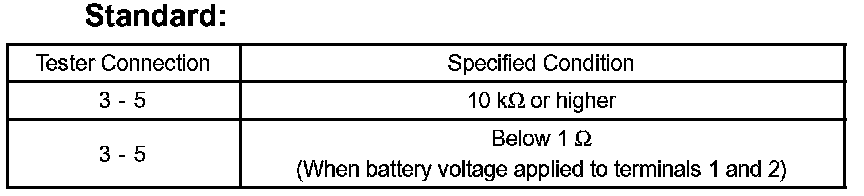

a. Check the resistance.
1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the tail lamp relay.

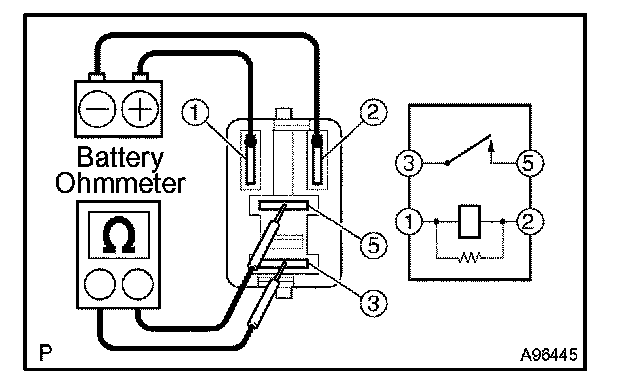

8. INSPECT FOG LAMP RELAY
a. Check the resistance.
1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the fog lamp relay.







9. INSPECT HEADLAMP DIMMER RELAY
a. Check the resistance.
1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the headlamp dimmer relay.







10. INSPECT TOWING CONVERTER RELAY
a. Check the resistance.
1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the towing converter relay.







11. INSPECT MAP LAMP ASSEMBLY
a. Check the resistance.
1. Measure the resistance using an ohmmeter, and check the results in accordance with the value(s) in the table.
If the result is not as specified, replace the map lamp assembly.

b. Check the lamp operation.
1. Connect the battery positive (+) lead to terminal 1 and the battery positive (-) lead to terminal 2, then check that the lamp comes on.

Standard: Lamp comes on.

If the lamp does not come on, replace the bulb.

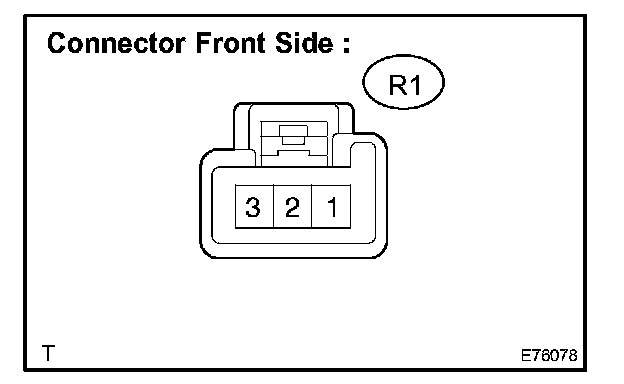

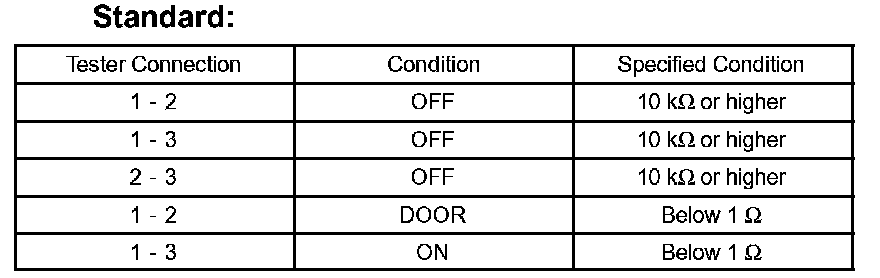

12. INSPECT ROOM LAMP ASSEMBLY NO.1
a. Check the resistance.
1. Measure the resistance using an ohmmeter, and check the results in accordance with the value(s) in the table.
If the result is not as specified, replace the room lamp assembly.

b. Check the lamp operation.
1. Connect the battery positive (+) lead to terminal 1 and the battery negative (-) lead to terminal 2, then check that the lamp comes on when the switch is in the DOOR position.

Standard: Lamp comes on.

If the lamp does not come on, replace the bulb.

2. Connect the battery positive (+) lead to terminal 1 and the battery negative (-) lead to terminal 3, then check that the lamp comes on when the switch is in the ON position.

Standard: Lamp comes on.

If the lamp does not come on, replace the bulb.







13. INSPECT STOP LAMP SWITCH ASSEMBLY
a. Check the resistance.
1. Measure the resistance using an ohmmeter, and check the results in accordance with the value(s) in the table.
If the result is not as specified, replace the stop lamp switch assembly.
